TRACER EX2 MANUAL WHEELCHAIR BY INVACARE Engineered for reliability and ease of maintenance, it offers adjustable seat heights, interchangeable components and foldable design for easy storage
TRACER EX2 CARBON STEEL FOLDING WHEELCHAIR BY INVACARE
Product Features
Constructed from carbon steel with a silver vein finish to provide long-lasting framework durability and reliable daily performance.

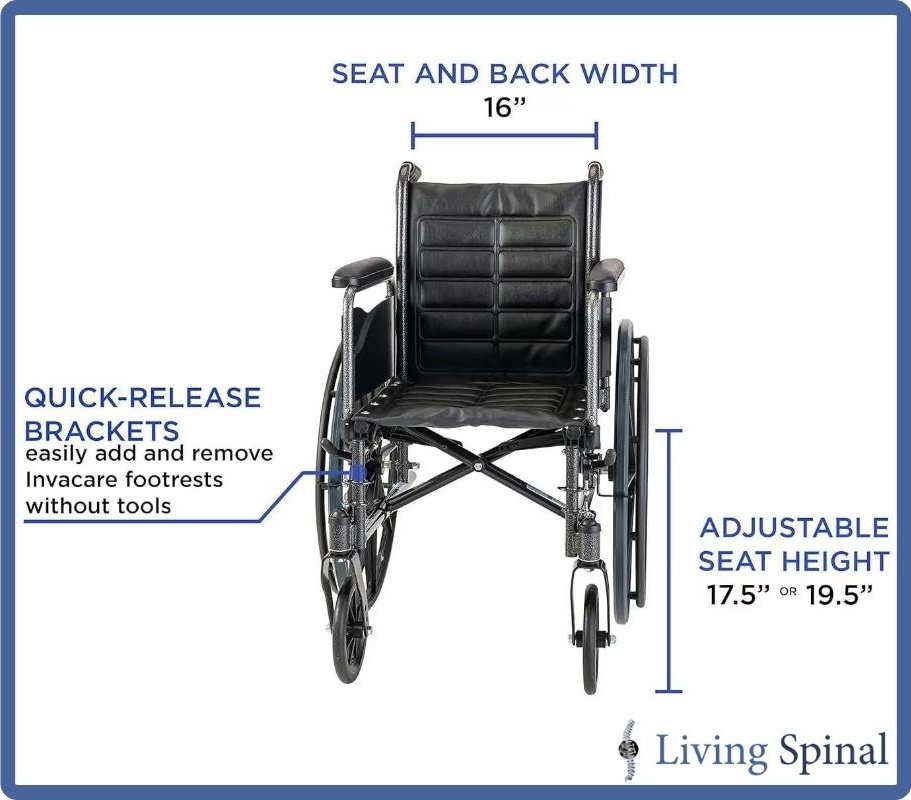

Allows the rear wheels and front casters to be repositioned between standard adult height (19.5") and a lower hemi height (17.5") to facilitate independent foot propulsion.

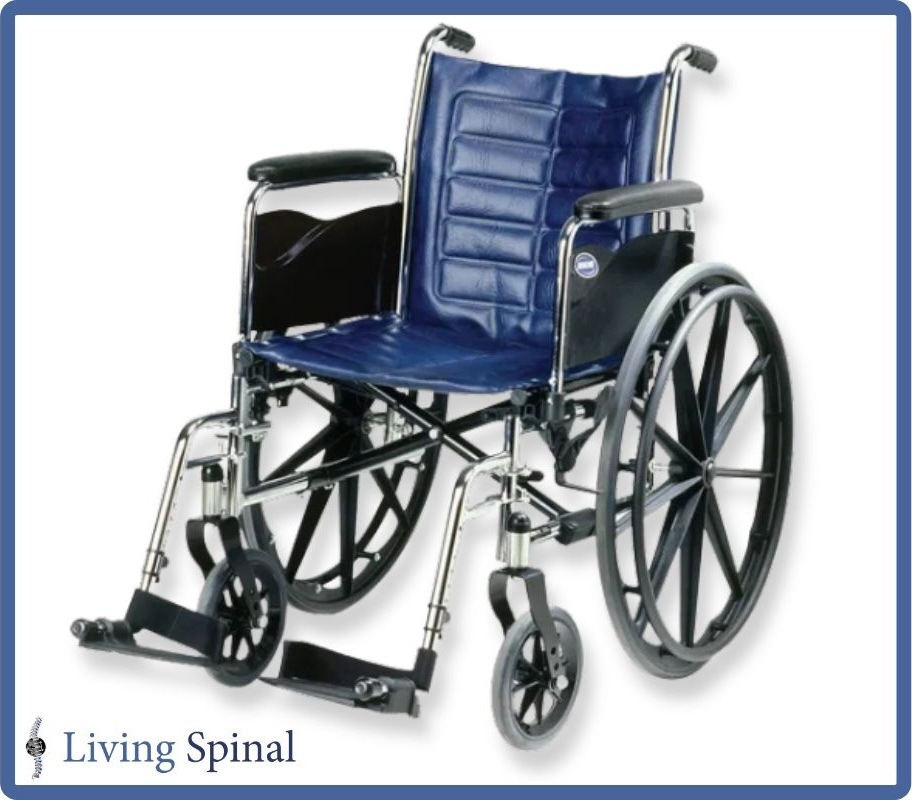

Features integrated heavy-duty inner liners within the seat and back upholstery to prevent sagging, ensuring continuous postural support.

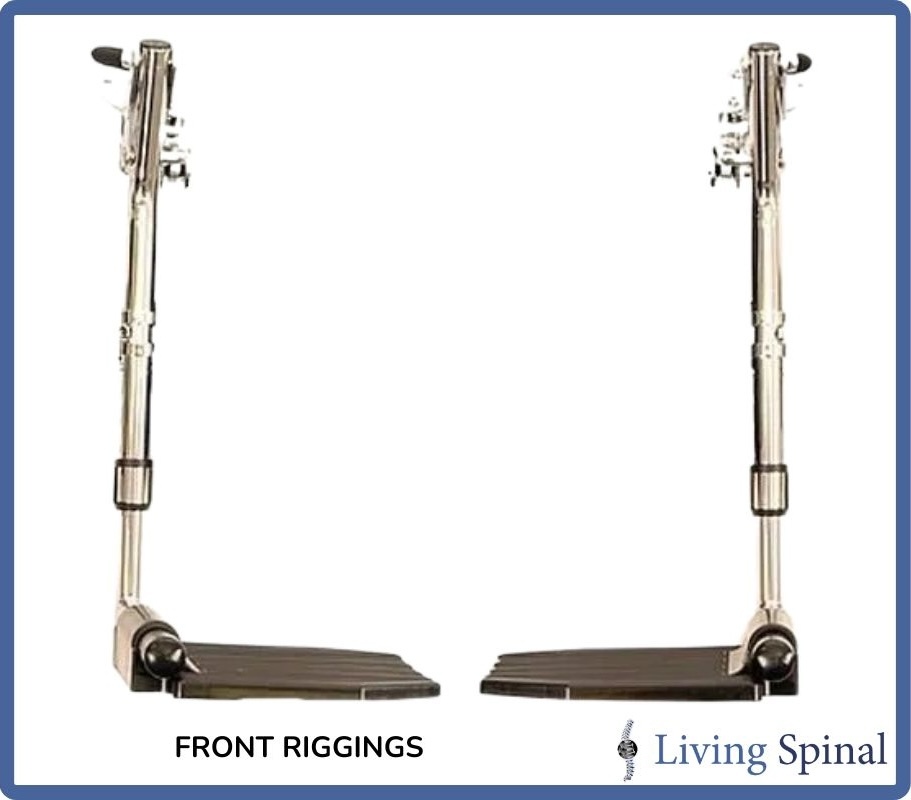

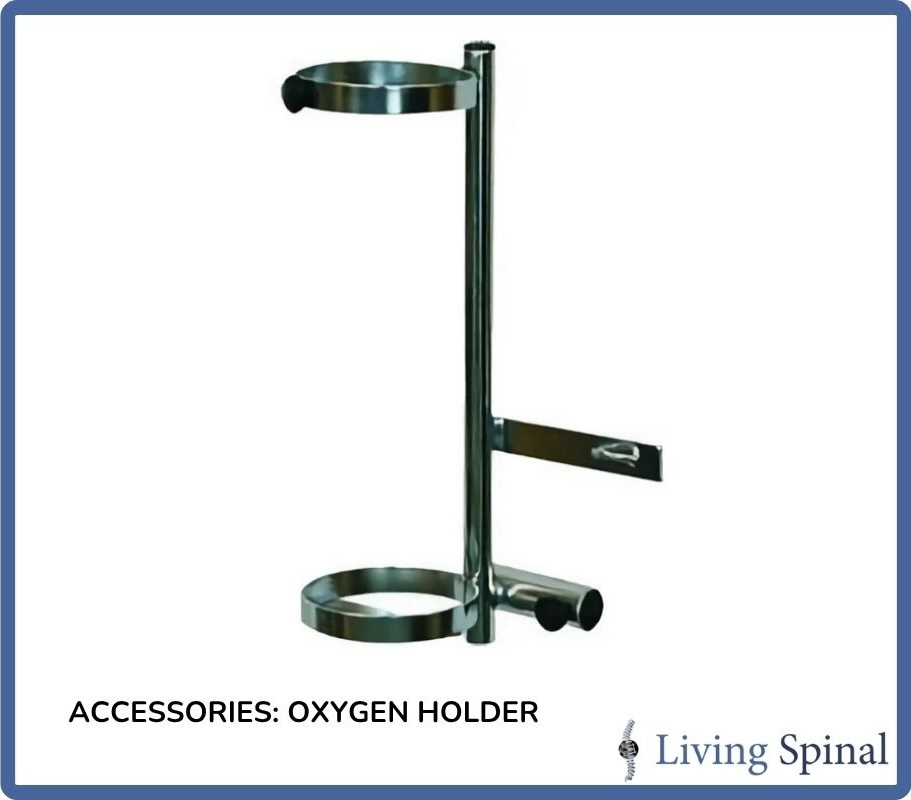

Incorporates the design and technology of the Invacare 9000 series, making its front riggings, armrests, and accessories fully cross-compatible.

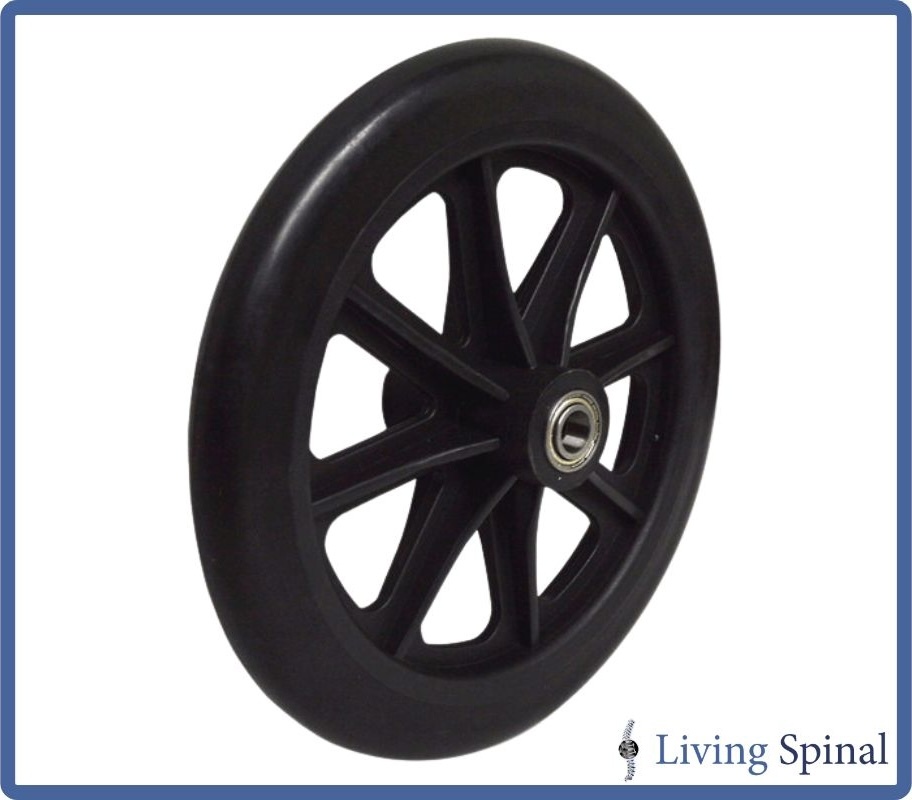

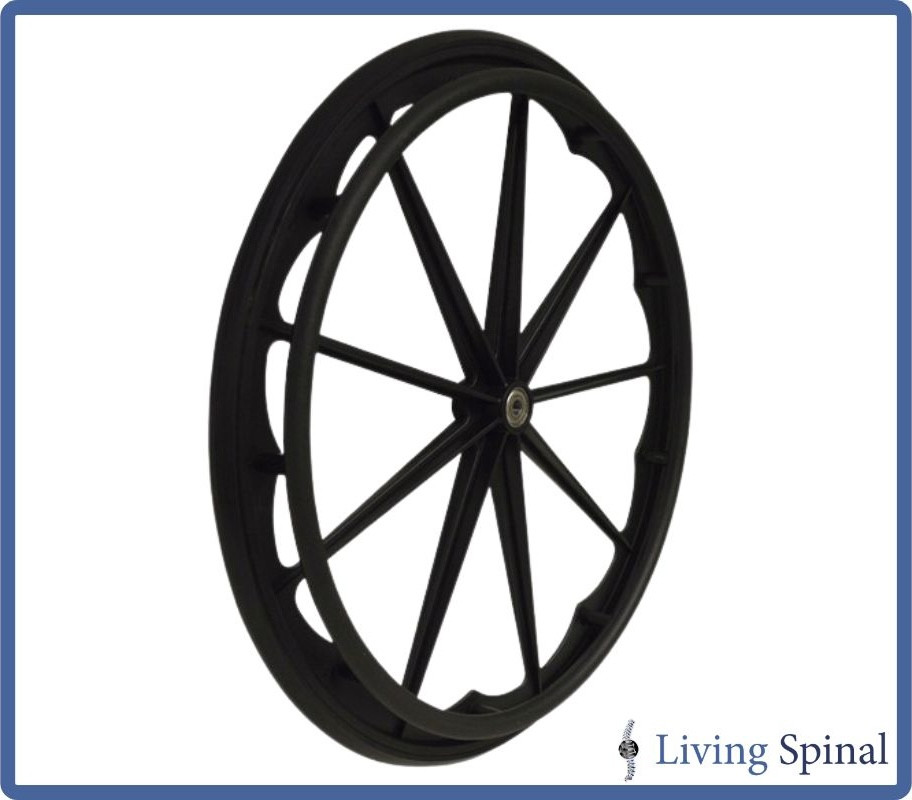

Equipped with low-maintenance, flat-free urethane rear tires mounted on rigid composite wheels with dual-sealed precision bearings for a smooth ride.

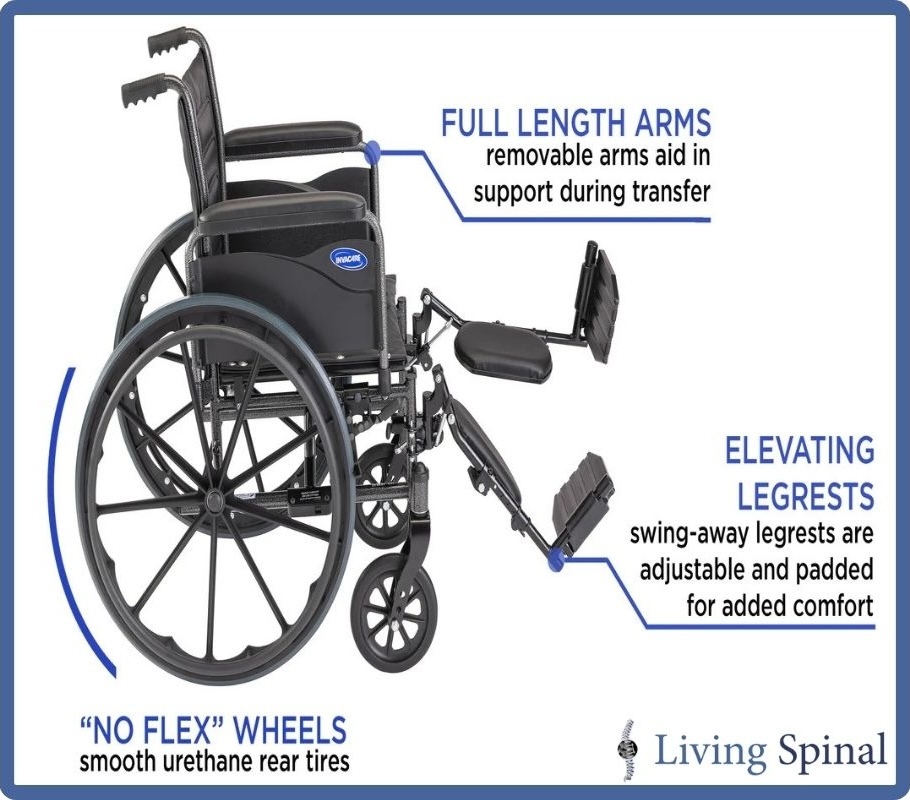

Available in permanent offset styles to optimize seat width space, or removable fixed-height configurations in desk-length or full-length variations.
INVACARE TRACER EX2 LIGHTWEIGHT FOLDING WHEELCHAIR
Product Specifications
| Specification | Details |
|---|---|
| Weight Capacity | 250 lbs. |
| Product Weight | 36 lbs. |
| Seat Width Options | 16" 18" 20" |
| Seat Depth Options | 16" |
| Seat-to-Floor Height | 17.5" to 19.5" |
| Back Height | 16" |
| Overall Width | Up to 28.50" |
| Folded Width | 13" |
| Overall Height | 53" |
| Front Wheel Size | 8" |
| Rear Wheel Size | 24" |
| Armrest Options | Padded Permanent Removable |
| Legrest Option | Elevating Swing-away |
Product Measurement and Sizing Guide
| Measurement | Details |
|---|---|
| 1 - Seat Depth | Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg |
| 2 - Back Height | Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate. |
| 3 - Rear Seat to Floor | Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat |
| 4 - Hanger Angle | Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular |
| 5 - Seat Width | Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant |
| 6 - Wheel Camber | Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber. |
| 7 - Front Seat to Floor | Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled® |
| 8 - Footrest Width | Measure from the inside of each legrest tubing the distance or desired distance between legrests |
| 9 - Center of Gravity | Measure from the front of the seat back post to the center of the rear axel. |
| 10 - Seat to Footrest Length | Measure from the edge of the seat upholstery to the top rear of the footrest. |
| 11 - Backrest Angle | Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump |
TRACER EX2 MANUAL WHEELCHAIR BY INVACARE DOWNLOADS
TRACER EX2 USER MANUAL TRACER EX2 BROCHURE TRACER EX2 ORDER FORM
Tracer EX2 Manual Wheelchair by Invacare Buyer’s Guide
The Tracer EX2 Manual Wheelchair by Invacare is a highly dependable independent mobility solution designed to provide reliable transport and long-term durability. Built on a robust carbon steel frame, this manual wheelchair is engineered for everyday use in both clinical environments and private residences. By combining structural strength with a practical, low-maintenance design, it ensures users can navigate indoor and outdoor surfaces with confidence and minimal effort.
Tracer Dual Axle Position Stability
A standout engineering highlight of the Tracer line is its built-in dual-axle positioning system. This integrated mechanical design allows caregivers or users to alter the seat-to-floor height between standard and hemi levels without purchasing a separate frame. Lowering the seat height allows individuals to use their feet to propel the chair forward, expanding functional independent mobility options for users with varying physical capabilities.
Invacare Carbon Steel Frame Strength
The foundation of this chair relies on the signature Invacare heavy-duty carbon steel frame, which delivers exceptional structural integrity under regular operational loads. This robust frame configuration is built to resist bending and warping over years of continuous deployment. Despite its rigid strength, the frame incorporates a cross-brace design that allows the entire structure to fold flat easily, simplifying transport in vehicle trunks or compact storage closets.
Standard Upholstery and Armrest Configurations
This model features standard dual-embossed vinyl upholstery that offers a comfortable, supportive seating area while remaining exceptionally easy to wipe down and clean. The seat and backrest materials resist stretching over time, ensuring consistent spinal support. Additionally, the chair is available with permanent or removable armrests, allowing users to select the right setup for side transfers or fitting comfortably beneath dining tables and desks.
Low-Maintenance Composite Wheel Construction
To ensure a smooth ride across diverse terrain, the wheelchair is outfitted with heavy-duty composite rear wheels and durable front casters. These wheels are designed to withstand daily impact without requiring frequent adjustments or spoke maintenance. The non-marking tires ensure that indoor flooring remains free of scuffs, while the integrated wheel locks provide immediate, reliable stationary braking when transferring in and out of the chair.
Versatile Component Options for Caregiver Assistance
Beyond self-propelling capabilities, the chair is optimized to assist caregivers during daily transport tasks. The integrated rear push handles provide ergonomic grip points for manual steering and pushing over ramps or uneven outdoor paths. The front rigging options, including swing-away footrests or elevating leg rests, can be quickly detached or adjusted to maximize leg comfort and facilitate safe entry and exit from the seating system.
Tracer EX2 Manual Wheelchair by Invacare Review
The Tracer EX2 Manual Wheelchair by Invacare stands out as a top-tier industry standard choice for users seeking a durable and adaptable mobility platform. Featuring a dual-axle frame configuration, resilient carbon steel construction, and low-maintenance composite wheels, it delivers consistent support for everyday transportation needs. Its straightforward mechanical layout and dependable build make this wheelchair a practical choice for enhancing mobility and maintaining daily freedom.
No Buyers info available
Limited Warranty
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser who purchases this product when new and unused from Invacare or a dealer. This warranty is not extended to any other person or entity and is not transferable or assignable to any subsequent purchaser or owner. Coverage under this warranty will end upon any such subsequent sale or other transfer of title to any other person.
This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
Invacare warrants the side frames and cross members of this product when purchased new and unused to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. Invacare warrants the upholstered materials (seat, back and armrests of the arm assembly) and remaining components of this product when purchased new and unused to be free from defects in materials and workmanship for a period of thirteen (13) months from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. If within such warranty periods any such product shall be proven to be defective, such product shall be repaired or replaced, at Invacare’s option. This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of any such product. Invacare’s sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty service, please write directly to Invacare at the address at the bottom of this page. Provide dealer’s name, address, the product model number, date of purchase, indicate nature of the defect and, if the product is serialized, indicate the serial number. Do not return products to our factory without our prior consent.
LIMITATIONS AND EXCLUSIONS: THE FOREGOING WARRANTY SHALL NOT APPLY TO SERIAL NUMBERED PRODUCTS IF THE SERIAL NUMBER HAS BEEN REMOVED OR DE-FACED, PRODUCTS SUBJECTED TO NEGLIGENCE, ACCIDENT, IMPROPER OPERATION, MAINTENANCE OR STORAGE, PRODUCTS MODIFIED WITHOUT INVACARE’S EXPRESS WRITTEN CONSENT INCLUDING, BUT NOT LIMITED TO, MODIFICATION THROUGH THE USE OF UNAUTHORIZED PARTS OR ATTACHMENTS; PRODUCTS DAMAGED BY REASON OF REPAIRS MADE TO ANY COMPONENT WITHOUT THE SPECIFIC CONSENT OF INVACARE, OR TO A PRODUCT DAMAGED BY CIRCUMSTANCES BEYOND INVACARE’S CONTROL, AND SUCH EVALUATION WILL BE SOLELY DETERMINED BY INVACARE. THE WARRANTY SHALL NOT APPLY TO NORMAL WEAR AND TEAR OR FAILURE TO ADHERE TO THE PRODUCT INSTRUCTIONS.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES WHATSOEVER, WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND THE SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGE, OR LIMITATION OF HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION AND LIMITATION MAY NOT BE APPLICABLE.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.
