INVACARE TRACER IV HEAVY-DUTY MANUAL WHEELCHAIR Durable folding wheelchair with reinforced steel frame, 350 lb capacity, and reliable support for rehab, hospital, and home care.
TRACER IV CARBON STEEL BARIATRIC WHEELCHAIR BY INVACARE
Product Features
Built with gusseted sides, double cross-braces, and heavy-duty welds to ensure structural integrity and user safety under higher weight loads.
Features an adjustable rear axle setup that allows the seat-to-floor height to be configured for standard adult use or lower hemi-height configurations for foot propulsion.
Equipped with a dual-liner seat and back section to prevent sagging and maintain proper postural support over extended periods of use.
The seating material is secured using heavy-duty metal grommets to resist tearing at the screw holes and extend the overall lifespan of the upholstery.
Utilizes flat-free urethane tires mounted on composite wheels with sealed precision bearings to deliver a smooth, reliable roll across various indoor and outdoor surfaces.
Features reinforced front caster forks that resist wobbling and flexing under heavy loads, improving tracking and steering stability.
ENHANCED WEIGHT SUPPORT TRACER IV FOLDING WHEELCHAIR
Product Specifications
| Specification | Details |
|---|---|
| Weight Capacity | 350 lbs - 450 lbs. |
| Product Weight | 42 lbs. and 52 lbs. |
| Seat Width Options | 18" - 24" |
| Seat Depth Options | 18" and 20" |
| Seat-to-Floor Height | 17.5", 19.5" |
| Back Height | 16" |
| Overall Width | 32.25" |
| Folded Width | 13" |
| Overall Height | 36" |
| Wheel Size | 24" |
| Armrest Options | Full Length Removable |
| Upholstery | Nylon, Vinyl |
Product Measurement and Sizing Guide
| Measurement | Details |
|---|---|
| 1 - Seat Depth | Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg |
| 2 - Back Height | Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate. |
| 3 - Rear Seat to Floor | Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat |
| 4 - Hanger Angle | Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular |
| 5 - Seat Width | Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant |
| 6 - Wheel Camber | Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber. |
| 7 - Front Seat to Floor | Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled® |
| 8 - Footrest Width | Measure from the inside of each legrest tubing the distance or desired distance between legrests |
| 9 - Center of Gravity | Measure from the front of the seat back post to the center of the rear axel. |
| 10 - Seat to Footrest Length | Measure from the edge of the seat upholstery to the top rear of the footrest. |
| 11 - Backrest Angle | Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump |
TRACER IV MANUAL WHEELCHAIR BY INVACARE DOWNLOADS
TRACER IV USER MANUAL TRACER IV BROCHURE
Tracer IV Heavy Duty Manual Wheelchair by Invacare Buyer’s Guide
The Tracer IV Heavy Duty Manual Wheelchair by Invacare is a reinforced mobility solution engineered for individuals who require exceptional frame strength and broader seating dimensions. Built to withstand the demands of frequent daily use, this chair combines a robust carbon steel frame with low-maintenance components. It serves as a dependable utility choice for hospitals, care facilities, and home environments where long-term durability and structural integrity are paramount.
Invacare Reinforced Structural Frame Design
The foundation of this mobility aid relies on a premium, triple chrome-plated carbon steel chassis engineered by Invacare. The design incorporates gusseted sides, reinforced caster journals, and 14-gauge dual cross braces that prevent the frame from flexing under load. This intensive reinforcement ensures that the wheelchair maintains a true, straight track during self-propulsion while resisting the typical wear and tear associated with navigating thresholds and uneven surfaces.
Heavy-Duty Weight Capacities for Extended Reliability
Engineered explicitly for heavy-duty performance, this model is built to accommodate higher weight demands without sacrificing maneuverability. The standard configuration reliably supports up to 350 pounds, while an upgraded high-capacity package elevates the structural threshold to support up to 450 pounds. This enhanced capability ensures that the mechanical joints and axles remain secure and stable, providing peace of mind to both users and caregivers.
Bariatric Seating Accommodations and Sag Prevention
To ensure proper posture and long-term comfort, the bariatric seating options range up to 24 inches in width. The seat and backrest are upholstered in heavy-duty, dual-embossed vinyl that features a specialized inner liner designed to combat material stretch. This anti-sagging liner ensures the seat stays firm and flat over years of use, preventing the user from slipping into a poor pelvic alignment that can cause lower back discomfort.
Adjustable Dual-Axle System for Custom Wheelchair Height
A key mechanical advantage of this manual model is its integrated dual-axle positioning system. This feature allows technicians or caregivers to alter the seat-to-floor height between a standard adult profile of 19.5 inches and a lower hemi-height configuration of 17.5 inches. Lowering the frame allows shorter users to comfortably reach the ground, facilitating independent foot-propulsion and making the chair highly adaptable to individual physical requirements.

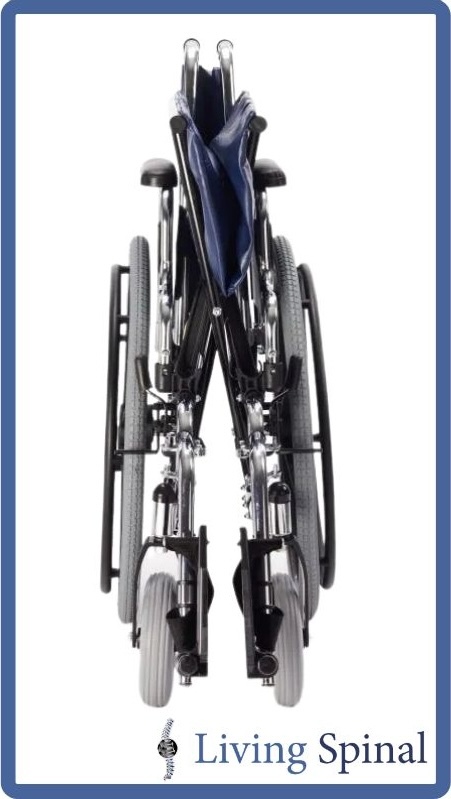

Convenient Folding Mechanics and Transport Profile

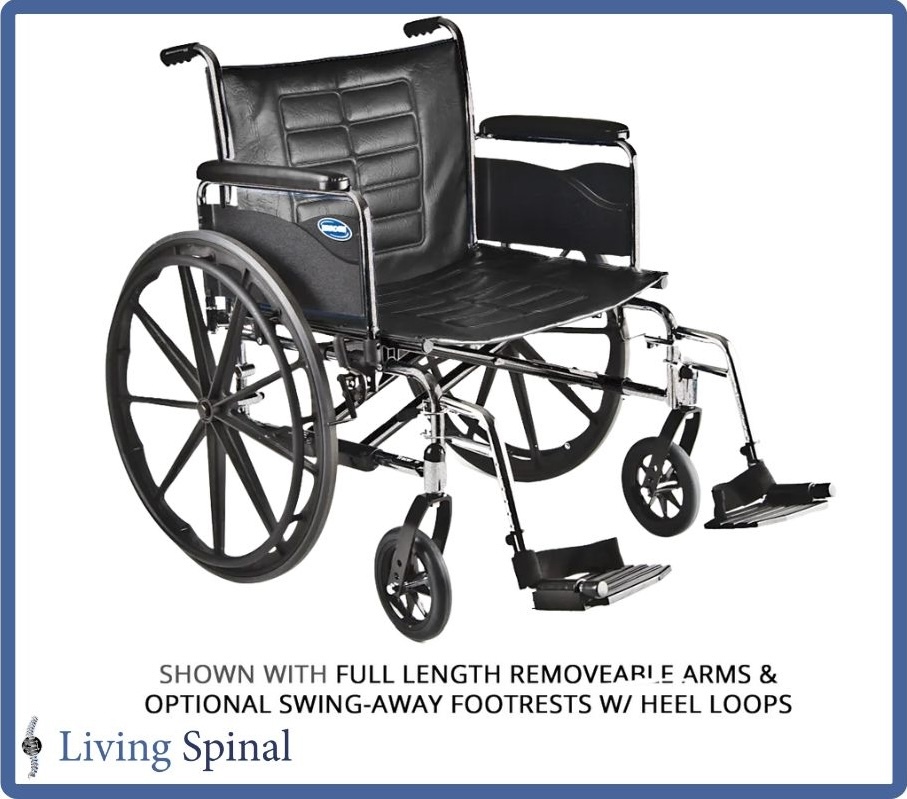

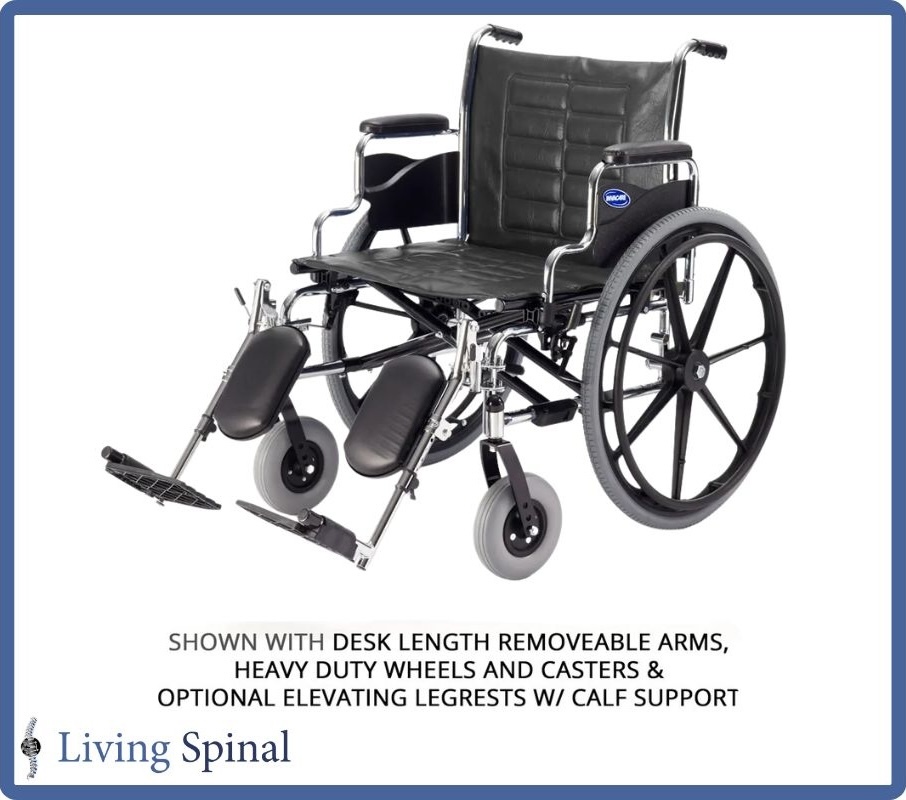

Despite its massive structural strength, the wheelchair features a highly functional folding design that collapses to a compact width of just 13 inches. The removable armrests—available in desk-length for table access or full-length for maximum forearm support—can be quickly detached to lighten the frame or simplify transfers. This collapsible nature allows the heavy chair to be packed into vehicle trunks or stored away efficiently in tight spaces.
Tracer IV Heavy Duty Manual Wheelchair by Invacare Review
The Tracer IV Heavy Duty Manual Wheelchair by Invacare stands out as a top-tier choice for individuals requiring an uncompromising, high-capacity mobility solution. Its dual cross brace design, stretch-resistant bariatric upholstery, and adjustable dual-axle system deliver an excellent balance of clinical utility and daily reliability. By prioritizing low-maintenance operation and immense frame resilience, this manual wheelchair provides dependable, long-term support that ensures user safety and independent mobility.
No Buyers info available
Limited Warranty
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser who purchases this product when new and unused from Invacare or a dealer. This warranty is not extended to any other person or entity and is not transferable or assignable to any subsequent purchaser or owner. Coverage under this warranty will end upon any such subsequent sale or other transfer of title to any other person.
This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state. Invacare warrants the side frames and cross members of this product when purchased new and unused to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. Invacare warrants the upholstered materials (seat, back and armrests of the arm assembly) and remaining components of this product when purchased new and unused to be free from defects in materials and workmanship for a period of thirteen (13) months from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. If within such warranty periods any such product shall be proven to be defective, such product shall be repaired or replaced, at Invacare’s option. This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of any such product. Invacare’s sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty service, please write directly to Invacare at the address at the bottom of this page. Provide dealer’s name, address, the product model number, date of purchase, indicate nature of the defect and, if the product is serialized, indicate the serial number. Do not return products to our factory without our prior consent.
Limitations and Exclusions: The foregoing warranty shall not apply to serial numbered products if the serial number has been removed or defaced, products subjected to negligence, accident, improper operation, maintenance or storage, products modified without Invacare’s express written consent including, but not limited to, modification through the use of unauthorized parts or attachments; products damaged by reason of repairs made to any component without the specific consent of Invacare, or to a product damaged by circumstances beyond Invacare’s control, and such evaluation will be solely determined by Invacare. The warranty shall not apply to normal wear and tear or failure to adhere to the product instructions.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES WHATSOEVER, WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND THE SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGE, OR LIMITATION OF HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION AND LIMITATION MAY NOT BE APPLICABLE.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.
