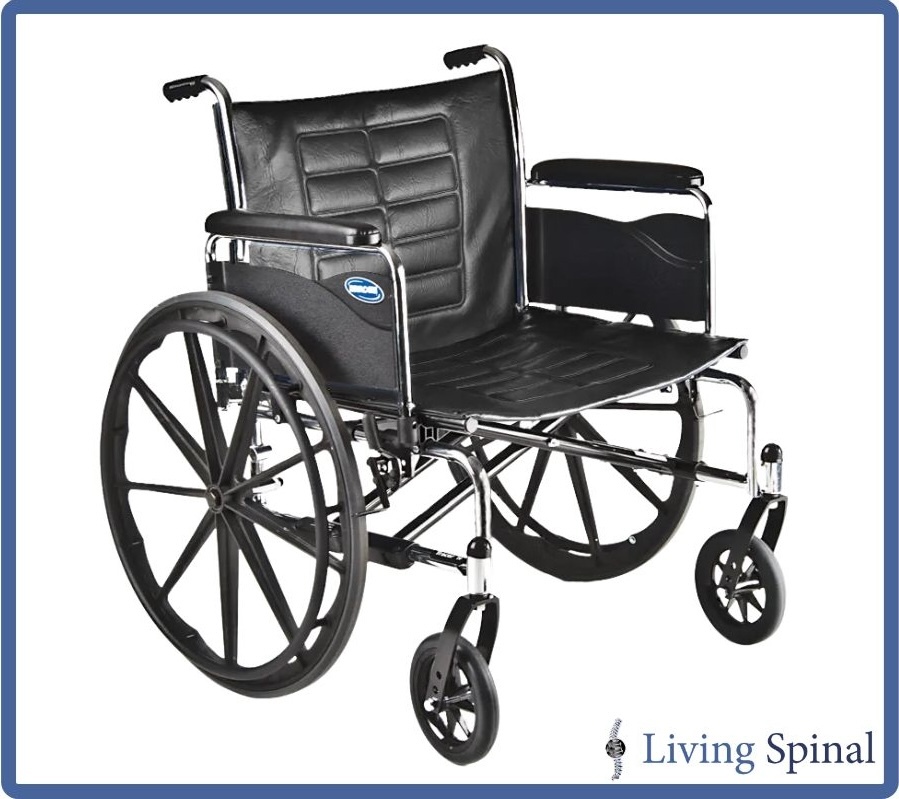

TRACER IV HEAVY DUTY MANUAL WHEELCHAIR (STANDARD) BY INVACARE Invacare Tracer IV Heavy Duty Wheelchair delivers reliable support with a durable steel frame, foldable construction, and 350 lb weight capacity.
BARIATRIC MOBILITY INVACARE TRACER IV WHEELCHAIR
Product Features
DUAL AXLE POSITIONING
Features adjustable axle mounting positions that allow seat height customization, helping optimize comfort, accessibility, and wheelchair propulsion efficiency.
FOLDING FRAME DESIGN
Designed with a foldable frame that simplifies storage and transportation, making it convenient for travel, vehicle loading, and compact storage spaces.
350 LBS WEIGHT CAPACITY
Engineered to safely support users up to 350 lbs, providing reliable performance and stability for bariatric and larger-framed individuals.
COMPOSITE HANDRIMS AND WHEELS
Incorporates durable composite handrims and wheel components that provide reliable performance, reduced maintenance requirements, and smooth maneuverability.

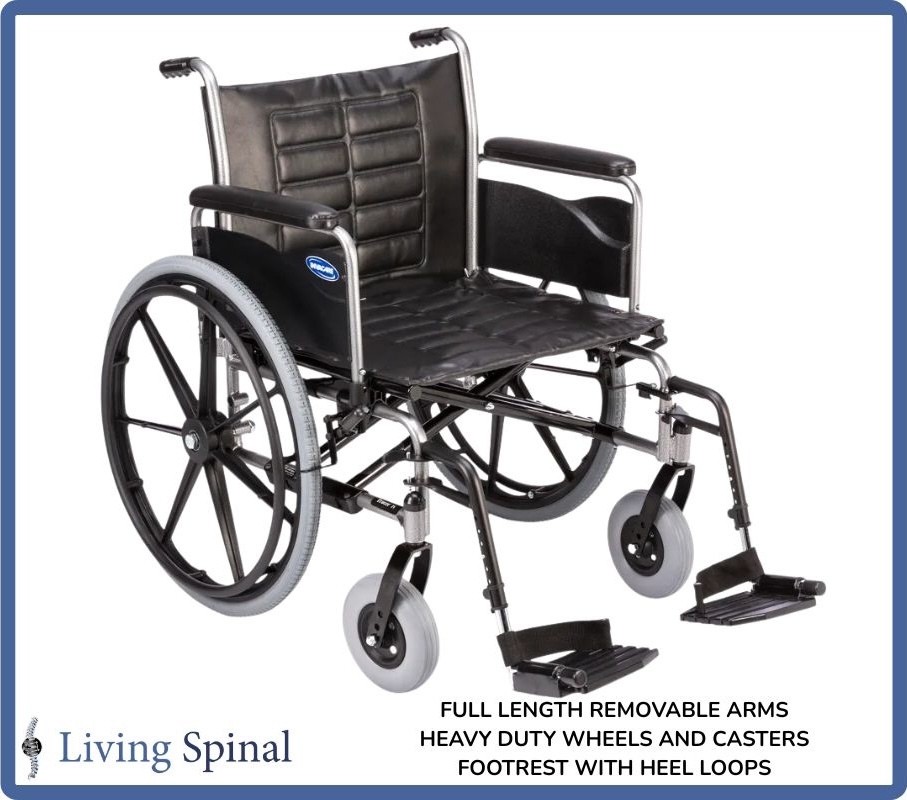

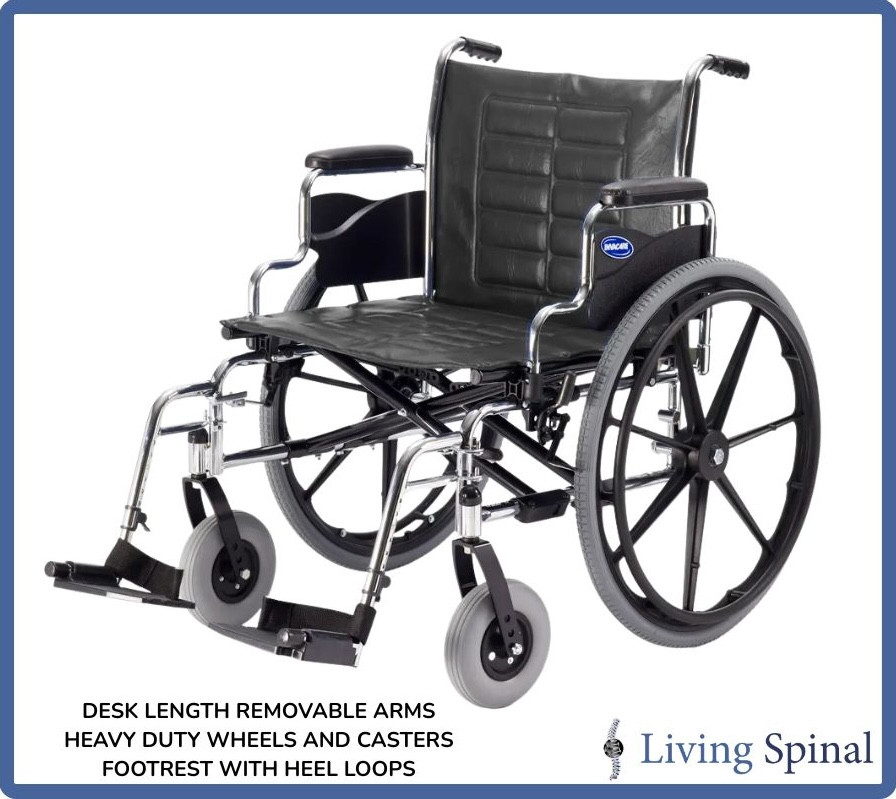

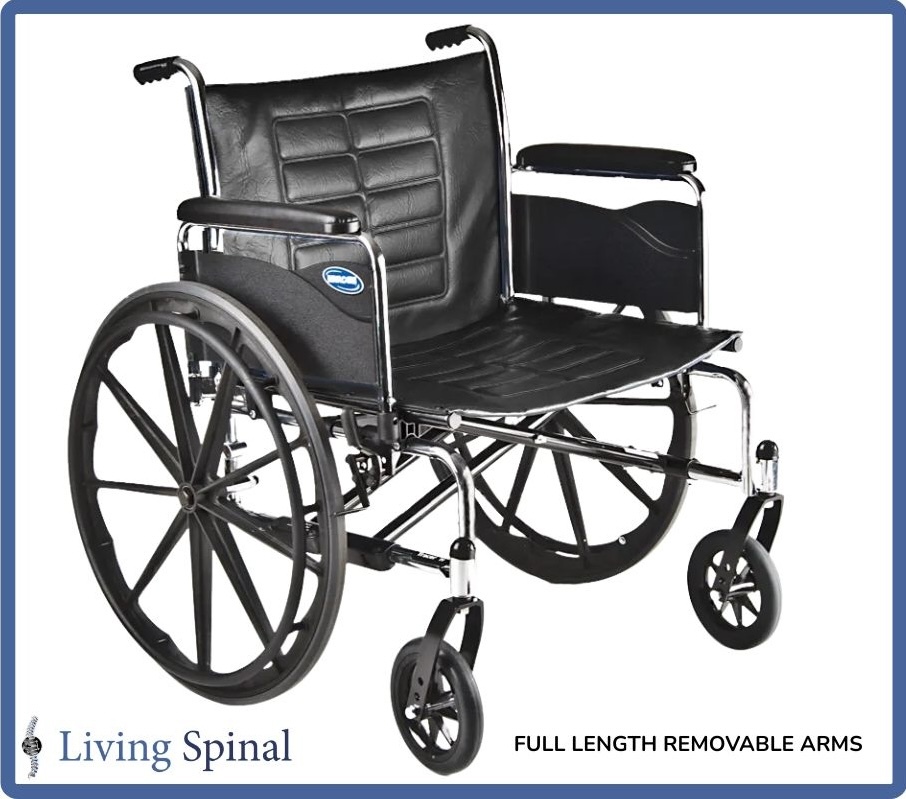

MULTIPLE ARMREST OPTIONS
Available with desk-length or full-length armrests, allowing users to select the configuration that best supports comfort, accessibility, and daily activities.

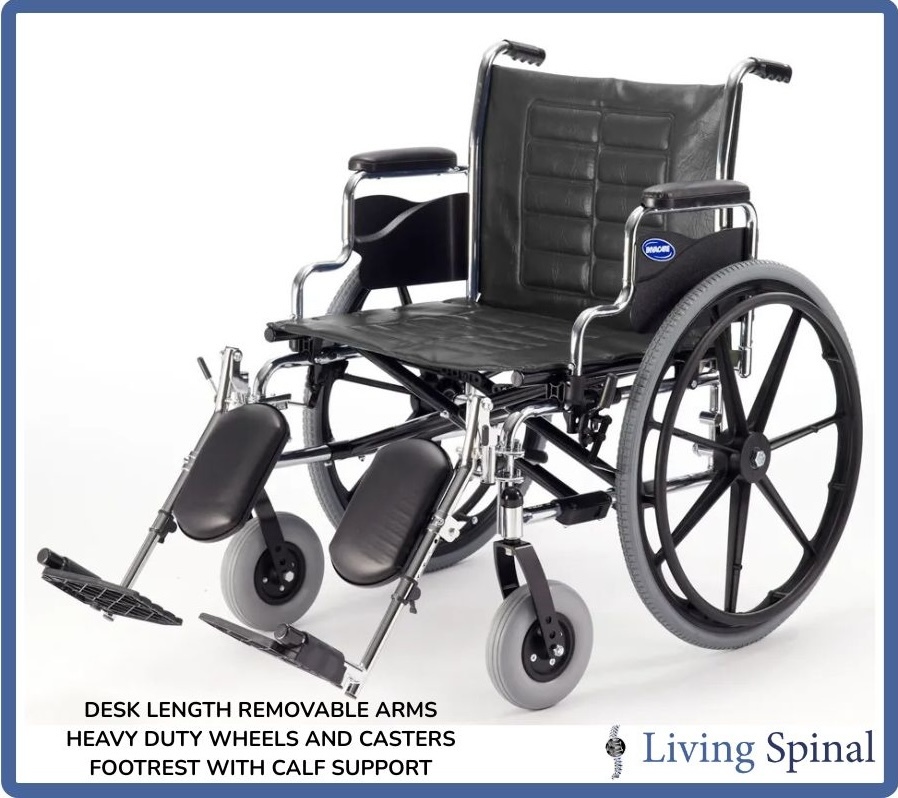

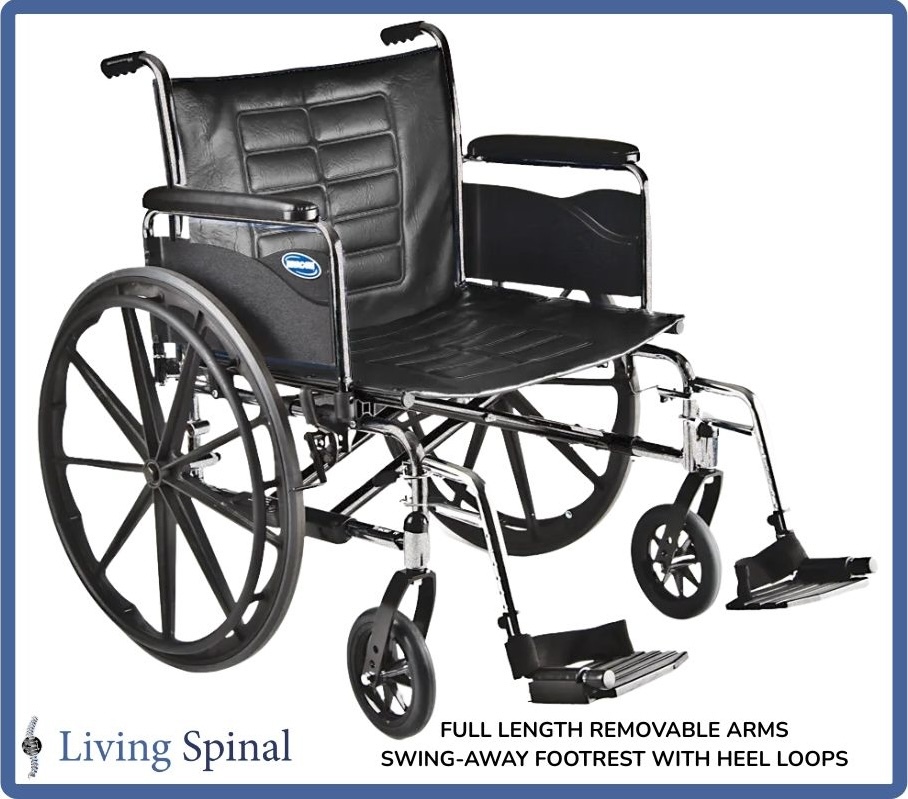

SWING-AWAY OR ELEVATING LEGRESTS
Offers flexible leg support options including swing-away footrests for easier transfers and elevating legrests for improved positioning, circulation, and comfort.
WIDE SEAT INVACARE TRACER IV WHEELCHAIR BY INVACARE
Product Specifications
| Specification | Details |
|---|---|
| Weight Capacity | 350 lbs |
| Product Weight | 52 lbs. |
| Seat Width Options | 20" 22" 24" |
| Seat Depth Options | 18" |
| Seat-to-Floor Height | 19.5" |
| Back Height | 16" |
| Overall Width | 32.25" |
| Folded Width | 13" |
| Overall Height | 36" |
| Wheel Size | 24" |
| Armrest Options | Fixed Height |
| Upholstery | Nylon, Vinyl |
Product Measurement and Sizing Guide
| Measurement | Details |
|---|---|
| 1 - Seat Depth | Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg |
| 2 - Back Height | Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate. |
| 3 - Rear Seat to Floor | Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat |
| 4 - Hanger Angle | Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular |
| 5 - Seat Width | Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant |
| 6 - Wheel Camber | Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber. |
| 7 - Front Seat to Floor | Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled® |
| 8 - Footrest Width | Measure from the inside of each legrest tubing the distance or desired distance between legrests |
| 9 - Center of Gravity | Measure from the front of the seat back post to the center of the rear axel. |
| 10 - Seat to Footrest Length | Measure from the edge of the seat upholstery to the top rear of the footrest. |
| 11 - Backrest Angle | Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump |
TRACER IV MANUAL WHEEL CHAIR BY INVACARE DOWNLOADS
TRACER IV USER MANUAL TRACER IV BROCHURE
Tracer IV Heavy-Duty Manual Wheelchair by Invacare Buyer’s Guide
The Tracer IV Heavy-Duty Manual Wheelchair by Invacare is a robust mobility solution engineered for individuals who require a stronger, more durable frame for daily transit. Built to accommodate higher weight capacities while remaining maneuverable, this model serves as a dependable option for both clinical facilities and independent home use. By utilizing reinforced structural components, the wheelchair ensures user safety and stability without compromising on classic manual operations.
Tracer Reinforced Steel Frame Strength
The backbone of this wheelchair is its heavy-duty dual cross-braced carbon steel frame, which is specifically designed to support increased weight limits. The Tracer framework minimizes structural flexing under load, providing a rigid and reliable ride over various indoor and outdoor surfaces. This enhanced durability ensures that the chair can withstand the rigors of frequent, long-term use while maintaining its alignment and tracking.
Heavy-Duty Weight Capacity and Seating Options
Designed with a generous weight capacity of up to 450 pounds or more depending on configuration, this heavy-duty chair is built for optimal weight distribution. The seat and backrest are constructed from dual-embossed vinyl that resists tearing, stretching, and moisture buildup. This heavy-duty upholstery works in conjunction with the wider seat dimensions to offer a comfortable and secure seating area for bariatric users.
Invacare Engineering and Component Reliability
Built with the high manufacturing standards associated with the Invacare brand, every component on this chair is chosen for longevity. From the low-maintenance dual-sealed precision bearings to the heavy-duty front riggings, the design focuses on minimizing down-time and maintenance costs. The integration of industry-standard parts also means that adjustments, repairs, and replacements are straightforward and efficient.
Manual Propulsion and Maneuverability Features
As a traditional manual mobility device, the wheelchair features large, heavy-duty composite rear wheels equipped with composite handrims for user self-propulsion. The wheel placement is optimized to give the occupant efficient leverage, reducing the physical effort needed to move. For caregivers, the heavy-duty rear push handles offer an ergonomic grip for steady manual assistance and control during transport.
Adjustable Footrests and Armrest Configurations
To accommodate different body types and specialized comfort needs, the chair offers customizable components including removable or flip-back armrests. The front riggings, such as the elevating leg rests or swing-away footrests, can be altered easily to allow for safe transfers into and out of the seat. These components ensure that individual positioning requirements are met while enhancing overall daily utility.
Tracer IV Heavy-Duty Manual Wheelchair by Invacare Review
The Tracer IV Heavy-Duty Manual Wheelchair by Invacare represents a premier choice for individuals needing an ultra-reliable, high-capacity mobility device. Combining a reinforced carbon steel frame with heavy-duty components and proven manual functionality, it provides exceptional support and durability. Its low-maintenance design and comfortable, wide-profile upholstery make this wheelchair a practical and secure investment for long-term mobility management.
No Buyers info available
Limited Warranty
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser who purchases this product when new and unused from Invacare or a dealer. This warranty is not extended to any other person or entity and is not transferable or assignable to any subsequent purchaser or owner. Coverage under this warranty will end upon any such subsequent sale or other transfer of title to any other person.
This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state. Invacare warrants the side frames and cross members of this product when purchased new and unused to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. Invacare warrants the upholstered materials (seat, back and armrests of the arm assembly) and remaining components of this product when purchased new and unused to be free from defects in materials and workmanship for a period of thirteen (13) months from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. If within such warranty periods any such product shall be proven to be defective, such product shall be repaired or replaced, at Invacare’s option. This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of any such product. Invacare’s sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty service, please write directly to Invacare at the address at the bottom of this page. Provide dealer’s name, address, the product model number, date of purchase, indicate nature of the defect and, if the product is serialized, indicate the serial number. Do not return products to our factory without our prior consent.
Limitations and Exclusions: The foregoing warranty shall not apply to serial numbered products if the serial number has been removed or defaced, products subjected to negligence, accident, improper operation, maintenance or storage, products modified without Invacare’s express written consent including, but not limited to, modification through the use of unauthorized parts or attachments; products damaged by reason of repairs made to any component without the specific consent of Invacare, or to a product damaged by circumstances beyond Invacare’s control, and such evaluation will be solely determined by Invacare. The warranty shall not apply to normal wear and tear or failure to adhere to the product instructions.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES WHATSOEVER, WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND THE SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGE, OR LIMITATION OF HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION AND LIMITATION MAY NOT BE APPLICABLE.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.
