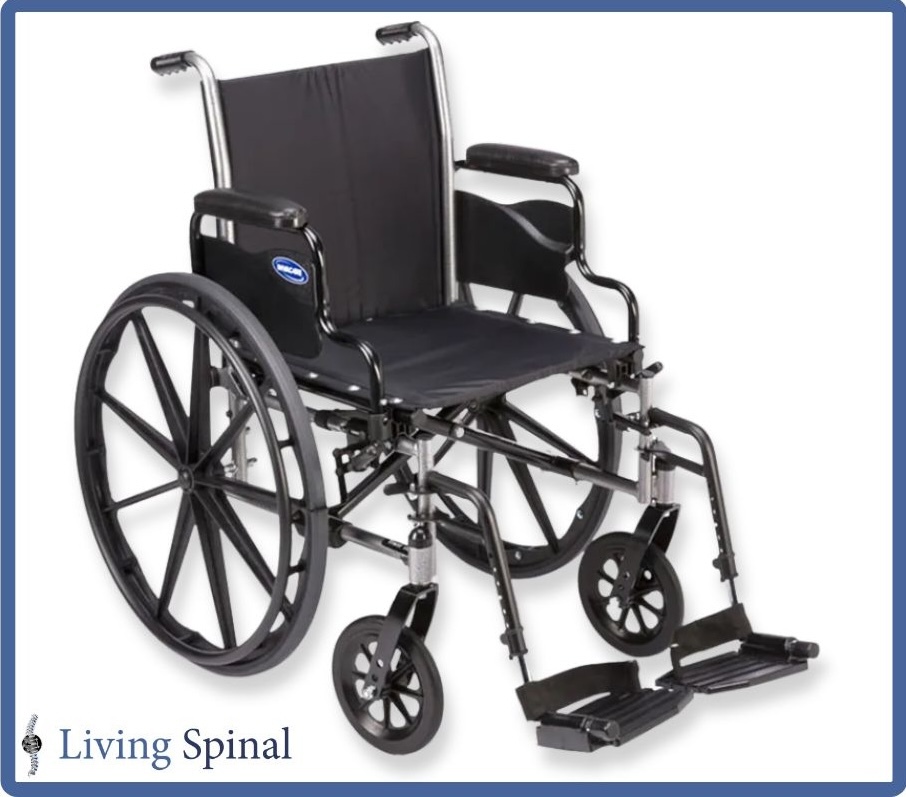

TRACER SX5 MANUAL WHEELCHAIR (STANDARD) BY INVACARE Tracer SX5 Standard wheelchair with durable steel frame, folding design, and reliable mobility for home and healthcare use.
TRACER SX5 FOLDING WHEELCHAIR FOR DAILY MOBILITY AND REHAB USE BY INVACARE
Product Features
HIGH-STRENGTH, LOW-MAINTENANCE FRAME
Constructed from carbon steel to ensure long-term durability while maintaining a significantly lighter weight than standard conventional wheelchairs.
COMPONENT INTERCHANGEABILITY
Shares cross-compatible front riggings, armrests, and parts with other models in the Invacare 9000 and Tracer series, simplifying fleet management and maintenance.
Equipped with a dual-liner seat and back upholstery that resists stretching, supports the user evenly, and is easy to wipe down and sanitize.

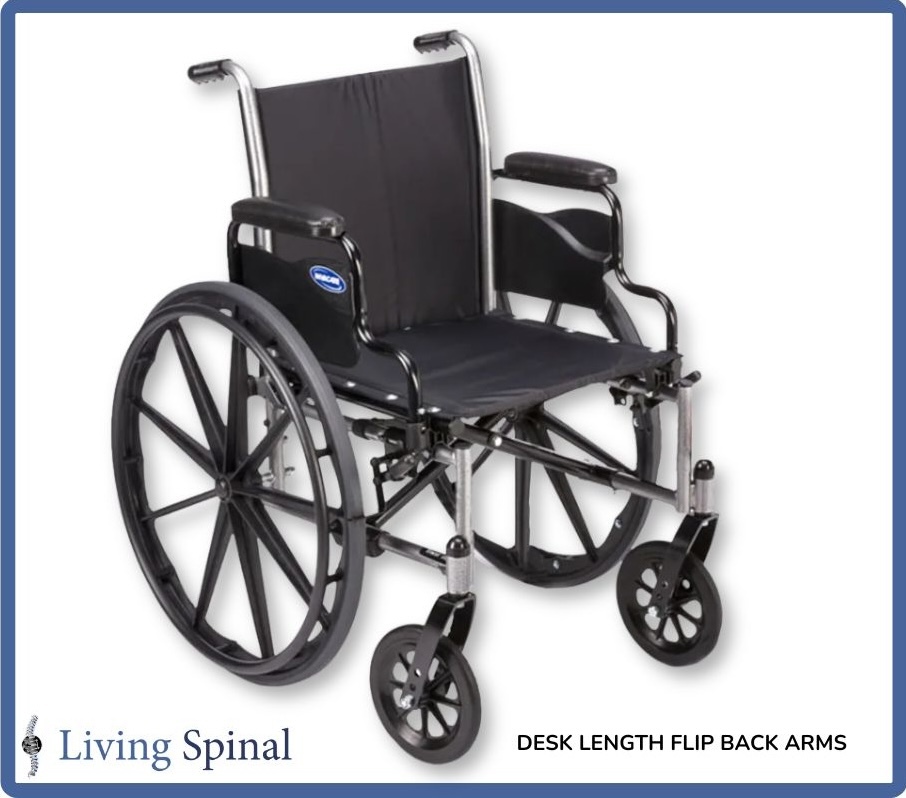

FLIP-BACK REMOVABLE ARMRESTS
Designed with convenient armrests that flip backward out of the way to ensure safe, unobstructed lateral transfers, and can be removed completely if needed.
NO-FLEX COMPOSITE WHEELS

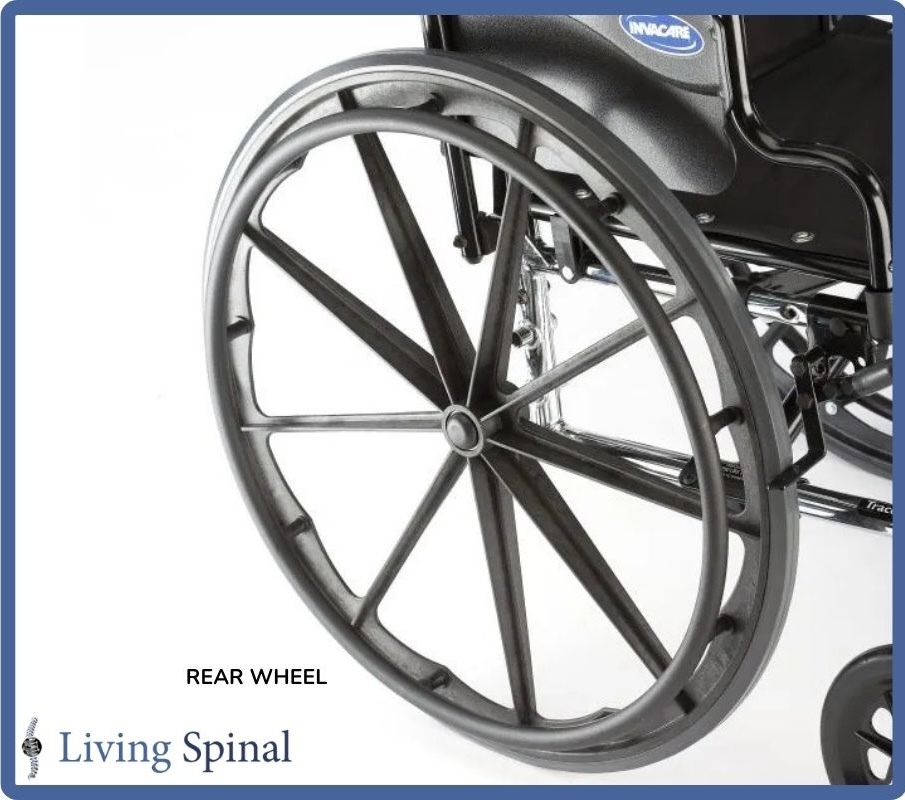

Features low-maintenance, flat-free urethane tires mounted on heavy-duty composite wheels, delivering a smooth ride across both indoor and outdoor surfaces.
COMPACT FOLDING FRAME
The classic cross-brace design allows the wheelchair to fold flat side-to-side for effortless storage in closets or vehicle trunks.
TRACER SX5 HEAVY-DUTY MANUAL WHEELCHAIR WITH REINFORCED FRAME
Product Specifications
| Specification | Details |
|---|---|
| Weight Capacity | 300 lbs. |
| Product Weight | 34 lbs. |
| Seat Width Options | 16" 18" 20" 22" |
| Seat Depth Options | 16" |
| Seat-to-Floor Height | 17.5", 19.5" |
| Back Height | 16" |
| Overall Width | 30.50" |
| Wheel Size | 24" |
| Armrest Options | Full Length Removable |
| Upholstery | Nylon, Vinyl |
Product Measurement and Sizing Guide
| Measurement | Details |
|---|---|
| 1 - Seat Depth | Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg |
| 2 - Back Height | Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate. |
| 3 - Rear Seat to Floor | Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat |
| 4 - Hanger Angle | Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular |
| 5 - Seat Width | Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant |
| 6 - Wheel Camber | Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber. |
| 7 - Front Seat to Floor | Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled® |
| 8 - Footrest Width | Measure from the inside of each legrest tubing the distance or desired distance between legrests |
| 9 - Center of Gravity | Measure from the front of the seat back post to the center of the rear axel. |
| 10 - Seat to Footrest Length | Measure from the edge of the seat upholstery to the top rear of the footrest. |
| 11 - Backrest Angle | Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump |
TRACER SX5 MANUAL WHEELCHAIR BY INVACARE DOWNLOADS
TRACER SX5 USER MANUAL TRACER SX5 BROCHURE TRACER SX5 ORDER FORM
Invacare Tracer SX5 Manual Wheelchair Buyer’s Guide
The Invacare Tracer SX5 Manual Wheelchair is a durable, low-maintenance mobility solution engineered for independent users and caregivers alike. Built to withstand frequent daily use, this standard mobility platform combines structural rigidity with practical performance. Its time-tested design focuses on providing dependable transportation and independent propulsion for individuals looking for a reliable, everyday manual wheelchair.
Tracer Heavy-Duty Frame Construction
The core structure of the wheelchair features a robust carbon steel frame that delivers exceptional longevity and support. This high-strength frame ensures that the Tracer maintains its structural integrity under regular use, minimizing flex and providing a stable ride. Additionally, the frame includes a dual-axle design, allowing for quick adjustments to change the seat-to-floor height from a standard profile to a lower hemi position to facilitate foot propulsion.
Standard Dual-Embossed Vinyl Upholstery
Comfort and hygiene are addressed through the heavy-duty, dual-embossed vinyl upholstery lining the seat and backrest. This standard material is selected for its superior resistance to tearing and stretching over time, ensuring consistent support for the user. The smooth, non-porous surface of the vinyl makes it incredibly easy for caregivers to wipe clean and sanitize, maintaining excellent hygiene with minimal upkeep.
Invacare Low-Maintenance Component Design

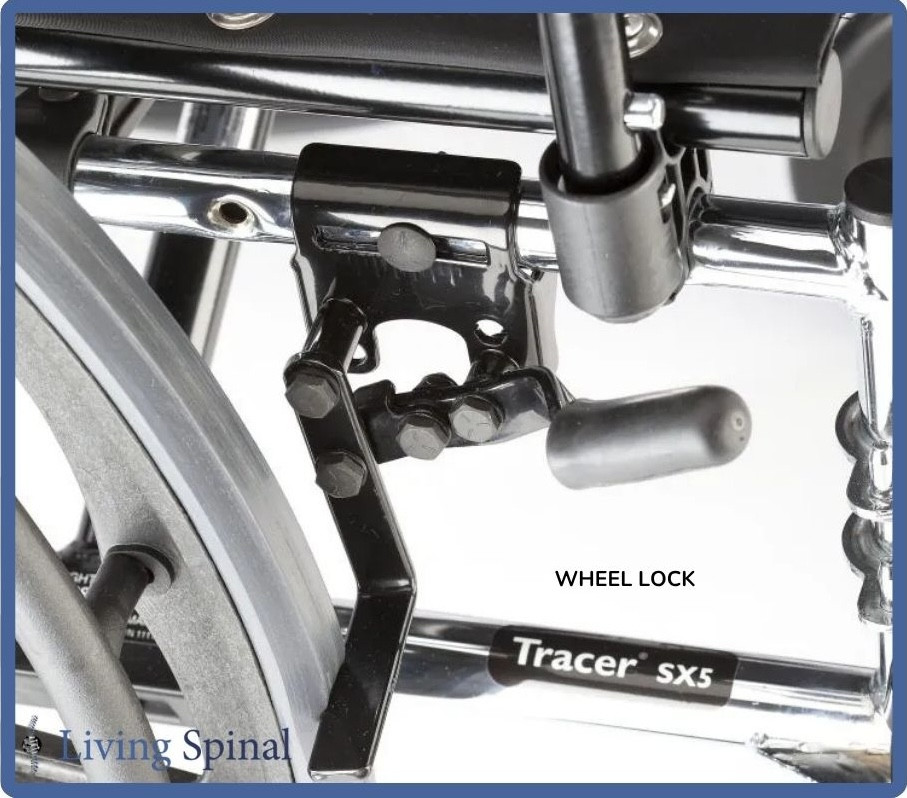

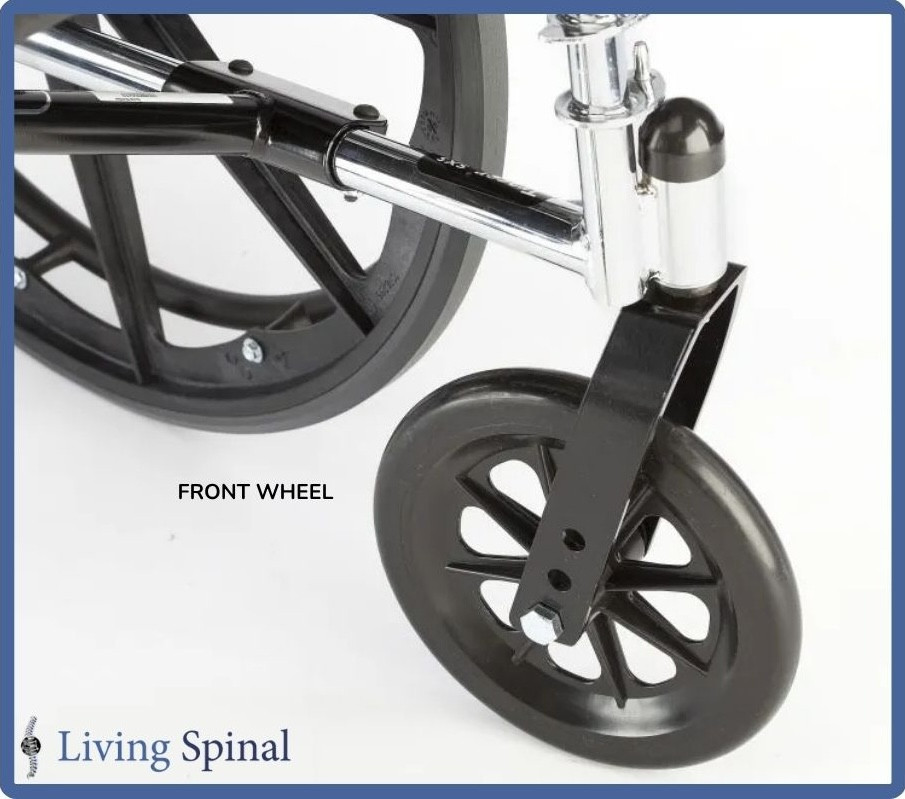

Every element of this Invacare mobility device is engineered to reduce the need for frequent servicing and maintenance. The wheelchair is equipped with urethane tires mounted on composite rear wheels, alongside no-flex front casters. This setup ensures that the tires never go flat and roll smoothly across both indoor flooring and outdoor pavements. The integrated wheel locks are easy to engage, providing secure parking when transferring in or out of the chair.
Flexible Armrest and Footrest Configurations

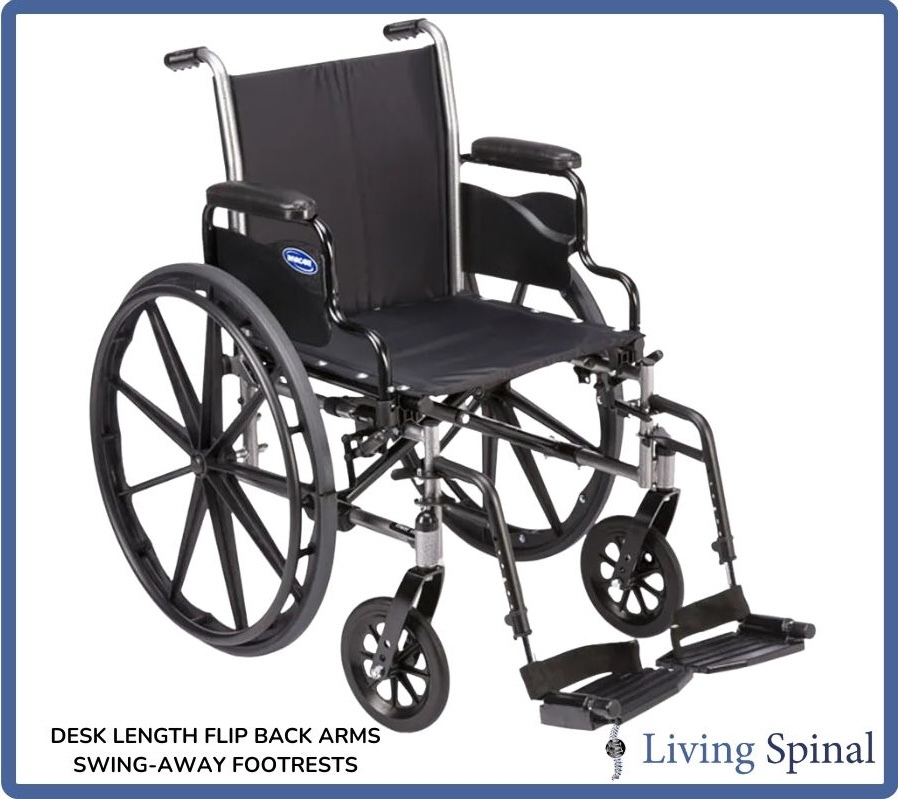

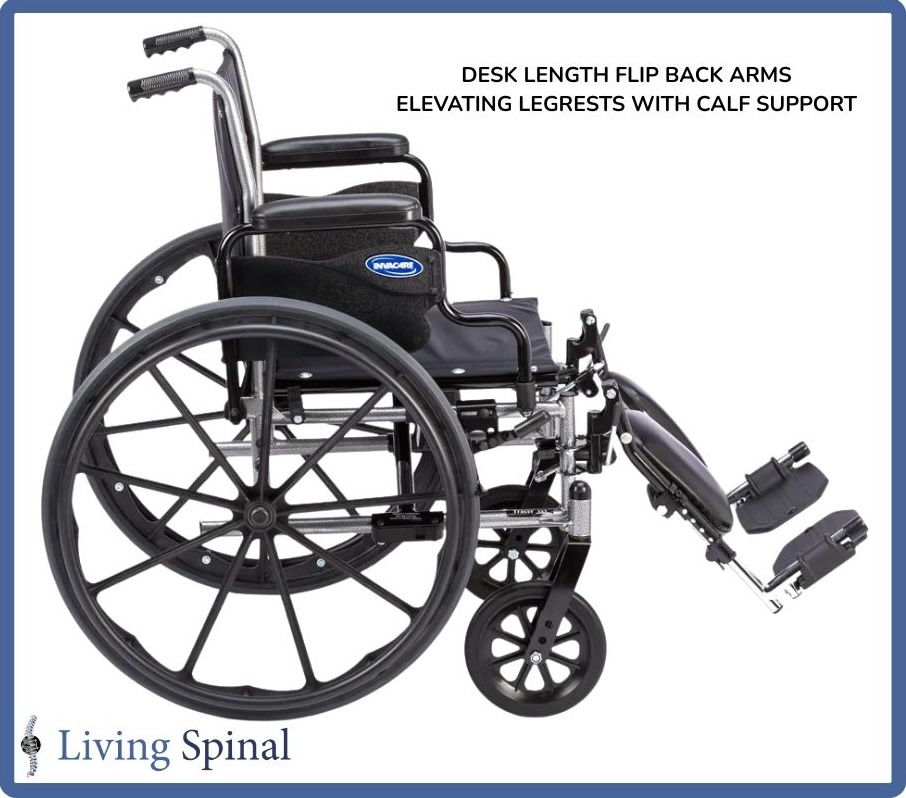

To accommodate different daily activities and transfer methods, the wheelchair offers several customizable armrest options. Users can choose desk-length arms to easily slide closer to tables and desks, or full-length arms for maximized forearm support. Additionally, the swing-away footrests can be removed entirely or adjusted in length, clearing the front area of the chair to ensure safe, unhindered standing transfers.
Convenient Manual Folding for Transport
Transporting and storing the chair is simplified by its lightweight, manual folding cross-brace mechanism. With a simple upward pull on the center of the seat upholstery, the frame collapses side-to-side into a compact profile that fits easily into car trunks or narrow storage closets. This makes it an ideal option for users who travel frequently or families needing a secondary mobility aid for outings.
Invacare Tracer SX5 Manual Wheelchair Review
The Invacare Tracer SX5 Manual Wheelchair stands out as a highly dependable and practical choice in the standard mobility category. By combining a heavy-duty steel frame with low-maintenance components and an easily cleanable vinyl seat, it delivers excellent durability for long-term use. Its flexible configuration options and straightforward manual folding design make the Tracer a smart, hassle-free investment for enhancing everyday mobility and independence.
No Buyers info available
Limited Warranty
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser who purchases this product when new and unused from Invacare or a dealer. This warranty is not extended to any other person or entity and is not transferable or assignable to any subsequent purchaser or owner. Coverage under this warranty will end upon any such subsequent sale or other transfer of title to any other person.
This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state. Invacare warrants the side frames and cross members of this product when purchased new and unused to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. Invacare warrants the upholstered materials (seat, back and armrests of the arm assembly) and remaining components of this product when purchased new and unused to be free from defects in materials and workmanship for a period of thirteen (13) months from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. If within such warranty periods any such product shall be proven to be defective, such product shall be repaired or replaced, at Invacare’s option. This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of any such product. Invacare’s sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty service, please write directly to Invacare at the address at the bottom of this page. Provide dealer’s name, address, the product model number, date of purchase, indicate nature of the defect and, if the product is serialized, indicate the serial number. Do not return products to our factory without our prior consent.
Limitations and Exclusions: The foregoing warranty shall not apply to serial numbered products if the serial number has been removed or defaced, products subjected to negligence, accident, improper operation, maintenance or storage, products modified without Invacare’s express written consent including, but not limited to, modification through the use of unauthorized parts or attachments; products damaged by reason of repairs made to any component without the specific consent of Invacare, or to a product damaged by circumstances beyond Invacare’s control, and such evaluation will be solely determined by Invacare. The warranty shall not apply to normal wear and tear or failure to adhere to the product instructions.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES WHATSOEVER, WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND THE SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGE, OR LIMITATION OF HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION AND LIMITATION MAY NOT BE APPLICABLE.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.
