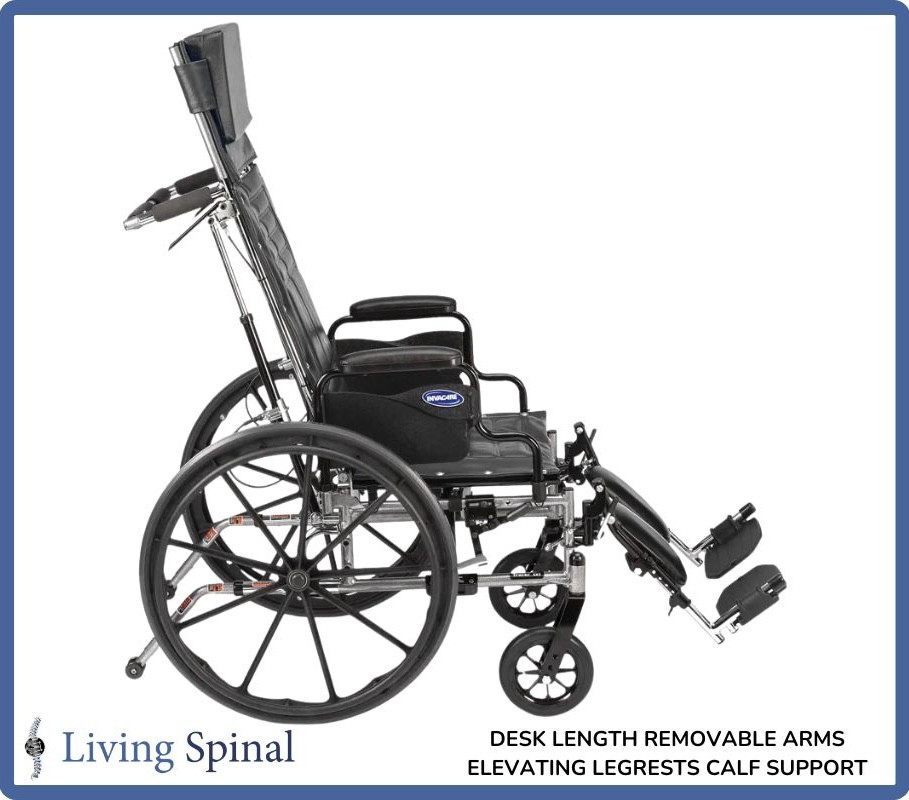

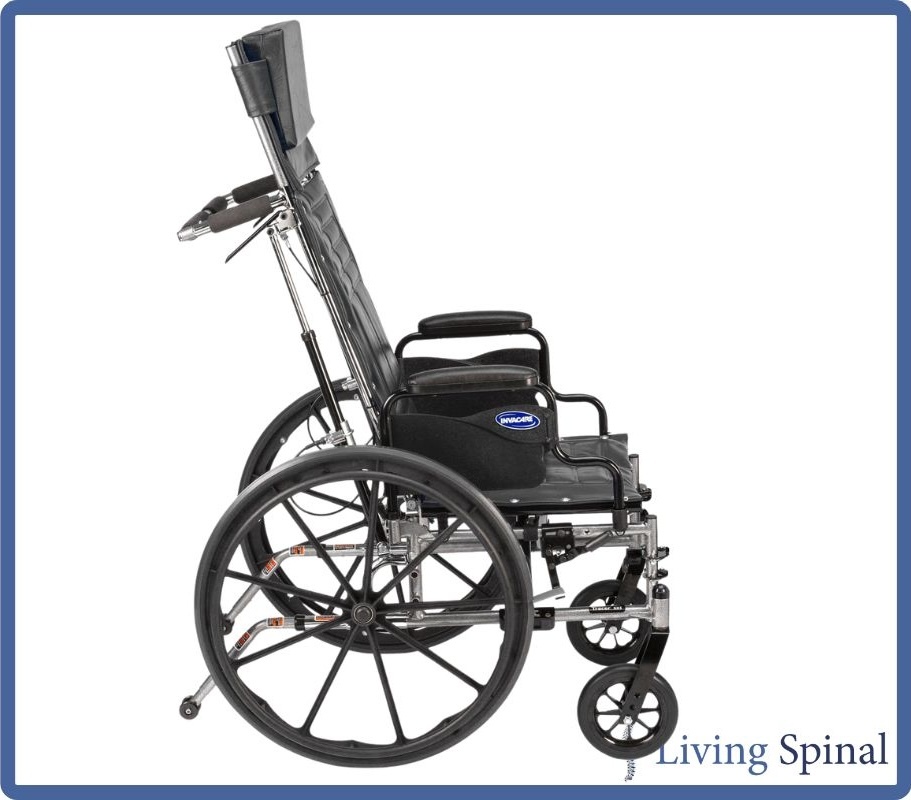

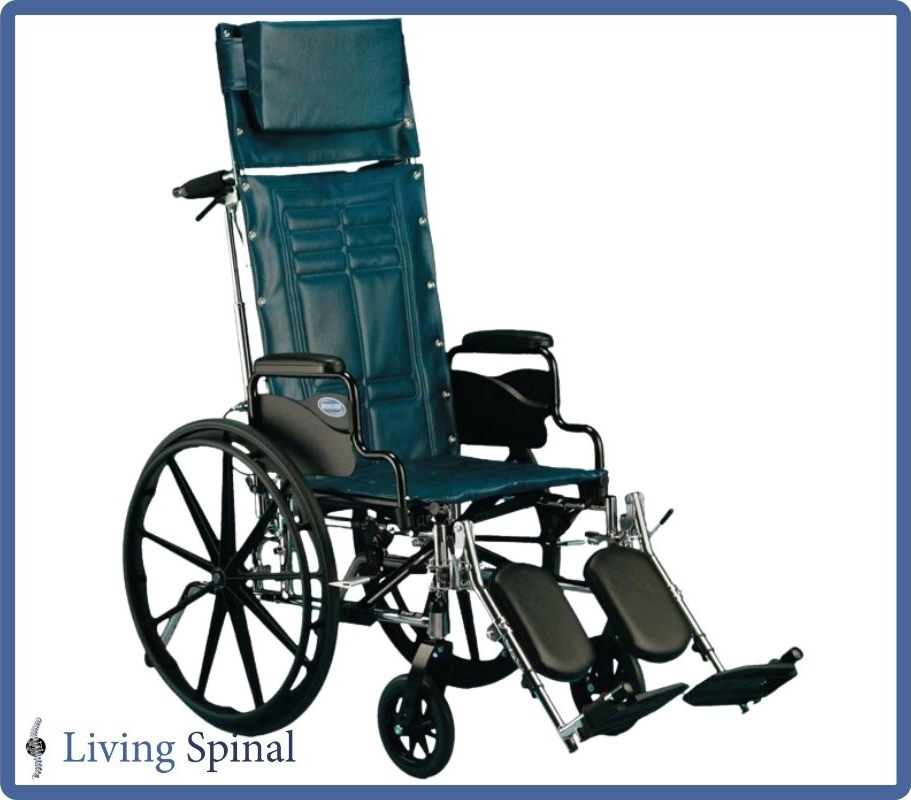

TRACER SX5 RECLINER MANUAL WHEELCHAIR (CUSTOM), BY INVACARE Features a carbon steel folding frame, adjustable reclining back, elevating legrests, and multiple seating configurations to meet individual user needs.
TRACER SX5 CUSTOM FULL RECLINER WHEELCHAIR FOR POSTURAL SUPPORT
Product Features
Offers a broad choice of seat widths from 14 to 22 inches and multiple seat depths to properly match individual user anatomical needs.
Built with heavy-duty 14-gauge crossbraces to provide maximum structural durability and long-term framework reliability.

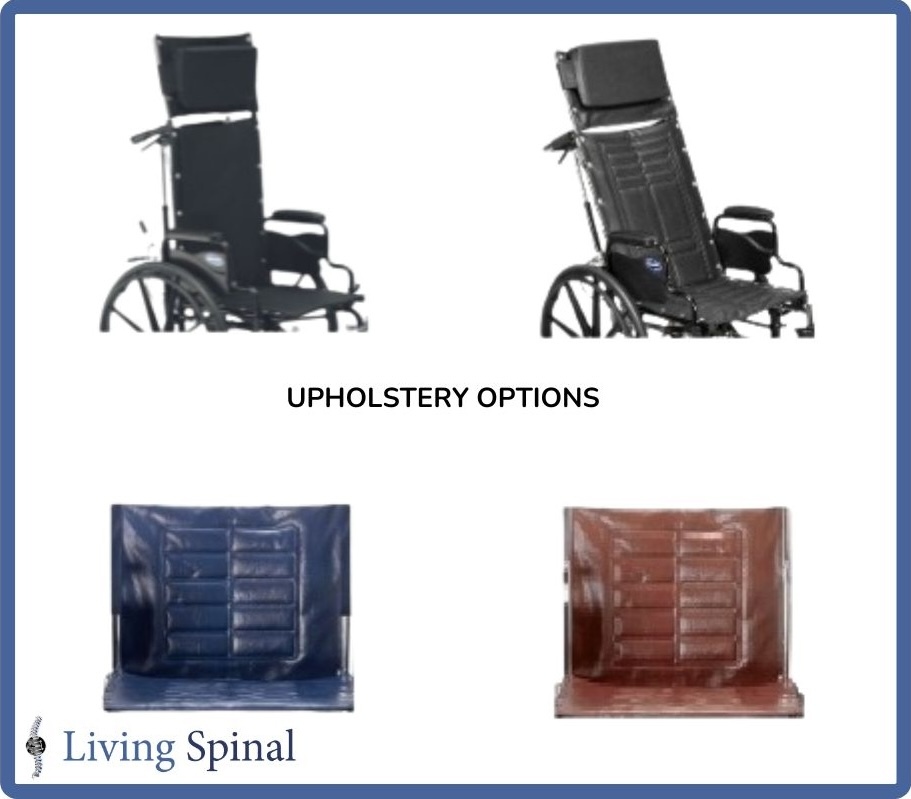

Incorporates a specialized inner liner within the seat and back upholstery to prevent sagging and maintain consistent postural alignment over extended use.

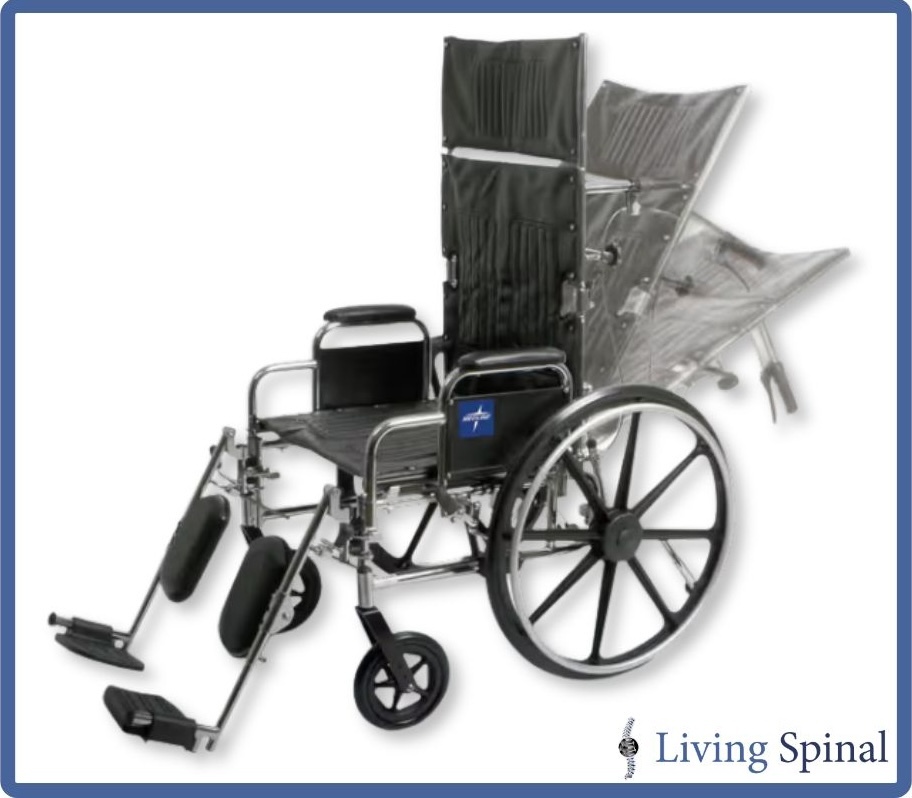

Allows the backrest to adjust smoothly from 90 to 180 degrees to accommodate passive positioning modifications and facilitate effective pressure relief.
Mounted on rigid, no-flex composite wheels with dual-sealed precision bearings to ensure a smooth, low-maintenance ride on indoor and outdoor surfaces.
Enables safe, unobstructed lateral transfers and permits closer proximity to tables, desks, or work counters.
TRACER SX5 CUSTOMIZED RECLINING WHEELCHAIR WITH CARBON STEEL FOLDING FRAME
Product Specifications
| Specification | Details |
|---|---|
| Weight Capacity | 250 lbs. |
| Product Weight | 53 lbs. |
| Seat Width Options | 14" 16" 18" 20" 22" |
| Seat Depth Options | 16" and 18" |
| Seat-to-Floor Height | 17.5" to 19.5" |
| Back Height | 24" and 34" |
| Recline | 90° to 180° |
| Overall Width | Up to 26.75" |
| Folded Width | 13" |
| Overall Height | 53" |
| Front Wheel Size | 8" |
| Rear Wheel Size | 20" 22" 24" |
| Armrest Options | Fixed Height Adjustable Height Removable |

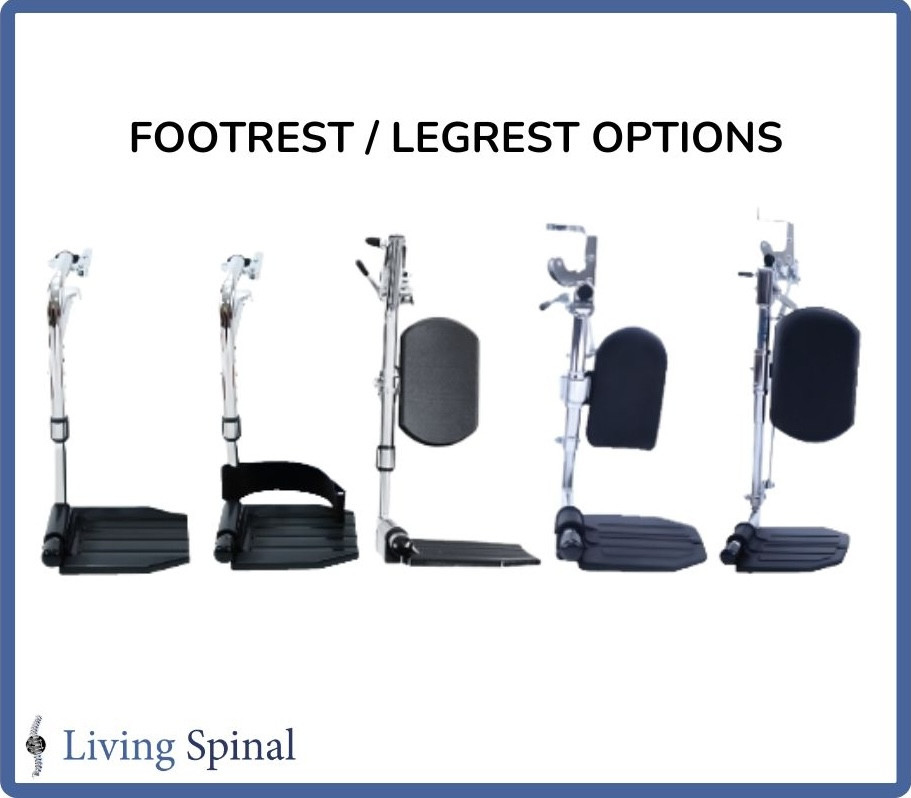

| Legrest Option | Fixed Elevating Swing-away |
Product Measurement and Sizing Guide
| Measurement | Details |
|---|---|
| 1 - Seat Depth | Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg |
| 2 - Back Height | Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate. |
| 3 - Rear Seat to Floor | Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat |
| 4 - Hanger Angle | Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular |
| 5 - Seat Width | Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant |
| 6 - Wheel Camber | Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber. |
| 7 - Front Seat to Floor | Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled® |
| 8 - Footrest Width | Measure from the inside of each legrest tubing the distance or desired distance between legrests |
| 9 - Center of Gravity | Measure from the front of the seat back post to the center of the rear axel. |
| 10 - Seat to Footrest Length | Measure from the edge of the seat upholstery to the top rear of the footrest. |
| 11 - Backrest Angle | Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump |
TRACER SXR RECLINER WHEELCHAIR BY INVACARE DOWNLOADS
TRACER SX5 RECLINER
USER MANUAL TRACER SX5 RECLINER
BROCHURE TRACER SX5 RECLINER
ORDER FORM
Tracer SX5 Recliner Manual Wheelchair Custom by Invacare Buyer’s Guide
The Tracer SX5 Recliner Manual Wheelchair Custom by Invacare is a heavy-duty mobility solution built for individuals who require specialized pressure relief and extended seating comfort. Combining a robust frame with a dynamic reclining backrest, this system offers enhanced support for users with limited upper-body stability or those who need to change positions frequently throughout the day. The customizable nature of the chair ensures it can be configured to meet specific clinical and everyday mobility requirements.
Tracer Durable Frame and Structural Integrity
At the core of this mobility device is the signature Tracer carbon steel frame, which delivers exceptional durability and strength. The frame is engineered to withstand daily transport and long-term use while maintaining a stable platform for the user. A dual-embossed vinyl upholstery liner adds extra reinforcement to the seat, preventing sagging and ensuring consistent pelvic alignment over time. This heavy-duty construction provides peace of mind for both users and caregivers regarding structural longevity.
Dynamic Recliner Backrest for Position Management
The standout feature of this model is its mechanical recline capability, which allows the backrest to shift smoothly from an upright position to a deeply angled tilt. This function is essential for managing orthostatic hypotension, assisting with passive pressure distribution, and facilitating easier transfers. The gear mechanism is designed for smooth adjustments, enabling caregivers to modify the back angle easily without disrupting the occupant's comfort or stability.
Invacare Custom Configuration and Seat Sizing
Recognizing that proper positioning requires an individual fit, this Invacare mobility platform offers multiple seat widths and depths to match different body types. Caregivers and clinicians can select the appropriate dimensions to ensure optimal thigh support and prevent lateral leaning. Additionally, the custom options allow for the integration of various armrest styles and front riggings, ensuring the final setup aligns perfectly with the user's daily functional goals.

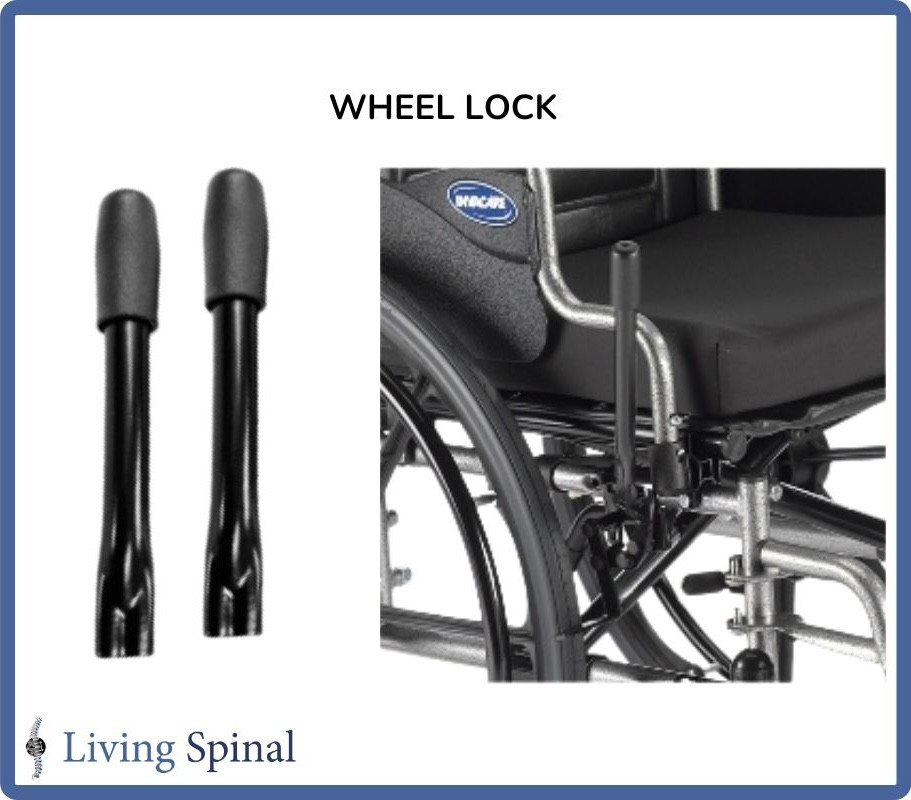

Manual Propulsion and Caregiver Attendant Brakes
Designed primarily as a manual propulsion system, the chair features large rear wheels with ergonomic handrims that allow self-propulsion when the backrest is upright. For times when caregiver assistance is required, the rear framework includes accessible attendant brakes and rear-side levers to manage the reclining feature safely. The wheel configuration is optimized to provide a smooth glide over indoor surfaces and level outdoor pathways with minimal rolling resistance.
Removable Headrest Extension and Components
To support the upper body when the chair is tilted backward, the system includes a removable headrest extension that provides crucial cervical support. The component can be easily detached when the chair is in an upright position or during transport to save space. Coupled with elevating leg rests that rise in tandem with the reclining back, the entire configuration ensures the user's body remains properly aligned and supported in every position.
Tracer SX5 Recliner Manual Wheelchair Custom by Invacare Review
The Tracer SX5 Recliner Manual Wheelchair Custom by Invacare stands out as a reliable and highly adjustable mobility aid designed for complex positioning needs. By integrating a heavy-duty manual frame with a smooth-operating recliner backrest, it effectively addresses the dual requirements of mobility and pressure management. Its sturdy construction, clinical customization options, and focus on user comfort make this wheelchair a dependable choice for enhancing long-term sitting tolerance and independence.
No Buyers info available
Limited Warranty
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser who purchases this product when new and unused from Invacare or a dealer. This warranty is not extended to any other person or entity and is not transferable or assignable to any subsequent purchaser or owner. Coverage under this warranty will end upon any such subsequent sale or other transfer of title to any other person.
This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state. Invacare warrants the side frames and cross members of this product when purchased new and unused to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. Invacare warrants the upholstered materials (seat, back and armrests of the arm assembly) and remaining components of this product when purchased new and unused to be free from defects in materials and workmanship for a period of thirteen (13) months from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. If within such warranty periods any such product shall be proven to be defective, such product shall be repaired or replaced, at Invacare’s option. This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of any such product. Invacare’s sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty service, please write directly to Invacare at the address at the bottom of this page. Provide dealer’s name, address, the product model number, date of purchase, indicate nature of the defect and, if the product is serialized, indicate the serial number. Do not return products to our factory without our prior consent.
Limitations and Exclusions: The foregoing warranty shall not apply to serial numbered products if the serial number has been removed or defaced, products subjected to negligence, accident, improper operation, maintenance or storage, products modified without Invacare’s express written consent including, but not limited to, modification through the use of unauthorized parts or attachments; products damaged by reason of repairs made to any component without the specific consent of Invacare, or to a product damaged by circumstances beyond Invacare’s control, and such evaluation will be solely determined by Invacare. The warranty shall not apply to normal wear and tear or failure to adhere to the product instructions.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES WHATSOEVER, WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND THE SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGE, OR LIMITATION OF HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION AND LIMITATION MAY NOT BE APPLICABLE.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.
