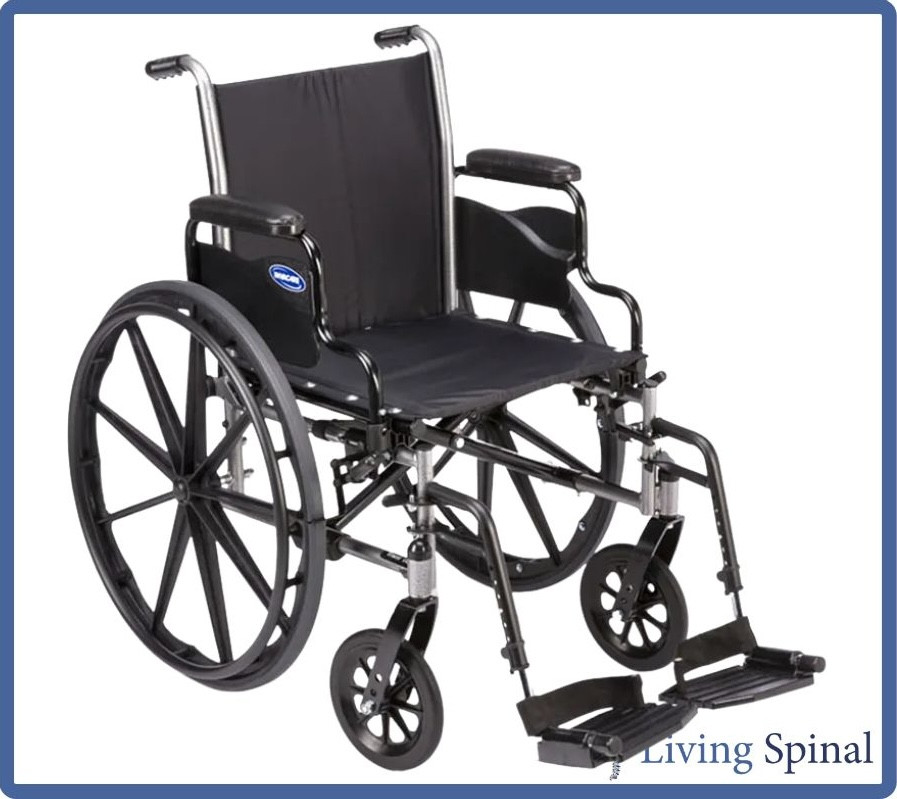

TRACER SX5 MANUAL WHEELCHAIR (CUSTOM) BY INVACARE A versatile lightweight manual wheelchair designed to provide dependable mobility, durability, and customizable seating options
INVACARE TRACER SX5 CUSTOM CONFIGURABLE FOLDING WHEELCHAIR
Product Features
HIGH-STRENGTH CARBON STEEL FRAME
Built with 14-gauge crossbraces to provide maximum structural durability and long-term reliability for daily use.

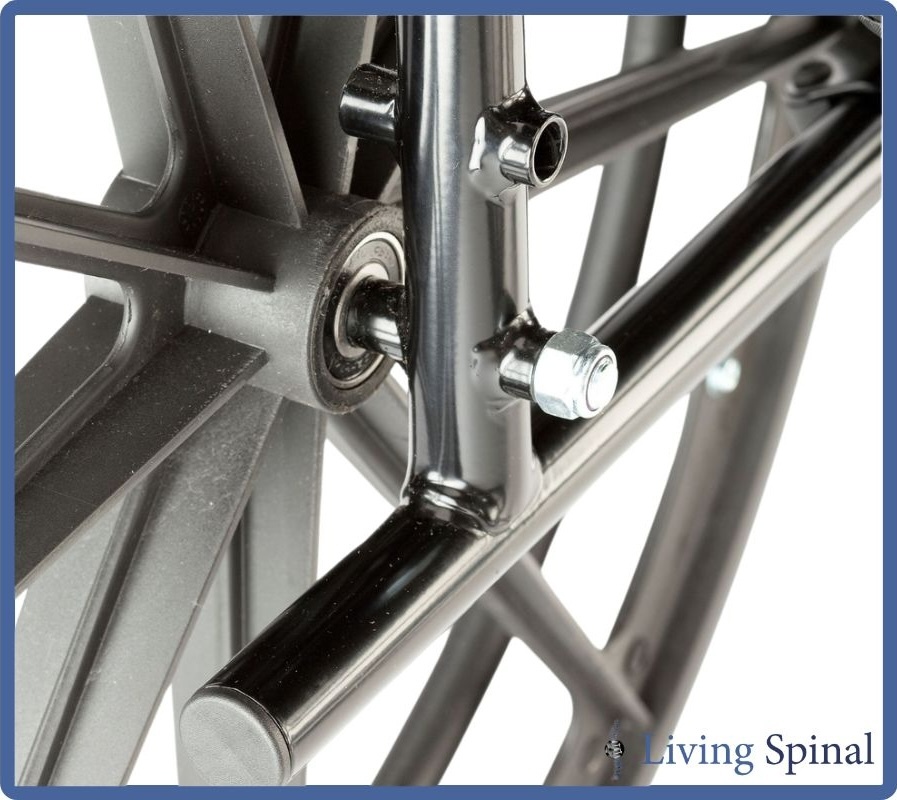

DUAL-AXLE SEAT HEIGHT ADJUSTMENT
Allows the seat-to-floor height to be modified between standard adult and lower hemi heights to support independent foot propulsion.
HEAVY-DUTY INNER LINER SEATING
Incorporates a specialized inner liner within the seat and back upholstery to prevent sagging and maintain consistent postural alignment.
FLIP-BACK REMOVABLE ARMRESTS
Designed with convenient armrests that flip backward out of the way to ensure safe, unobstructed lateral transfers, and can be removed completely if needed.

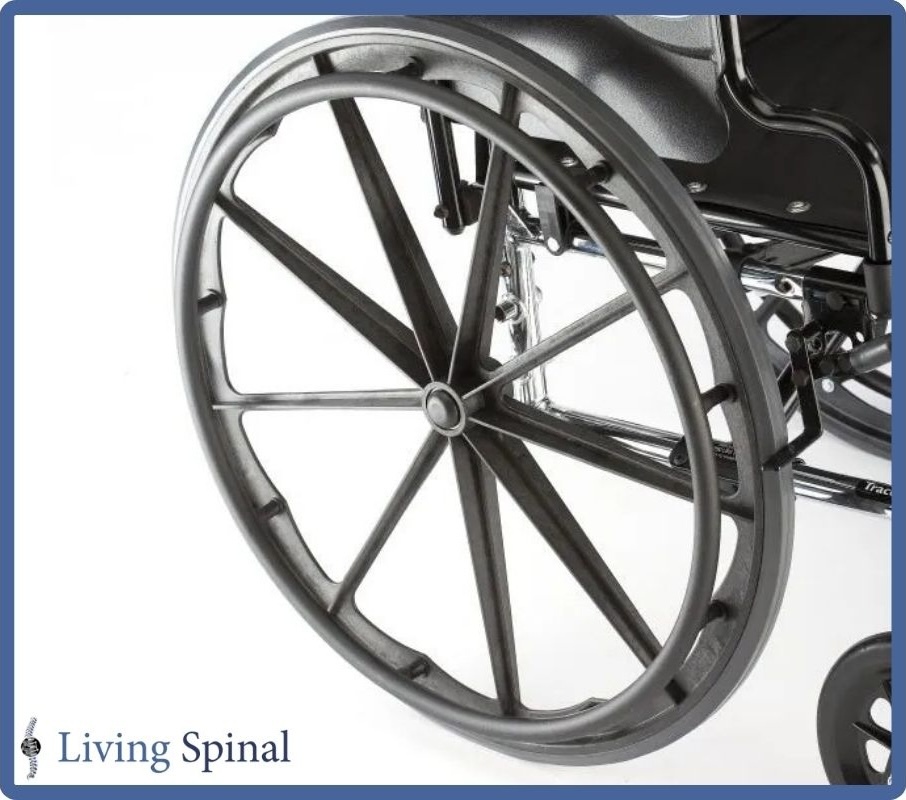

FLAT-FREE URETHANE TIRES
Mounted on rigid, "no flex" composite wheels with dual-sealed precision bearings to ensure a smooth, low-maintenance ride on indoor and outdoor surfaces.

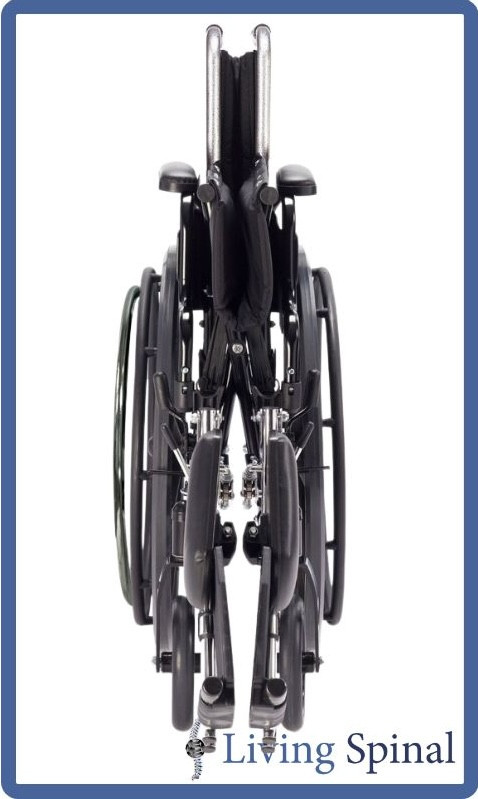

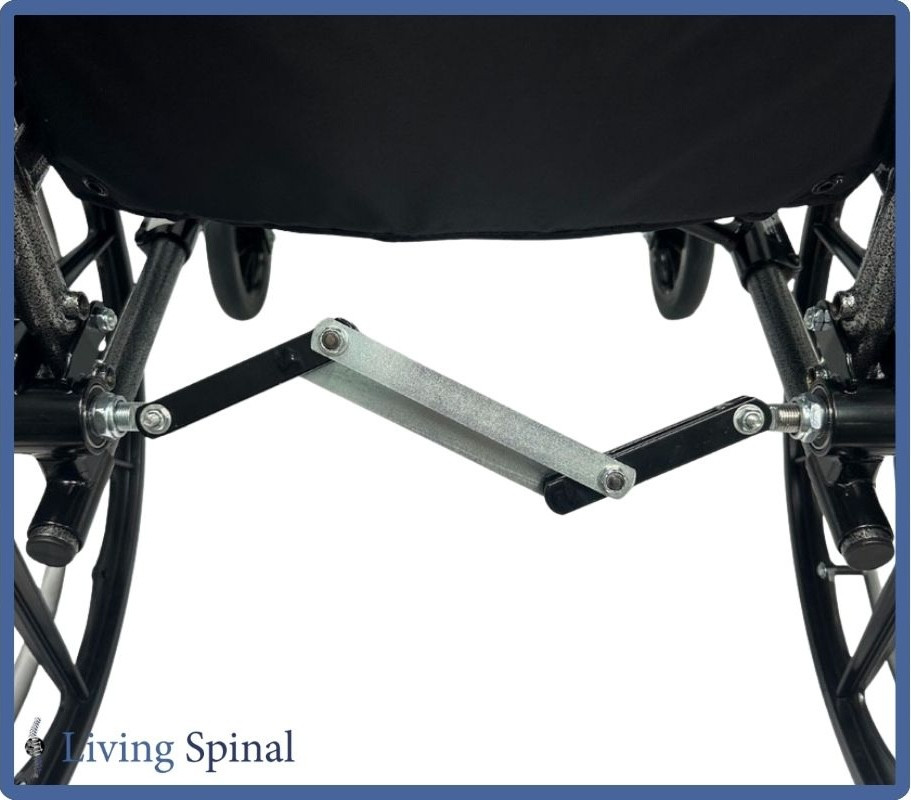

CROSSBRACE FOLDING DESIGN
Allows the lightweight framework to fold flat side-to-side, minimizing storage requirements and simplifying transport in vehicle trunks.
TRACER CUSTOM SX5 LIGHTWEIGHT MANUAL WHEELCHAIR
Product Specifications
| Specification | Details |
|---|---|
| Weight Capacity | 250 lbs. |
| Product Weight | 34 lbs. |
| Seat Width Options | 14" 16" 18" 20" 22" |
| Seat Depth Options | 16" |
| Seat-to-Floor Height | 17.5" to 19.5" |
| Back Height | 16" 18" |
| Overall Width | 30.50" |
| Wheel Size | 20" 22" 24" |
| Armrest Options | Fixed Height, Flipback |
| Legrest Option | Elevating Swing-away |
Product Measurement and Sizing Guide
| Measurement | Details |
|---|---|
| 1 - Seat Depth | Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg |
| 2 - Back Height | Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate. |
| 3 - Rear Seat to Floor | Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat |
| 4 - Hanger Angle | Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular |
| 5 - Seat Width | Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant |
| 6 - Wheel Camber | Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber. |
| 7 - Front Seat to Floor | Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled® |
| 8 - Footrest Width | Measure from the inside of each legrest tubing the distance or desired distance between legrests |
| 9 - Center of Gravity | Measure from the front of the seat back post to the center of the rear axel. |
| 10 - Seat to Footrest Length | Measure from the edge of the seat upholstery to the top rear of the footrest. |
| 11 - Backrest Angle | Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump |
TRACER SX5 MANUAL WHEELCHAIR BY INVACARE DOWNLOADS
TRACER SX5 USER MANUAL TRACER SX5 BROCHURE TRACER SX5 ORDER FORM
Tracer SX5 Manual Wheelchair Custom by Invacare Buyer’s Guide
The Tracer SX5 Manual Wheelchair Custom by Invacare is a highly adaptable mobility solution designed for users requiring personalized seating configurations and long-term durability. Built around a carbon steel frame, this manual wheelchair accommodates custom specifications such as variable seat widths, armrest styles, and seat-to-floor heights. This modular framework makes it an ideal option for both institutional settings and private homes where mobility needs change over time.
Tracer SX5 Lightweight Carbon Steel Construction
A key structural advantage of this manual chair is its durable yet lightweight frame. Weighing less than 36 pounds without the front riggings, it reduces the physical effort required for self-propulsion and minimizes user fatigue. The reduced weight does not compromise stability, as the frame is reinforced with 14-gauge crossbraces. This strategic design balances structural integrity with a manageable weight, allowing for straightforward transit and handling by caregivers.
Everyday Folding Design for Seamless Transport
The practical utility of the chair is enhanced by its traditional side-by-side folding mechanism. Caregivers or users can easily collapse the chair by lifting the center of the seat, drawing the large drive wheels together into a compact profile. This space-saving configuration simplifies storage in home closets or vehicle trunks. The intuitive folding action ensures that the wheelchair remains highly portable for medical appointments, errands, and social outings.
Dual Axle Adaptability and Seating Adjustments
Versatility is built directly into the frame via a dual-axle positioning system. This feature allows technicians to alter the seat-to-floor height between standard and hemi levels, which is useful for individuals who propel the chair using their feet. Accommodating multiple seat-to-floor orientations ensures proper physical alignment and ergonomic leg positioning. This multi-position frame base eliminates the need to buy an entirely separate chair as a user's physical configuration changes.
Heavy-Duty Reinforced Upholstery and Arm Options
The custom seating surface features heavy-duty inner liners designed to resist stretching and sagging after prolonged daily use. The dual-embossed vinyl or nylon upholstery provides a clean, professional aesthetic that is exceptionally simple to wipe down and sanitize. Additionally, the chair can be customized with flip-back, desk-length, or full-length padded armrests. These configurations assist with comfortable upper-body positioning and clear access to tables or desks.
No-Flex Wheels and Low-Maintenance Components
The drive system consists of flat-free, smooth-riding urethane tires mounted on specialized no-flex rear wheels. These components absorb minor vibrations from uneven sidewalks or interior flooring thresholds, providing a more consistent ride. Equipped with low-maintenance, dual-sealed precision bearings, the wheels glide smoothly over time without requiring frequent calibration. The rear wheel locks are easily accessible, ensuring complete stability during independent transfers.
Tracer SX5 Manual Wheelchair Custom by Invacare Review
The Tracer SX5 Manual Wheelchair Custom by Invacare delivers a dependable, customizable platform for independent mobility and assisted care. Its lightweight frame, intuitive folding structure, and modular axle adjustability make it a highly practical asset for daily environments. By prioritizing long-lasting component materials alongside personalized seating options, this manual wheelchair offers a reliable and comfortable mobility solution tailored to individual physical requirements.
No Buyers info available
Limited Warranty
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser who purchases this product when new and unused from Invacare or a dealer. This warranty is not extended to any other person or entity and is not transferable or assignable to any subsequent purchaser or owner. Coverage under this warranty will end upon any such subsequent sale or other transfer of title to any other person.
This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state. Invacare warrants the side frames and cross members of this product when purchased new and unused to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. Invacare warrants the upholstered materials (seat, back and armrests of the arm assembly) and remaining components of this product when purchased new and unused to be free from defects in materials and workmanship for a period of thirteen (13) months from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. If within such warranty periods any such product shall be proven to be defective, such product shall be repaired or replaced, at Invacare’s option. This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of any such product. Invacare’s sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty service, please write directly to Invacare at the address at the bottom of this page. Provide dealer’s name, address, the product model number, date of purchase, indicate nature of the defect and, if the product is serialized, indicate the serial number. Do not return products to our factory without our prior consent.
Limitations and Exclusions: The foregoing warranty shall not apply to serial numbered products if the serial number has been removed or defaced, products subjected to negligence, accident, improper operation, maintenance or storage, products modified without Invacare’s express written consent including, but not limited to, modification through the use of unauthorized parts or attachments; products damaged by reason of repairs made to any component without the specific consent of Invacare, or to a product damaged by circumstances beyond Invacare’s control, and such evaluation will be solely determined by Invacare. The warranty shall not apply to normal wear and tear or failure to adhere to the product instructions.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES WHATSOEVER, WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND THE SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGE, OR LIMITATION OF HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION AND LIMITATION MAY NOT BE APPLICABLE.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.
