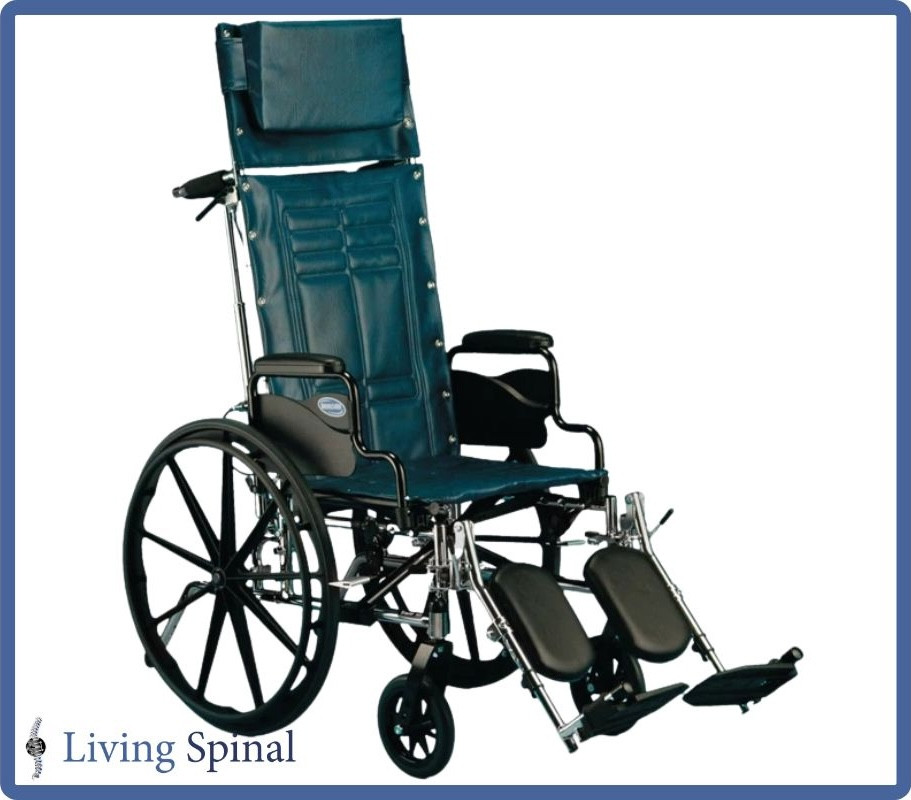

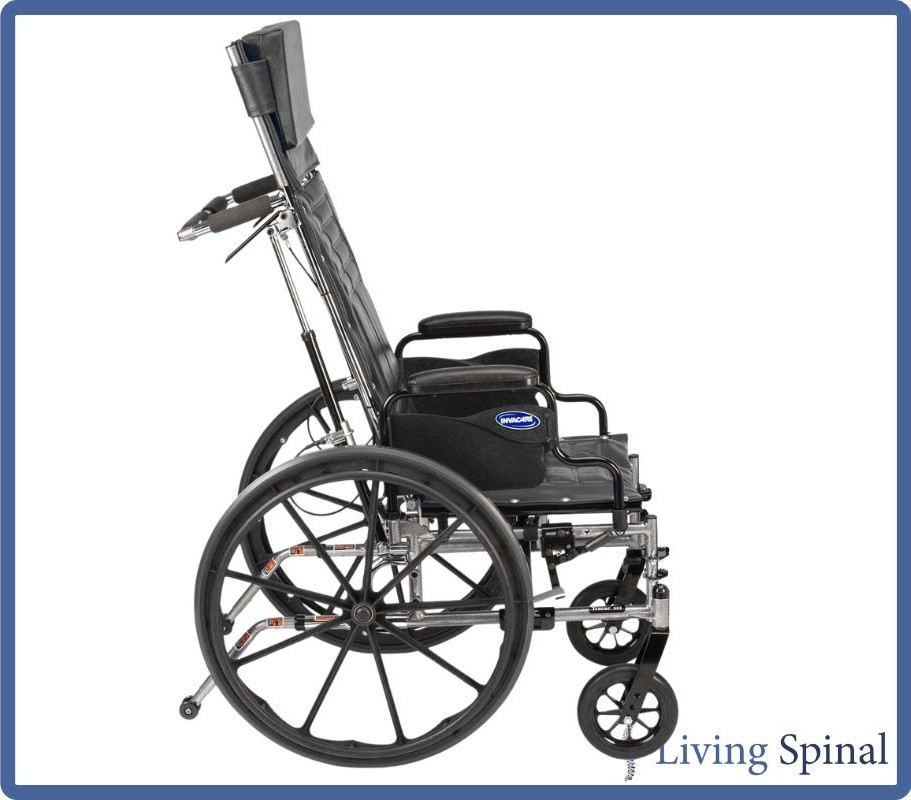

TRACER SX5 RECLINER (STANDARD) BY INVACARE A durable reclining manual wheelchair that provides enhanced comfort, positioning support and reliable mobility for extended seating and pressure relief
INVACARE TRACER SX5 RECLINING MANUAL WHEELCHAIR WITH HEADREST
Product Features

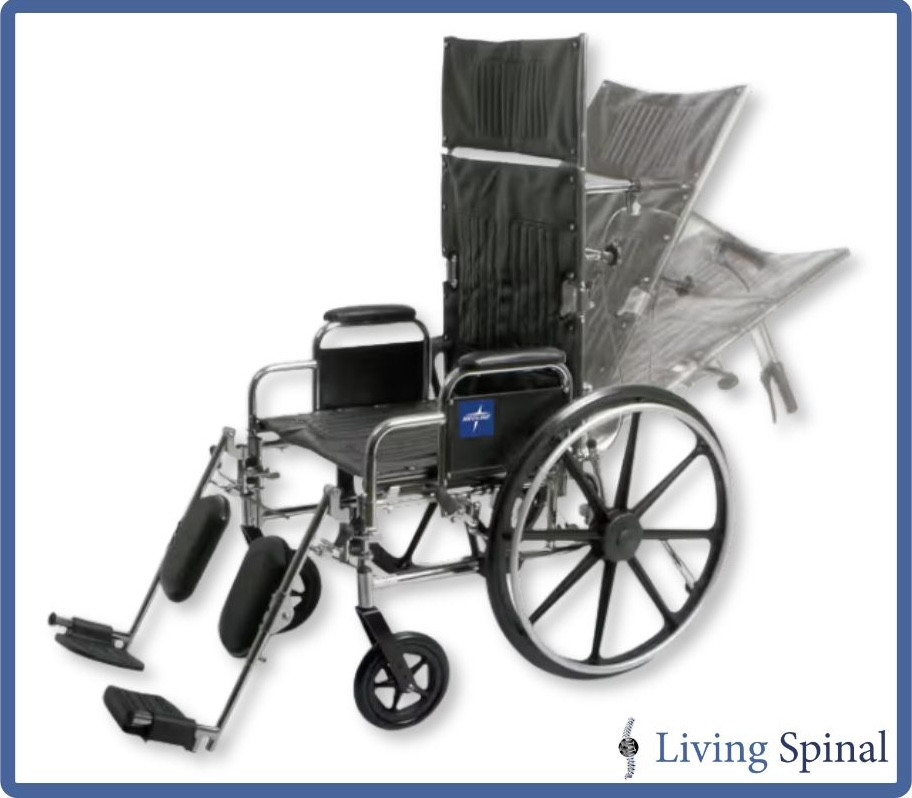

Allows the backrest to adjust smoothly from 90 to 180 degrees to accommodate passive positioning modifications and facilitate effective pressure relief.
Provides full neck and head stability via a cushioned pillow attachment when the backrest is reclined, and can be removed to streamline transport.
Built using high-strength carbon steel and 14-gauge crossbraces to maintain long-term structural integrity and support daily weight loads reliably.
Integrates a reinforced inner layer beneath the dual-embossed upholstery to prevent the seating surfaces from sagging and ensure continuous postural support.
Features low-maintenance tires mounted on rigid composite wheels with sealed precision bearings to deliver a smooth, puncture-free ride on diverse surfaces.

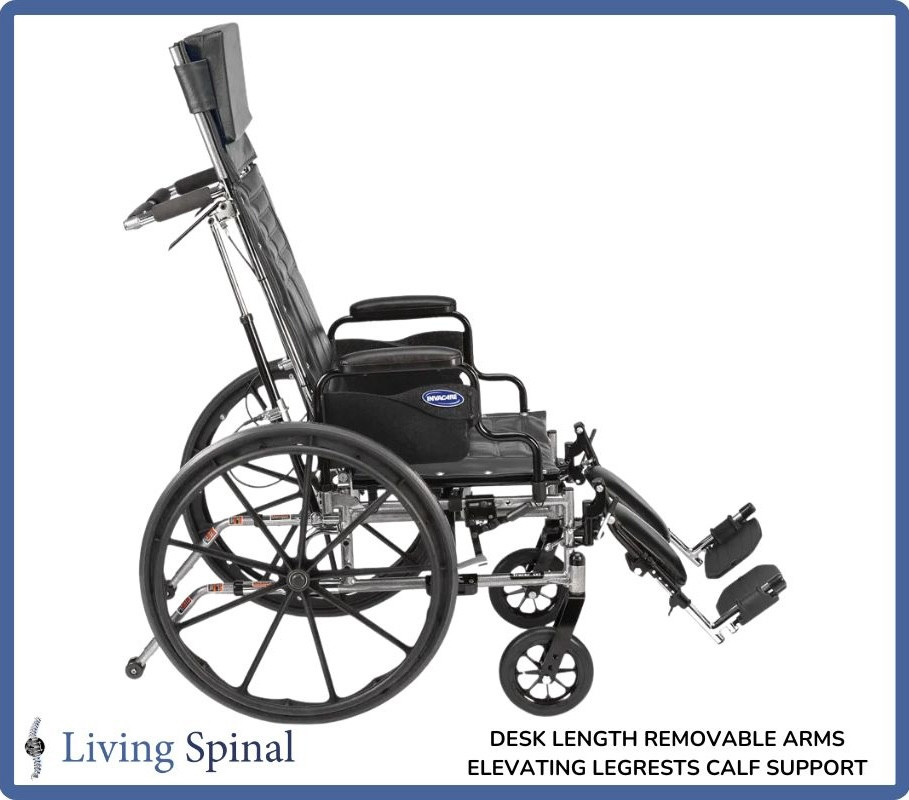

Padded armrests flip backward out of the path of motion or detach entirely to allow for unobstructed lateral transfers and easy table proximity.
TRACER SX5 FULL RECLINER FOLDING WHEELCHAIR FOR PRESSURE MANAGEMENT
Product Specifications
| Specification | Details |
|---|---|
| Weight Capacity | 250 lbs. |
| Product Weight | 53 lbs. |
| Seat Width Options | 16" and 18" |
| Seat Depth Options | 16" and 18" |
| Seat-to-Floor Height | 17.5" to 19.5" |
| Back Height | 24" and 34" |
| Recline | 90° to 180° |
| Overall Width | Up to 26.75" |
| Folded Width | 13" |
| Overall Height | 53" |
| Front Wheel Size | 8" |
| Rear Wheel Size | 20" 22" 24" |
| Armrest Options | Fixed Height Adjustable Height Removable |
| Legrest Option | Fixed Elevating Swing-away |
Product Measurement and Sizing Guide
| Measurement | Details |
|---|---|
| 1 - Seat Depth | Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg |
| 2 - Back Height | Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate. |
| 3 - Rear Seat to Floor | Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat |
| 4 - Hanger Angle | Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular |
| 5 - Seat Width | Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant |
| 6 - Wheel Camber | Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber. |
| 7 - Front Seat to Floor | Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled® |
| 8 - Footrest Width | Measure from the inside of each legrest tubing the distance or desired distance between legrests |
| 9 - Center of Gravity | Measure from the front of the seat back post to the center of the rear axel. |
| 10 - Seat to Footrest Length | Measure from the edge of the seat upholstery to the top rear of the footrest. |
| 11 - Backrest Angle | Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump |
TRACER SXR RECLINER WHEELCHAIR BY INVACARE DOWNLOADS
TRACER SX5 RECLINER
USER MANUAL TRACER SX5 RECLINER
BROCHURE TRACER SX5 RECLINER
ORDER FORM
Tracer SX5 Recliner Standard by Invacare Buyer’s Guide
The Tracer SX5 Recliner Standard by Invacare is a durable mobility solution designed for individuals who require extended positioning support and pressure relief. This mechanical seating system integrates a heavy-duty frame with a dynamic backrest, allowing users to shift angles comfortably throughout the day. Engineered for long-term reliability in clinical or residential environments, the chair provides a reliable means of independent or assisted mobility.
Tracer Durable Carbon Steel Frame Architecture
The core structure of this wheelchair is built on a robust carbon steel frame that ensures exceptional stability and a long operational lifespan. The Tracer line is recognized for its ability to handle daily wear while maintaining structural integrity under continuous load. The frame features a dual-embossed upholstery system that resists stretching and sagging, providing consistent support for the user's back and thighs over years of use.
Dynamic Recliner Backrest for Position Management
A primary feature of this model is its mechanical reclining backrest, which allows for smooth adjustment from an upright posture down to a near-flat orientation. This recliner capability is essential for managing orthostatic hypotension, facilitating safe transfers, and redistributing body weight to prevent pressure sores. The dual counter-balance gas cylinders ensure that caregivers can adjust the back angle effortlessly and safely with minimal physical strain.
Manual Mobility and Attendant-Assisted Control
Designed as a fully manual propulsion system, this chair features large rear wheels with ergonomic handrims that allow users with adequate upper-body strength to self-propel. For caregivers, the rear push handles include integrated trigger releases for the reclining mechanism, ensuring full control over the chair's configurations. The manual design eliminates the need for batteries or electronics, making it a reliable and low-maintenance option for daily transportation.
Standard Clinical Compatibility and Adjustments
This wheelchair adheres to standard dimensions and component configurations, ensuring it fits easily through conventional doorways and integrates well with common clinical accessories. The configuration includes heavy-duty front rigging options, such as elevating leg rests, which are crucial when the chair is tilted back to keep the lower extremities properly positioned. The standard specification makes it a versatile choice for hospitals, nursing facilities, and home care setups.
Enhanced Stability with Front Rigging and Anti-Tippers
Safety is a critical element when shifting a user's center of gravity backward, which is why the system includes rear anti-tippers as a built-in safety measure. These components prevent the frame from tipping backward when the seat is fully reclined. Additionally, the front castors and rear wheels are spaced to maximize the footprint of the chair, ensuring absolute stability whether the user is seated upright or resting in a fully extended position.
Tracer SX5 Recliner Standard by Invacare Review
The Tracer SX5 Recliner Standard by Invacare stands out as a highly dependable and comfortable option for users needing advanced postural support. Combining a strong carbon steel manual base with a smoothly operating recline feature, this wheelchair delivers exceptional versatility for both self-propelling users and caregivers. Its focus on structural durability, standard compatibility, and safety mechanisms makes it an excellent long-term investment for comprehensive mobility care.
No Buyers info available
Limited Warranty
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser who purchases this product when new and unused from Invacare or a dealer. This warranty is not extended to any other person or entity and is not transferable or assignable to any subsequent purchaser or owner. Coverage under this warranty will end upon any such subsequent sale or other transfer of title to any other person.
This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state. Invacare warrants the side frames and cross members of this product when purchased new and unused to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. Invacare warrants the upholstered materials (seat, back and armrests of the arm assembly) and remaining components of this product when purchased new and unused to be free from defects in materials and workmanship for a period of thirteen (13) months from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. If within such warranty periods any such product shall be proven to be defective, such product shall be repaired or replaced, at Invacare’s option. This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of any such product. Invacare’s sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty service, please write directly to Invacare at the address at the bottom of this page. Provide dealer’s name, address, the product model number, date of purchase, indicate nature of the defect and, if the product is serialized, indicate the serial number. Do not return products to our factory without our prior consent.
Limitations and Exclusions: The foregoing warranty shall not apply to serial numbered products if the serial number has been removed or defaced, products subjected to negligence, accident, improper operation, maintenance or storage, products modified without Invacare’s express written consent including, but not limited to, modification through the use of unauthorized parts or attachments; products damaged by reason of repairs made to any component without the specific consent of Invacare, or to a product damaged by circumstances beyond Invacare’s control, and such evaluation will be solely determined by Invacare. The warranty shall not apply to normal wear and tear or failure to adhere to the product instructions.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES WHATSOEVER, WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND THE SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGE, OR LIMITATION OF HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION AND LIMITATION MAY NOT BE APPLICABLE.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.
