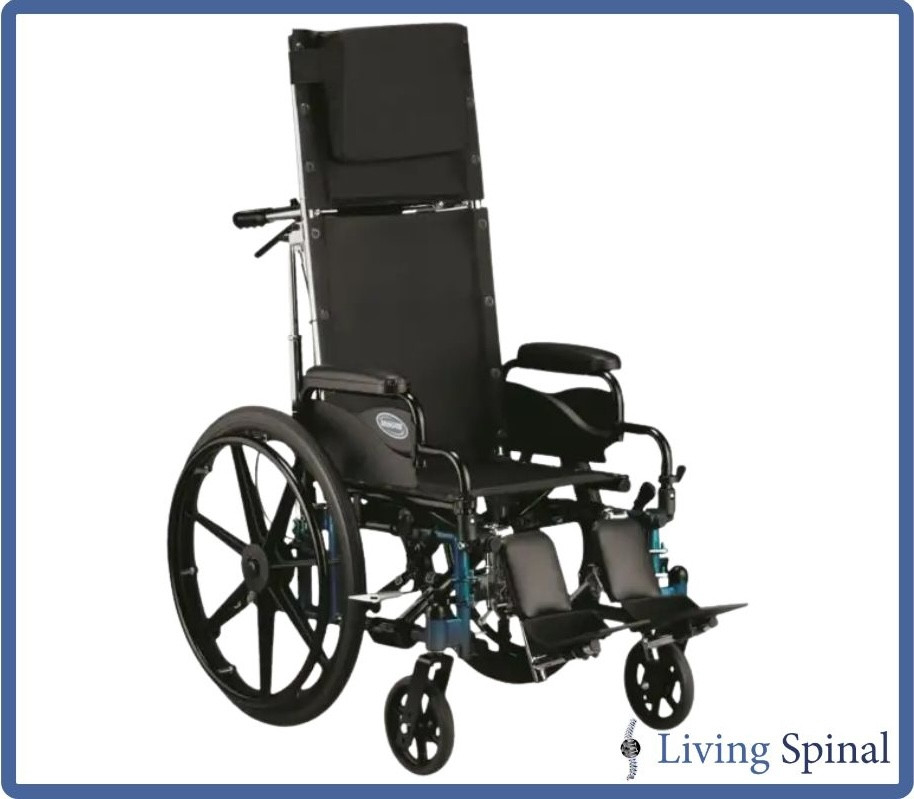

9000 JYMNI RECLINER WHEELCHAIR BY INVACARE A pediatric reclining manual wheelchair designed to provide exceptional comfort, positioning support, and mobility for children and young users.
9000 JYMNI CARBON STEEL PEDIATRIC RECLINER WHEELCHAIR
Product Features
Allows the backrest to adjust from 95 to 160 degrees, helping caregivers easily change the user's position for pressure relief and comfort.
Provides full neck and head support when the wheelchair is in a reclined position and can be detached to simplify transport.
Shipped as a standard safety feature to prevent the wheelchair from tipping backward when the backrest is fully reclined.
Offers a durable, high-strength framework that ensures structural integrity and safety during long-term daily use.
Allows the armrests to be moved completely out of the way to facilitate safe, unobstructed lateral transfers and close access to tables.
Equipped with flat-free urethane tires mounted on rigid composite wheels to provide a smooth ride without the risk of punctures.
9000 JYMNI CHILDREN'S WHEELCHAIR WITH FULL BACK RECLINE
Product Specifications
| Specification | Details |
|---|---|
| Weight Capacity | 125 lbs |
| Product Weight | 40 lbs |
| Seat Width Options | 10" - 14" |
| Seat Depth Options | 10" - 14" |
| Seat-to-Floor Height | 15" - 17" |
| Back Height | 16", 27" |
| Overall Width | 19", 23" |
| Folded Width | 15" |
| Overall Height | 45" |
| Wheel Size | 20", 22" |
| Armrest Options | Full Length, Desk Length |
| Upholstery | Nylon |
Product Measurement and Sizing Guide
| Measurement | Details |
|---|---|
| 1 - Seat Depth | Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg |
| 2 - Back Height | Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate. |
| 3 - Rear Seat to Floor | Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat |
| 4 - Hanger Angle | Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular |
| 5 - Seat Width | Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant |
| 6 - Wheel Camber | Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber. |
| 7 - Front Seat to Floor | Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled® |
| 8 - Footrest Width | Measure from the inside of each legrest tubing the distance or desired distance between legrests |
| 9 - Center of Gravity | Measure from the front of the seat back post to the center of the rear axel. |
| 10 - Seat to Footrest Length | Measure from the edge of the seat upholstery to the top rear of the footrest. |
| 11 - Backrest Angle | Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump |
Invacare 9000 Jymni Recliner Wheelchair Buyer’s Guide
The Invacare 9000 Jymni Recliner Wheelchair is a highly adaptive manual mobility device engineered specifically to support smaller users who require specialized positioning assistance. Combining a durable carbon steel frame with a dynamic high-back reclining system, this chair delivers structural longevity alongside exceptional clinical support. It offers a reliable alternative to standard manual chairs by integrating posture-relieving adjustability into a highly maneuverable, transport-friendly package.
Dynamic Recliner Backrest Functionality
The standout mechanism of this model is its smooth reclining backrest, which allows for an adjustable range of motion from 95 to 160 degrees. This extensive movement makes it easier for caregivers to assist with pressure management, position changes, and routine transfers throughout the day. By altering the seating angle, users can find relief from fatigue and distribute their body weight more evenly, minimizing the localized stress associated with upright sitting.
Invacare Specialized Engineering and Custom Fit
Built with the high manufacturing standards associated with the Invacare name, this frame features dual-axle positioning that allows simple seat-to-floor height modifications. The structural cross-braces and carbon steel tubing provide a rigid, dependable foundation that effortlessly supports daily activity while preserving structural alignment. Additionally, the frame components are designed to remain low-maintenance, utilizing dual-sealed precision bearings to ensure smooth rolling over time.
Pediatric Proportions and Comfort Elements
Tailored directly to meet pediatric sizing requirements, the chair accommodates compact seat widths and depths starting at 10 inches. The padded seating surfaces work in tandem with a removable 11-inch headrest extension to ensure full spinal and cranial support during deep recline phases. The frame layout is scaled precisely for smaller body types, providing an intimate, secure fit that prevents slouching and supports healthier daily interaction.
Ancillary Positioning and Legrest Support

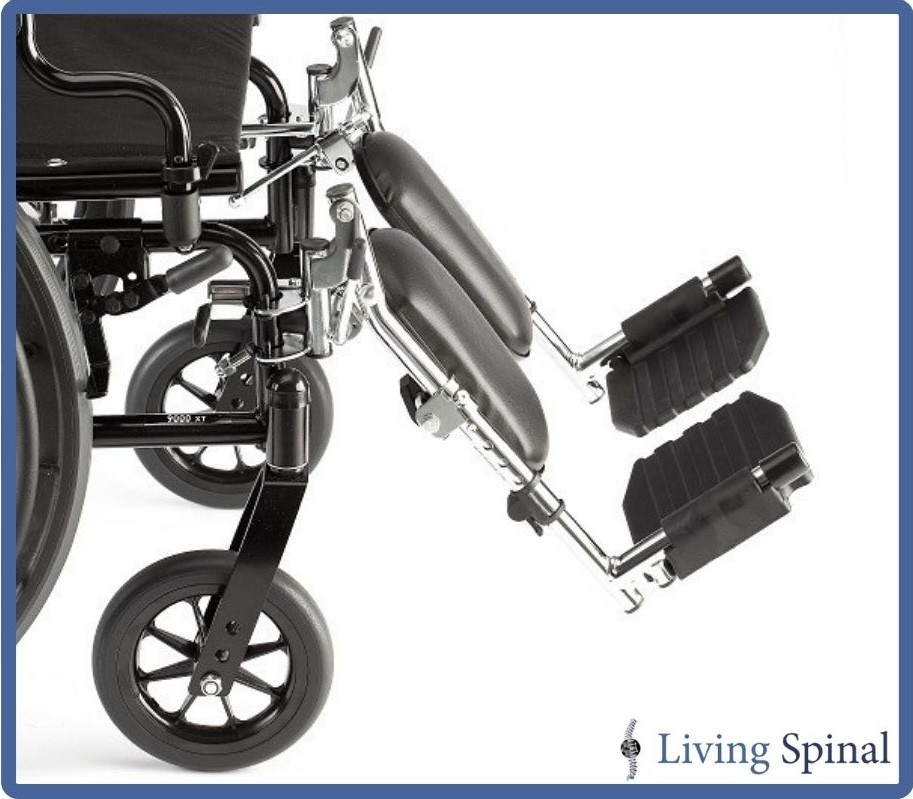

To further enhance full-body alignment, the wheelchair comes equipped with swing-away, detachable padded elevating legrests. These adjustable front riggings ensure that the user's legs can be positioned at optimal heights to combat circulation issues or lower-extremity stiffness. When the backrest is lowered, the legrests elevate to keep the body supported in an ergonomic plane, ensuring full pelvic stability and targeted pressure relief.
Tilt Alternatives and Caregiver Accommodations
While standard tilt in space chairs rotate the entire seat capsule to maintain fixed joint angles, this reclining mechanism changes the hip angle directly to promote muscle stretching and relaxation. For the caregiver, ergonomic stroller handles are integrated at the rear to ensure easy pushing, steering, and navigation. When it comes time to travel, the handles and armrests can be detached, allowing the frame to fold down efficiently into a compact profile for storage in a trunk or closet.
Invacare 9000 Jymni Recliner Wheelchair Review
The Invacare 9000 Jymni Recliner Wheelchair provides a comprehensive, durable solution for smaller individuals who demand both mobility independence and diverse structural support. With its deep reclining backrest, custom pediatric sizing, and heavy-duty carbon steel frame, it bridges the gap between basic transport chairs and complex positioning equipment. Its straightforward adjustability and easy-to-fold design make it an excellent choice for families and clinicians seeking long-term comfort and reliable daily function.
No Buyers info available
Limited Warranty
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser who purchases this product when new and unused from Invacare or a dealer. This warranty is not extended to any other person or entity and is not transferable or assignable to any subsequent purchaser or owner. Coverage under this warranty will end upon any such subsequent sale or other transfer of title to any other person.
This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
Invacare warrants the side frames and cross members of this product when purchased new and unused to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. Invacare warrants the upholstered materials (seat, back and armrests of the arm assembly) and remaining components of this product when purchased new and unused to be free from defects in materials and workmanship for a period of thirteen (13) months from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. If within such warranty periods any such product shall be proven to be defective, such product shall be repaired or replaced, at Invacare’s option. This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of any such product. Invacare’s sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty service, please write directly to Invacare at the address at the bottom of this page. Provide dealer’s name, address, the product model number, date of purchase, indicate nature of the defect and, if the product is serialized, indicate the serial number. Do not return products to our factory without our prior consent.
LIMITATIONS AND EXCLUSIONS: THE FOREGOING WARRANTY SHALL NOT APPLY TO SERIAL NUMBERED PRODUCTS IF THE SERIAL NUMBER HAS BEEN REMOVED OR DE-FACED, PRODUCTS SUBJECTED TO NEGLIGENCE, ACCIDENT, IMPROPER OPERATION, MAINTENANCE OR STORAGE, PRODUCTS MODIFIED WITHOUT INVACARE’S EXPRESS WRITTEN CONSENT INCLUDING, BUT NOT LIMITED TO, MODIFICATION THROUGH THE USE OF UNAUTHORIZED PARTS OR ATTACHMENTS; PRODUCTS DAMAGED BY REASON OF REPAIRS MADE TO ANY COMPONENT WITHOUT THE SPECIFIC CONSENT OF INVACARE, OR TO A PRODUCT DAMAGED BY CIRCUMSTANCES BEYOND INVACARE’S CONTROL, AND SUCH EVALUATION WILL BE SOLELY DETERMINED BY INVACARE. THE WARRANTY SHALL NOT APPLY TO NORMAL WEAR AND TEAR OR FAILURE TO ADHERE TO THE PRODUCT INSTRUCTIONS.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES WHATSOEVER, WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND THE SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGE, OR LIMITATION OF HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION AND LIMITATION MAY NOT BE APPLICABLE.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.
