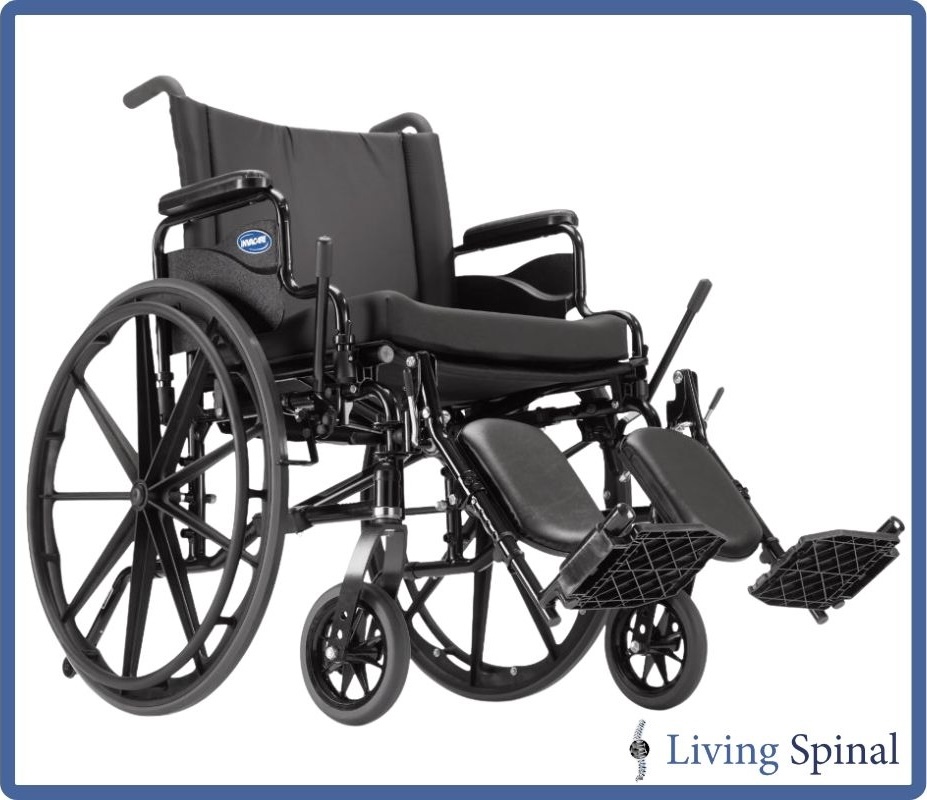

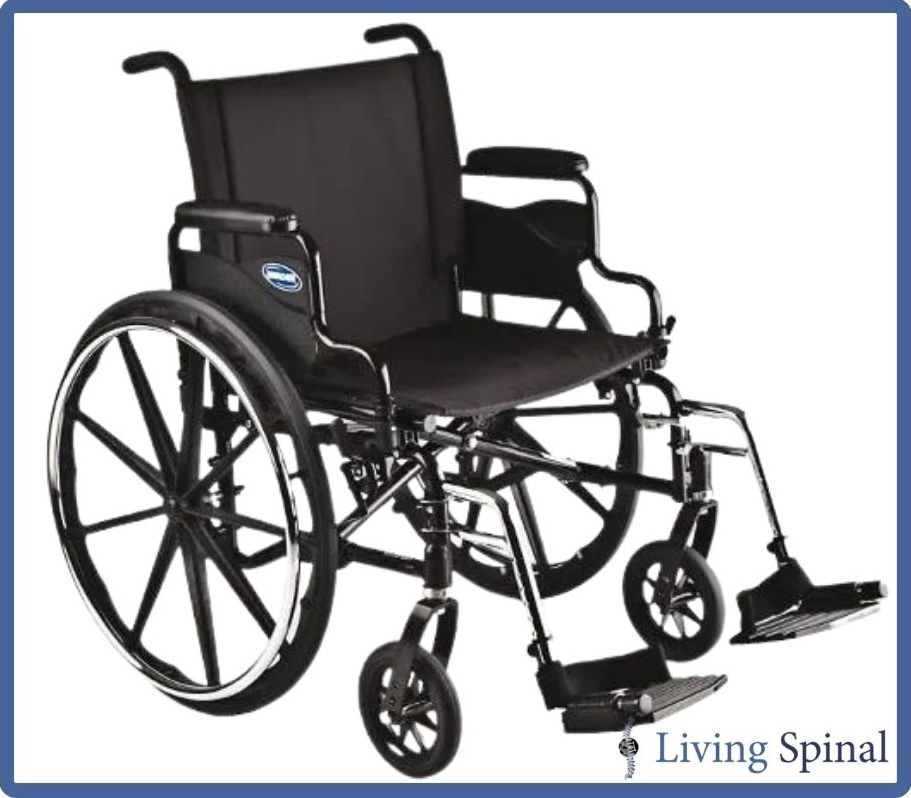

9000 XDT MANUAL WHEELCHAIR, BY INVACARE A heavy-duty, extra-wide manual wheelchair for users who need enhanced durability, customizable sizing, and taller seat-to-floor height configurations
INVACARE 9000 XDT HEAVY-DUTY MANUAL WHEELCHAIR
Product Features
Features a highly adaptable rear axle setup that allows the seat-to-floor height to be adjusted from a low "Hemi" height up to an extra-tall adult height.
Designed to accommodate larger or taller individuals, offering expanded seat dimensions and tall frame configurations that provide a more natural, comfortable fit.
Padded armrests lock securely for stability but flip back out of the way for smooth lateral transfers; available in conventional or space-saving widths.
Features low-maintenance, flat-free urethane tires mounted on heavy-duty composite wheels, delivering a smooth ride across both indoor and outdoor surfaces.

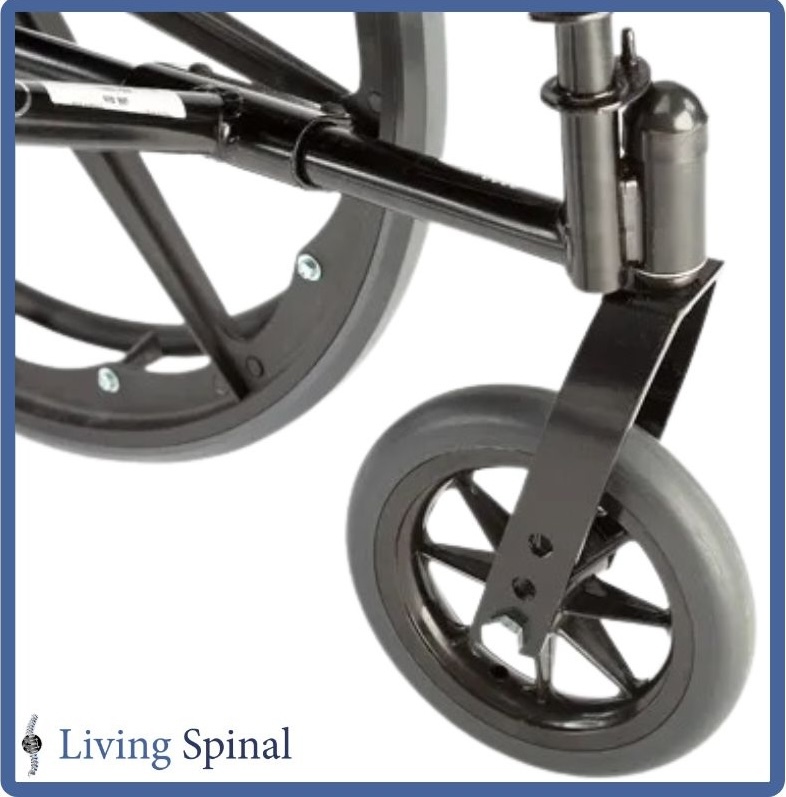

The front casters on the Invacare 9000 XDT are specifically designed with oversized 8-inch wheels and integrated dual-sealed precision bearings.
Fabricated with durable material that resists bacteria, mildew, cold-cracking, and UV damage, ensuring a long-lasting, hygienic seating surface.
IVC 9000 XDT EXTRA-WIDE AND TALL FOLDING WHEELCHAIR
Product Specifications
| Specification | Details |
|---|---|
| Weight Capacity | 350 lbs |
| Product Weight | Approx. 37–38 lbs |
| Seat Width Options | 116", 17", 18", 19", 20", 22" |
| Seat Depth Options | 16", 17", 18", 19", 20" |
| Seat-to-Floor Height | 17.5", 19.5", 21.5" |
| Overall Width | 23"–29" |
| Overall Height | 36" – 38" |
| Overall Depth without Riggings | Approximately 30" – 31" |
| Overall Depth with Riggings | Approximately 42" – 44" |
| Rear Wheel Size | 24" |
| Armrest Options | Full-Length Fixed, Desk-Length Fixed, Adjustable-Height Desk Arm, Flip-Back Desk Arm |

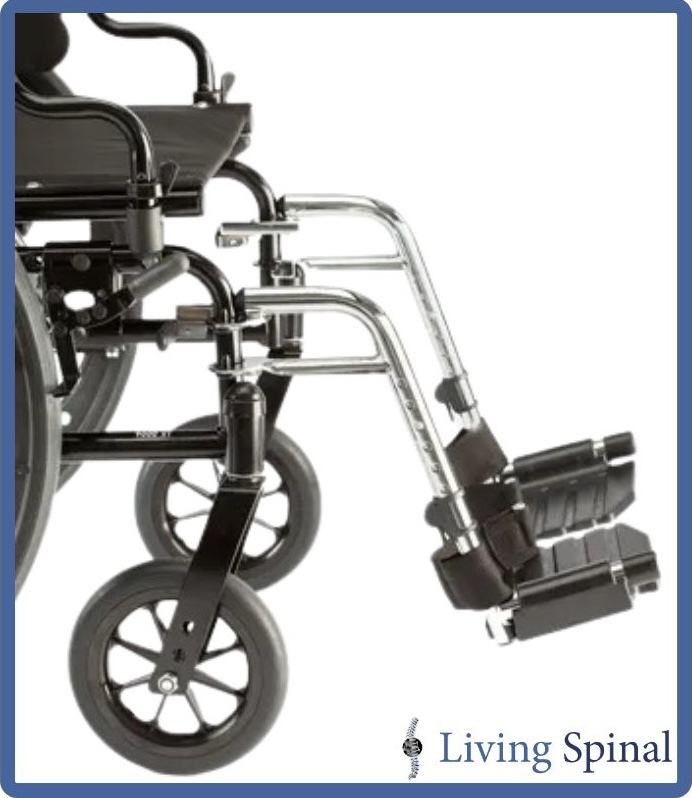

| Leg Rest Options | Swing-Away Footrests, Elevating Legrests, Articulating Elevating Legrests |
| Upholstery | Flame-Retardant Black Nylon Upholstery (Mildew and Bacteria Resistant) |
Product Measurement and Sizing Guide
| Measurement | Details |
|---|---|
| 1 - Seat Depth | Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg |
| 2 - Back Height | Measured from the seat base to the top of the wheelchair back. Depends on how much upper back support is needed, and also affects freedom for the upper body to rotate. |
| 3 - Rear Seat to Floor | Measurement from the ground to the rear seat edge. Relative to the front seat-to-floor dimension, this determines the rearward slope ("dump" or "squeeze") of the wheelchair seat |
| 4 - Hanger Angle | Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular |
| 5 - Seat Width | Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant |
| 6 - Wheel Camber | Angle of the wheel relative to the vertical. More camber improves stability and agility, but also limits ability to pass through narrow spaces. A typical daily wheelchair uses three degrees of camber. |
| 7 - Front Seat to Floor | Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Do not add the footrest clearance if the wheelchair will be foot-propelled® |
| 8 - Footrest Width | Measure from the inside of each legrest tubing the distance or desired distance between legrests |
| 9 - Center of Gravity | Measure from the front of the seat back post to the center of the rear axel. |
| 10 - Seat to Footrest Length | Measure from the edge of the seat upholstery to the top rear of the footrest. |
| 11 - Backrest Angle | Measure the the angle of the back post to the floor. Ninety degrees will be perpendicular to the floor, to approximate the angle from the back post to the seat, subtract two degrees from measurment for every .5" of dump |
9000XDT MANUAL WHEELCHAIR BY INVACARE DOWNLOADS
9000XDT USER MANUAL 9000XDT BROCHURE 9000XDT ORDER FORM
9000 XDT Manual Wheelchair by Invacare Buyer’s Guide
The 9000 XDT Manual Wheelchair by Invacare is a highly adaptable mobility solution configured for users who require extra structural reinforcement or extended frame dimensions. Designed to bridge the gap between everyday transit and clinical-grade support, this system provides specialized configurations for taller and heavier individuals. Its universal compatibility with other models in the product series ensures long-term utility and hassle-free maintenance for everyday independent movement.
Durable Invacare Carbon Steel Frame Architecture

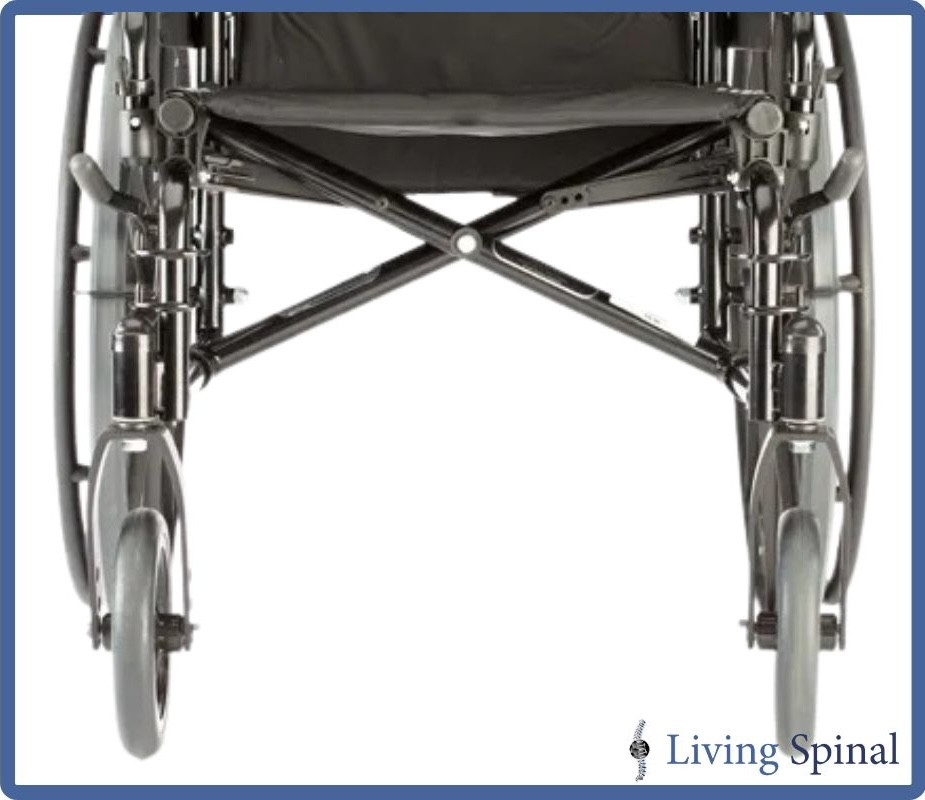

The foundation of this chair rests on an exceptionally strong carbon steel frame built to withstand continuous daily operations. Engineered by Invacare, this low-maintenance structure features double cross-braces and gusseted side components that maintain structural integrity under load. This robust engineering minimizes frame flex, yielding a highly stable, rigid feel that translates user physical energy directly into clean forward momentum without wasting effort on structural bending.
Heavy-Duty Reinforced Liners and High Weight Capacity
To support users safely, the chair features a tested 350-pound weight capacity alongside a heavy-duty reinforced interior liner system. Standard fabric seats often sag or stretch over months of regular use, which can lead to poor pelvic posture and unwanted pressure hotspots. The integrated inner lining sheets inside this upholstery prevent the seating material from stretching out, maintaining a flat, firm platform that preserves skin health and postural comfort.
Bariatric and Taller Seating Profile Dimensions
This model is specifically designed to meet bariatric mobility standards, offering seat widths that scale up to twenty-two inches for generous hip clearance. Beyond structural width, the frame is uniquely optimized for taller riders who frequently struggle to find standard equipment that fits their leg length. The generous frame configurations ensure proper physical support along the entire length of the thigh, preventing knee strain and accommodating longer body profiles smoothly.

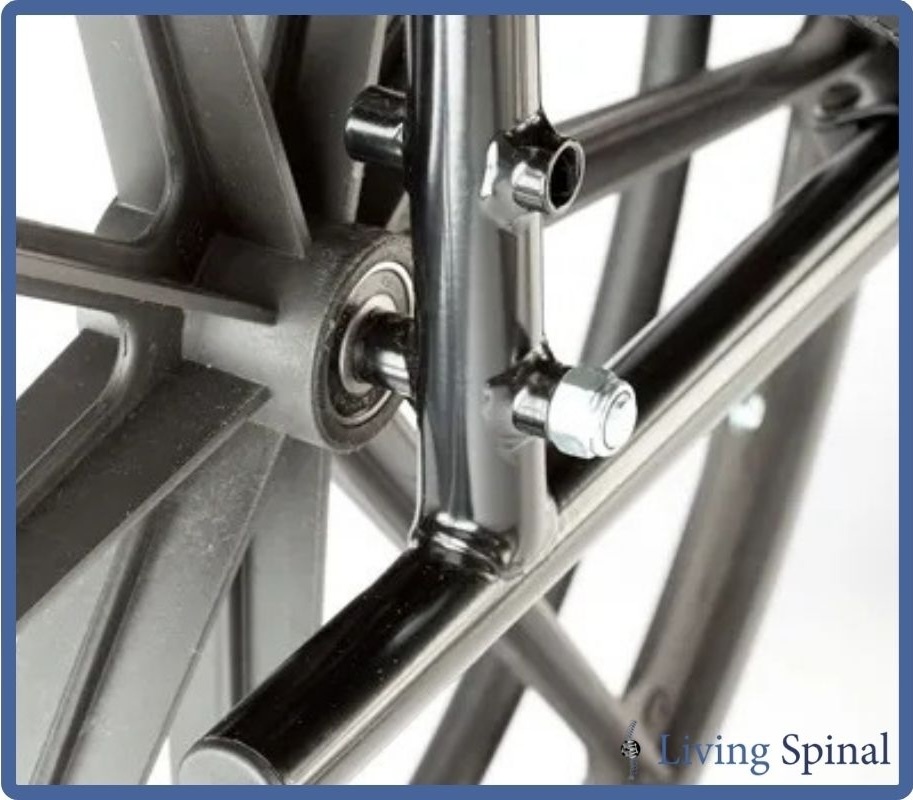

Adjustable Triple-Axle Setup and Seat-to-Floor Heights
A key mechanical feature of this manual mobility device is the versatile triple-axle plate. This adjustable mechanism allows the rear wheels and front casters to be mounted in three separate vertical positions, varying the seat height from a low hemi profile up to an extended tall setup. This customization enables users to lower the seat for foot-propulsion or raise it to match standard dining tables and workspace surfaces seamlessly.

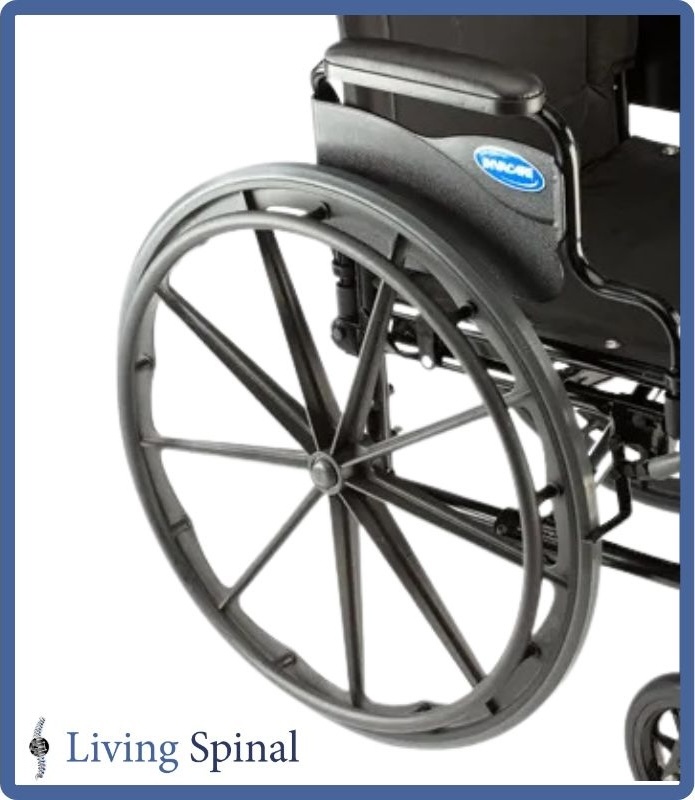

Smooth-Rolling Composite Wheel and Caster Combination
The chair travels on large twenty-four-inch composite rear wheels paired with sturdy front casters utilizing high-performance urethane tires. These non-flexing wheels roll smoothly across diverse floor surfaces, from thick domestic carpeting to uneven outdoor pathways, with minimal rolling resistance. Sealed precision bearings keep dirt out and eliminate the need for frequent lubrication, providing a lighter and more predictable ride with every push.
9000 XDT Manual Wheelchair by Invacare Review
The 9000 XDT Manual Wheelchair by Invacare stands out as an exceptional choice for individuals needing a heavy-duty, bariatric-friendly mobility platform that does not sacrifice personalization. By incorporating a triple-axle height adjustment system, stretch-resistant liners, and a rugged carbon steel frame, this wheelchair adapts effortlessly to unique body shapes and daily challenges. It remains a dependable investment for ensuring comfortable, secure, and independent personal mobility.
No Buyers info available
Limited Warranty
PLEASE NOTE: THE WARRANTY BELOW HAS BEEN DRAFTED TO COMPLY WITH FEDERAL LAW APPLICABLE TO PRODUCTS MANUFACTURED AFTER JULY 4, 1975.
This warranty is extended only to the original purchaser who purchases this product when new and unused from Invacare or a dealer. This warranty is not extended to any other person or entity and is not transferable or assignable to any subsequent purchaser or owner. Coverage under this warranty will end upon any such subsequent sale or other transfer of title to any other person.
This warranty gives you specific legal rights and you may also have other legal rights which vary from state to state.
Invacare warrants the side frames and cross members of this product when purchased new and unused to be free from defects in materials and workmanship for a period of five (5) years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. Invacare warrants the upholstered materials (seat, back and armrests of the arm assembly) and remaining components of this product when purchased new and unused to be free from defects in materials and workmanship for a period of thirteen (13) months from date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty. If within such warranty periods any such product shall be proven to be defective, such product shall be repaired or replaced, at Invacare’s option. This warranty does not include any labor or shipping charges incurred in replacement part installation or repair of any such product. Invacare’s sole obligation and your exclusive remedy under this warranty shall be limited to such repair and/or replacement.
For warranty service, please contact the dealer from whom you purchased your Invacare product. In the event you do not receive satisfactory warranty service, please write directly to Invacare at the address at the bottom of this page. Provide dealer’s name, address, the product model number, date of purchase, indicate nature of the defect and, if the product is serialized, indicate the serial number. Do not return products to our factory without our prior consent.
LIMITATIONS AND EXCLUSIONS: THE FOREGOING WARRANTY SHALL NOT APPLY TO SERIAL NUMBERED PRODUCTS IF THE SERIAL NUMBER HAS BEEN REMOVED OR DE-FACED, PRODUCTS SUBJECTED TO NEGLIGENCE, ACCIDENT, IMPROPER OPERATION, MAINTENANCE OR STORAGE, PRODUCTS MODIFIED WITHOUT INVACARE’S EXPRESS WRITTEN CONSENT INCLUDING, BUT NOT LIMITED TO, MODIFICATION THROUGH THE USE OF UNAUTHORIZED PARTS OR ATTACHMENTS; PRODUCTS DAMAGED BY REASON OF REPAIRS MADE TO ANY COMPONENT WITHOUT THE SPECIFIC CONSENT OF INVACARE, OR TO A PRODUCT DAMAGED BY CIRCUMSTANCES BEYOND INVACARE’S CONTROL, AND SUCH EVALUATION WILL BE SOLELY DETERMINED BY INVACARE. THE WARRANTY SHALL NOT APPLY TO NORMAL WEAR AND TEAR OR FAILURE TO ADHERE TO THE PRODUCT INSTRUCTIONS.
THE FOREGOING EXPRESS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY OTHER WARRANTIES WHATSOEVER, WHETHER EXPRESS OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND THE SOLE REMEDY FOR VIOLATIONS OF ANY WARRANTY WHATSOEVER, SHALL BE LIMITED TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT PURSUANT TO THE TERMS CONTAINED HEREIN. THE APPLICATION OF ANY IMPLIED WARRANTY WHATSOEVER SHALL NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY PROVIDED HEREIN. INVACARE SHALL NOT BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES WHATSOEVER.
SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGE, OR LIMITATION OF HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION AND LIMITATION MAY NOT BE APPLICABLE.
THIS WARRANTY SHALL BE EXTENDED TO COMPLY WITH STATE/PROVINCIAL LAWS AND REQUIREMENTS.
