Lumex Extra Wide Drop-Arm Clinical Care Recliner, by Graham Field

Lumex Extra Wide Drop-Arm Clinical Care Recliner by Graham Field

Extra Wide Drop-Arm Clinical Care Recliner is ideal for clinical, acute care, and bariatric settings. This recliner provides patients more space than other recliners while providing excellent value that maximizes patient comfort, product durability, and ease of use. The drop-arms provide easier and safer lateral transfers of patients.

The Lumex Extra Wide Drop-Arm Clinical Care Recliner by Graham Field is a spacious clinical recliner designed for patient comfort, positioning, and easier lateral transfers in clinical, acute-care, bariatric, and rehabilitation environments. The FR587WD supports up to 450 lb (204.12 kg) evenly distributed and features an extra-wide 24-inch seat, a 26.5-inch space between the arms, and a 33.5-inch back height above the seat. Its self-storing drop arms provide convenient access for lateral transfers between beds, wheelchairs, stretchers, and other adjacent surfaces.  The recliner provides three patient comfort positions—upright, first recline, and second/full recline—plus a caregiver-activated Trendelenburg or shock position. Dual gas cylinders assist with smooth Trendelenburg movement, while five-inch Tente casters provide maneuverability and include three total-locking casters and one directional-locking caster. Two self-storing, fold-down side tables offer convenient surfaces and smooth construction for easier cleaning.  For additional flexibility, the FR587WD is available with WallSaver armrest caps or fully upholstered arms, as well as optional heat-and-massage or heat-only configurations. Removable upholstered side panels, a rear push handle, wide soft armrests, and optional IV accessories further support clinical use. With its extra-wide design, drop-arm transfer capability, 450-lb evenly distributed capacity, and multiple positioning options, the Lumex Extra Wide Drop-Arm Clinical Care Recliner is designed for demanding patient-care applications.

Lumex Extra Wide Drop Arm Geri Chair Features

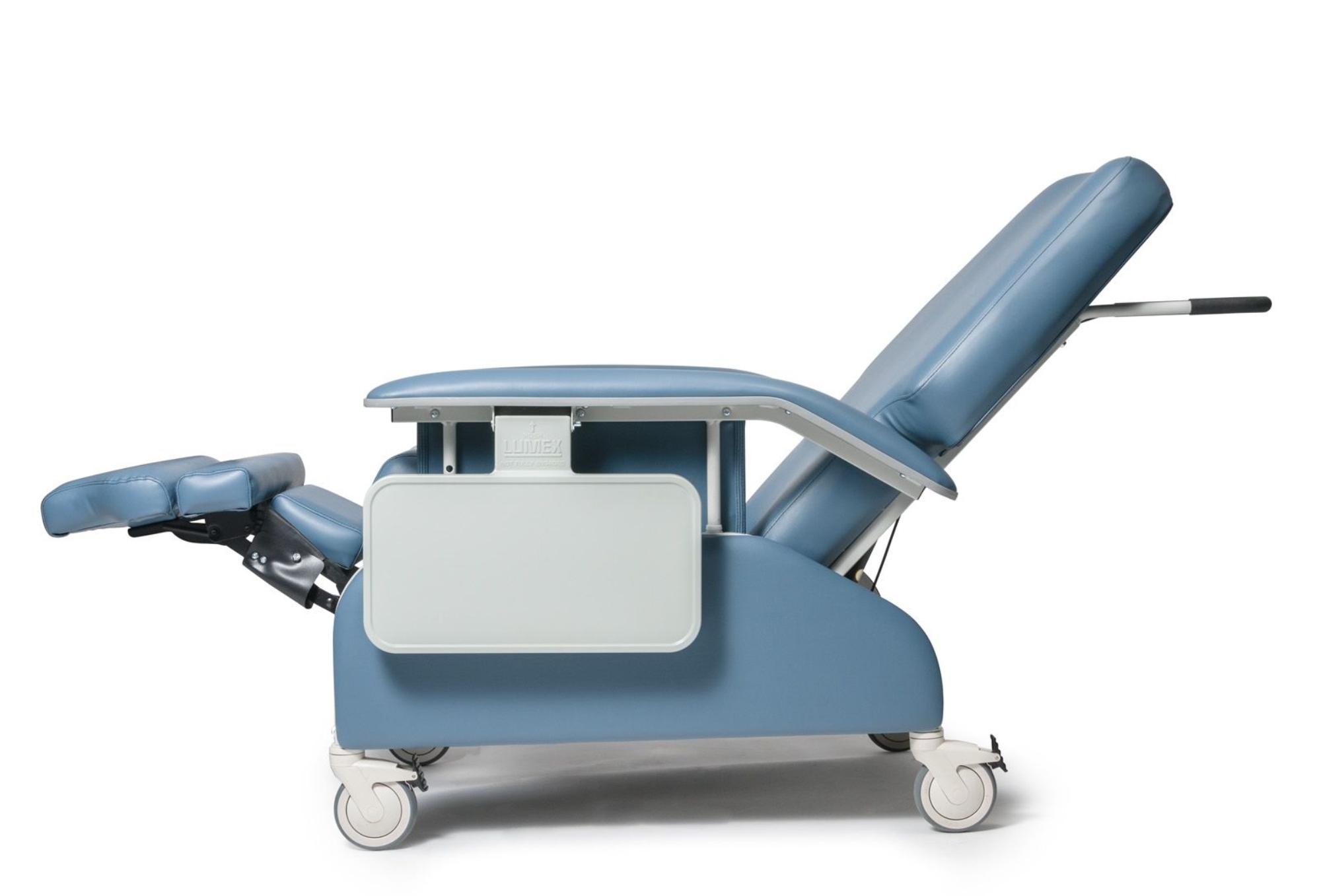

Offers three patient comfort positions

It has Upright Position, First Recline Position, and Second Recline / Full Recline Position  It also provides a fourth Trendelenburg (shock) position, which is caregiver-activated using the rear-mounted hand trigger. Dual gas cylinders assist with smooth movement into Trendelenburg.

Drop Arm Design

The recliner features self-storing, easy-to-actuate drop arms designed to make lateral transfers easier. The arms can help provide access for transfers between the recliner and a bed, wheelchair, stretcher, or other adjacent surface.

5-inch Tente swivel casters for maneuverability

The configuration includes three total-locking casters and one directional-locking caster, allowing the chair to be positioned and secured in clinical environments. Graham Field's operating instructions specifically warn that the casters should be locked to prevent unwanted movement

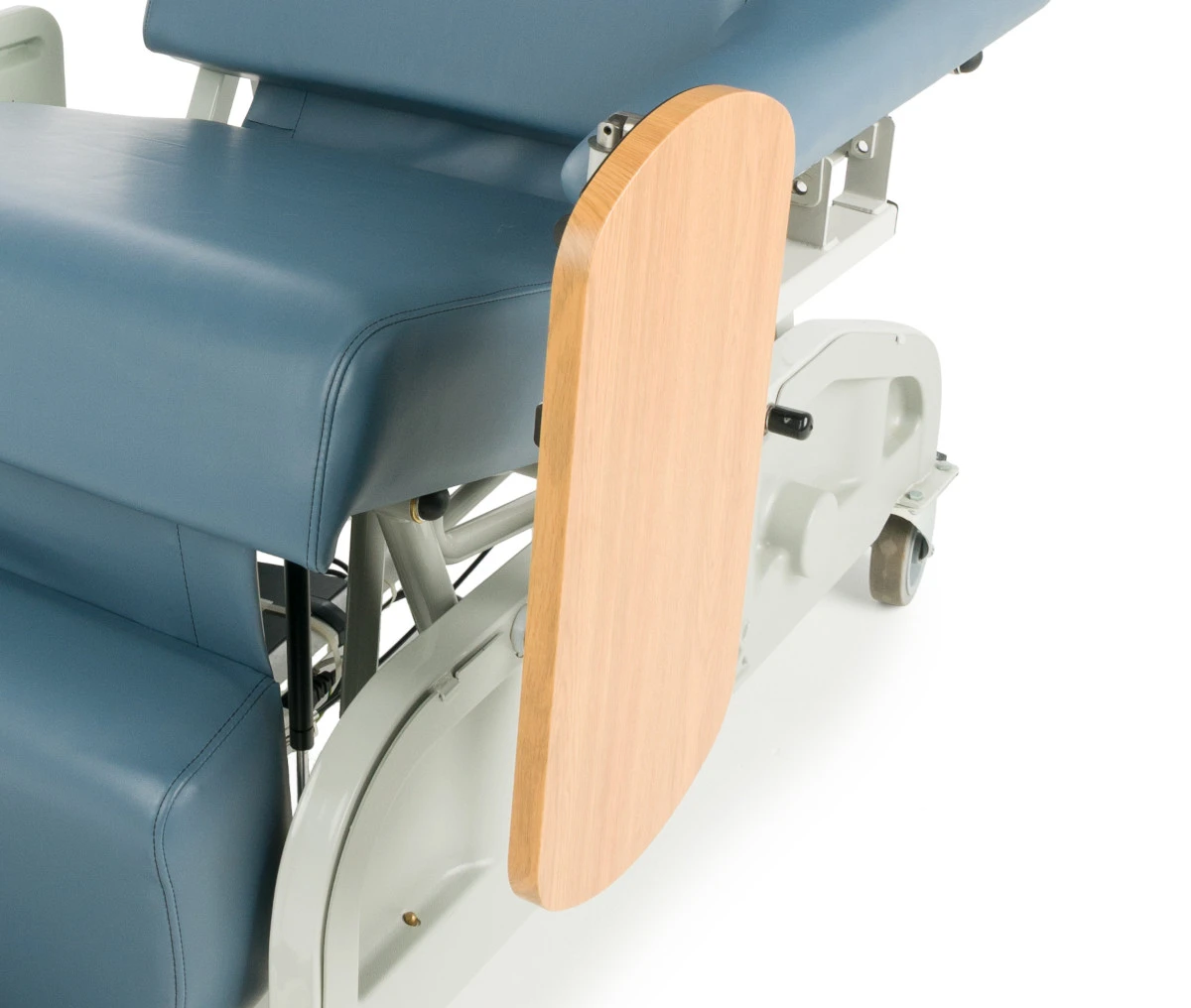

Self-storing, fold-down side tables

They feature smooth surfaces intended to make cleaning easier and provide convenient working or patient-use surfaces.  With the side tables raised, the overall width is approximately 58.25 inches (147.96 cm).

Higher seat & back height

It allows the caregiver to more comfortably assist the patient.

Upholstery and Arm Options

Removable upholstered side panels for easy cleaning and maintenance.

Wallsaver armrest caps

They increase durability and protect walls from marring, or are available with fully upholstered arms.

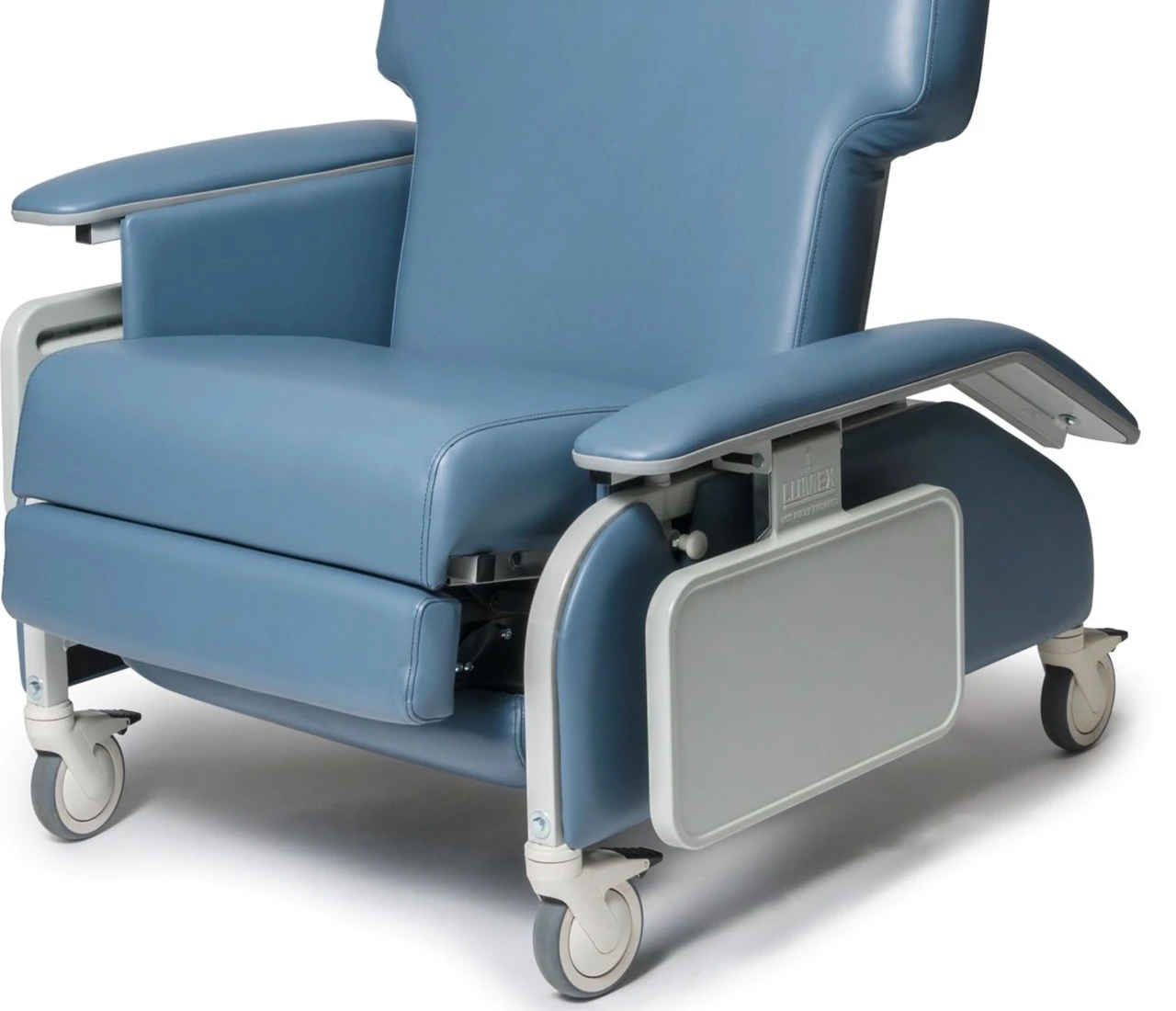

Extra-Wide seat and back

Provides an enhanced level of patient comfort and increased patient space.

Graham Field Recliner Extra Wide Drop-Arm Latch Specification

Specification	Details
Overall Width	35.75 in
Overall Width with Side Tables Up	58.25 in
Overall Depth	44.00 in
Overall Depth in Trendelenburg	78.00 in
Overall Height	50.00 in
Width Between Arms	26.50 in
Arm Height, Arm Up to Floor	27.50 in
Seat Width	24.00 in
Seat Depth	20.50 in
Seat Height	22.00 in
Back Height Above Seat	33.50 in
Caster Diameter	5.00 in
Product Weight	105 lb
Weight Capacity	450 lb

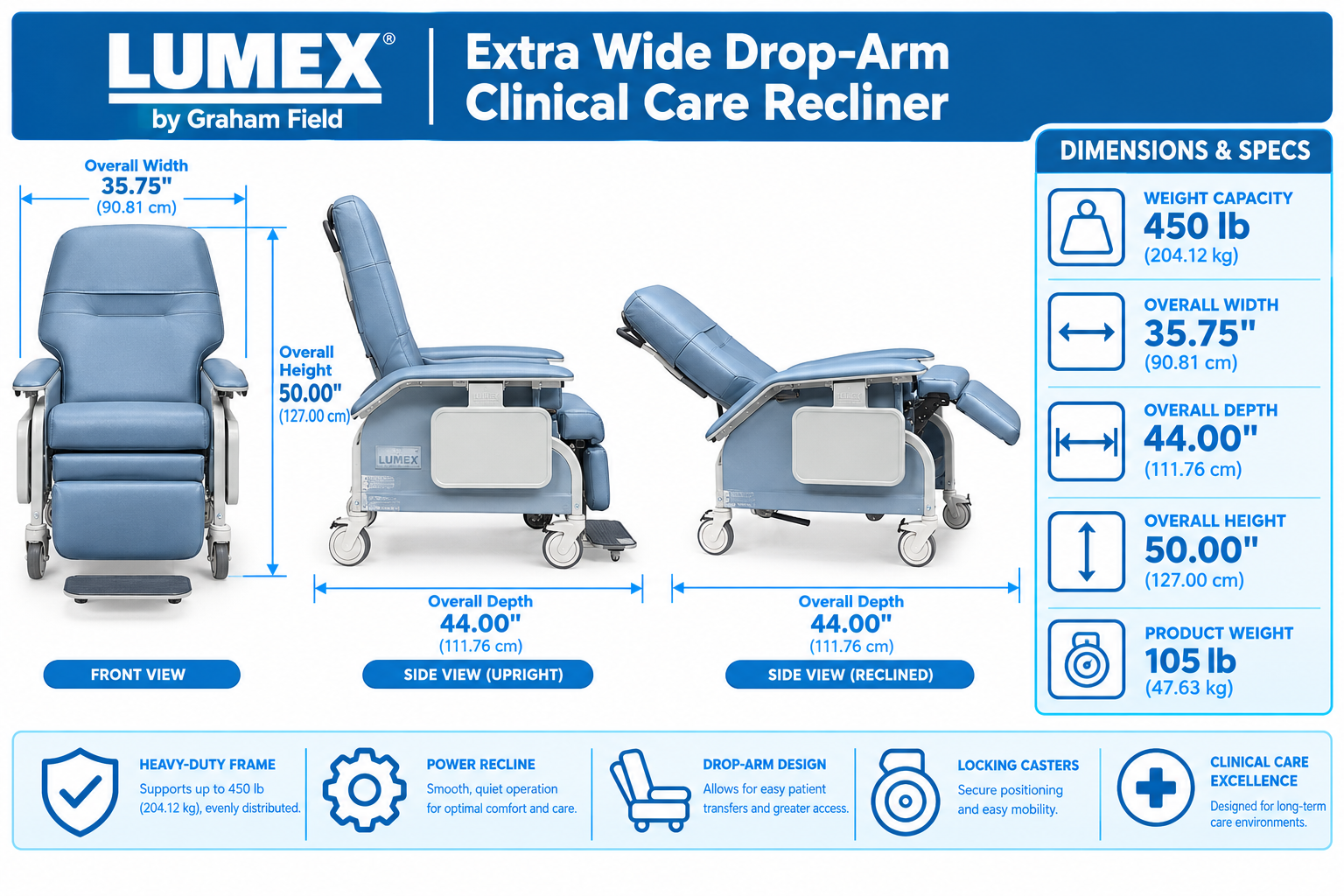

Lumex Extra Wide Drop-Arm Medical Recliner Dimensions

Lumex Extra Wide Drop-Arm Recliner with Heat and Massage Video

Lumex Extra Wide Clinical Care Recliner with Drop-Arms Downloads

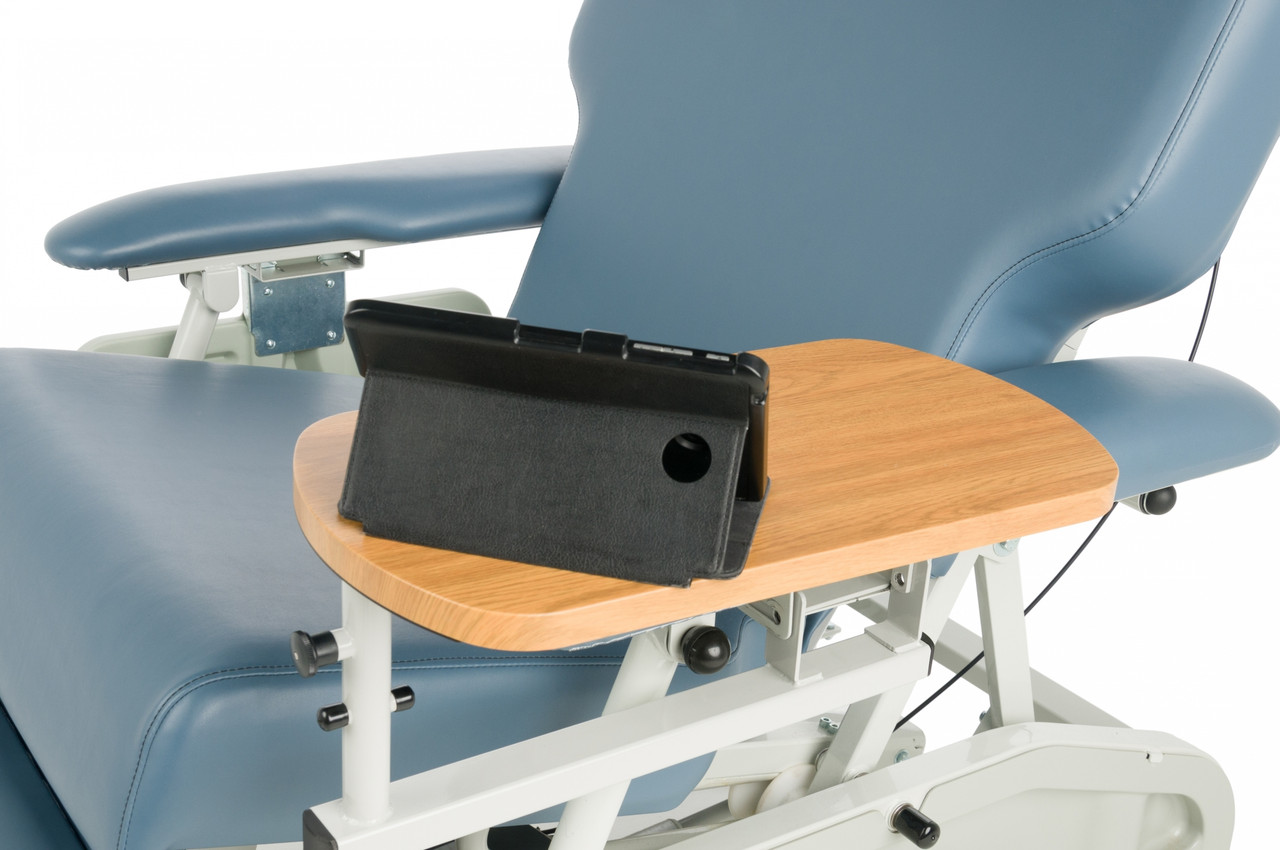

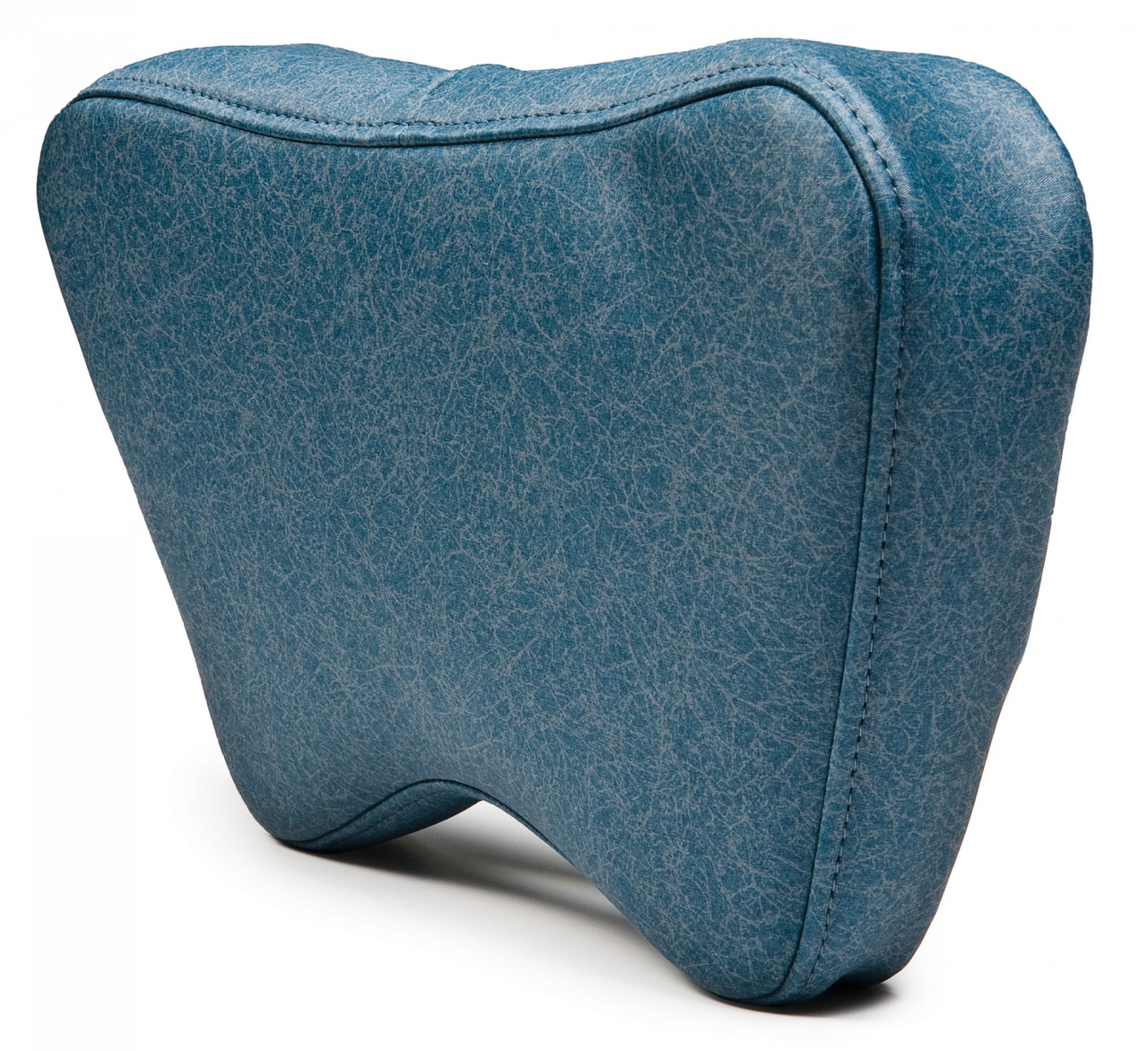

Lumex Healthcare Seating Brochure Product SheetReplacement PartsAssembly and Operating ManualLumex Healthcare Seating Swatch CardLumex Universal Pillow/Headrest Lumex Swing-Away Folding Table Product SheetLumex Universal IV Pole Holder Installation Instruction

Lumex Extra Wide Drop Arm Clinical Care Recliner Buyer’s Guide

The Lumex Extra Wide Drop Arm Clinical Care Recliner by Graham Field is a heavy-duty, healthcare-grade seating solution designed for acute care, dialysis, oncology, and long-term care environments. Featuring an extra-wide seat, self-storing drop-arm mechanism, and smooth multi-position reclining with gas-cylinder assistance, it provides optimal patient comfort, exceptional durability, and effortless lateral transfers for caregivers.

Drop-Arm Feature for Lateral Transfers

The recliner is engineered with self-storing drop arms that operate via an easy-to-actuate lever mechanism. Lowering the armrests flush with the seat level allows seamless, safe lateral patient transfers from wheelchairs, stretchers, or beds, minimizing physical strain on caregivers and improving patient safety.

Lumex Extra Wide Recliner Weight Capacity

Built on a heavy-duty, unitized steel frame, this clinical care recliner comfortably supports a weight capacity of up to 450 lbs (evenly distributed). The expanded 24-inch seat width provides ample room and stability, making it an ideal bariatric-friendly choice for clinical settings.

Multi-Position Recline and Trendelenburg

Equipped with dual gas-assisted cylinders, the chair offers smooth, controlled adjustments across three primary recline positions: upright, deep recline, and elevated leg rest/footrest. It also includes an easily accessible pedal control to activate the Trendelenburg position quickly during medical emergencies or procedures.

Healthcare-Grade Vinyl Upholstery

Upholstered in heavy-duty, healthcare-grade vinyl, the recliner is fluid-resistant, fire-retardant (meets CA TB-133 standards), and easy to clean with standard hospital disinfectants. The durable material withstands high-frequency clinical use while protecting interior foam cushions.

Dual Folding Side Tables

The recliner incorporates two durable, blow-molded side tables with built-in prep trays. Both tables lock securely into place for meals, charting, or medical prep, and easily fold down flush against the chair frame when not in use or during transport.

Smooth Rolling Swivel Casters

Featuring heavy-duty 5-inch swivel casters, the recliner maneuvers smoothly across clinical floor surfaces. The rear casters include directional locks and total-lock brakes to secure the chair completely during patient transfers and fixed clinical care.

Removable Side Panels for Easy Maintenance

Designed with removable side panels, the chair allows quick access to internal hardware and mechanisms. This modular design simplifies routine maintenance, deep cleaning, and field replacements, significantly extending the operational lifespan of the recliner.

Lumex Extra Wide Drop Arm Recliner Review

The Lumex Extra Wide Drop Arm Clinical Care Recliner by Graham Field stands out as a versatile, heavy-duty seating solution for demanding medical environments. With its 450 lb weight capacity, drop-arm lateral transfer efficiency, gas-assisted recline positioning, and easy-clean healthcare upholstery, it delivers long-lasting comfort and clinical functionality for both patients and healthcare providers.
