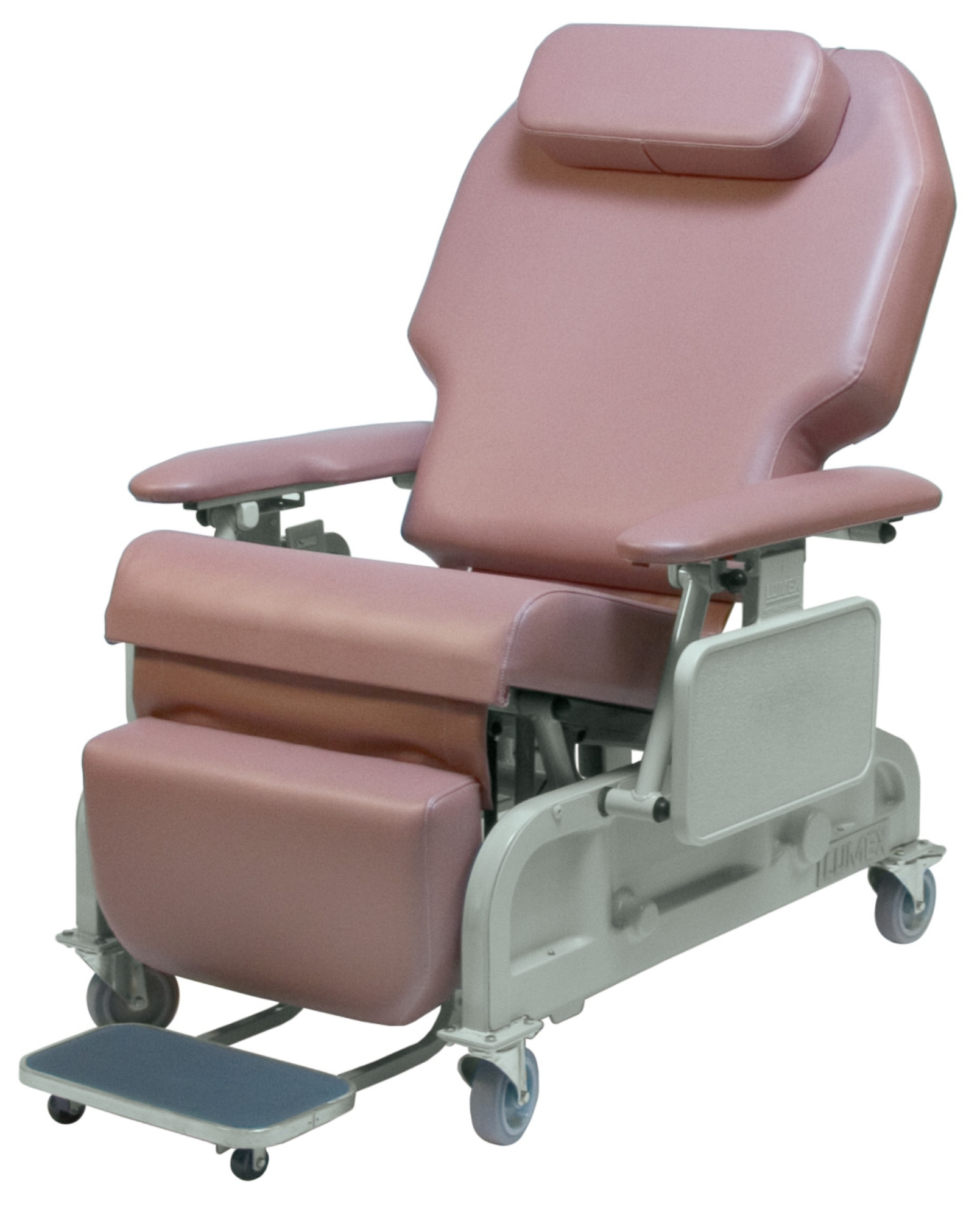

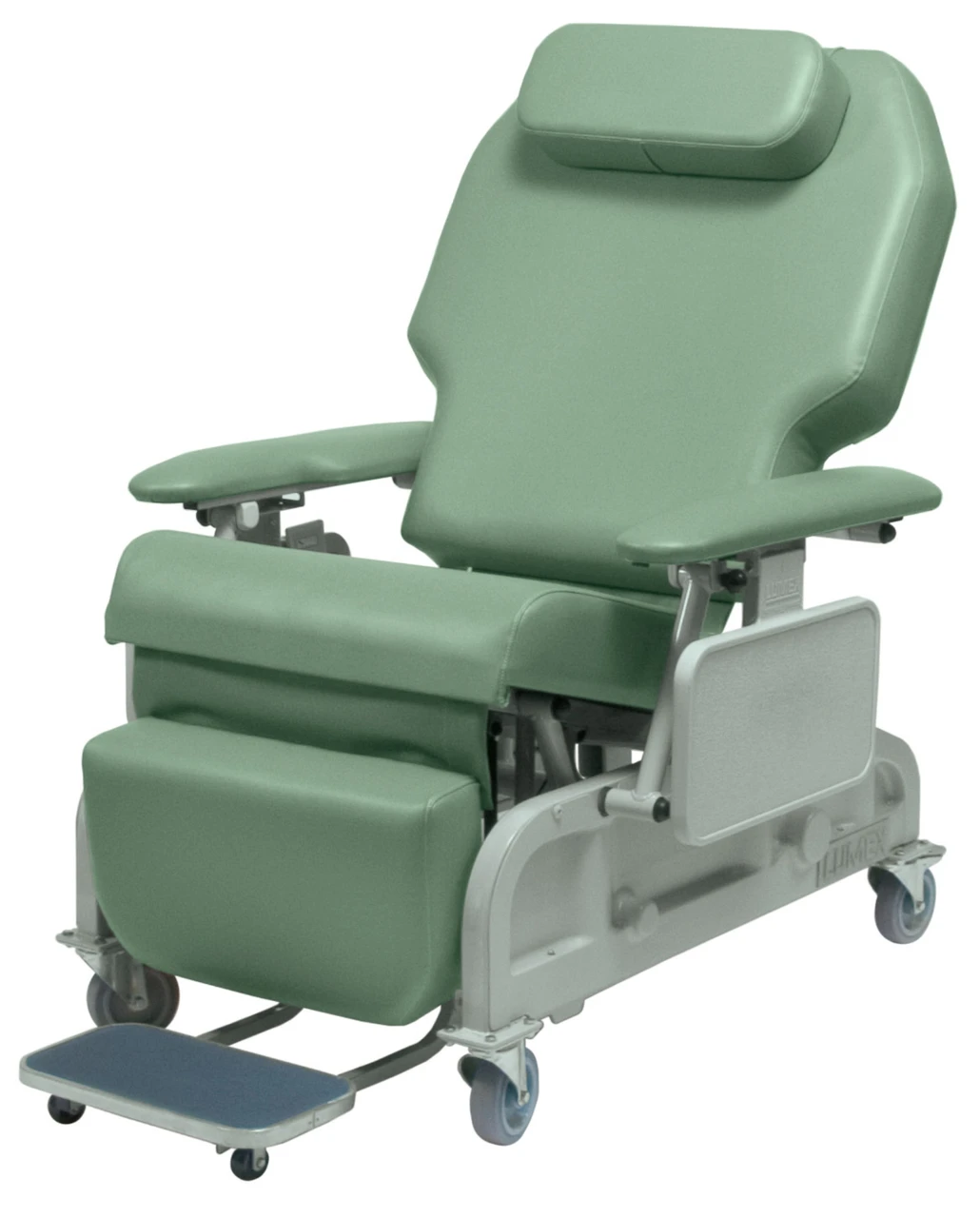

Lumex Powered Bariatric Clinical Care Recliner by Graham Field
The Lumex Powered Bariatric Clinical Care Recliner by Graham Field is a heavy-duty, electrically powered clinical recliner designed for bariatric, extended-care, acute-care, rehabilitation, dialysis, oncology, infusion, postoperative, and other healthcare environments.

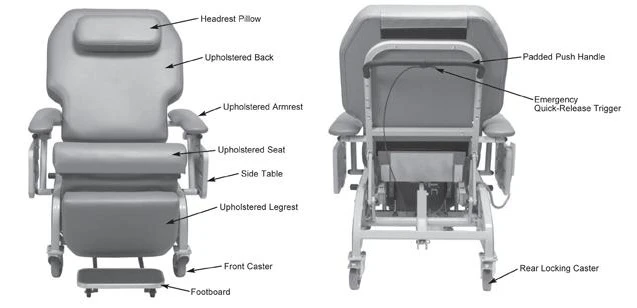

The Lumex Powered Bariatric Clinical Care Recliner by Graham Field is a heavy-duty clinical recliner designed to provide comfortable, adjustable positioning for bariatric patients in hospitals, rehabilitation centers, dialysis facilities, oncology departments, infusion therapy, postoperative care, and other healthcare environments. The FR588W supports up to 700 lb (317.52 kg) evenly distributed and features a powered four-function hand pendant for infinite positioning. The backrest and legrest can be adjusted independently, allowing caregivers and patients to achieve a comfortable seating position. A rechargeable battery provides backup operation in the event of a power failure, while a caregiver-activated Trendelenburg mechanism provides rapid positioning when needed.
Designed with patient transfers in mind, the recliner features self-storing drop arms that facilitate lateral transfers between adjacent surfaces. Two fold-down, flush-mount side tables provide convenient work or personal-item surfaces and have smooth surfaces for easier cleaning. Fully upholstered arms, a 26.5-inch-wide seat, an included headrest pillow, and a rear push handle further enhance patient comfort and caregiver convenience. Five-inch casters, including two rear swivel wheel-locking casters and two fixed front wheels, support movement and positioning within clinical environments. With its 38-inch overall width, 700-lb capacity, powered positioning, battery backup, and bariatric transfer features, the Lumex Powered Bariatric Clinical Care Recliner is designed for demanding clinical and extended-care applications.
Lumex Powered Bariatric Geri Chair Features
It controls the powered positioning system. It provides adjustable positioning so the patient can select a comfortable position rather than being limited to only a few fixed recline positions. A major advantage is that the legrest can be raised or lowered independently of the backrest, allowing the caregiver or patient to achieve a more customized seating position.
Unlike a conventional three-position clinical recliner, the powered FR588W provides infinite recline positioning within its operating range. This allows the patient to select a position that is most comfortable for sitting, resting, treatment, or recovery.
The recliner also provides a fourth position: Trendelenburg, or shock position. Unlike the electrically controlled patient positioning, Trendelenburg is caregiver activated using a quick-release trigger mounted at the rear of the chair. This allows the caregiver to rapidly position the recliner when required. The manufacturer describes the gas-cylinder mechanism as providing quick Trendelenburg positioning and improved lift assistance.
The legrest and backrest can be raised and lowered independently, giving the caregiver greater control over patient positioning and allowing the user to adjust lower-leg support without necessarily changing the back angle.
The recliner incorporates a rechargeable battery pack designed to provide backup operation during a power failure and allow operation away from a wall outlet for positioning functions. This provides an additional level of flexibility in clinical environments where the chair may need to be repositioned or adjusted without immediate access to an electrical outlet.
The FR588W is specifically designed for bariatric patients and supports up to 700 lb / 317.52 kg. The capacity is specified by Graham Field as evenly distributed.
The FR588W incorporates self-storing, easy-to-actuate drop arms designed to facilitate lateral patient transfers. The drop-arm design can make it easier to transfer patients between the recliner and the Bed, Wheelchair, stretcher, and Other adjacent seating surfaces
The FR588W is equipped with fully upholstered arms, providing a softer contact surface for bariatric patients during prolonged sitting. The wide arm configuration also contributes to the recliner's overall bariatric seating design.
Two self-storing, fold-down side tables are built into the recliner. The tables: Fold away when not required, Sit flush with the chair arms, Provide convenient surfaces for clinical supplies or personal items, Have smooth surfaces for easier cleaning, and Can be operated by the caregiver.
A rear push handle helps caregivers move the recliner through clinical environments and assists with patient transport.
The FR588W comes with an attaching headrest pillow for additional head and neck support. Graham Field's product literature specifically identifies the headrest pillow as included with the recliner.
Graham Field Powered Bariatric Recliner Specification

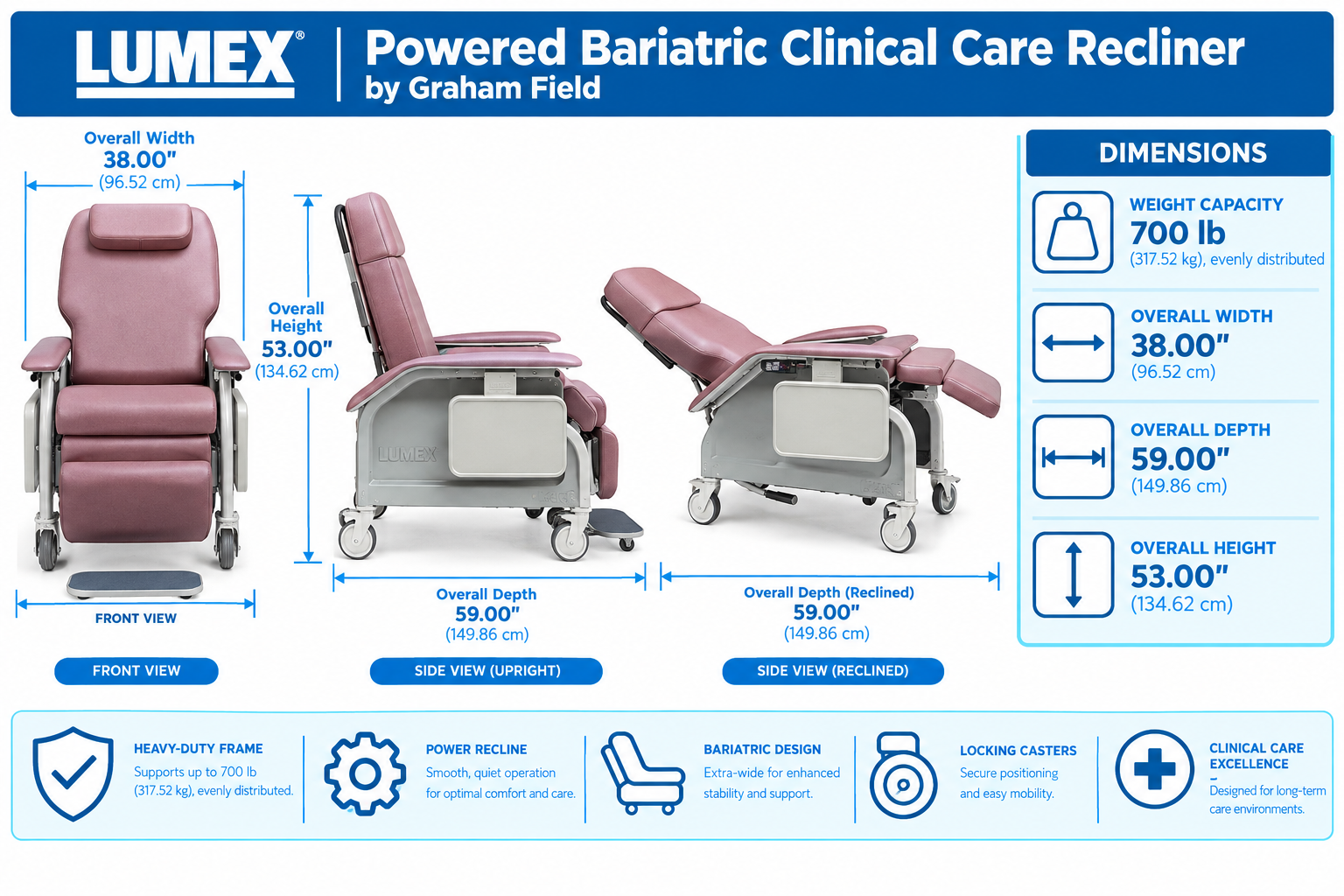

Lumex Bariatric Electric Medical Recliner Dimensions
Lumex Powered Bariatric Medical Recliner Video
Lumex FR588W Power Clinical Care Recliner Downloads
Lumex Healthcare Seating Brochure Product SheetReplacement PartsAssembly and Operating ManualLumex Healthcare Seating Swatch CardLumex Universal Pillow/Headrest Lumex Swing-Away Folding Table
Reviews for Lumex Bariatric Electric Clinical Care Recliner
Shopper
Love it.
This chair was so spectacular, i mean i have never had a better ride!!!!!
Reviewed on 1800wheelchair.com
Lumex Powered Bariatric Clinical Care Recliner Buyer’s Guide
The Lumex Powered Bariatric Clinical Care Recliner by Graham Field is a premium, heavy-duty clinical seating solution designed to provide powered positioning, exceptional support, and enhanced safety for bariatric patients. Engineered for both medical settings and high-level home care, it features an extra-wide seating surface, powered recline functions, self-storing drop arms, and integrated caregiver conveniences for seamless patient management and lateral transfers.
Powered Infinite Positioning with Hand Pendant
Equipped with a quiet motor system and a four-function hand pendant, the recliner allows smooth, independent adjustment of the backrest and legrest. Users and caregivers can easily elevate the legs while remaining upright, recline fully back, or find any precise, customized angle in between without manual physical effort.
Lumex Powered Bariatric Clinical Care Recliner Weight Capacity
Built with a reinforced steel frame, this bariatric recliner comfortably accommodates users up to 700 lbs (evenly distributed). The extra-wide 26.5-inch seat width ensures ample space, stability, and long-term durability for higher-weight individuals.
Caregiver-Activated Trendelenburg Position
For clinical emergencies or medical positioning needs, the recliner features a caregiver-activated Trendelenburg (shock) position. Located conveniently at the rear of the chair, a quick-release hand trigger allows immediate transition to a reclined position with feet elevated above the heart.
Self-Storing Drop Arms for Easy Transfers
The recliner features easy-to-actuate, fully upholstered drop arms that lower level with the seat. This self-storing drop-arm mechanism enables safe, smooth lateral patient transfers to and from wheelchairs, beds, or transfer boards while minimizing physical strain on caregivers.
Lumex Powered Bariatric Clinical Care Recliner Battery Backup System
To ensure continuous operation during power outages or facility transport, the chair comes equipped with a rechargeable battery backup system. This safety feature guarantees that powered recline and legrest functions remain fully operational without needing constant electrical outlet connectivity.
Fold-Down Side Tables and Transportation Casters
Designed for everyday utility, the chair includes two fold-down, flush-mount side tables that stow neatly away when not in use. It is mounted on heavy-duty 5-inch casters—featuring two rear locking swivel casters and two fixed front wheels—and includes an ergonomic rear push handle for effortless mobility across clinical and residential floors.
Medical-Grade Upholstery & Lumbar Pillow
Upholstered in heavy-duty, fluid-resistant medical vinyl, the chair is easy to sanitize and maintain between uses. An adjustable headrest pillow is included to reduce neck strain, enhance patient comfort, and support extended sitting sessions.
Lumex Powered Bariatric Clinical Care Recliner Review
The Lumex Powered Bariatric Clinical Care Recliner by Graham Field stands out as a robust, clinical-grade seating system for heavy-duty patient care. With a 700 lb weight capacity, fully powered back and leg adjustments, drop-arm transfer functionality, and built-in battery backup, it offers the perfect balance of patient independence, comfort, and caregiver efficiency.
