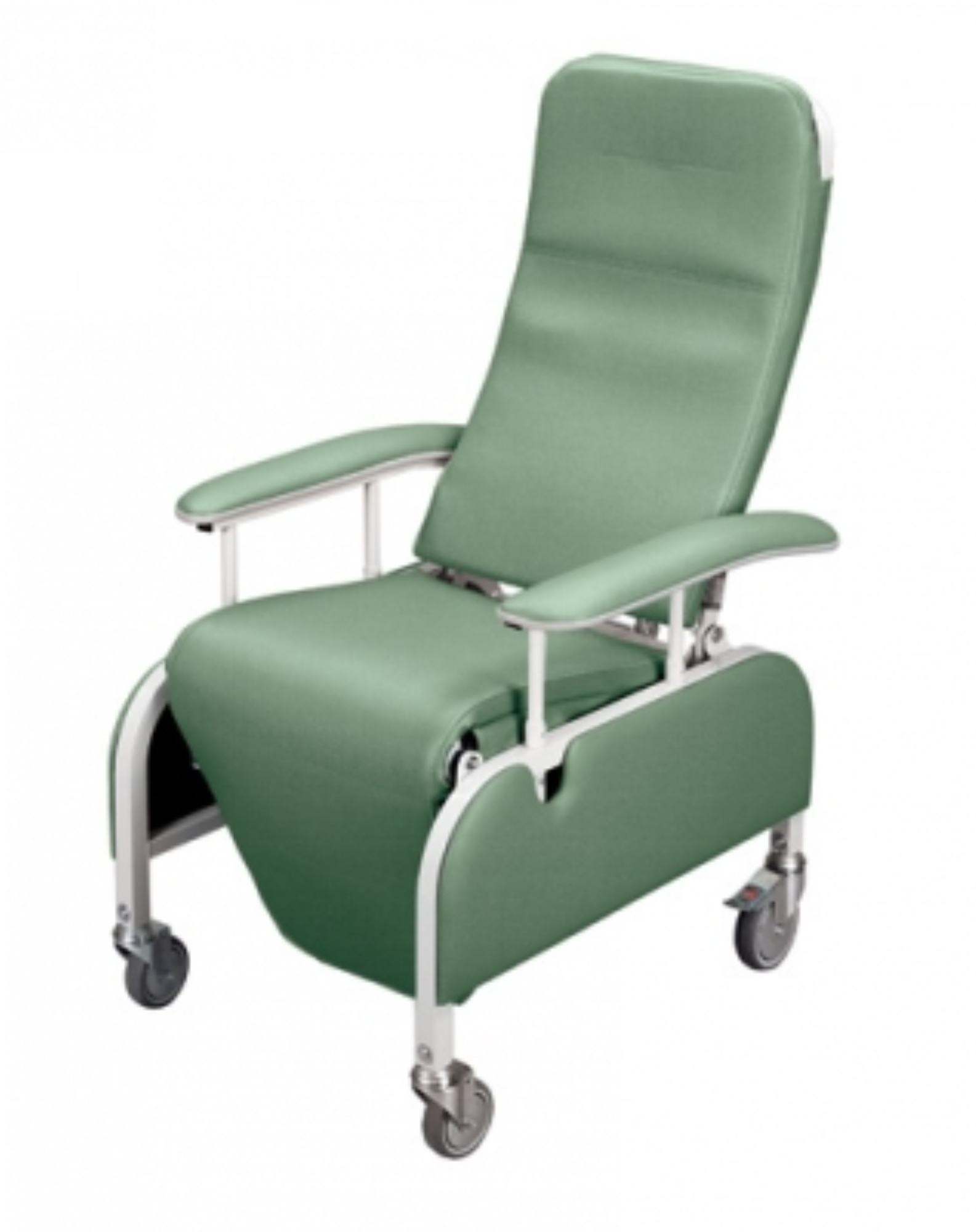

Lumex Preferred Care Recliner Series Drop-Arm, by Graham Field

Lumex Preferred Care Recliner Series-Drop-Arm by Graham Field

The Lumex® Preferred Care Recliner plus a unique drop arm mechanism. Self-storing, height-adjustable drop arms are simple for the caregiver to activate and enable a safer, easier lateral transfer for the resident and caregiver.

The Lumex Preferred Care® Recliner Series, Drop-Arm by Graham Field, is a versatile healthcare recliner designed for patient comfort, positioning, and easier lateral transfers. The FR565DG combines the features of the Preferred Care Recliner with innovative self-storing, height-adjustable drop arms that allow caregivers to lower the armrests when transferring a resident between the recliner and another surface. Its patented infinite-position recline mechanism provides positioning from approximately 95° to 145°, and the caregiver can lock the back in any desired position.

The recliner features a self-adjusting suspension system that cradles the resident from head to heel, wide padded armrests and side panels for comfort, and a durable epoxy-coated welded-steel frame for easy cleaning and maintenance. Quick-release upholstery simplifies cleaning, removal, and replacement, while the vinyl-upholstered back resists sulfide stains, mildew, and oil.



Lumex Preferred Care Series-Drop Arm Geri Chair Features

Self-Storing, Height Adjustable Drop Arms

The arms are designed to be easy for a caregiver to activate and lower out of the way when a patient needs to transfer laterally between the recliner and another surface. Graham Field specifically describes the mechanism as enabling safer and easier lateral transfers for both the resident and caregiver.  When not being used for transfers, the drop arms store within the recliner configuration rather than requiring removal and separate storage.

Infinite Recline Positioning

The patented Lumex 565 recline mechanism provides infinite positioning between approximately 95° and 145°. The caregiver can lock the back in the desired position. This provides positioning options for Rest and relaxation, Patient comfort, Pressure relief, Reading, Feeding, Patient observation, and extended sitting.

Self-Adjusting Suspension

The recliner incorporates a self-adjusting suspension system designed to cradle the resident from head to heel. Graham Field states that the suspension virtually eliminates the risk of "bottoming out."

Wide Padded Armrests and Side Panels

Designed to provide additional comfort. The reduced armrest and seat height also allow the chair to fit under many dining and activity tables.

Quick-Release Upholstery

The upholstery can be quickly released for cleaning, removal, replacement, and routine maintenance. The vinyl upholstery is resistant to sulfide stains, mildew, and oil.

Durable Steel Frame

The recliner uses a welded steel frame with an epoxy coating. This construction is designed for durability and easier cleaning and maintenance in healthcare environments.

5-inch casters

The caster configuration consists of 2 rear swivel casters with wheel locks and 2 fixed front wheels. The directional wheel lock on the right rear caster helps reduce "crabbing" and allows the recliner to be moved down hallways with less effort.

Graham Field Drop Arm Preferred Care Recliner Specification

Specification	Details
Brand	Lumex®
Manufacturer	Graham Field / GF Health Products, Inc.
Product Family	Preferred Care® Recliner Series
Product Name	Preferred Care® Recliner Series, Drop-Arm
Model	FR565DG
Product Type	Healthcare / Clinical Recliner with Drop Arms
Overall Width	28.00 in (71.12 cm)
Overall Depth	36.00 in (91.44 cm)
Fully Reclined Depth	66.00 in (167.64 cm)
Overall Height	48.00 in (121.43 cm)
Width Between Arms	19.50 in (49.53 cm)
Arm Width	4.50 in (11.43 cm)
Arm Height from Floor — Arm Up	26.75 in (67.95 cm)
Seat Width	19.00 in (48.26 cm)
Seat Depth	19.50 in (49.53 cm)
Seat Height	22.00 in (55.88 cm)
Back Height Above Seat	31.00 in (78.74 cm)
Caster Diameter	5.00 in (12.70 cm)
Weight Capacity	250 lb (113.40 kg)
Capacity Rating	Evenly distributed
Recline	Infinite positioning
Recline Range	95° to 145°
Position Lock	Caregiver activated
Drop Arms	Self-storing and height adjustable
Drop-Arm Operation	Easy-to-actuate, caregiver operated
Suspension System	Self-adjusting / Ultra-Flex
Frame	Welded steel, epoxy coated
Upholstery	Vinyl, quick-release
Casters	5-inch
Caster Configuration	2 rear swivel/wheel-locking + 2 fixed front wheels
Directional Wheel Lock	Right rear caster
Armrests	Wide, padded
Side Panels	Removable
WallSaver Armrests	Yes
Shipping	Freight; additional shipping quote required
Country	Designed and built in USA

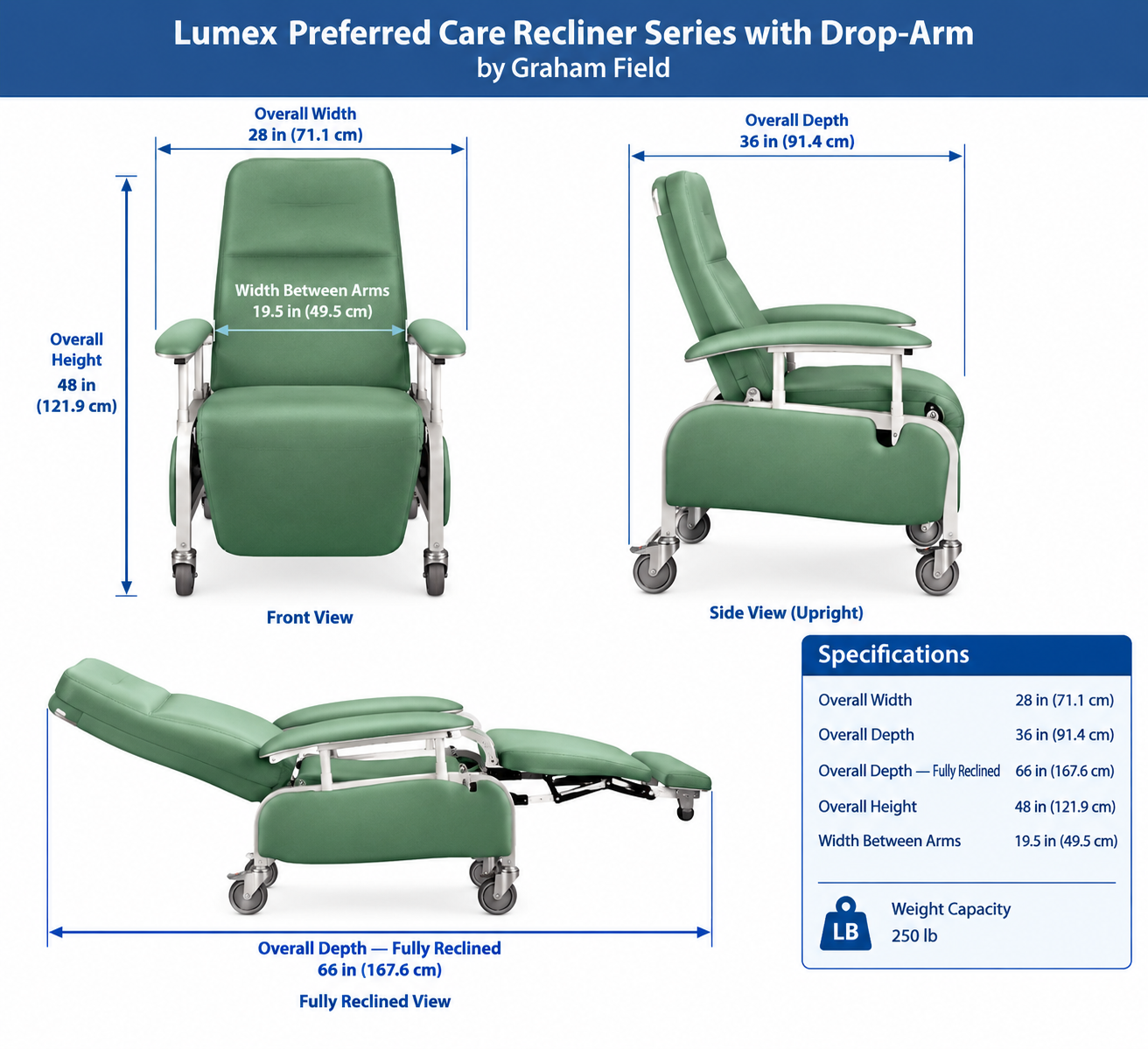

Lumex Preferred Care Infinite Position Recliner with Drop Arm Dimensions

Lumex Preferred Clinical Care Recliner Series - Drop Arm Downloads

Lumex Healthcare Seating Brochure Product SheetReplacement PartsUser ManualAdjustable Footrest Installation GuideLumex Universal Pillow/Headrest User ManualLumex Universal IV Pole Holder Installation Instruction

Lumex Preferred Care Drop Arm Recliner Reviews

Janice W.

This type of chair is a welcome addition to our home-care needs for our bed-bound mother. It is aesthetically pleasing and very functional. It is firm and she prefers to be in the chair for only short periods at a time. But the transfer to and from bed is much better than expected due to the high seat and collapsable arms. I do find the wheels to be problematic when moving over area rugs. But overall it is a good product

Lani R.

My husband has advanced Alzheimers. The company was pleasant to deal with. The chair is nice but I noted a few concerns. The seat frame upon which the seat cushion rests is made of stretchy elastics so while this provides for comfort I have already noticed when we sit my husband the fabric can stretch and allow him to make contact with the metal frame underneath. He is only 140 pounds so this could be issue for those who do not lower themselves or are heavy weighted. The chair has a lot of comfortable covering and doesn’t hurt his arms or legs. The foot area touches the floor when fully upright causing it to drag across the floors a little when being moved and this to me seems unsanitary in a facility environment and could be an issue getting across carpet as we have all tile. The caster wheels push nicely on the tile and turn very well on the tile. The release for recline is infinite position and engages easily and locks easily. I bought the anti tip wheels and feel in a full reclined position it requires anti tip for safety. It fits through my homes doorways easily. Overall it is nice and comfortable but I am afraid of long term use the fabric elastics will become stretched out or compromised.

Lumex Preferred Care Recliner Series Drop Arm Buyer’s Guide

The Lumex Preferred Care Recliner Series Drop Arm by Graham Field is a specialized clinical geri-chair designed to provide ergonomic support, caregiver convenience, and enhanced patient safety. Featuring a unique self-storing drop-arm mechanism alongside infinite recline positioning, this recliner facilitates seamless lateral transfers while optimizing pressure management for individuals requiring extended seating care.

Caregiver-Friendly Drop-Arm Mechanism

Equipped with height-adjustable, self-storing drop arms, the recliner allows armrests to drop flush with the seat cushion. This functional feature simplifies lateral transfers from wheelchairs or beds, reducing caregiver strain and improving safety for patients with limited mobility.

Infinite Recline Positioning Flexibility

Unlike fixed-position chairs, the Lumex Preferred Care Recliner features a smooth back recline ranging from 95° to 145°. This infinite-position capability allows caregivers to adjust the angle precisely to enhance user comfort, support postural changes, and assist in pressure redistribution throughout the day.

Lumex Preferred Care Recliner Weight Capacity

Built on a heavy-duty, epoxy-coated welded steel frame, the recliner comfortably supports a weight capacity of up to 250 lbs (evenly distributed). The sturdy steel construction provides long-term stability and strength for daily clinical and home care environments.

Self-Adjusting Suspension & Ergonomic Padding

Designed with self-adjusting seating suspension and extra-wide padded armrests, the recliner minimizes peak pressure points during prolonged sitting. The supportive backrest and contoured seat ensure stable body alignment and consistent overall comfort.

Hygienic Quick-Release Upholstery

The chair is wrapped in heavy-duty vinyl upholstery that is sulfide stain, mildew, and oil resistant. Quick-release panels make the upholstery easy to remove, clean, sanitize, or replace, maintaining high hygiene standards across healthcare setups.

Maneuverable Caster System with Directional Lock

Featuring heavy-duty casters—including a directional lock mechanism on the right rear caster—the chair prevents "crabbing" and tracks smoothly down narrow corridors, enabling effortless transport and maneuvering in tight spaces.

Multi-Functional Low-Profile Design

With reduced seat and armrest heights, the recliner easily rolls under standard dining and activity tables. This enables users to participate in social dining or recreational activities comfortably without needing to transfer out of the chair.

Lumex Preferred Care Recliner Series Drop Arm Review

The Lumex Preferred Care Recliner Series Drop Arm by Graham Field is an outstanding clinical seating solution for long-term care facilities, rehabilitation centers, and home environments. By pairing easy drop-arm lateral transfers with smooth, infinite recline adjustment and durable steel frame construction, it offers a high standard of patient comfort and operational efficiency for caregivers.
