Lumex Preferred Care Recliner, by Graham Field

Lumex Preferred Care Recliner by Graham Field

The Lumex 565 Patented recline mechanism allows for infinite positioning of the recline. Reduced armrest and seat height enable the recliner to fit under dining/activity tables and allow residents to “scoot” and more easily reposition the chair by themselves.

The Lumex Preferred Care Recliner by Graham Field is an infinite-position healthcare recliner designed for comfort, positioning, and long-term use in extended-care, patient-room, home-care, rehabilitation, and clinical environments. The FR565G features a patented Lumex 565 recline mechanism that provides infinite back positioniInfinite Recline PositioningInfinite Recline PositioningInfinite Recline PositioningInfinite Recline PositioningInfinite Recline PositioningInfinite Recline Positioningng from approximately 95° to 145°, allowing the caregiver to lock the recliner in the desired position. Its self-adjusting suspension system cradles the resident from head to heel, while wide padded armrests and side panels provide additional comfort.

Built with a durable epoxy-coated welded steel frame, the Preferred Care Recliner is designed for easy cleaning and maintenance. Quick-release upholstery simplifies cleaning, removal, and replacement, while the vinyl-upholstered back resists sulfide stains, mildew, and oil. Two front swivel casters and two rear locking casters provide maneuverability and stability, and the reduced arm and seat height allows the recliner to fit under many dining or activity tables.

Lumex Preferred Care Geri Chair Features

Infinite Recline Positioning

The defining feature of the Preferred Care Recliner is its patented Lumex 565 infinite recline mechanism.  The back can be positioned continuously between approximately 95° and 145°, rather than being restricted to a small number of fixed positions. A caregiver can also lock the recliner in the desired position.

Self-Adjusting Suspension System

Designed to adapt to the individual occupant, the suspension cradles the resident from head to heel, helping minimize the possibility of "bottoming out." This design contributes to the recliner's suitability for extended periods of seated use.

Padded Armrests and Side Panels

The armrests are approximately 4.5 inches wide, while the space between the arms is approximately 19.5 inches. It also offers WallSaver armrests on applicable Preferred Care configurations to increase durability and help prevent wall marring.

Durable Steel Frame

The recliner uses a welded steel frame with an epoxy coating. The frame is designed for durability, easy cleaning, routine maintenance, and long-term healthcare use. The epoxy-coated construction is a standard feature of the Preferred Care series.

Quick-Release Upholstery

The upholstery uses a quick-release design that allows the upholstery components to be removed for cleaning, replacement, and maintenance. The vinyl-upholstered back is resistant to sulfide stains, mildew, and oil. This makes the chair practical for healthcare environments where regular cleaning and maintenance are important.

5-inch casters systems

The configuration has 2 front swivel casters and 2 rear locking casters. This arrangement provides maneuverability in smaller spaces while allowing the chair to be secured when necessary.

250 lb (113.4 kg) Weight Capacity

This is the manufacturer's maximum evenly distributed patient weight capacity.

Available in 3 Colors

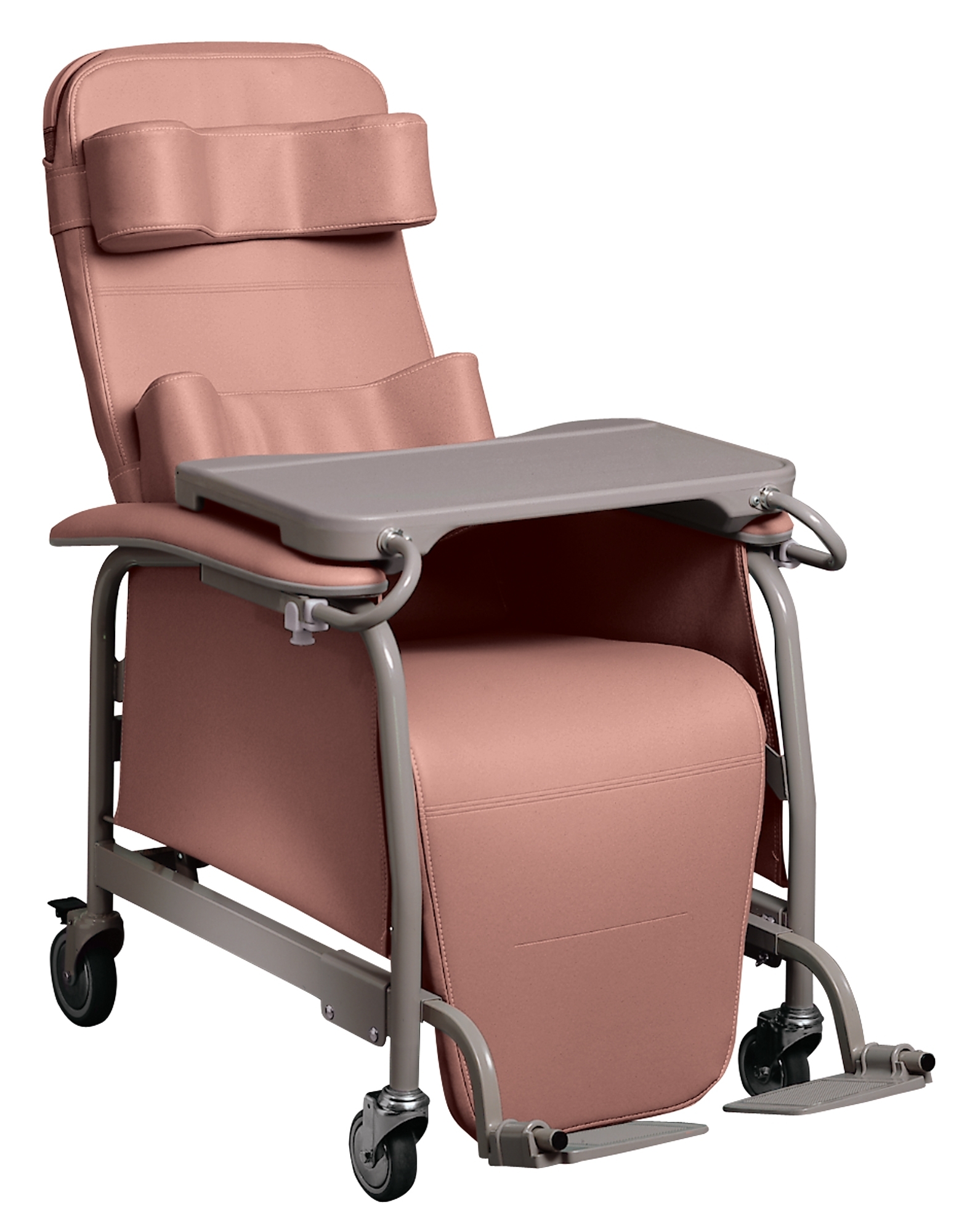

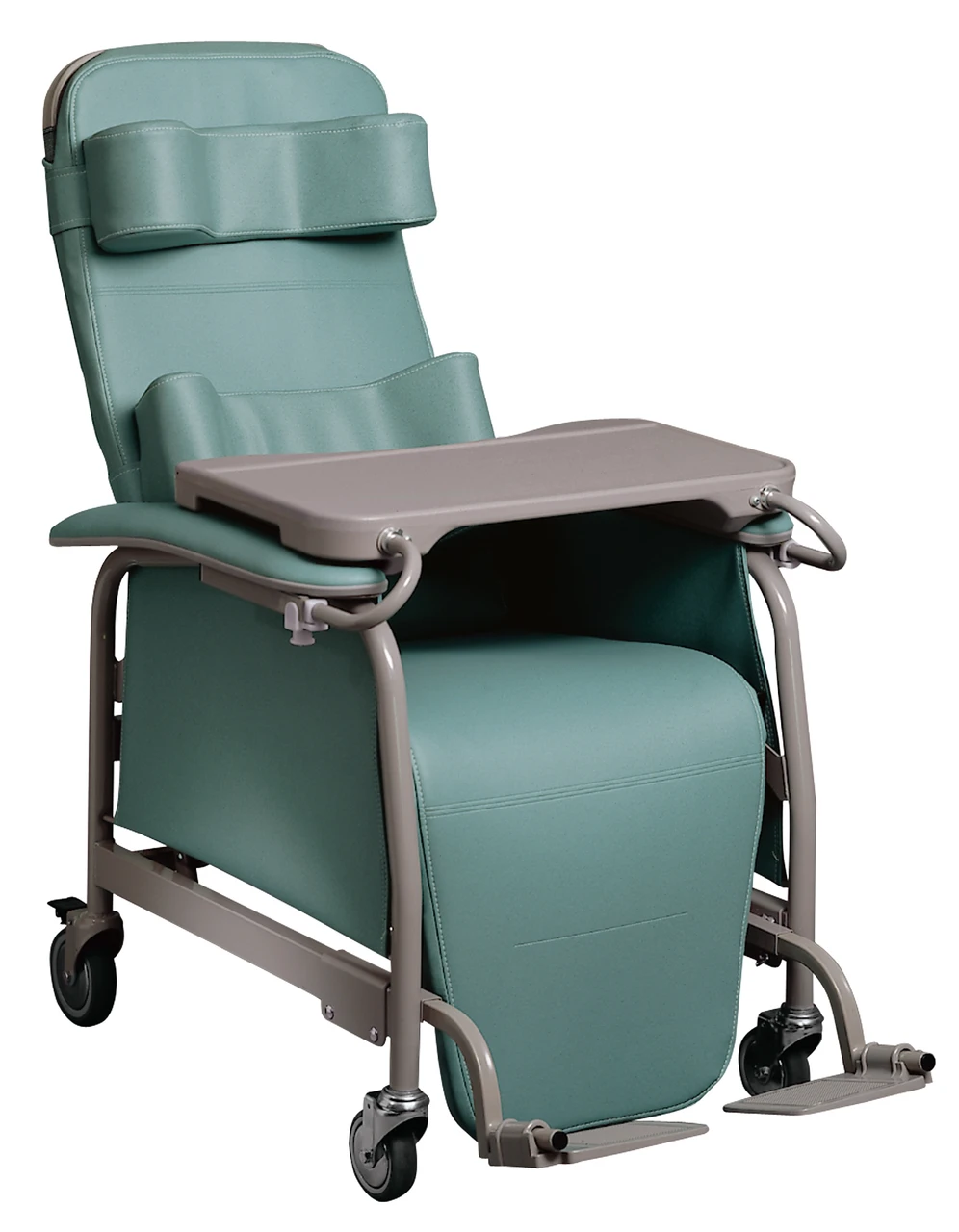

This offers a selection of vinyl upholstery colors: Blue Ride, Jade, and Rosewood.

Graham Field Lumex 565 Patented Recliner Specification

Specification	Details
Brand	Lumex
Manufacturer	Graham Field / GF Health Products, Inc.
Product Name	Preferred Care Recliner
Series	Preferred Care® Recliner Series
Model	FR565G
Product Type	Infinite-Position Healthcare Recliner
Overall Height	48 in (121.9 cm)
Overall Width	28 in (71.1 cm)
Overall Depth	36 in (91.4 cm)
Fully Reclined Depth	66 in (167.64 cm)
Width Between Arms	19.5 in (49.53 cm)
Arm Width	4.5 in (11.43 cm)
Arm Height from Floor	26 in (66.04 cm)
Seat Width	19 in (48.26 cm)
Seat Depth	19.5 in (49.53 cm)
Seat Height	20 in (50.8 cm)
Back Height Above Seat	31 in (78.74 cm)
Caster Diameter	5 in (12.7 cm)
Weight Capacity	250 lb (113.4 kg)
Capacity Rating	Evenly distributed
Recline Type	Infinite positioning
Recline Range	Approximately 95° to 145°
Caster Configuration	2 front swivel + 2 rear locking
Frame	Epoxy-coated welded steel
Upholstery	Quick-release, cleanable vinyl
Made In	USA

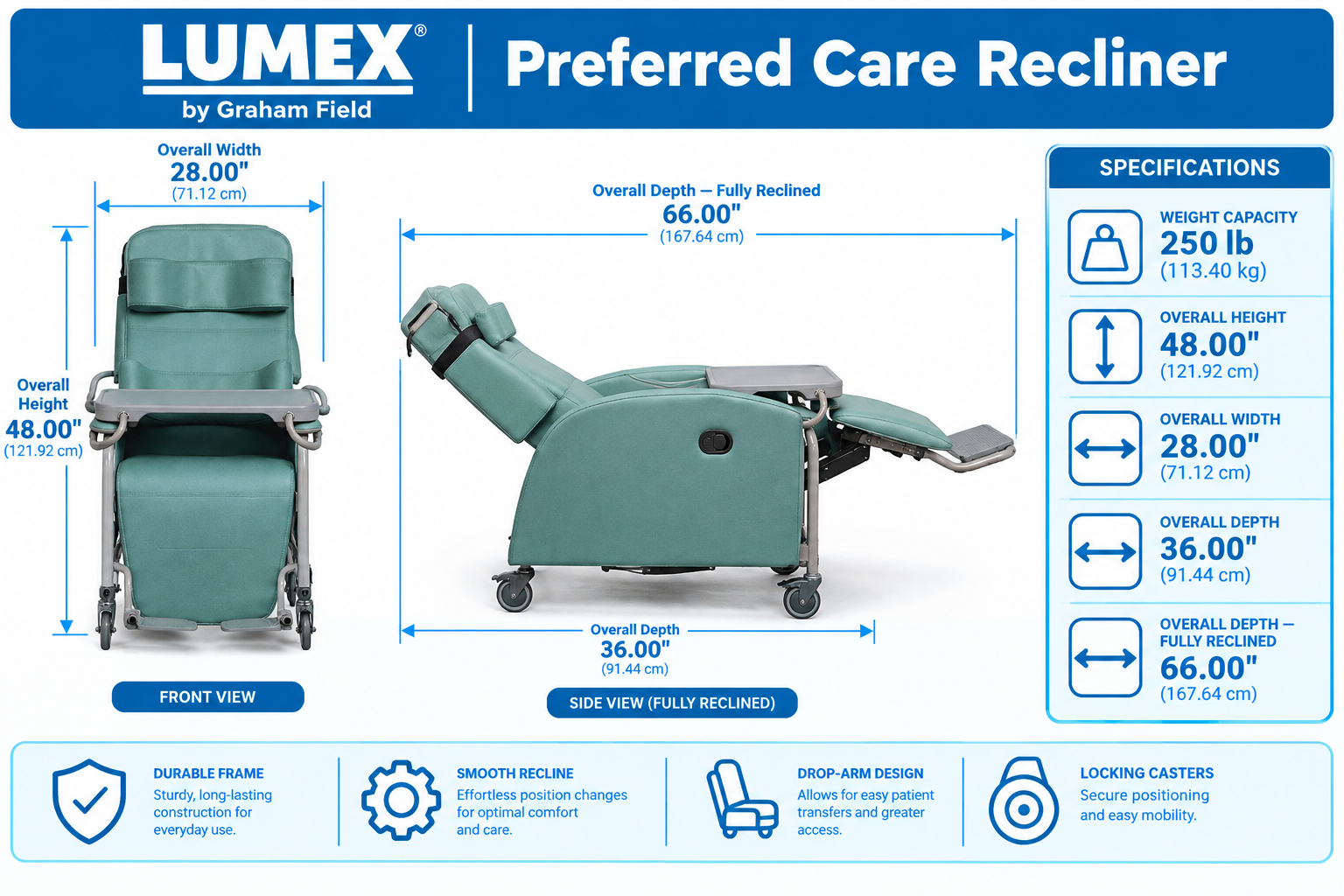

Lumex Preferred Care Infinite Position Recliner Dimensions

Lumex Preferred Clinical Care Recliner Downloads

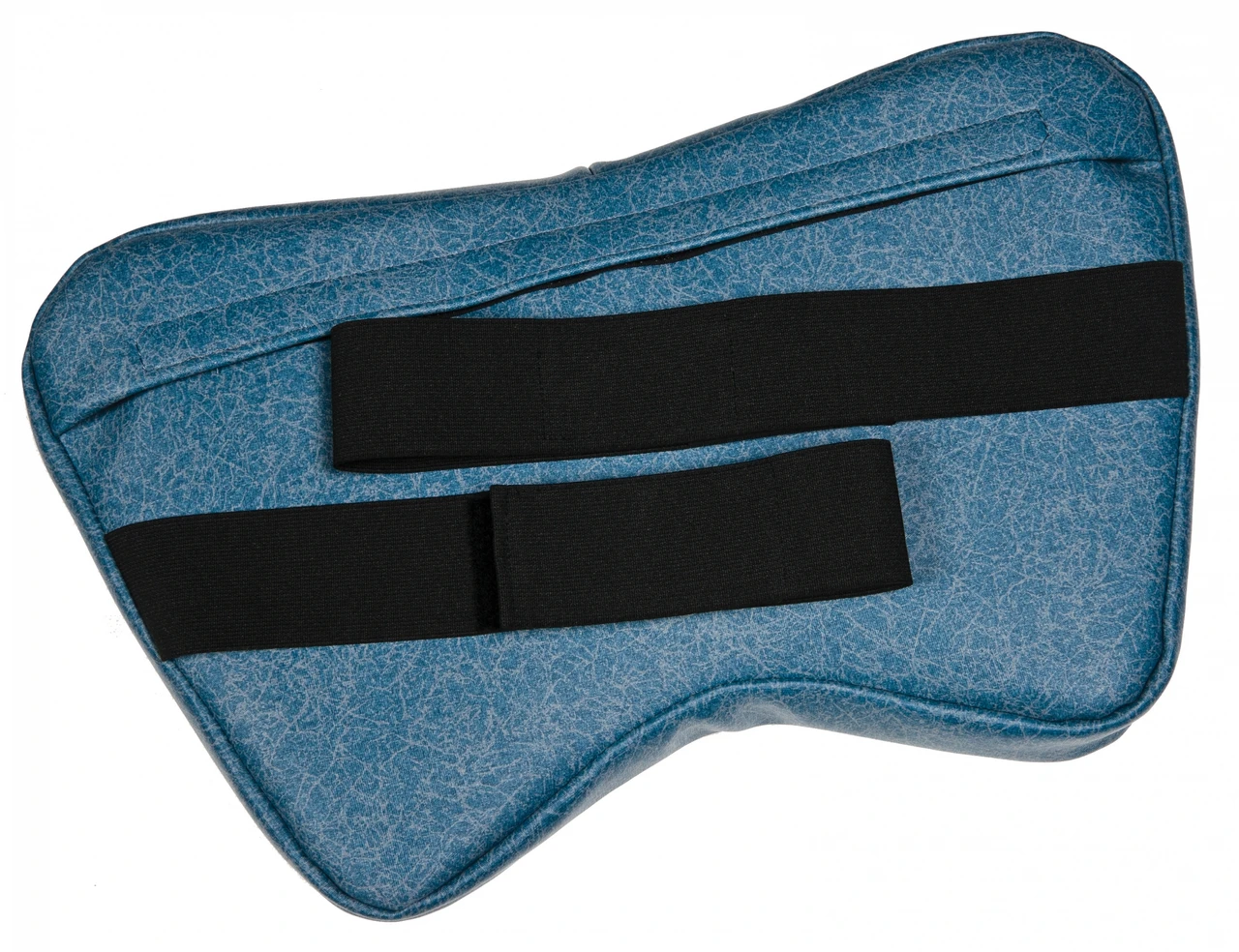

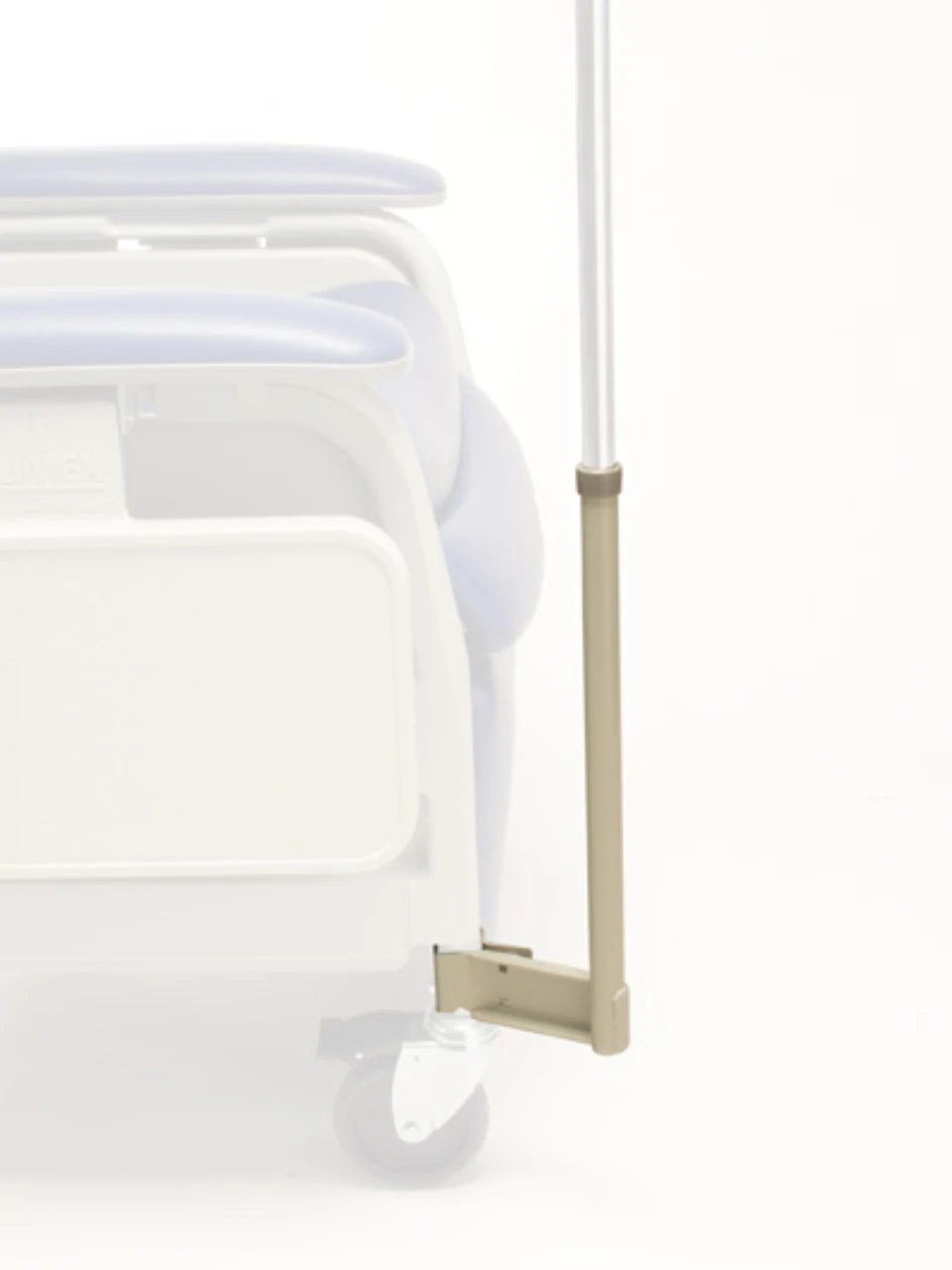

Lumex Healthcare Seating Brochure Product SheetReplacement PartsAssembly and Operating ManualActuator & Control Box Replacement InstructionsActivity Tray Table Installation InstructionsAdjustable Footrest Installation GuideLumex Universal Pillow/Headrest User ManualLumex Universal IV Pole Holder Installation Instruction

Lumex Preferred Care Recliner Buyer’s Guide

The Lumex Preferred Care Recliner by Graham-Field is a heavy-duty clinical seating solution engineered to offer superior comfort, patient positioning, and easy daily maintenance in home and care facility settings. Featuring a patented infinite-position back mechanism, low-profile table height design, and advanced pressure relief suspension, it delivers optimal support for long-term sitting and patient repositioning.

Patented Infinite Position Recline Mechanism

The Lumex Preferred Care Recliner utilizes a patented recline system that allows smooth, continuous backrest adjustment ranging from 95° to 145°. Caregivers can lock the backrest securely into any position to customize pressure distribution and maximize resident comfort throughout the day.

Lumex Preferred Care Recliner Weight Capacity

Built on a durable, epoxy-coated welded steel frame, this clinical recliner safely supports users with a weight capacity of up to 250 lbs. The heavy-duty frame provides robust long-term durability while remaining easy to sanitize and maintain.

Ultra-Flex Self-Adjusting Suspension System

Featuring an innovative Ultra-Flex suspension system in both the seat and backrest, the recliner dynamically self-adjusts to each individual's body contours. This cradling support spans from head to heel, significantly reducing peak pressure points and preventing the risk of "bottoming out."

Table-Height Ergonomic Profile

Engineered with reduced seat and armrest heights, the recliner easily slides under standard activity and dining tables. This allows residents to engage in daily social activities, dine comfortably, and self-reposition or "scoot" with greater ease and independence.

Quick-Release Heavy-Duty Vinyl Upholstery

Equipped with quick-release vinyl upholstery, the recliner simplifies routine cleaning, removal, and replacement. The durable vinyl material is sulfide-stain, oil, and mildew resistant, meeting stringent fire safety standards (CA TB-133 / CA117) for medical and home environments.

Extra-Wide Padded Armrests & Side Panels

Designed with generous extra-wide padded armrests and full side panels, the recliner offers maximum arm support and side protection. The padded surfaces eliminate harsh pressure edges and enhance overall seated comfort during extended periods.

Smooth-Rolling Caster System

Outfitted with two front heavy-duty swivel casters and two rear-locking casters, the recliner delivers exceptional maneuverability in tight quarters and ensures stable, straight tracking down long hallways when locked.

Lumex Preferred Care Recliner Review

The Lumex Preferred Care Recliner by Graham-Field is an outstanding medical seating choice that seamlessly balances caregiver functionality with patient comfort. With its infinite recline angles, table-height accessibility, self-adjusting pressure relief suspension, and easy-clean vinyl upholstery, it provides an exceptional long-term solution for post-acute care and daily living assistance.
