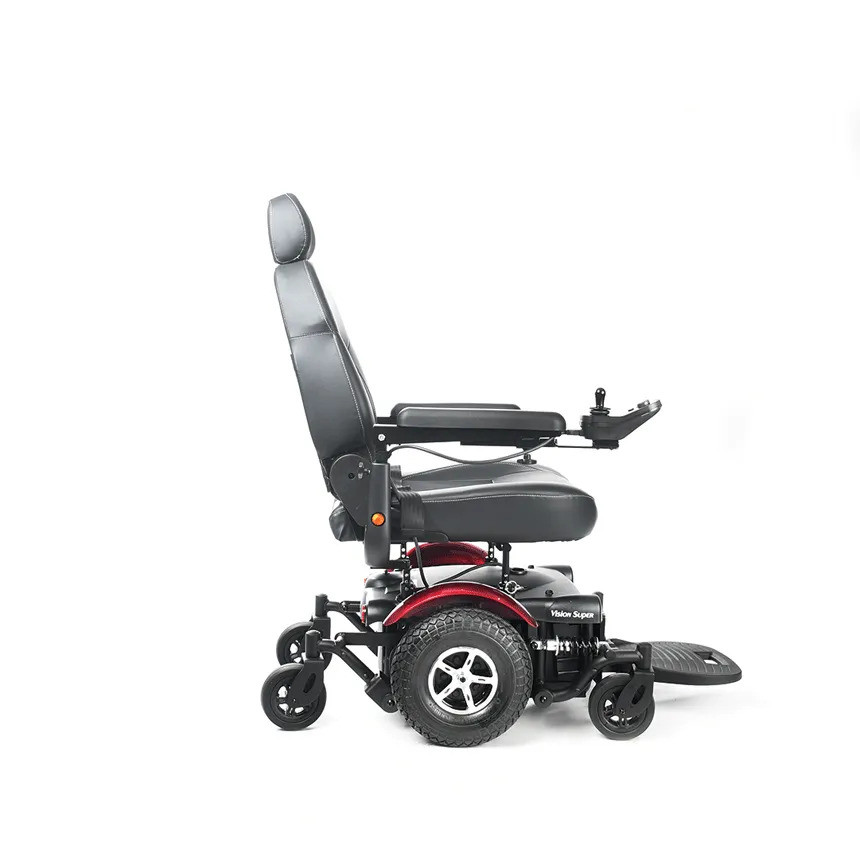

VISION SUPER HEAVY DUTY POWER CHAIR BY MERITS HEALTH Designed for bariatric users and riders who require higher weight capacity, this powerhouse mobility chair ensures dependable performance
VISION BARIATRIC POWER CHAIR PRODUCT FEATURES
Engineered for bariatric users with exceptional strength, stability, and high weight capacity
Robust motor system delivers smooth, reliable mobility indoors and outdoors
Wide, reinforced frame ensures secure movement on various terrains
Ergonomic cushioned seat with adjustable components for personalized support
Intuitive joystick and responsive handling for confident independent driving
Long-lasting construction by Merits Health designed for daily use and demanding environments
VISION SUPER HIGH WEIGHT CAPACITY ELECTRIC WHEELCHAIR SPECIFICATIONS
| Specification | Details |
|---|---|
| Drive Range | 20.00 miles |
| Top Speed | 5.00 mph |
| Disassembles/Folds | No |
| Overall Width | 27.20" |
| Overall Length | 35.40" |
| Heaviest Piece | 121 lbs. |
| Turning Radius | 21.00" |
| Ground Clearance | 2.20" |
| Tire Type | Solid |
| Maximum Incline Rating | 8 º |
| Drive Type | Mid Wheel Drive |
| Foldable: | No |
| Armrest Options | Height Adjustable Flip-Back Width Adjustable |
| Legrest Options | Footplate Upgradable Elevating Legrests |
| Seat Options | High-Back Seat Power Elevating Seat |
| Power Chair Seat Width | 20" 22" |
| Seat Width Ranges | 20" - 21" 22" - 23" |
| Seat Depths | 20" 22 |
| Seat Height | 22" to 34" |
| Seat to Floor Height | 22" - 34" |
| Maximum Seat to Floor Height | 34.00" |
| Back Height | 22" |
| Joystick Options | Right Left Swing-Away |
| Adjustable Hanger Brackets | No |
| Battery Type | 55Ah, 22NF AGM (2 required) |
| Batteries Included | Yes |
| Battery Charger Type | Off Board |
| Drive Wheel Size | 12" |
| Caster Size | 6" |
| Rear Caster Size | 6" |
| Caster Type | Solid |
| Base Weight | 121.00 lbs |
| Controller Type | Dynamic Shark 60A |
| Handles Thresholds of 2" or More | No |
| Handles Thresholds of 2" or Less | Yes |
VISION SUPER HEAVY DUTY POWER CHAIR MEASURING GUIDE
| Seat Depth1 Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg. Back Height2 Measured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration. Hanger Angle3 Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular. Seat Width4 Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant. Front Seat to Floor5 Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never foot-propelled by the user - so excluding the additional two inch footrest height for propelling is very rare. |
Vision Super Heavy Duty Wheelchair Downloads
VISION SUPER HEAVY DUTY BROCHURE VISION SUPER HEAVY DUTY USER MANUAL
VISION SUPER HEAVY DUTY ORDER FORM
Vision Super Heavy-Duty Power Chair by Merits Health Buyer’s Guide
The Vision Super Heavy-Duty Power Chair by Merits Health is a robust mobility solution engineered to provide reliable transport and independence for users requiring enhanced weight capacity. Built with a reinforced steel frame and high-torque motors, this power chair delivers exceptional performance across both indoor and outdoor surfaces. The design prioritizes structural integrity, ensuring a safe and stable ride while maintaining the maneuverability needed for everyday navigation.
Vision Mid-Wheel Drive Maneuverability
A standout engineering feature of this model is its mid-wheel configuration, which places the drive wheels directly beneath the user's center of gravity. This layout provides an incredibly tight turning radius, allowing the large chair to navigate narrow hallways, doorways, and confined spaces with ease. The Vision design ensures that despite its robust size, the power wheelchair handles smoothly and responsively in tight indoor environments.
Heavy-Duty Construction and Weight Capacity
Engineered specifically to handle demanding workloads, the heavy-duty frame is capable of supporting up to 450 pounds. The structural components, from the extra-wide seat base to the reinforced suspension system, are built to withstand daily wear and tear without compromising on safety. This durable construction ensures that the chair maintains consistent power delivery and structural alignment over years of extended use.
Bariatric Comfort and Seating Ergonomics
To accommodate users who require more space and specialized support, the chair features an expansive bariatric seating system. The captain's seat is contoured and heavily padded, offering high-level pressure distribution to prevent fatigue during long periods of sitting. Additionally, the armrests and footplate are fully adjustable in height, width, and angle, allowing for a highly personalized seating posture that maximizes comfort.
Advanced Suspension and Outdoor Performance
Navigating uneven terrain is made safer and more comfortable thanks to a sophisticated full-suspension system. The combination of front and rear casters with a central drive system ensures that all six wheels maintain contact with the ground, absorbing shocks from sidewalks, gravel, or thresholds. This stability prevents jarring movements, giving the driver more confidence when transitioning between different outdoor surfaces.
Intuitive Controls and Battery Efficiency
The wheelchair is equipped with an intelligent, user-friendly joystick controller that can be mounted on either the left or right armrest to suit the driver's preference. Powered by high-capacity batteries, the heavy-duty motors provide excellent climbing power for ramps and inclines while maintaining a generous driving range. The electronics are tuned to manage energy efficiently, ensuring dependable operation for full-day outings.
Vision Super Heavy-Duty Power Chair by Merits Health Review
The Vision Super Heavy-Duty Power Chair by Merits Health is an outstanding choice for individuals seeking a powerful, high-capacity bariatric mobility aid. By merging a heavy-duty reinforced frame with agile mid-wheel drive technology, it successfully solves the challenge of providing high weight capacity without sacrificing indoor maneuverability. With its emphasis on plush bariatric comfort, rugged suspension, and dependable battery performance, the Vision stands out as a top-tier independence solution.
