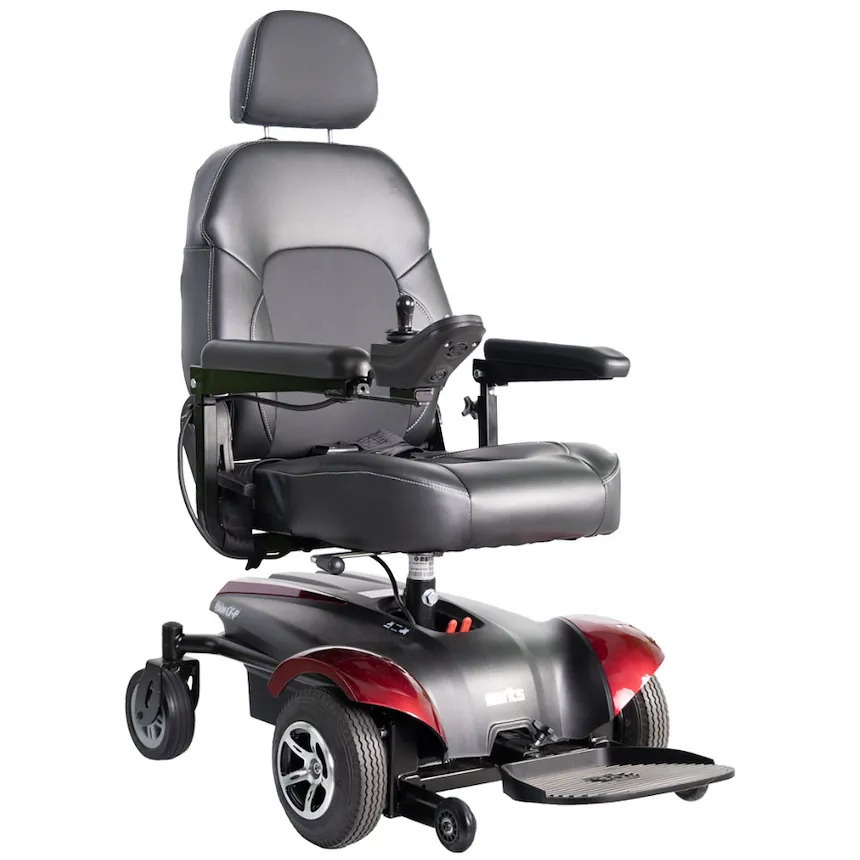

VISION CF POWER CHAIR BY MERITS HEALTH The Vision CF Power Wheelchair delivers compact front-wheel-drive mobility with tight turning, up to 18-mile range, ergonomic reclining seating, and smart LiNX controls
VISION CF MANEUVERABLE POWER WHEELCHAIR PRODUCT FEATURES
True front-wheel drive with a tight 17"–21" turning radius for effortless navigation in tight indoor spaces and hallways
Delivers up to 4 mph top speed and an 18-mile driving range per charge, ideal for everyday mobility and indoor use
Premium semi-reclining seat reclines up to 135° with adjustable seat depth from 16"–20" for personalized comfort and pressure relief
Dynamic LiNX controller with Bluetooth programming and diagnostics allows easy customization and responsive control
Sleek, simplified frame with easy access to motors and batteries, plus flip-up aluminum footplate and removable armrests for convenience
9" knobby drive tires provide improved grip, while a 300 lb weight capacity supports reliable daily use
VISION CF FRONT-WHEEL DRIVE POWER CHAIR PRODUCT SPECIFICATIONS
| Specification | Details |
|---|---|
| Drive Range | 18.00 miles |
| Top Speed | 4.00 mph |
| Disassembles/Folds | No |
| Overall Width | 24.00" |
| Overall Length | 33.00" |
| Heaviest Piece | 53 lbs. |
| Turning Radius | 21.00" |
| Ground Clearance | 2.40" |
| Tire Type | Solid |
| Maximum Incline Rating | 6 º |
| Drive Type | Front Wheel Drive |
| Foldable: | No |
| Armrest Options | Height Adjustable Flip-Back Width Adjustable |
| Legrest Options | Footplate Upgradable Elevating Legrests |
| Power Chair Seat Width | 18" |
| Seat Width Ranges | 18" - 19" |
| Seat Depths | 18" |
| Maximum Seat to Floor Height | 20" 22 |
| Back Height | 2o" |
| Joystick Options | Right Left |
| Battery Type: | U1-34Ah |
| Batteries Included | Yes |
| Battery Charger Type | Off-board |

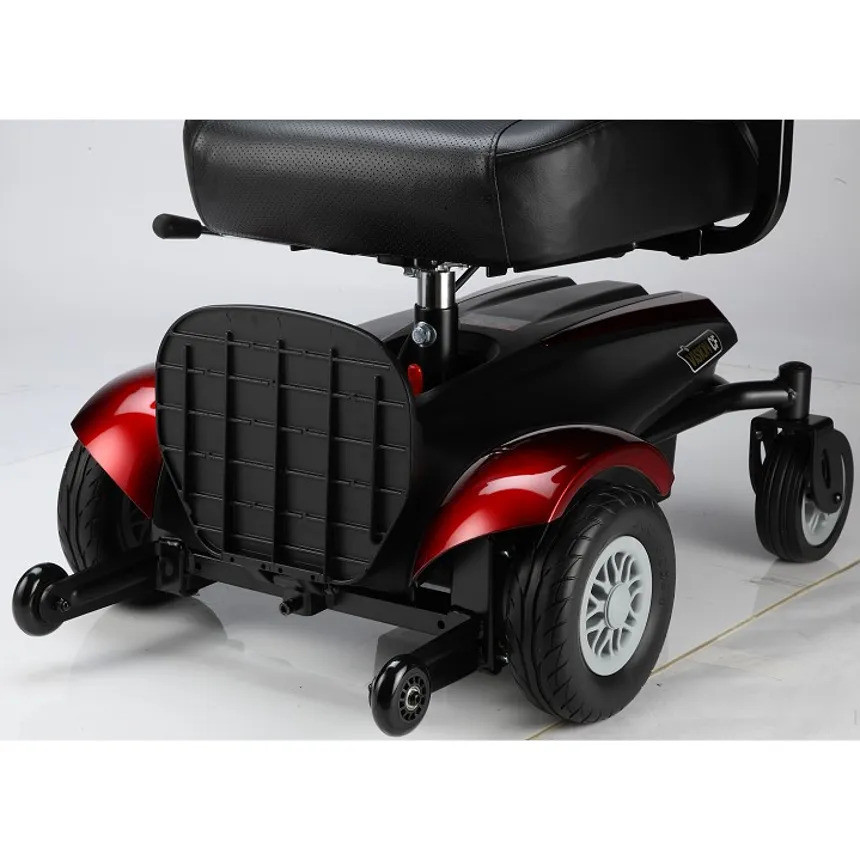

| Drive Wheel Size | 9" |
| Caster Size | 6" |
| Base Weight | 62.70 |
| Battery Pack Weight | 52 lbs |
| Standard Seat Weight | 34.80 |
| Controller Type | Joystick |
VISION CF POWER CHAIR MEASURING GUIDE
| Seat Depth1 Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg. Back Height2 Measured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration. Hanger Angle3 Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular. Seat Width4 Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant. Front Seat to Floor5 Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never foot-propelled by the user - so excluding the additional two inch footrest height for propelling is very rare. |
VISION CF POWER CHAIR BY MERITS HEALTH DOWNLOADS
Vision CF Power Chair by Merits Health Buyer’s Guide
The Vision CF Power Chair by Merits Health is a compact and highly maneuverable mobility solution designed for individuals seeking reliable independence both indoors and outdoors. Engineered with a focus on structural stability and tight space navigation, this power chair offers a robust frame without the bulk of larger traditional models. It provides a comfortable, dependable option for daily transport, helping users maintain their mobility and confidence in various environments.
Vision CF Mid-Wheel Drive Maneuverability
A standout feature of this model is its sophisticated mid-wheel drive layout. The Vision CF places the drive wheels directly beneath the user's center of gravity, which creates an exceptionally small turning radius. This configuration allows the chair to spin completely around in tight hallways, small rooms, and crowded spaces where a traditional mobility scooter alternative would struggle to turn. The design ensures intuitive handling and smooth navigation in residential layouts.
Merits Power Chair Suspension and Ride Comfort
Comfort during extended use is a primary focus of this Merits power chair. It features an advanced full-suspension system that absorbs shocks from uneven sidewalks, thresholds, and outdoor surfaces. This mechanical design works alongside a plush, contoured captain's seat to minimize the physical impact of bumps on the user’s body. The combination of active suspension and premium seating ensures a stable, fatigue-free ride during longer trips.
Heavy-Duty Powerchair Frame and Weight Capacity
Despite its sleek profile, this vehicle is built on a heavy-duty powerchair foundation designed to support a generous weight capacity of up to 300 pounds. The steel frame provides excellent structural rigidity, preventing flex and ensuring a stable platform for the user. This rugged construction guarantees long-term durability and safety, giving users a solid sense of security whether they are navigating flat indoor floors or slightly uneven outdoor terrain.
Electric Wheelchair Battery Performance and Range
Powering this modern electric wheelchair are high-capacity batteries that deliver reliable performance throughout the day. The energy-efficient dual motors are optimized to maximize the distance traveled on a single charge, offering an impressive driving range that accommodates full days of activity without requiring a recharge. The standard joystick controller provides precise, proportional management over speed and braking, allowing for predictable control at all times.
An Adaptable Mobility Scooter Alternative for Daily Independence
For individuals weighing their transport options, this chair serves as a highly functional mobility scooter alternative. Unlike long three-wheel or four-wheel scooters that require wide spaces to turn and lack customized support, this compact power chair fits into standard accessible vehicles and navigates narrow commercial aisles with ease. The adjustable armrests, seat height, and footplate angle allow caregivers and users to customize the physical fit for optimal alignment.
Vision CF Power Chair by Merits Health Review
The Vision CF Power Chair by Merits Health represents a well-balanced combination of durability, indoor agility, and outdoor capability. By integrating a tight-turning mid-wheel drive system with a heavy-duty powerchair frame and an exceptionally comfortable suspension, it addresses the most critical daily needs of power mobility users. For anyone seeking a dependable electric wheelchair that easily outperforms standard scooters in confined spaces, this model stands out as a top-tier investment for personal freedom.
