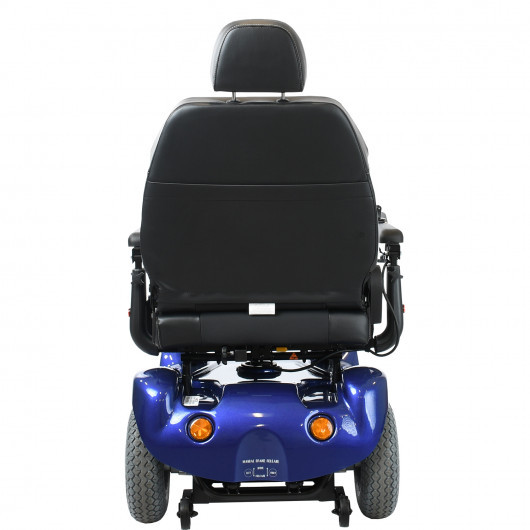

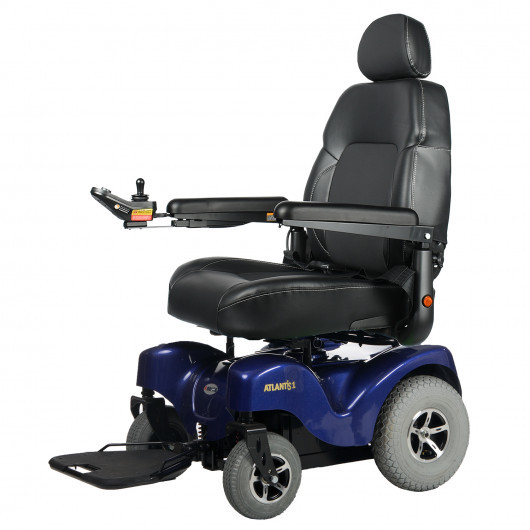

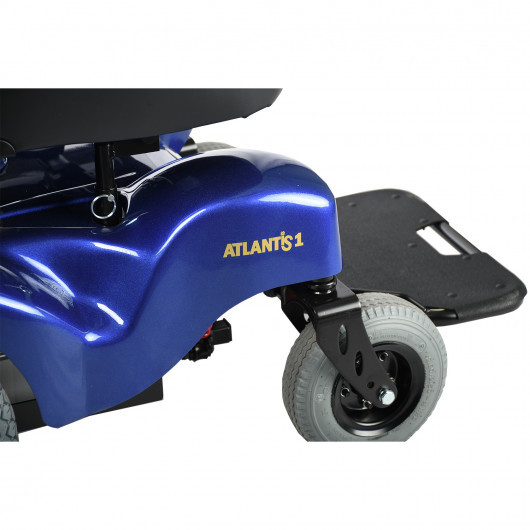

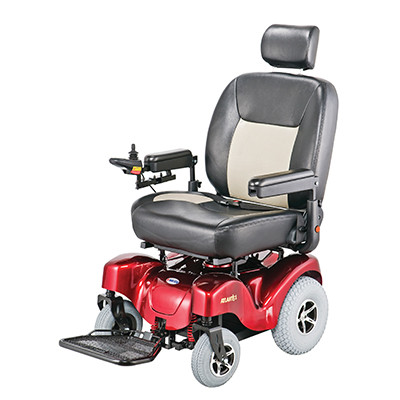

ATLANTIS HEAVY DUTY POWER WHEELCHAIR BY MERIT HEALTH Atlantis Heavy-Duty Power Wheelchair by Merits Health features a reinforced four-post frame, powerful in-line motors for 10° inclines, and wide seating options for maximum stability and performance
ATLANTIS POWER MOBILITY CHAIR PRODUCT FEATURES
HEAVY-DUTY REINFORCED FRAME
Built with a robust structure and four seat posts to deliver superior stability, strength, and long-term durability
Built with a robust structure and four seat posts to deliver superior stability, strength, and long-term durability
HIGH-POWER IN-LINE MOTORS
Equipped with powerful motors designed to handle daily use and confidently climb inclines up to 10°.
Equipped with powerful motors designed to handle daily use and confidently climb inclines up to 10°.
HIGH-CAPACITY SEATING OPTIONS
Available with pan or captain’s seat configurations in 24″ or 26″ widths to support larger users comfortably.
Available with pan or captain’s seat configurations in 24″ or 26″ widths to support larger users comfortably.
STABLE BARIATRIC DESIGN
Engineered for users who need enhanced support, balance, and weight capacity for everyday mobility.
Engineered for users who need enhanced support, balance, and weight capacity for everyday mobility.
INDOOR & OUTDOOR MOBILITY READY
Designed for smooth operation across home interiors, community spaces, and outdoor environments.
Designed for smooth operation across home interiors, community spaces, and outdoor environments.
DURABLE BUILD QUALITY
Combines strength, seating comfort, and controlled performance for reliable all-day use.
Combines strength, seating comfort, and controlled performance for reliable all-day use.
ATLANTIS HIGH-WEIGHT CAPACITY POWER WHEELCHAIR PRODUCT SPECIFICATION
Technical Specifications
- Max Speed: 5 mph
- Range: up to 32 miles
- Turning Radius: 31.5″
- Ground Clearance: 3″
- Motor: DC 24V, 300W
- Battery: 12V / Group 24 (2 pcs)
- Charger: 6A off-board
- Gradient: 10°
- Casters: 9″ foam-filled tires
- Drive Wheels: 12″ foam-filled tires
- Brakes: Intelligent regenerative electromagnetic
Dimensions
- Seat Width: 22–26″
- Seat Depth: 20–22″
- Seat Height: 20″
- Backrest Height: 20″
- Overall Length: 44″
- Overall Height: 50″
- Overall Width: 32″
- Total Weight: 304 lbs
- Weight Capacity: 600 lbs
Optional Accessories
- Swing-away joystick
- USB charger
- Elevating leg rest
- Oxygen tank holder
- Cane & crutch holder
- Walker holder
- Foldable rear basket and canopy
- Height-adjustable arms
- Canopy
- Weather cover
ATLANTIS POWER CHAIR HEAVY DUTY MEASURING GUIDE
| Seat Depth1 Measure from the most posterior point of the body to the inside of the knee, minus at least two inches. Some prefer more leg overhang to make room for their hand when lifting their leg. Back Height2 Measured from the seat base to the top of the chair back. Power wheelchair riders need upper back support, particularly for the moment of initial acceleration. Hanger Angle3 Determines how far the toes extend away from the body, measured from the horizontal. A tighter angle allows the electric power wheelchair to turn around in less space. Depends in part on ability of the knee to bend towards the perpendicular. Seat Width4 Determined by the widest point of the body from knee to hip, plus an inch to ensure room to move. Consider bulk of clothing, particularly a heavy winter coat, if relevant. Front Seat to Floor5 Measure the leg from the back of the knee to the sole of the foot. Then subtract the thickness of the cushion when it is compressed. Next, add a minimum of two inches for footrest clearance. Electric power wheelchairs are almost never foot-propelled by the user - so excluding the additional two inch footrest height for propelling is very rare. |
