Magic Mobility XT4 All-Terrain Power Wheelchair
by Sunrise Medical

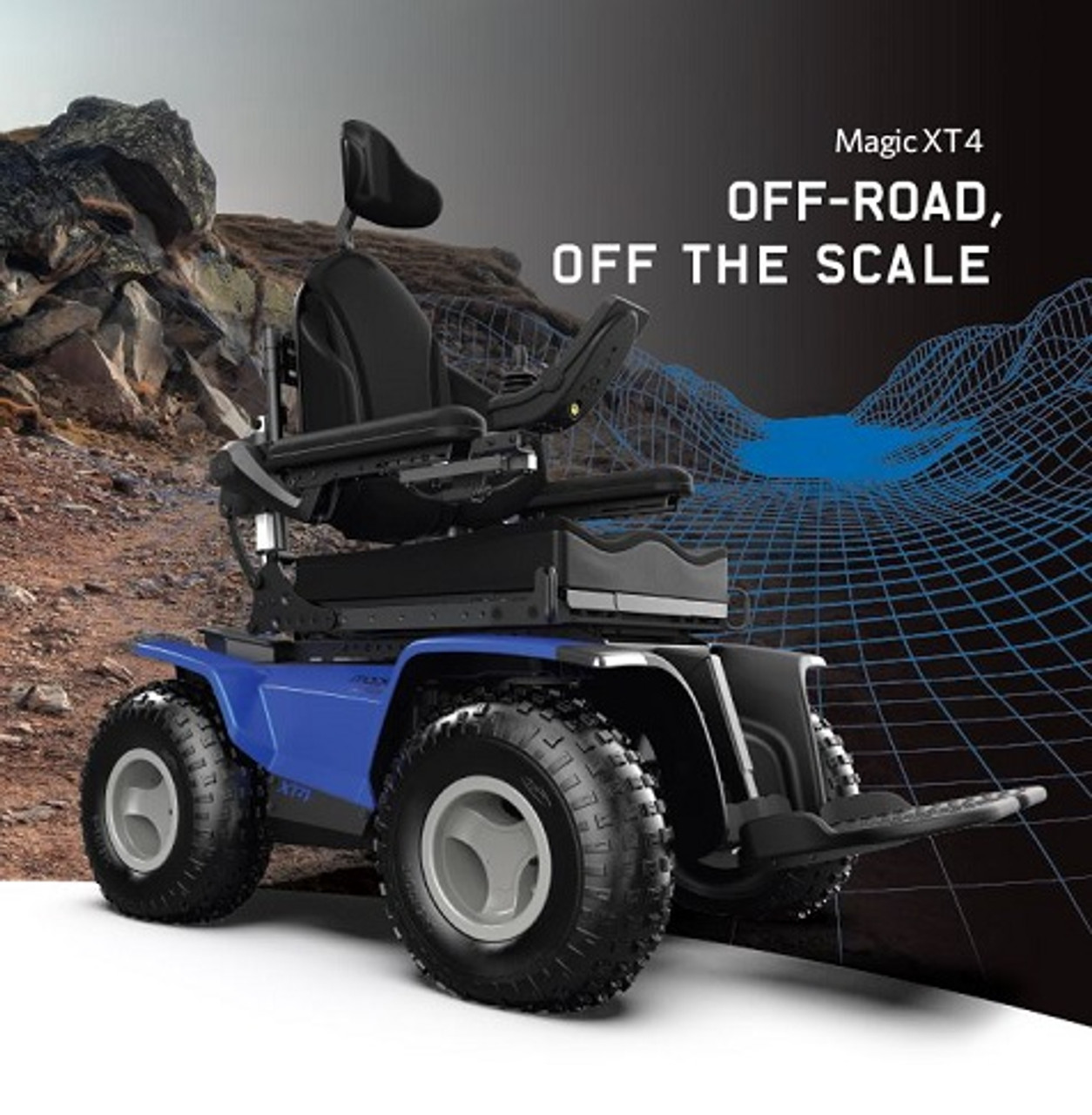

Magic Mobility's XT4 is the world's most advanced off-road powerchair
built for a smooth ride with superior 4x4 traction,
and 19-mile range for all your adventures.

Push your outdoor boundaries further than ever before

Upgrade to the world's most advanced four-wheel drive power wheelchair, the XT4. This innovative chair builds on Magic Mobility's extensive experience in delivering extreme off-road 4WD power wheelchair performance. The XT4 boasts incredible stability, extended range, superior comfort, and precise control across even the most challenging terrains.

The XT4's capabilities come from its patented front and rear suspension, a unique servo-powered steering system, and a high-capacity battery combined with low-pressure, knobby tires. It's powered by the torque needed in a world that's not flat, making the XT4 the ultimate wheelchair for outdoor adventurers.

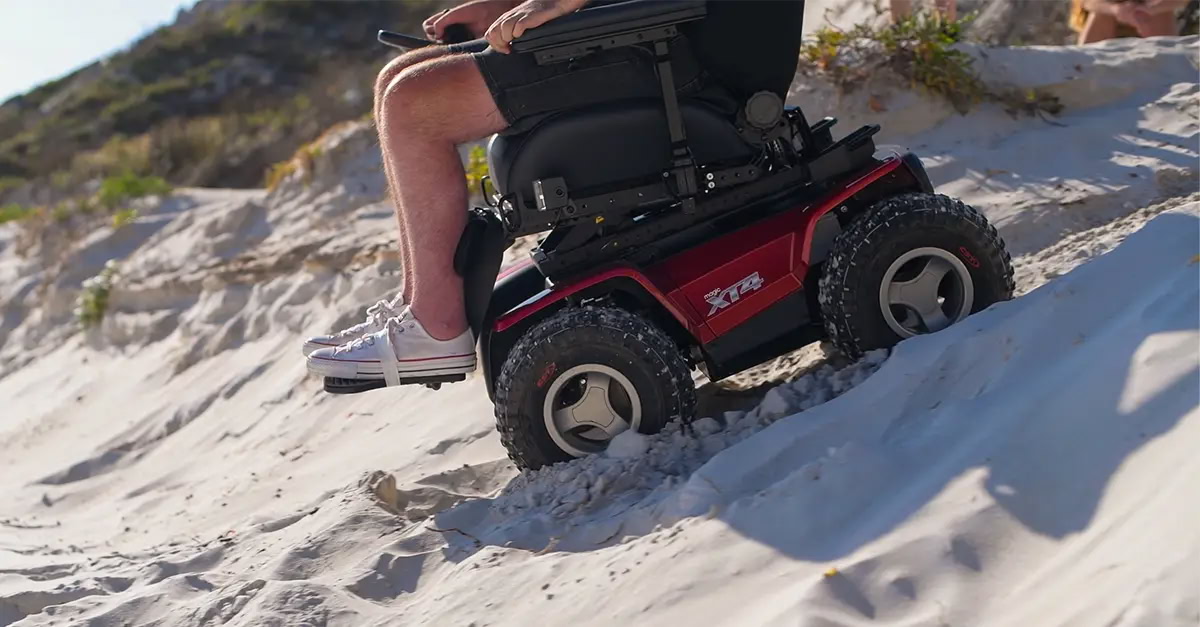

Superior 4x4 traction and stability

The XT4's front and rear wheels are mounted on pivoting arms that adjust independently, allowing all four wheels to stay firmly on the ground, even on uneven terrain. This design ensures a smoother ride, enhanced stability, and superior power and control, especially when navigating extreme off-road conditions.

Effortless, intuitive steering

Steering the XT4 is exceptionally smooth, easy, and precise due to its servo-powered system. This eliminates the effort often associated with traditional 4x4 power wheelchairs, making turning, reversing, and three-point turns effortless. The responsive control and lack of steering lock ensure the XT4 moves precisely where you want it to, with less effort and more confidence, even on slippery or uneven terrain.

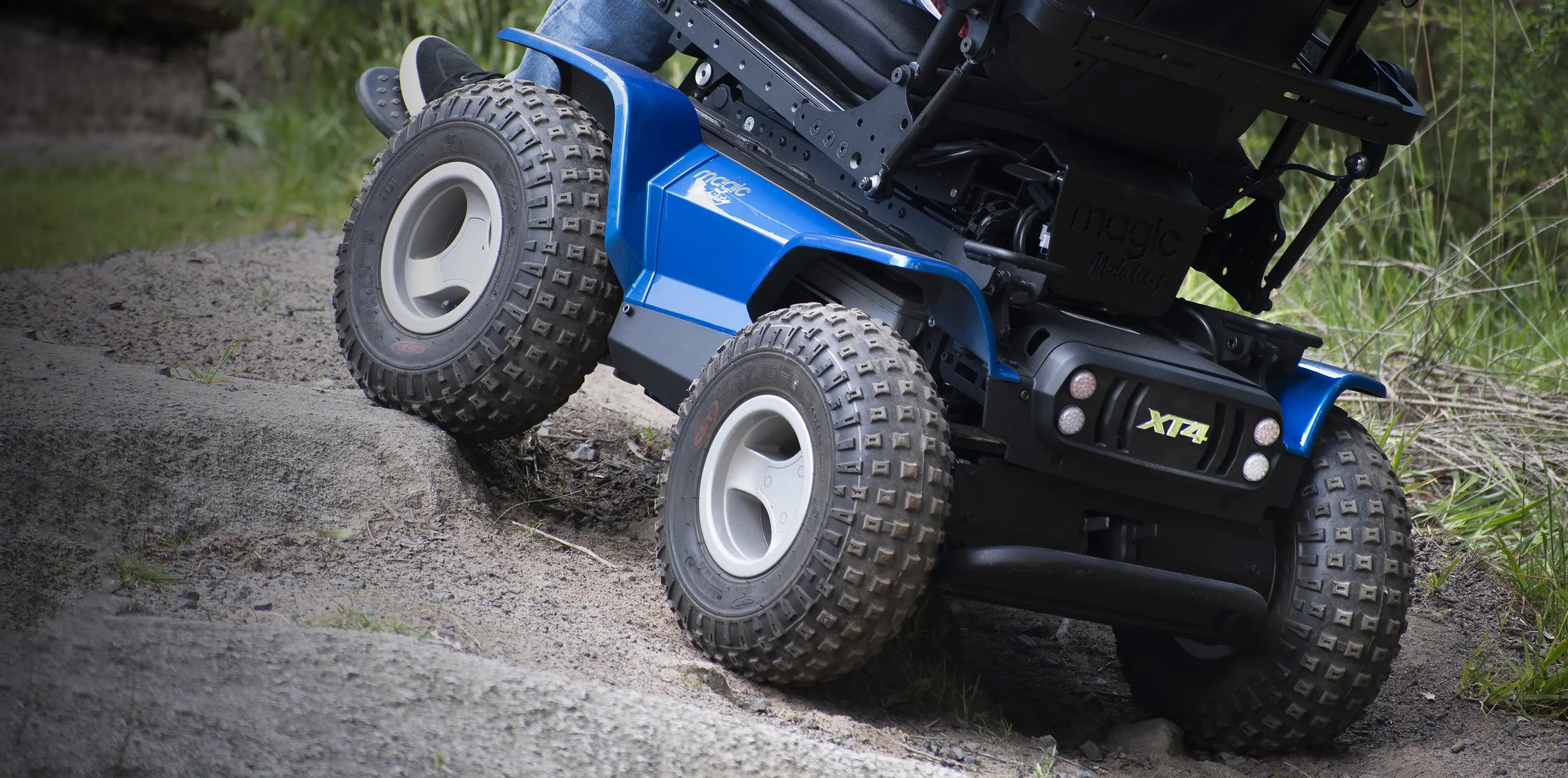

Unstoppable off-road traction

Each of the XT4's four knobby off-road tires is powered by high-efficiency, high-torque 700-watt motors, enabling easy navigation through challenging terrains like mud, sand, or snow, and over curbs and other obstacles. Equipped with two massive Group 31 batteries as standard, the XT4 offers an extended range, allowing you to venture further off-road than ever before.

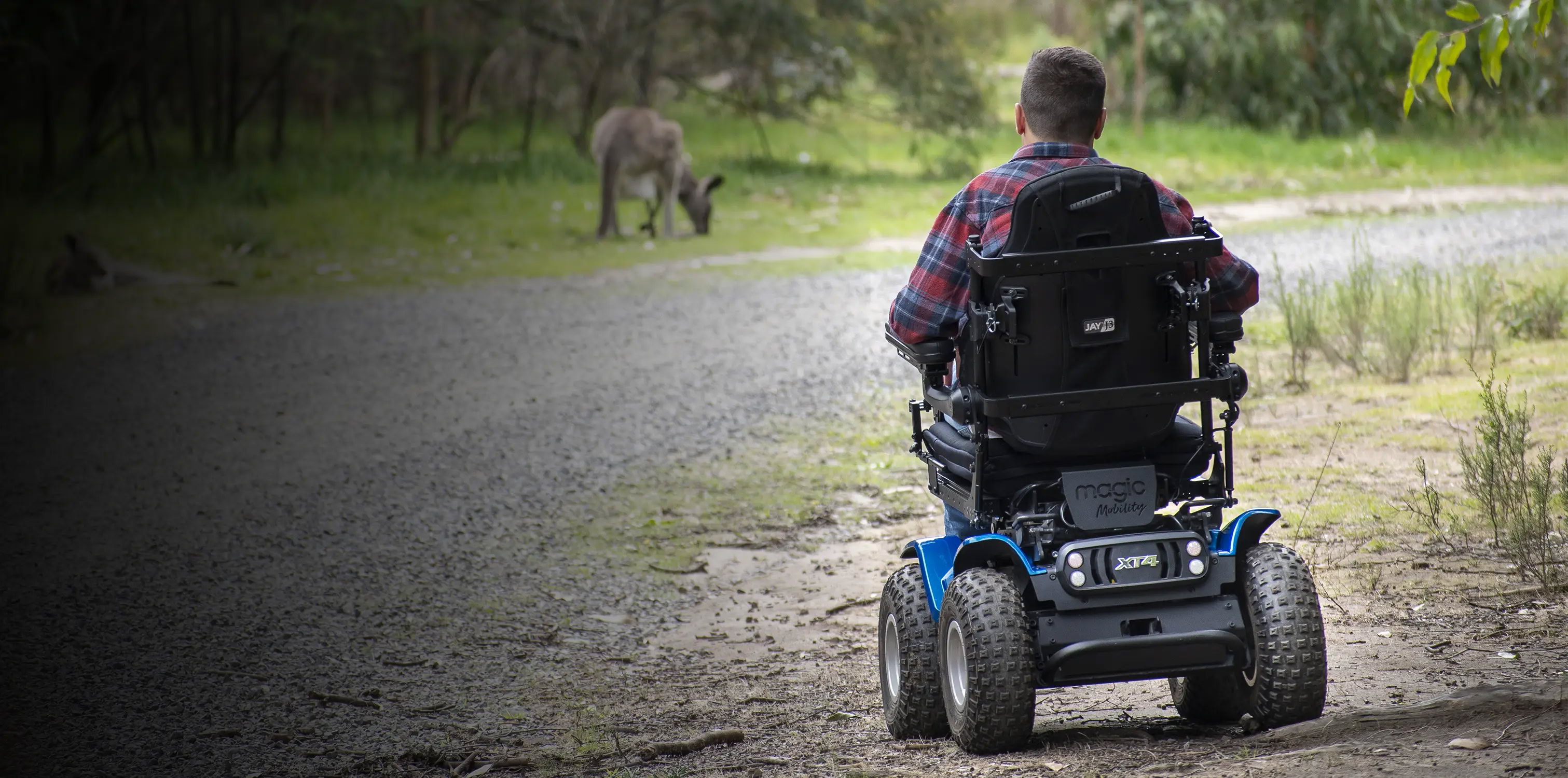

Leave No Trace

The Magic Mobility XT4 operates at low tire pressures, significantly reducing the risk of damaging trails and disturbing natural landscapes. This contrasts sharply with chairs featuring heavy-duty, aggressive tracked treads, which can cause considerable ground erosion, soil compaction, and environmental harm, especially in ecologically sensitive areas, ensuring you can enjoy nature responsibly.

Magic Mobility XT4 Powerchair Key Features

MODERN UPDATED LOOK

Choose from five vibrant colors. Aerodynamically styled, injection-molded body panels are easily removed for maintenance or replacement.

EATS CURBS FOR BREAKFAST

Each of the XT4's four knobby off-road tyres are driven by high efficiency, high-torque 700 Watt motors. Power easily through mud, sand, snow or over kerbs and other obstacles. Fitted with two massive 115 Ahr batteries as standard, the XT4 will take you further off-road than ever before.

IMPROVED BATTERY RANGE

Large capacity batteries come standard on the XT4. They provide up to 19 miles of range, extending your scope for adventurous exploration and boosting your confidence of making it home at the end of the day. Now you can go further for longer and with added peace of mind.

INTEGRATED L.E.D. LIGHTS

Don't get caught out in the dark! Light your way with confidence thanks to the XT4's integrated front and rear LED lighting system. Experience a larger spread of light thanks to six high-powered LED bullbs, plus an indicator on each side.

SUPERIOR PATENTED SUSPENSION

Front and rear wheels are mounted on their own pivoting arms that adjust independently to follow the contours of the terrain. This helps keep all four wheels on the ground to deliver more traction, a smoother ride, greater stability and more control across even the most extreme off-road terrains.

SERVO POWERED STEERING FOR PRECISE CONTROL

The XT4 steers using a combination of differential wheel speeds and an industry-leading servo steering module. Even on slippery or low traction surfaces, the chair's intuitive steering delivers a feeling of reliability, responsiveness and control, both in forward and reverse.

SPLASH RESISTANT (NOT WATERPROOF)

Please remember, the wheelchair has electric motors and must not be driven through water, into rivers, creeks or the sea. Magic Mobility wheelchairs meet Australian Standards 3696 and ISO7176.

Frequently Asked Questions

Can it go in water?

Your wheelchair should not be driven through puddles or across streams/rivers. It is an electrically powered device, with motors low to the ground.

CRITICAL! Your wheelchair has electric motors and must NEVER be driven through water or into rivers, creeks, or the sea.

What is the range of Magic Mobility wheelchairs?

The range of Magic Mobility wheelchairs differs depending on usage and build factors including the battery option selected, weather, frequent stops/starts, or long straight drives. Different terrains will also have an impact on power consumption. Our advice is to familiarize yourself during your daily routine and read the battery section in the owner's manual.

How long will the batteries last?

Generally, with proper care, all the batteries we supply can last up to three years for normal or moderate wheelchair users. For heavy users who drive long distances or on challenging terrain each day, all the batteries we supply may last up to two years. Please see the owner's manual for further details on batteries and battery care.

What tire pressure should I be using off-road?

Lower tire pressures provide more traction in mud, sand, and snow. For use on firmer surfaces, tire pressures may be increased depending upon the weight of the user, their preferences, and their driving capability. The range of the wheelchair improves with higher pressures. Please refer to your owner's manual for further information.

My local mechanic thinks my tire pressures should be higher so I can move easily from on to off-road.

Tire pressures should be adjusted according to the terrain you are driving on, and there is no such thing as the "right" tire pressure for either on or off-road. When on pavement, a higher tire pressure is better, as the chair will get improved range and similar comfort. If the tire pressure is too high for off-road, it may cause damage to the steering or bearings, and the off-road capability will be significantly reduced. If possible, set the pressure according to the conditions and before you go off-road, reduce the tire pressures. This way, you won't cause any harm if you drive it on the road until you reinflate the tires. We strongly recommend you refer to the owner's manual and don't exceed the pressure ratings in the graphs.

Magic Mobility XT4 Powerchair Specifications

Specifications
Dimensions	Product Width	27.5"
	Product Length	39"
	Seat Width	13" to 23"
	Seat Depth	13" to 24"
	Seat-to-Floor Height	19", 20", 21"
	Back Height	Rehab back: 16.5"-24" Comfort (MPS) back: 22" & 26"
	Turning Radius	55.5"
	Product Weight	Starting at 320 lbs. with batteries
Performance/Weights	Max. Range	19 miles (range can be impacted by setup of chair and driving conditions)
	Max. Speed	6.2 mph 3.1 mph at full seat elevation
	Battery Size	Group 31
	Drive Wheel Position	4x4
	Transit	Yes; this product has been successfully crash tested and fulfils the performance requirements for ISO 7176-19.
	User Weight Capacity	400 lbs. 350 lbs. with Elevate or Tilt

Magic Mobility XT4 Powerchair Measurement and Compatibility Guide

Seating Specifications
HCPCS	N/A
Power Seating	50° of CG Tilt / Power Recline / 12" Seat Elevator
Seat Size Range	Width: 13-23" \| Depth: 13-24"
STF Height Range	19", 20", 21"
Typical WC Weight w/ Batteries	Starting at 320 lbs. Weights vary depending on options
Seat Type	MPS and Rehab Style

Drive Base Specifications
Drive Wheel Position	4 Wheel Drive
User Weight Capacity	400 lbs. \| 350 lbs. with Elevate or Tilt
XT4 Base Size	Width 27.5" \| Length 39" \| Turning Radius 55.5"
Min chair weight (No power options)	408lbs.
Std chair weight (Lift, Tilt, Recline)	485lbs.
Battery Size	Group 31
Drive Control	R-Net PM 120A controller
Drive Motors	4 x 700W 4-pole motors
Speed	6.2mph \| 3.1mph at full seat elevation
Tires	All Terrain Tires
Charger	Dual Mode
Ground Clearance	5"

Magic Mobility XT4 All-Terrain Power Wheelchair Video

Magic Mobility XT4 All-Terrain Power Wheelchair Downloads

Order Form Sell Sheet Owners Manual

No Buyers info available

Warranty terms

COMMENCEMENT OF WARRANTY PERIOD

The warranty period begins on the date that the product is first received by the customer, or thirty (30) days from the shipping date from Magic Mobility, whichever comes first.

REPAIR AND REPLACEMENT

Customers should contact the agent from whom the product was purchased. Magic Mobility will, at our discretion, repair/replace items that are considered faulty at time of manufacture.

The availability of replacement units is subject to the discretion of the agent, not the manufacturer. For more information regarding replacement units, contact your Magic Mobility agent.

VOIDING OF WARRANTIES

Installation of components by an unauthorized agent will void the warranty. If non-Magic Mobility parts are used or installed, it may void the warranty and effect the wheelchair’s performance.

Servicing to controllers or other electronic equipment must be carried out by an authorized agent. Any attempt to open or dismantle these items will void the warranty.

Batteries: gradual deterioration in battery performance due to being left in a discharged state or left in poor conditions (extreme temperatures, unclean or damp environments) is not covered under warranty.

Your wheelchair is not covered under warranty if it is submerged in water, or is exposed to corrosive liquids. Please note that salt water is considered highly corrosive and proper cleaning care and maintenance as described in this manual should be followed.

EXTENSION OF WARRANTIES

Warranty must not be altered, waived or extended. An extension to the warranty period is authorized by Magic Mobility on Magic Mobility documentation.

LIFETIME LIMITED WARRANTY

Frame, bogie and trailing arms, forks.

One year warranty

The Magic Mobility wheelchair is under full warranty for the first twelve (12) months from the commencement date. This warranty does not detract from but is in addition to your legal rights.

Warranty exclusions

Damage or corrosion due to misuse, accidents or alterations
General wear and tear (tires, batteries, upholstery, scratches, damage etc)
Accidents, including collision, fire, theft and riot.
Alterations including modification and tampering.
Repairs performed or replacement parts installed by any person other than an Authorized Dealer.
A replacement part or accessory not conforming to Magic’s specification.

Replacement/repair parts warranty exclusions

Parts replaced under the warranty period are solely covered for the original warranty period of the wheelchair.

Spare parts warranty

Spare parts under the warranty period (current models): There is no extended warranty for parts.

Spare parts outside the warranty period (current models): A replacement may be offered, but has a limited

Spare parts (legacy models): A replacement may be offered, but has a limited 30 day warranty.

Additional notes

Magic Mobility will take reasonable steps to ensure that spare parts are available for 5 years after a model has been upgraded

Electrical parts – a replacement may be offered, but Magic Mobility but has a limited 30 day warranty Mechanical parts – a replacement may be offered for a mechanical part. The warranty on this item is limited to 12 months

Upon acceptance of goods at delivery the purchaser accepts the “Terms & Conditions of Sale”
