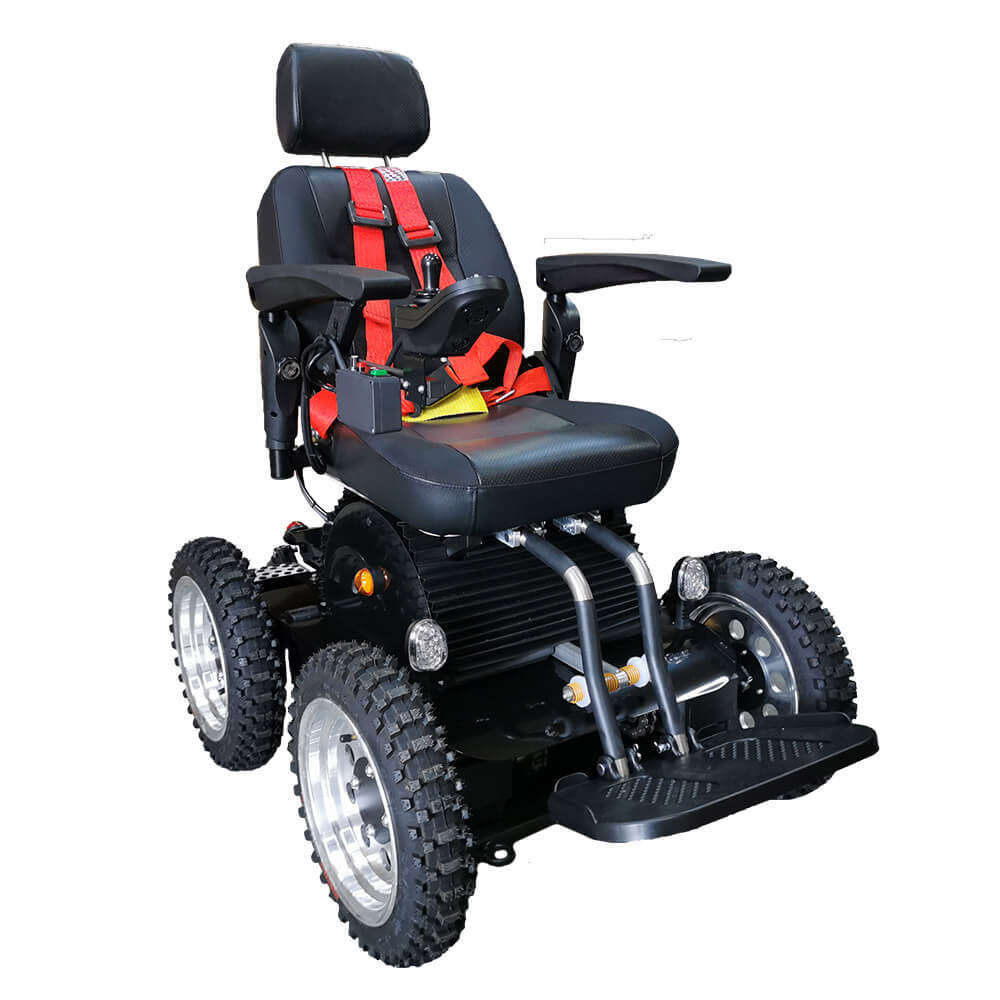

BigHorn 4x4 Stair Climbing Wheelchair
The PW-4x4Q Bighorn Stair Climbing Wheelchair is an All-Terrain Recreational Vehicle with all-terrain capabilities and the Best Outdoor All Terrain Power Chair on the market loaded with a 4-Wheel Drive & Gyro system, the vehicle can handle rugged terrain such as steep slopes, snow, sandy beaches, muddy or bumpy roads, etc. With its unique gyro balance system, it can climb stairs with ease. It can be frustrating to face curbs and a few steps in daily life, and sometimes you just want to exercise your adventurous mind. Let PW-4x4Q help you to conquer places that you're not able to get to!
Rugged, but comfortable
- Gyro system synchronizes the angle of seat in relation to the ground as you drive.
- Seat angle is automatically adjusted on stairs or slopes, allowing you to maintain an upright seated position.
- Climb up and down as high as 15cm (5.9 inches) at 25 degrees.
- Make a 360° U-turn on the spot, with a turning radius of only 49 cm (19.2 in).
- Power tilting seat to allow more comfort
- Racing car seat design with deep contoured high support memory foam.
Powerful, but elegant
- Range of 12.4 miles of climbing and driving on rough terrain; and up to 18.6 miles on flat surfaces.
- Max speed of 4.7 mph
- Dimensions: 45" x 29" x 54"
- Rear and side LED lights makes the Bighorn highly visible while driving on the road, especially at night.
- PG drive controller, with excellent control precision and LED display.
- Total wheel-to-wheel width: 29"
Specific and unique design, but capable of full customization
- Adjustable chair height and armrests
- A friend can stand behind the seat to travel together.
- Customized measurement for every order
- Higher sitting position for better social interaction and vision.
Specifications:
| Max speed | 7 km/h |
| Weight with batteries | 143 kg |
| Max Load Capacity | 150 kg |
| Seat Width | 20″(front) and 18″ (rear section) |
| Seat Height (Front) from ground | 63cm (25″) |
| Seat height (Back) from ground | 61cm (24″) |
| Seat Depth | 49 cm (19.2″) |
| Width between armrests (adjustable) | 50 cm to 59cm (19.6″, 23.2″) |
| Footrest to seat (adjustable) | 34 to 43cm (13″~16.9″) |
| Turning Radius | 360° U-turn on the spot, with a turning radius of 49 cm (19.2″). |
| Size with standard wheel | 120 x 75 x 107 cm (47.2″ x 29.5″ x 42″) |
| Max distance per full charge | 12-18 miles |
| Charging time | 8 hr |
| Max slope capability | 30° |
| Max Step Height Capability | 15 cm |
| Step climbable angle | 25° |
| Batteries | Lithium LiFePO4 24V 70Ah, removable from front |
| Level rack motor | 300W x 1 pcs |
| Driving motor | 750W x 2 pcs |
| Standard Wheel Size | 15.5″ |
| Large Wheel (Optional) | 16.5″ |
| Brake | Electromagnetic braking |
| Drive manner | Four-wheel drive |
| Arm Rest | Raisable |
| Foot Rest | Foldable |
| Back Rest | Foldable |
Key Features:
- The gyro system automatically adjusts the seat angle on stairs climbing or slopes, which allows your body to maintain an upright position.
- 4WD (4 wheel drive) mode for all-terrain and stair climbing purposes.

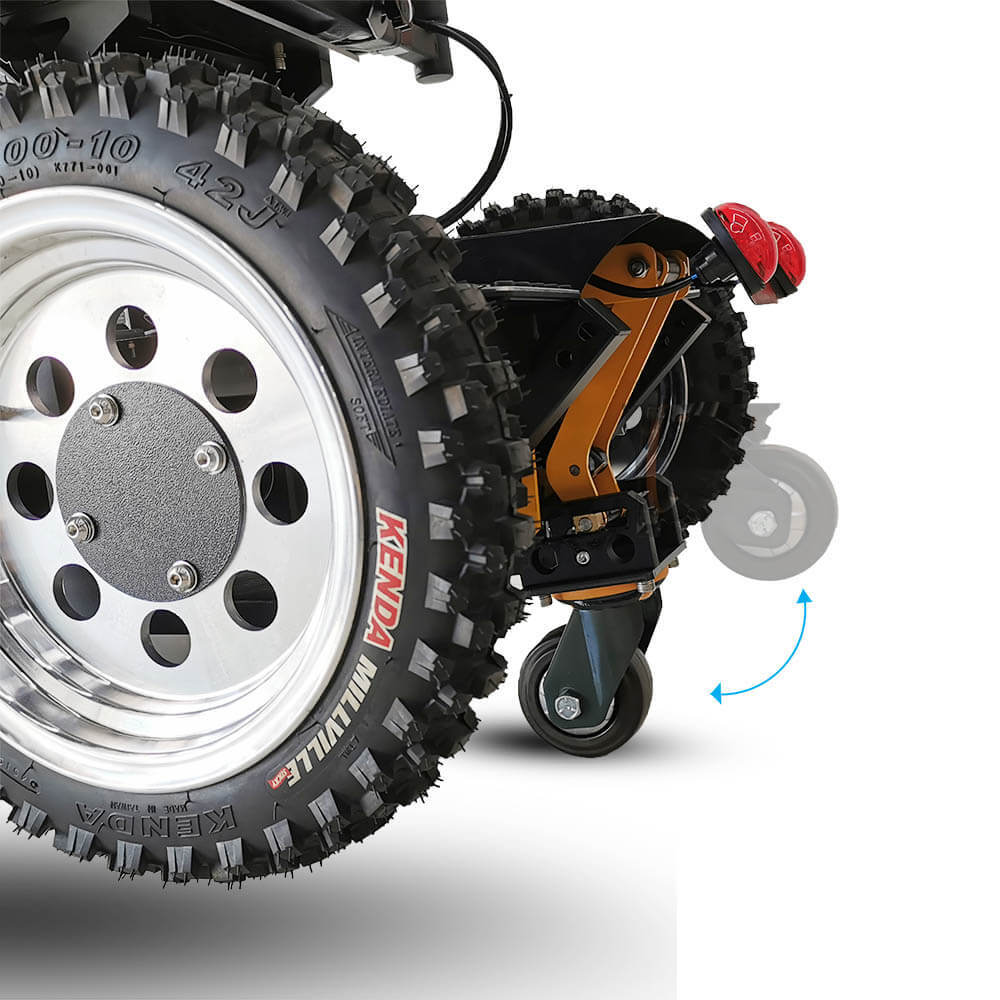

- Power saving mode to use the 5th wheel + the 2 front wheels for the flat surface environment. (Runs on 3 wheels only).
- This 5th wheel can be lowered down to operate together with the 2 front wheels in order to save electricity.
- Assuming the user is 75KG (165 lb), it can travel up to 24km (15 miles) with 3 wheels, and 18km (11 miles) with 4WD.
- It can climb up and down the stairs as high as 15cm (6″) at 25 degrees.
- Top driving speed is 7km/hr (4.35 mph)
- Li-ion Batteries (More durable and efficient vs the traditional Lead Acid Batteries)
- Able to make a 360° U-turn on the spot, with a turning radius of only 49cm (19.2″).
- Front, rear, and side LED lights are equipped for highly visible while driving on the road at night.
- Adjustable armrest width (50-59cm).
- Racing car seat design with contoured memory foam.
- Power tilt-in-space seat for more comfort.
- Raisable armrests are height adjustable.
Lastest Improvement for new production from 1sth May 2020 onwards.
- Lower seat level for easier transfer and better stability.
- Using the latest Dynamic controller for better control precision, stability, and comfort.
- New 5th wheel position and structure to ensure energy-saving and longer life span.
- Overall quality improvement.
Remarks:
- Optional extra-wide tires are available for snow and beach environment.
- 2nd user can stand behind the seat, or an optional passenger seat can be purchased.
- The Bighorn can get through any difficult terrain or environment with ease. Sand, snow, mud, tall grass and more are easily traversed.
The Bighorn is the best on the market for 4x4 off-road adventure capability. Crawl through mud and dirt, power through tall brush and cruise down the hiking trails!
Here are the latest features added to this model:
- 12V, 27AH X High range Li-ion Batteries (More capacity, lighter weight, more durable and more efficient vs our previous Lead Acid Batteries)
- Power tilt-in-space seat for more comfort.
- Energy-Saver mode: The option to switch the chair into a 3 wheeled(two front and a built in rear wheel) power delivery mode to increase battery life and efficiency.
- Electromagnetic Braking System for reliable braking
Product is sold with standard pneumatic tires, pictured above, but pneumatic Extra-Wide Snow&Beach tires are available as well.
Stair Climbing Ability
Warranty Information:
2 Year Parts Warranty covering everything except for wear and tear
Our unmatched Technical Support provided for the life of the product
Shipping
All shipping fees to get the wheelchair to your door are included in the price.
Please note that it generally takes 25-35 days to safely deliver this wheelchair. Expedited shipping may be available upon request but is not guaranteed.
Bottle Holder
3 in 1 Holder Introduction
Optional Accessories:
Rear Seat - Shown is the optional rear seat assembly for Bighorn. It allows you to share the joy of riding with a friend or family member. Comes with the rear seat, anti-tilt support and the attachment parts. Please note that the Bighorn will not be able to go over curbs or climb stairs when the rear seat is occupied by a passenger, and the battery autonomy may not be as long with the added weight of a second passenger.
Downloads:
Reviews:
"My Bighorn has changed everything... I don't even give stairs a second thought anymore! Before there was so much planning ahead to avoid stairs in the errands I had to run and plans my husband and I made. And I can go to the beach whenever I want! Even if a friend asks last minute."
-Erika, Sarasota FL
"Most chairs have their limits as to what you can do with them...where you can go. Not the Bighorn. This thing goes anywhere and does anything."
-Drew, Tacoma WA
The Bighorn 4x4 Stair Climbing Wheelchair Buyer's Guide
The Bighorn 4x4 Stair Climbing Wheelchair is an innovative, all-terrain wheelchair designed to provide users with enhanced mobility and the ability to conquer steep stairs and uneven surfaces. Built with a 4x4 drivetrain, this wheelchair offers a versatile solution for individuals with limited mobility, ensuring they can navigate challenging environments with ease and independence.
4x4 All-Terrain Mobility
The Bighorn Stair Climbing Wheelchair is equipped with a 4x4 all-terrain drivetrain that allows it to easily traverse rough terrains such as gravel, dirt, sand, and snow. This robust feature offers excellent stability and traction, making it ideal for outdoor adventures and navigating environments that would challenge conventional wheelchairs.
Bighorn Stair-Climbing Wheelchair Advanced Technology
The standout feature of the stair climbing wheelchair is its advanced stair-climbing capability. Thanks to specialized wheels and a motorized system, this wheelchair can safely and efficiently ascend and descend stairs, offering unprecedented mobility for users.
Bighorn 4x4 Stair Climbing Wheelchair Comfortable Seating
The 4x4 stair climbing wheelchair features an ergonomic seat with adjustable cushions, providing a comfortable and supportive experience for extended use. The seat's design ensures proper posture and reduced pressure points.
Long-Lasting Performance
The Bighorn Stair Climbing Wheelchair is equipped with a powerful lithium-ion battery that allows for long-lasting performance on a single charge. This battery is capable of supporting extended trips on various terrains.
Bighorn Stair Climbing Wheelchair Easy-to-Use Controls
With intuitive joystick controls, the all-terrain stair climbing wheelchair is simple and easy to operate. Whether navigating a ramp, traversing stairs, or cruising across rough terrain, users can control the wheelchair with minimal effort.
Safety Features
Safety is a top priority for the Bighorn 4x4 Stair Climbing Wheelchair. It includes features such as anti-tip technology, automatic braking, and stabilizing arms, which ensure that users stay safe while navigating stairs, uneven terrain, and other challenging environments. These safety mechanisms are designed to provide peace of mind during use.
The Bighorn 4x4 Stair Climbing Wheelchair Review
The Bighorn 4x4 Stair Climbing Wheelchair offers an impressive combination of advanced technology, comfort, and durability. Its ability to navigate stairs and rugged terrains sets it apart from traditional wheelchairs, providing users with enhanced mobility and greater independence.
