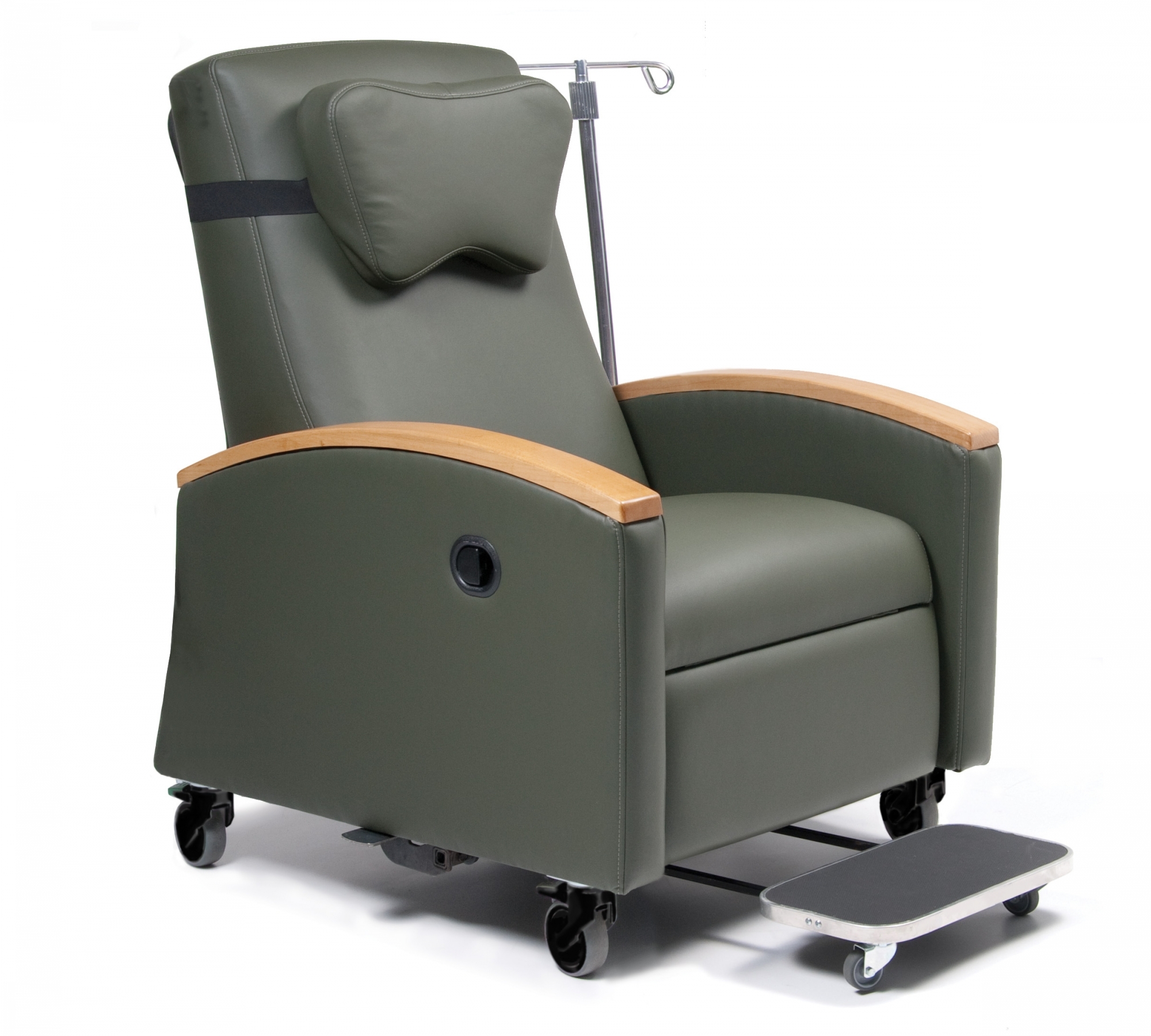

Lumex Ortho-Biotic II Recliner, by Graham Field

Lumex Ortho-Biotic II Recliner by Graham Field

The Ortho-Biotic II Recliner is a premium, aesthetically pleasing recliner that provides ultimate comfort for a variety of applications in extended care, clinical care, and acute care settings.

The Lumex Ortho-Biotic II Recliner by Graham Field is a versatile clinical recliner designed for patient comfort and caregiver convenience in extended-care, clinical-care, and acute-care environments. The FR597 features infinite back recline positioning and independent legrest operation, allowing patients or caregivers to select a comfortable position for treatment, rest, recovery, and transport. Its seat and back incorporate viscoelastic memory foam over a high-density foam base for supportive comfort.

The recliner provides a caregiver-activated Trendelenburg position through a convenient side-mounted foot pedal and includes a pull-out, self-storing footplate to assist with patient entry, exit, comfort, and transport. A universal headrest pillow provides adjustable support for the head, neck, or back, while the rear push handle and 4-inch Tente swivel casters help caregivers maneuver the recliner. Three casters are total-locking and one is directional-locking.

The Ortho-Biotic II supports up to 350 lb (158.76 kg) evenly distributed and is available with either wood-capped or fully upholstered arms. Optional accessories include a side table and IV pole mounting bracket. With its 23-inch seat width, 20.5-inch seat depth, infinite recline capability, independent legrest, memory-foam cushioning, and clinical positioning features, the Lumex Ortho-Biotic II Recliner provides a comfortable and functional seating solution for a wide range of healthcare applications.

Graham-Field Lumex Ortho-Biotic II Recliner Features

Infinite Recline Positioning

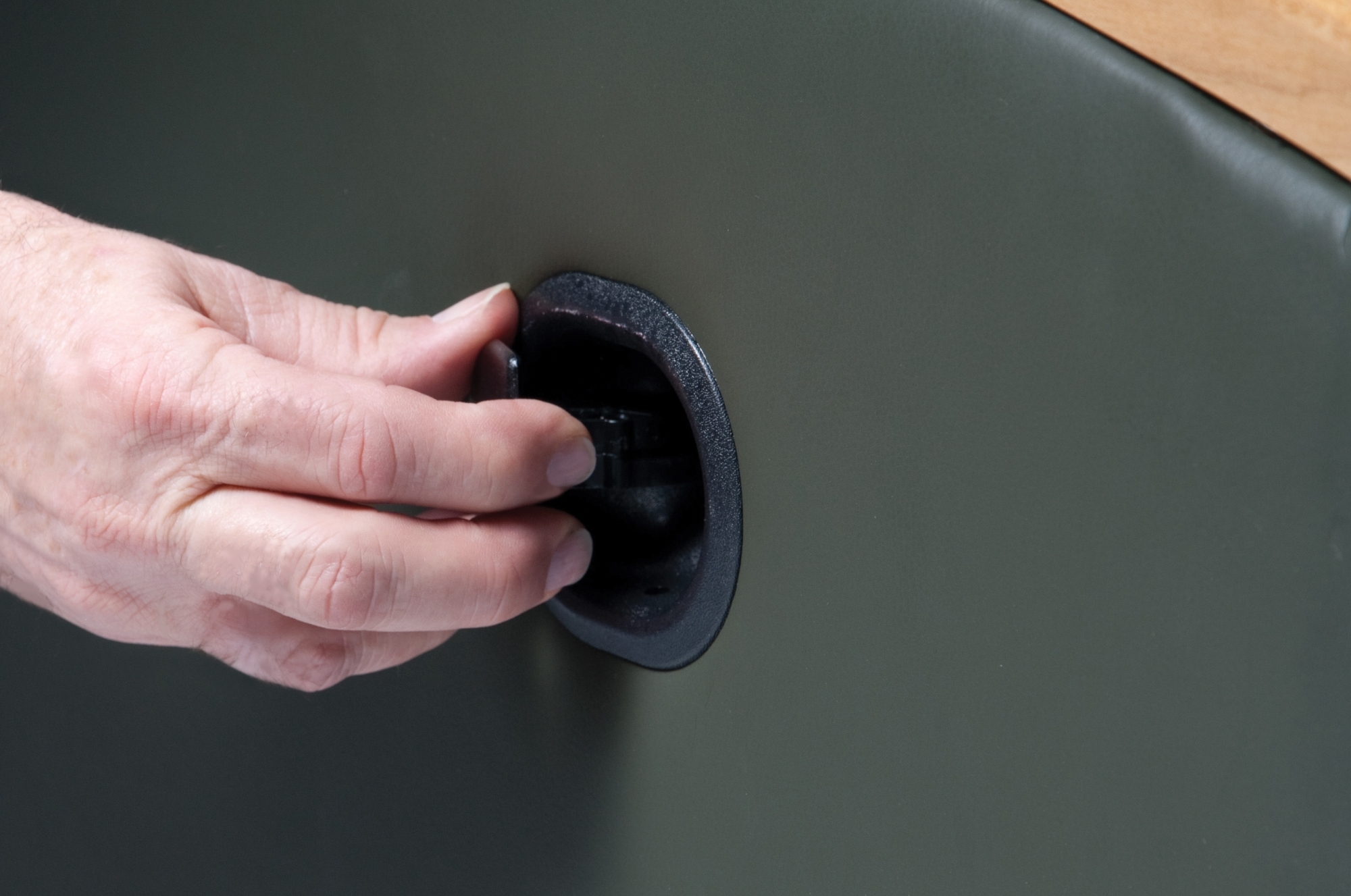

The Ortho-Biotic II allows the patient to adjust the back to an infinite range of positions within its operating range, rather than being restricted to a few predetermined recline positions. An exterior legrest-recline lever allows the patient or caregiver to adjust the back angle.

Independent Legrest Operation

The legrest operates independently from the backrest. This allows the patient or caregiver to extend the legrest while maintaining the desired back position. Graham Field specifically identifies independent legrest operation as one of the recliner's primary features.

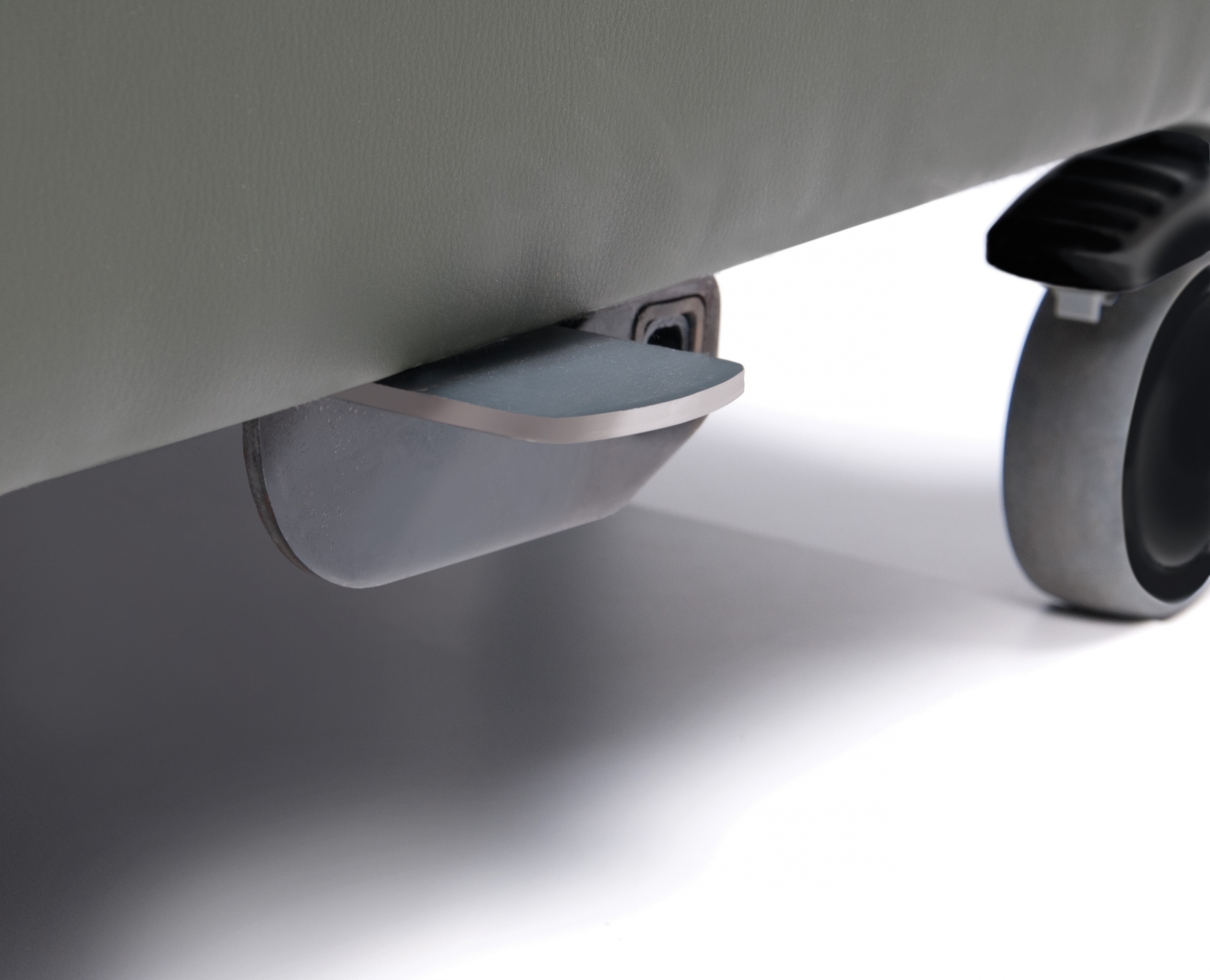

Trendelenburg Position

A caregiver-activated Trendelenburg/shock position is available through a side-mounted foot pedal. The side-mounted control allows the caregiver to operate the positioning mechanism while remaining near the patient.

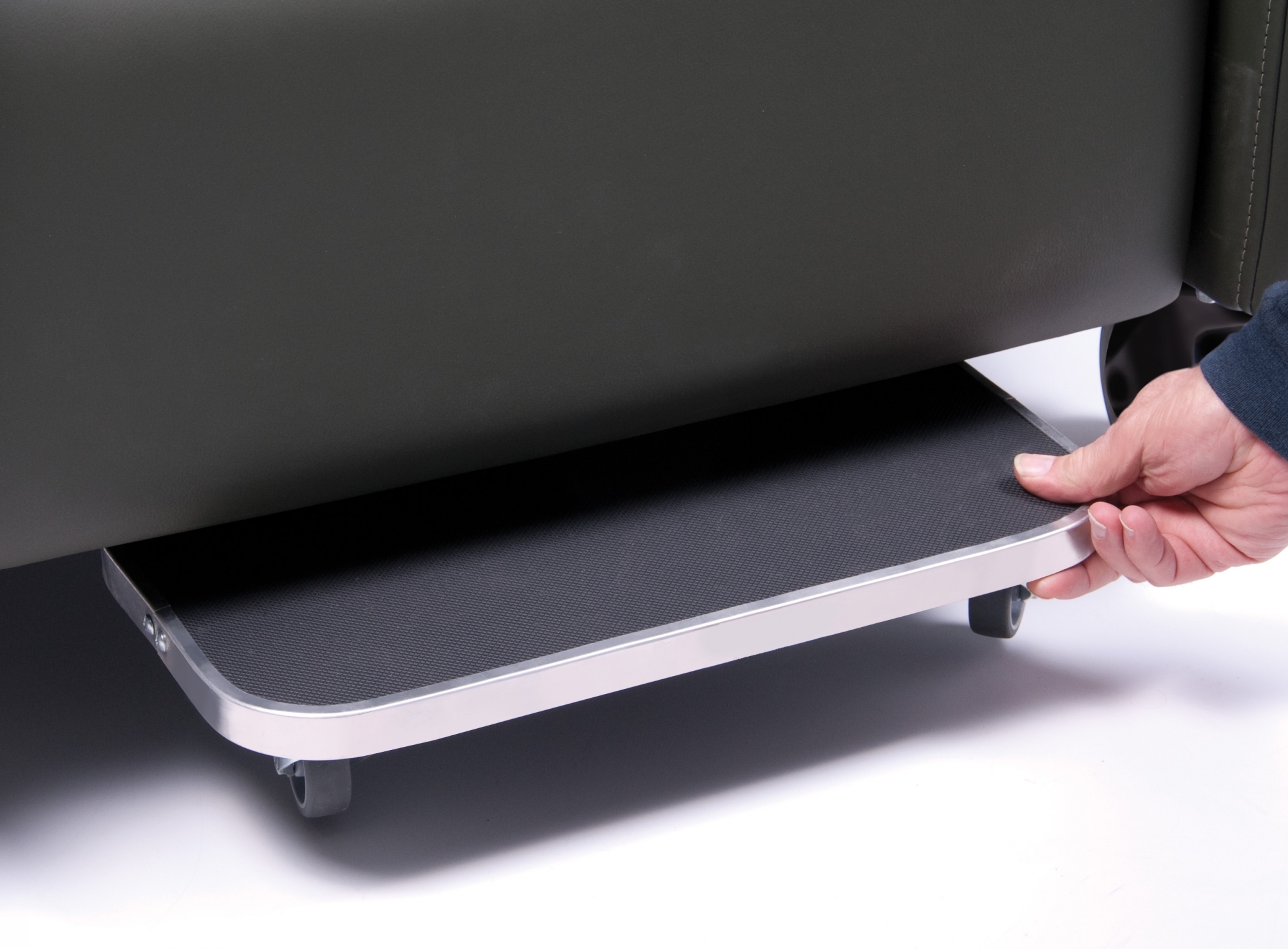

Pull-Out Footplate

The recliner includes a self-storing pull-out footplate. It provides a foot-support surface for patient comfort and can be retracted underneath the recliner when not required. The footplate helps with patient entry and exit and safer patient transport

Viscoelastic Memory Foam

It has a high-density foam base with a 1-inch viscoelastic foam topper, providing a combination of structural support and pressure-distributing comfort.  This construction is intended for patients who may spend extended periods in the recliner.

Universal Headrest Pillow

Its adjustable design allows the pillow to be positioned to support the patient's head, neck, and back. The headrest can be adjusted vertically to accommodate different patient positions.

Two primary arm configurations

The finished wooden arms provide an aesthetically styled appearance suitable for patient rooms and postoperative-care environments. The fully upholstered armrests provide a softer patient contact surface and are designed for ease of maintenance.

4-Inch Tente Casters

The caster configuration consists of 3 total-locking casters and 1 directional-locking caster. This arrangement allows caregivers to maneuver the recliner while providing locking capability when the chair needs to remain stationary.

Rear Push Handle

A rear push handle is incorporated into the recliner to make patient transport easier for caregivers.

350 lb Weight Capacity

This is the manufacturer's maximum evenly distributed patient weight capacity.

Lumex Ortho-Biotic II Recliner with Upholstered Arm Specification

Specification	Details
Brand	Lumex
Manufacturer	GF Health Products, Inc. / Graham Field
Product Name	Ortho-Biotic II Recliner
Series	FR597
Wood-Cap Arm Model	FR597G
Fully Upholstered Arm Model	FR597P
Overall Height	45.5 in (115.6 cm)
Overall Width	33 in (83.8 cm)
Overall Depth, Upright	36.5 in (92.7 cm)
Depth, Fully Reclined	64 in (162.6 cm)
Depth, Trendelenburg	74 in (188 cm)
Width Between Arms	24 in (61 cm)
Seat Width	23 in (58.4 cm)
Seat Depth	20.5 in (52.1 cm)
Seat Height	21 in (53.3 cm)
Back Height Above Seat	31 in (78.4 cm)
Recliner Weight	200 lb (91 kg)
Shipping Weight	240 lb (109 kg)
Weight Capacity	350 lb (158.76 kg), evenly distributed
Caster Diameter	4 inch
Headrest Pillow	Included
Footplate	Pull-out, self-storing
Trendelenburg	Yes, caregiver activated
Made In	USA

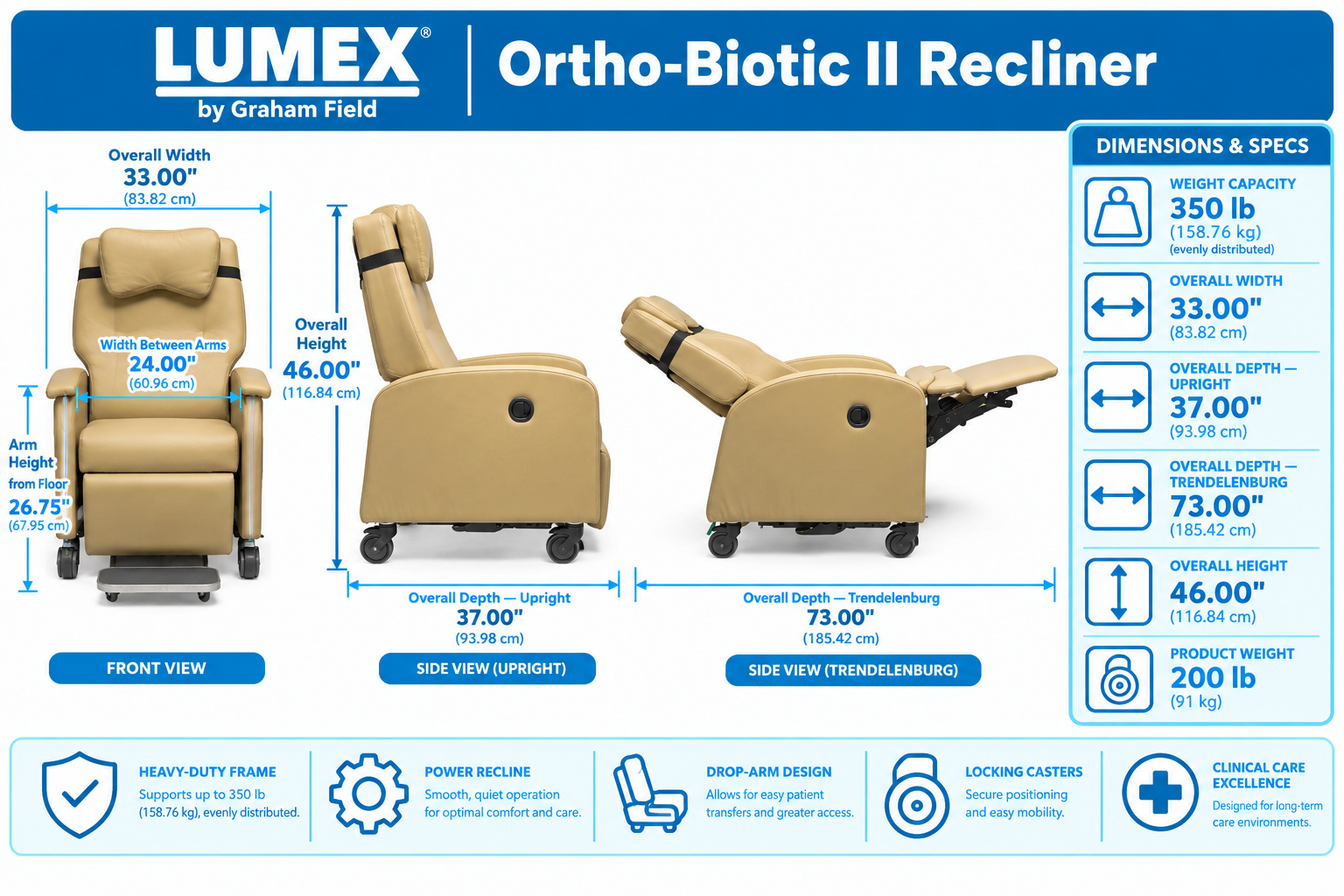

Lumex Ortho-Biotic II Recliner with Wood Cap Arm Dimensions

Graham Field Ortho-Biotic II Geri Chair Video

Lumex Extra Wide Clinical Care Recliner with Drop-Arms Downloads

Lumex Healthcare Seating Brochure Product SheetReplacement PartsAssembly and Operating ManualLumex Healthcare Seating Swatch CardLumex Universal Pillow/HeadrestLumex Swing-Away Folding Table

Lumex Ortho-Biotic II Recliner Buyer’s Guide

The Lumex Ortho-Biotic II Recliner by Graham Field is a medical-grade, multi-position clinical chair designed for dialysis, oncology, post-op recovery, and long-term care environments. Engineered to maximize both patient comfort and caregiver ergonomics, it combines viscoelastic memory foam seating, smooth infinite recline capabilities, and a dedicated Trendelenburg (shock) mechanism into a heavy-duty, Made-in-the-USA design.

Infinite Recline & Caregiver Trendelenburg Positioning

The recliner offers infinite positioning from upright (120°) to fully reclined (180°), allowing patients to customize backrest tilt and leg elevation for optimal comfort. For medical emergencies, a caregiver-activated foot pedal on the right side rapidly engages the Trendelenburg (shock) position without needing patient assistance or complex manual adjustments.

Lumex Ortho-Biotic II Recliner Weight Capacity

Constructed on a heavy-duty unitized frame, the Lumex Ortho-Biotic II supports a maximum weight capacity of 350 lbs (evenly distributed). Its wide 23-inch seat width and sturdy frame ensure safe, supportive seating for daily clinical or residential use.

Viscoelastic Memory Foam Seating & Support

Engineered with composite viscoelastic memory foam in both the seat cushion and backrest, this recliner conforms to patient contours to distribute weight evenly, relieve pressure points, and enhance comfort during extended sitting sessions.

Pull-Out Patient Footplate & Independent Legrest Control

Featuring a self-storing pull-out footplate, the chair simplifies patient entry and exit while providing safe foot support during transport. An accessible side hand lever allows independent operation of the legrest and backrest angles, giving users direct control over their leg positioning.

Adjustable Universal Headrest Pillow

Every Ortho-Biotic II comes standard with an adjustable universal headrest pillow secured by elastic hook-and-loop straps. Designed with dual neck contours (small and large), it can be customized or flipped to provide tailored cervical support for patients of varying heights.

Tente Swivel Casters & Rear Transport Push Bar

Equipped with 4-inch Tente swivel casters—three total-locking and one directional-locking—the chair offers excellent maneuverability through tight hospital corridors and home doorways. A rear padded push handle enables caregivers to transport patients smoothly and securely.

Optional Customizations & Accessories

To adapt to specific clinical requirements, the recliner can be ordered with optional accessories, including a fold-down side table, IV pole and mounting brackets, heat & massage functions, fully upholstered or wood-cap armrests, and a broad range of healthcare-grade vinyl upholstery colors.

Lumex Ortho-Biotic II Recliner Review

The Lumex Ortho-Biotic II Recliner by Graham Field is an outstanding investment for clinics, recovery centers, and home healthcare setups seeking high-durability seating. With its combination of pressure-relieving memory foam, rapid Trendelenburg activation, versatile mobility features, and 350 lb weight capacity, it delivers an optimal balance of patient comfort and clinical utility.
