Empulse R20 Power-Assist Device, by Sunrise Medical

Empulse

$2,402.00

(No reviews yet) Write a Review

SKU:: SUN-Empulse_R20
Availability:: Ships in 3-10 Business Days
Package Width:: 10.00 (in)
Package Height:: 10.00 (in)
Package Depth:: 10.00 (in)

* Choose Attach System:

* Choose Rear Seat Height:

* Choose Seat Width:

Additional Lithium Battery (5.8 AH) (Add $511.00):

Current Stock:

Quantity:

Description
Buyers Guide
Videos
Warranty/Returns
Find Similar Products By Category
Reviews

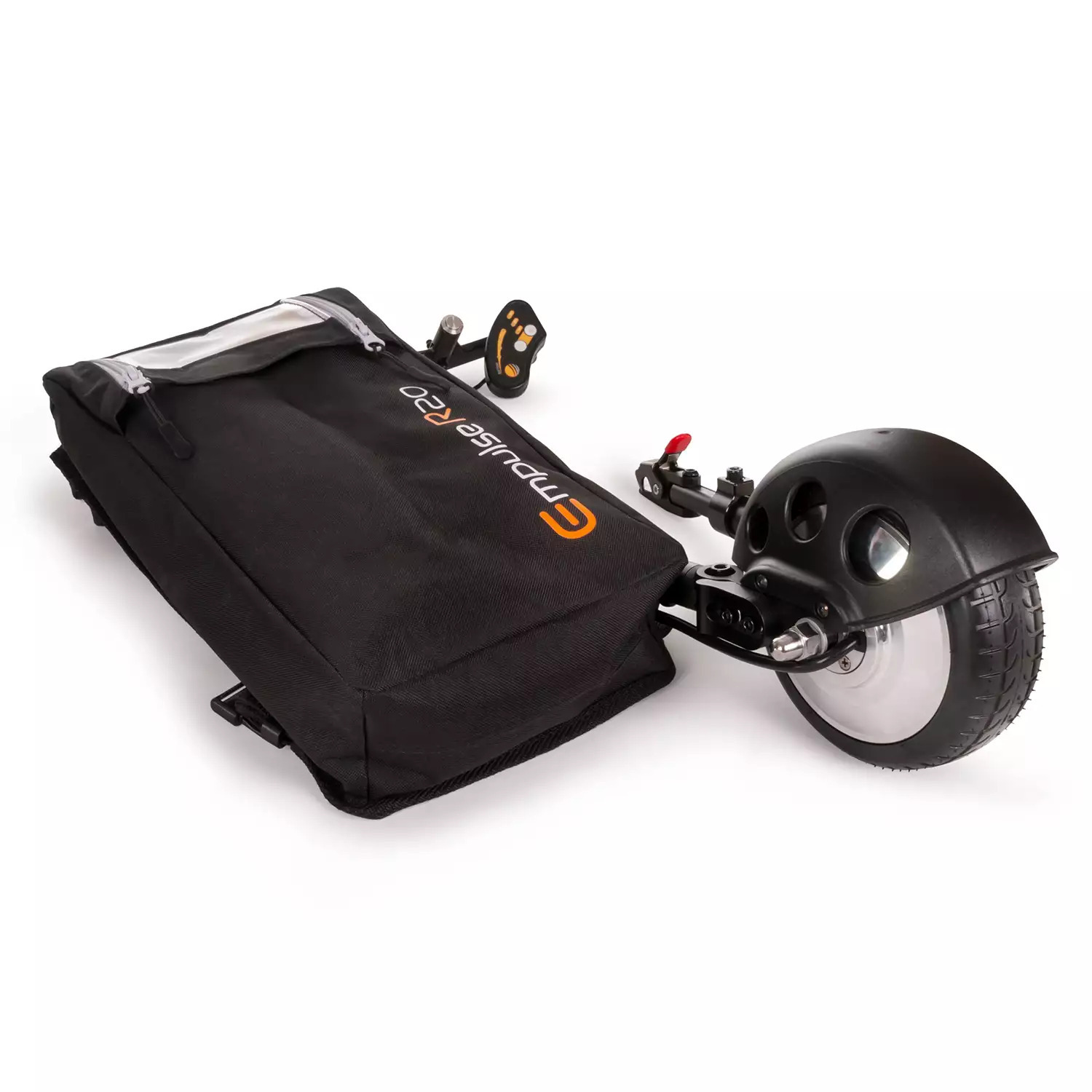

Empulse R20 Power-Assist Device

Power for the caregivers!

The only TRUE power-assist device designed to support caregivers.

The Empulse R20 is compatible with most folding & tilt-in-space manual wheelchairs.

With the new Empulse R20 power-assist device, it has never been so easy to support the attendant pushing the wheelchair. Whether uphill, downhill, or on long trips, the R20 helps in every situation while having zero detrimental impact when self-propelling. This foldable and lightweight power-assist device is easily transported, either attached or detached from the wheelchair, with its handy backpack.

Empulse R20 Features

	Easy handling Despite the R20's lightweight and compact design, there is no compromise in performance. The R20 can achieve a 9-mile range, as well as having the ability to climb 10° slopes. It caters to users up to 375 lbs. in weight (419 lbs. total including the wheelchair). The Empulse R20 design provides easy operation as well as fast docking & undocking. It can also remain on the chair when folded. The R20 power-assist device offers a free-run mode, allowing self-propelling without detaching the device, allowing the highest level of independence.

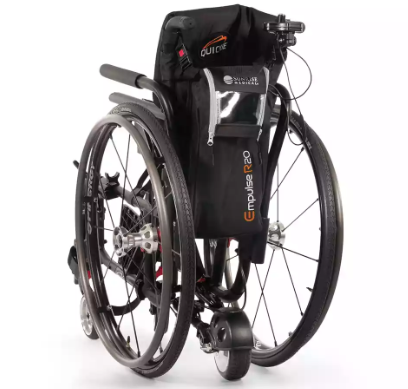

Smooth transport and folding ability The Empulse R20 is the only foldable power-assist device on the market. It's easy to transport, even when still attached to the wheelchair. The R20's folding ability and light weight allow smooth transport while attached or separate from the wheelchair. It's easy to handle and store for all situations in everyday life, including travel activities. The click-fix docking system allows easy docking without using any tools. Only the small docking pin remains on the wheelchair, minimizing added weight and parts.

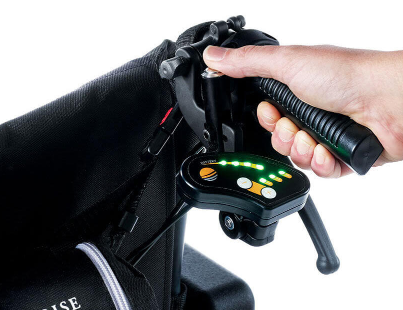

	Simple operation The Empulse R20's control unit features simple one-button on/off control for safe handling and easy operation. Speed settings are easily toggled between three speed ranges (1.2, 2.3, and 3.1 mph). The control unit's position is adjustable for optimal accessibility, visibility, and comfort. The control unit also features a quick-release for easy, safe transport without disconnecting the cable.
Climb slopes with ease Weighing less than 10 lbs., you'll be surprised how the R20 power-assist device enables you to easily ascend slopes of up to 10°. The strong 250 W motor (with a three-year warranty) and lithium-ion battery are very reliable.

Empulse R20 Specifications

Specifications
Dimensions	Seat Width	13" to 23"
Dimensions	Seat-to-Floor Height	15.5" to 20.5"
Performance/Weights	Max. Range	Up to 9 miles
	Max. Speed	3.1 mph (adjustable in three steps: 1.2 / 2.3 / 3.1 mph)
	Battery Size	5.8-6 Ah / 36 V (209-216 Wh) - Lithium-ion
	User Weight Capacity	5 lbs
	Product Weight	9.9 lbs. (including battery)

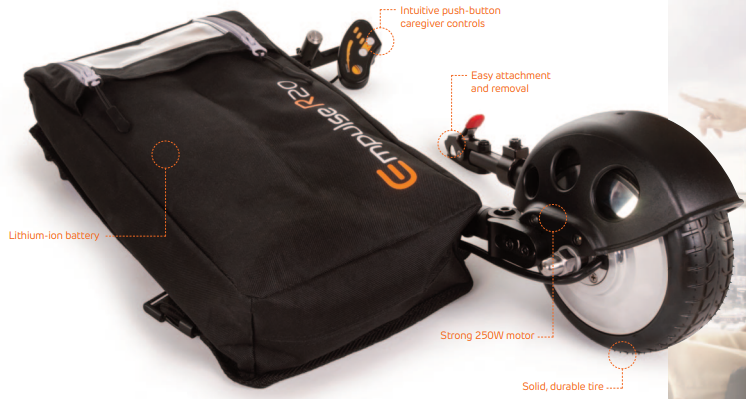

Parts of the Power Assist Device

Empluse R20 Videos

Empulse R20 Downloads

BrochureUser Manual

Order Form4 Steps to a Healthy Battery

Empulse R20 Power Assist Device, by Sunrise Medical Buyer’s Guide

The Empulse R20 Power Assist Device, by Sunrise Medical is a compact, lightweight push-assist system designed to reduce the physical effort required to push a manual wheelchair. It integrates seamlessly with most standard wheelchair frames, making it easier for caregivers to manage inclines, longer distances, or uneven terrain.

Sunrise Medical Empulse R20 Push Assistance

The Empulse R20 Wheelchair Power Assist Device is engineered to provide powered assistance when pushing a wheelchair. This support reduces physical strain on caregivers or attendants, particularly on ramps, hills, or extended outdoor routes.

Empulse R20 Wheelchair Power Assist Device Lightweight and Portable Construction

Weighing just under 10 pounds, the R20 is one of the lightest power assist systems available in its category. Its lightweight design ensures it doesn’t significantly affect the maneuverability or transportability of the wheelchair when not in use.

Folding Frame Compatibility

The Sunrise Medical wheelchair power assist is compatible with most folding wheelchairs and can remain attached even when the wheelchair is folded. This allows users and caregivers to travel or store the chair without needing to remove the device, streamlining setup and transport.

Empulse R20 Power Assist Device for Manual Wheelchair Long-Lasting Battery Performance

The lithium-ion battery provides a range of up to 9 miles on a full charge, depending on terrain and usage. The R20 power assist includes an easy-to-read battery indicator and intuitive charging system, ensuring readiness for daily use or longer excursions.

User-Friendly Controls

The Empulse R20 Wheelchair Power Assist Device system is operated using a simple handle-mounted control unit with start, stop, and speed adjustment buttons. Its intuitive layout allows caregivers to control the push assist without distraction, maintaining full attention on navigation and safety.

Smooth and Quiet Operation

The motor in the Empulse R20 Power Assist Device delivers consistent torque with low operational noise. This makes it suitable for both indoor and outdoor environments where a smooth, unobtrusive push experience is preferred.

Tool-Free Installation

Installation is fast and requires no special tools. The Empulse Wheelchair Power Assist attaches using a quick-mount system that accommodates a variety of wheelchair frame designs. The device’s compact form factor and foldability allow it to remain installed for everyday use.

Empulse R20 Power Assist Device, by Sunrise Medical Review

The Empulse R20 Power Assist Device, by Sunrise Medical is widely regarded for its lightweight build, ease of use, and caregiver support benefits. Users value its discreet integration, while caregivers report reduced fatigue and improved confidence on longer trips. It's a practical and efficient upgrade for manual wheelchair setups requiring occasional push assistance.

No Buyers info available

A. FOR TWO (2) YEARS Sunrise warrants the Quickie Xtender against defects in materials and workmanship for two (2) years. B. FOR ONE (1) YEAR Sunrise warrants the Quickie Xtender battery against defects for one year from the date of first consumer purchase. C. LIMITATIONS 1. We do not warrant damage due to: Neglect, misuse or improper installation or repair. Use of parts or changes not authorized by Sunrise Exceeding weight limit of 250 pounds. 2. This warranty applies in the USA only. Check with your supplier to find out if international warranties apply. D. WHAT WE WILL DO Our sole liability is to repair or replace covered parts. This is the exclusive remedy for consequential damages. E. WHAT YOU MUST DO 1. Return the warranty card. 2. Obtain from us, while this warranty is in effect, prior approval for return or repair of covered parts. 3. Return the wheelchair or part(s), freight pre-paid, to Sunrise Mobility Products Division at: 2842 Business Park Avenue, Fresno, CA 93727-1328 4. Pay the cost of labor to repair or install parts.
