ActiveAid SC Shower Commode Chair by Altimate Medical
The ActiveAid SC Shower Commode Chair redefines the aesthetic of traditional chairs and is self propelled!
![]() |
The frame design represents far more than looks; it results in one of the market’s most narrow, compact, and modular systems. It enables access to small bathrooms and doorways with new slim wheels and hand rims. The modular design allows the frame, wheels, and positioning options to adapt to individual needs. While being aesthitcally pleasing, the design of the frame design also has one of the most narrow, compact, and modular systems on the market. It enables the user to easily access small bathrooms and doorways with it's slim wheels and handrims. The modular design allows adaptibility to the users individual needs with the frame, wheel, and positioning options.
![]() |
Redefining The Shower Commode Chair A wide range of standard features and options creates a system that enables clients and clinicians to determine priorities and consider environmental factors, then truly tailor the configuration to meet client needs without custom modifications. The frame has two height-adjustable size options (Standard and Short), which expands the seat-to-floor range and enables tailored bathroom/shower solutions. Additional features such as independent, adjustable seat slope, fore-aft seat aperture adjustment capability, back angle adjustment, and frame adjustments like rear wheel position represent user-focused design and a level of customization akin to lightweight manual wheelchairs rather than shower commode chairs. |
ActiveAid SC Commode Bath Chair Features
|

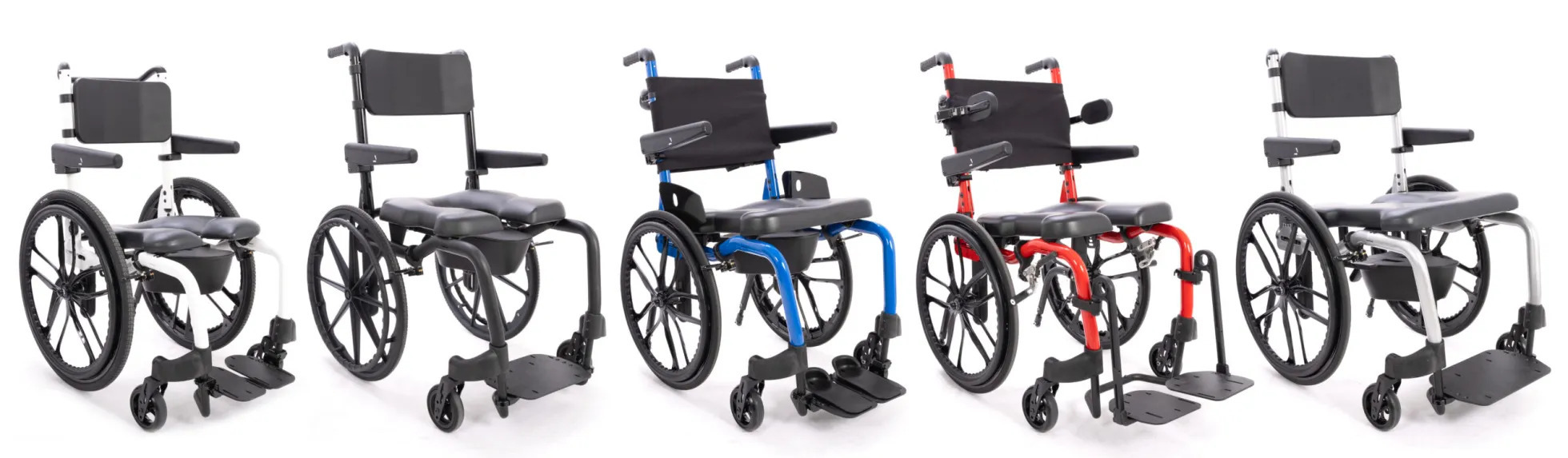

All New Frame Colors
The ActiveAid SC introduces an exciting upgrade to the standard shower/commode chair with five distinct color options. Red, White, Blue, Black, and Silver. With this new option, ActiveAid is promoting a step beyond the standard monotone color scheme of bath equipment. By incorporating a variety of color options, ActiveAid is elevating the user experience and allowing users to add a feeling of individuality and ownership as they can create the shower chair that properly matches their unique style and aesthetic. This advancement is a true testament to the dedication of ActiveAid to continually add new and innovative features and our commitment to both functionality and style.
![]() |
Five Ergonomic Seat Shape Options
The ActiveAid SC features five ergonomic and comfortable seat shape options. These versatile designs enhance perineal access, providing improved hygiene benefits.
Contoured Seats | Specialty Contoured Seats Gel Top is not available on Specialty Contoured Seats. |
![]() |
Unique Adjustability
The ActiveAid SC stands out as one of the market’s most narrow, compact, and modular shower/commode chairs. Featuring a unique array of adjustable options, it empowers you to fully customize the SC to suit your specific needs.
|
|
|
|

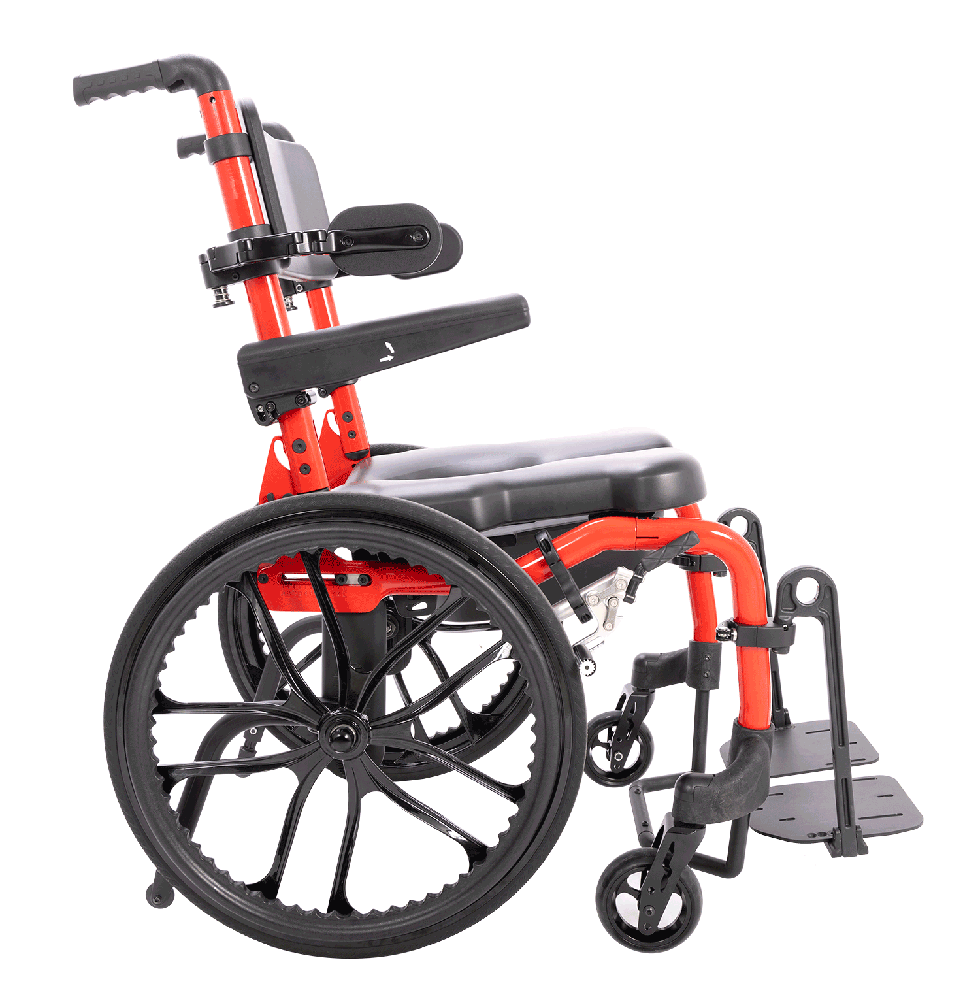

Adjustable Back |

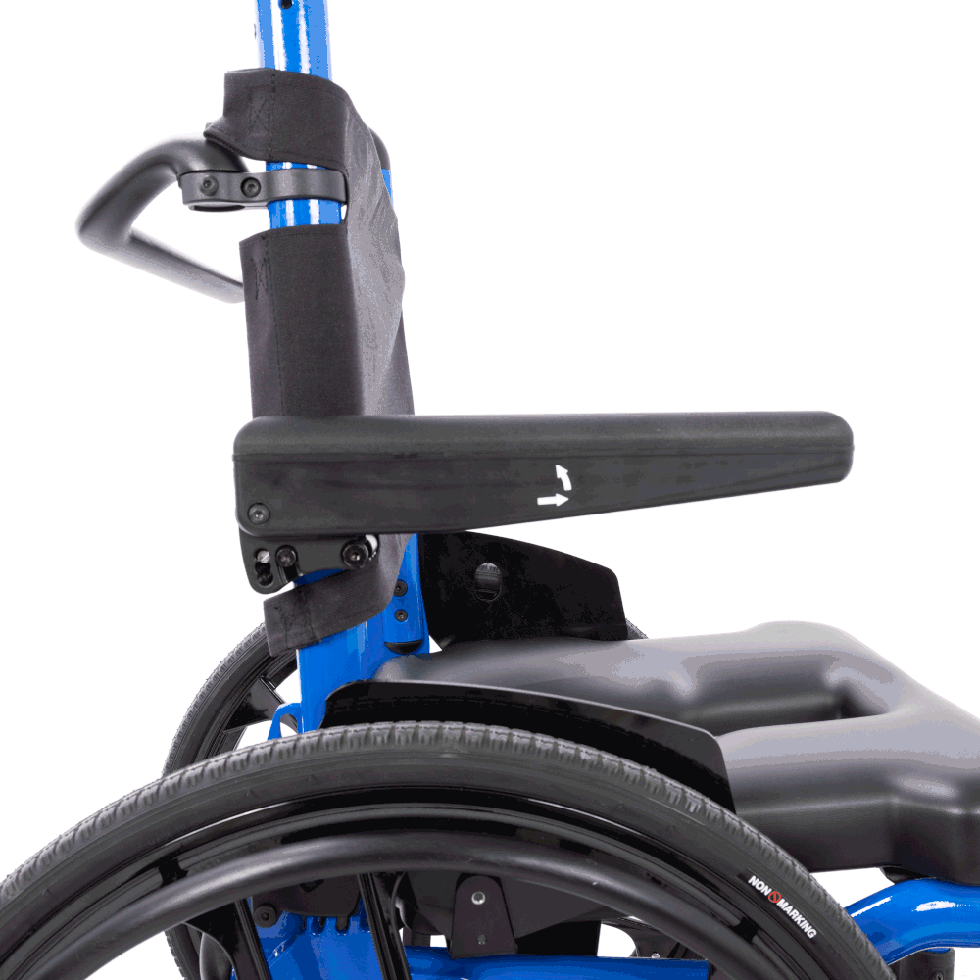

Adjustable Armrests |

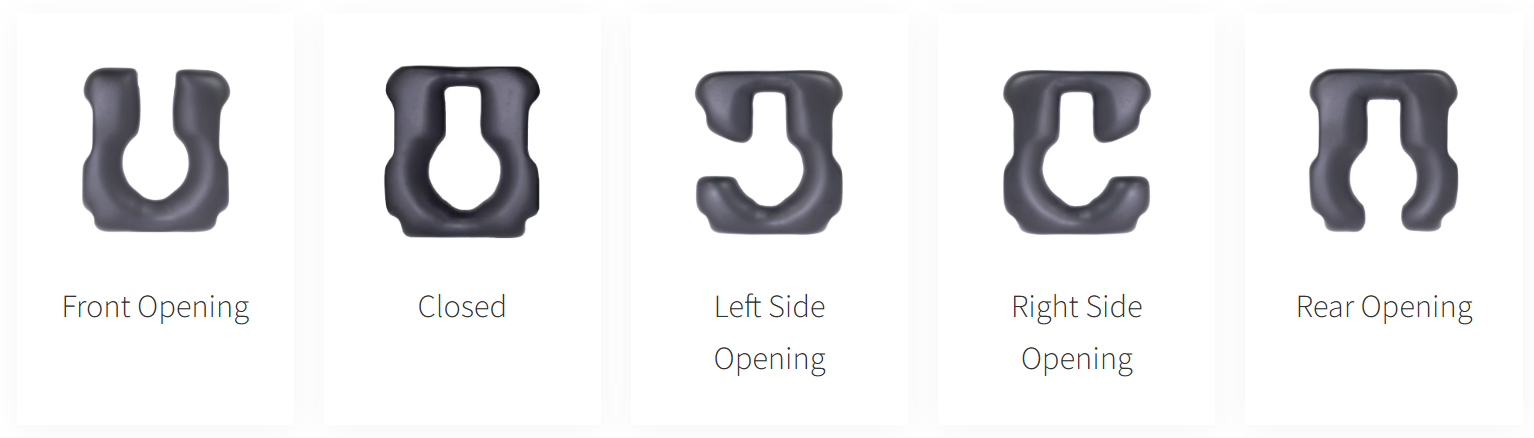

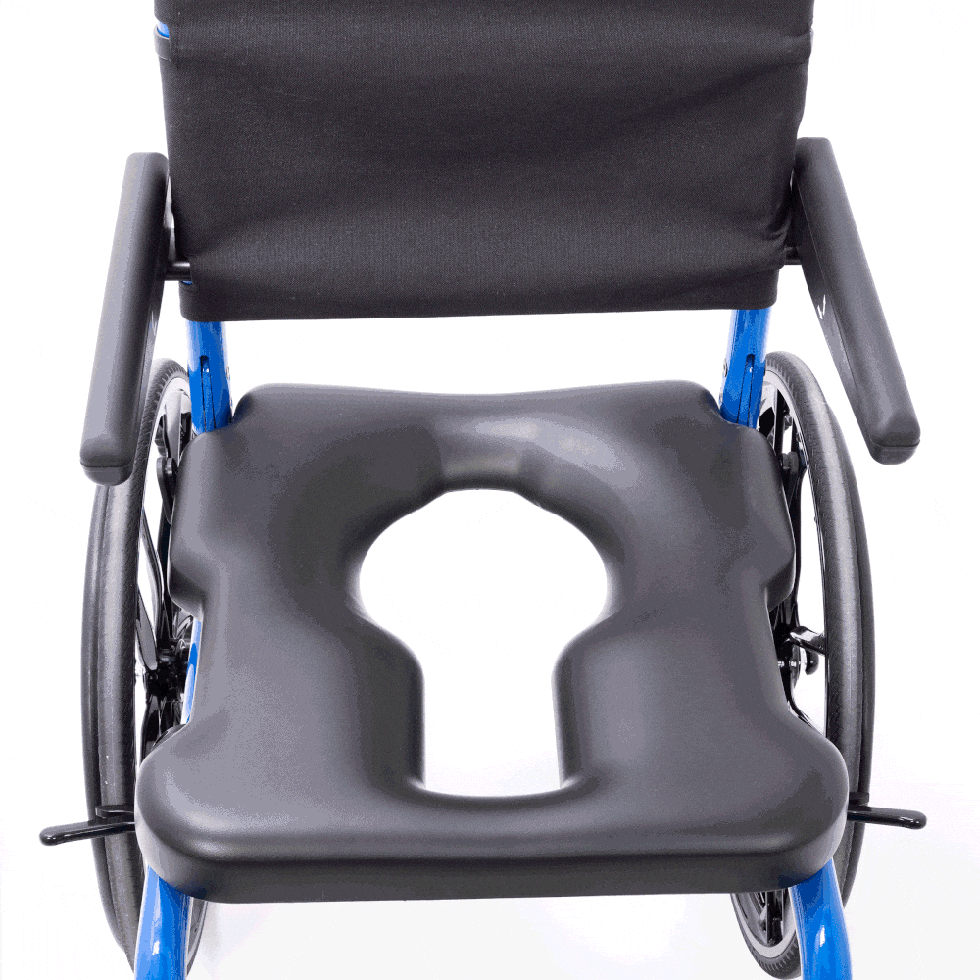

Seat Aperture |

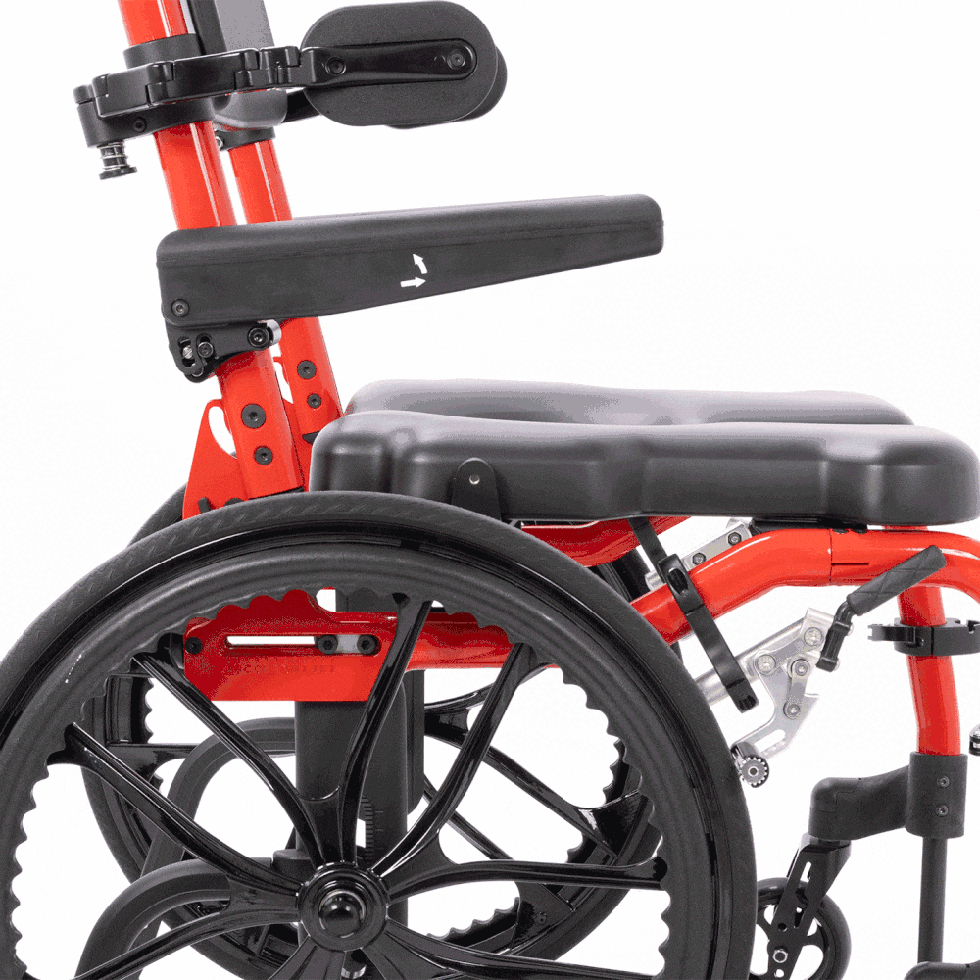

Adjustable Seat Slope |
ActiveAid SC Commode Shower Chair Specifications
Description | 16″ Wide Seat | 18″ Wide Seat | 20″ Wide Seat | |||
Imperial | Metric | Imperial | Metric | Imperial | Metric | |
Weight limit | 310 lbs. | 140.6 kg | 310 lbs. | 140.6 kg | 310 lbs. | 140.6 kg |
Weight of basic unit | 49 lbs. | 22.2 kg | 49 lbs. | 22.2 kg | 49 lbs. | 22.2 kg |
Overall width (including hand rims) | 23.5″ | 59.69 cm | 25.5″ | 64.77 cm | 27.5″ | 69.85 cm |
Width between arm rests | 16.25″ | 41.28cm | 18.25″ | 46.36 cm | 20.25″ | 51.44 cm |
Under seat width clearance at axle | 12.625″ | 32.07 cm | 14.625″ | 37.15 cm | 16.625″ | 42.23 cm |
Under seat width clearance at axle plate | 14.125″ | 35.88 cm | 16.125″ | 40.96cm | 18.125″ | 46.04 cm |
Under seat height clearance (short fronttubes/axle plates, O” dump) | 17″-18.75″ | 43.18- 47.63cm | 17″-18.75″ | 43.18-47.63 cm | 17″-18.75″ | 43.18-47.63 cm |
Under seat height clearance (long fronttubes/axle plates, O” dump) | 19″ – 20.75″ | 48.26cm-52.71 cm | 19″ –20.75″ | 48.26cm-52.71 cm | 19″ –20.75″ | 48.26 cm-52.71 cm |
Wheel diameters | 20″, 22″, 24″ | 50.8, 55.88,60.96cm | 20″, 22″,24″ | 50.8,55.88,60.96cm | 20″, 22″,24″ | 50.8,55.88,60.96 cm |
Minimum depth without footrests (20″wheels) | 27.5″ | 69.85 cm | 29.5″ | 74.93 cm | 31.5″ | 80.01 cm |
Minimum depth without footrests (22″wheels) | 28.5″ | 72.39cm | 30.5″ | 77.47 cm | 32.5″ | 82.55cm |
Minimum depth without footrests (24″wheels) | 29.5″ | 74.93 cm | 31.5″ | 80.01 cm | 33.5″ | 85.09 cm |
Maximum depth without footrests (20″wheels) | 30.25″ | 76.84cm | 32.25″ | 81.92 cm | 34.25″ | 87.00 cm |
Maximum depth without footrests (22″wheels) | 31.25″ | 79.34cm | 33.25″ | 84.46 cm | 35.25″ | 89.54cm |
Maximum depth without footrests (24″wheels) | 32.25″ | 81.92 cm | 34.25″ | 87.00cm | 36.25″ | 92.08 cm |
Maximum dimensions | 23.5″ X 32.25″ X42″ | 59.69 X 81.92 X106.68 cm | 25.5″ X34.25″ X42″ | 64.77 X87.00 X106.68 cm | 27.5″ X36.25″ X42″ | 69.85 X92.08 X106.68 cm |
Footplate dimensions (single piecefixed/adjustable) | 9.5″ X 8.438″ | 24.13 X 21.43cm | 11.5″ X8.438″ | 29.21 X21.43 cm | 13.s”x8.438″ | 34.29 X21.43 cm |
Footplate dimensions (gooseneck) | 5.875″ X 8.438″6.875″ X 8.438″7.875″ X 8.438″ | 14.92 X 21.43cm17.46 X 21.43cm20.00 X 21.43cm | 5.875″ X8.438″6.875″ X8.438″7.875″ X8.438″ | 14.92 X21.43 cm17.46 X21.43 cm20.00 X21.43 cm | 5.875″ X8.438″6.875″ X8.438″7.875″ X8.438″ | 14.92 X21.43 cm17.46 X21.43 cm20.00 X21.43 cm |
Footplate dimensions (flip-up) | 4.25″ X 8.438″5.25″ X 8.438″6.25″ X 8.438″ | 10.80 X 21.43cm13.34 X 21.43cm15.88 X 21.43cm | 4.25″ X8.438″5.25″ X8.438″6.25″ X8.438″ | 10.80 X21.43 cm13.34 X21.43 cm15.88 X21.43 cm | 4.25″ X8.438″5.25″ X8.438″6.25″ X8.438″ | 10.80 X21.43 cm13.34 X21.43 cm15.88 X21.43cm |
Lateral support pad size | 5″ X 3″ X 1″ | 12.70 X 7.62 X2.54 cm | 5″ X 3″ X 1″ | 12.70 X7.62 X 2.54cm | 5″ X 3″ X 1″ | 12.70 X7.62 X 2.54cm |
Lateral support adjustment range | O” -16″ | 0-40.64cm | O” -16″ | 0-40.64cm | O” – 16″ | 0-40.64cm |
Seat height range from floor to top of seat | 20″ – 23.75″ | 50.8 – 60.33 cm | 20″-23.75″ | 50.8-60.33 cm | 20″ –23.75″ | 50.8-60.33 cm |
Maximum seat dump | 1.5″ | 3.81 cm | 1.5” | 3.81 cm | 1.5″ | 3.81 cm |
Seat fore/aft adjustment | 2″ | 5.08 cm | 2″ | 5.08 cm | 2″ | 5.08 cm |
Axle fore/aft adjustment | 2.75″ | 6.99 cm | 2.75″ | 6.99 cm | 2.75″ | 6.99 cm |
Back of unit to start of the commodeopening (20″ wheels, seat all the way back) | 12.75″ | 32.39 cm | 12.75″ | 32.39 cm | 12.75″ | 32.39 cm |
Back of unit to start of the commodeopening (22″ wheels, seat all the way back) | 13.75″ | 34.93 cm | 13.75″ | 34.93 cm | 13.75″ | 34.93 cm |
Back of unit to start of the commodeopening (24″ wheels, seat all the way back) | 14.75″ | 37.47 cm | 14.75″ | 37.47 cm | 14.75″ | 37.47 cm |
Turning diameter | 22″ | 55.88 cm | 23.5″ | 59.69 cm | 25″ | 63.5 cm |
Armrest height from top of seat | 5.5″ -12″ | 13.97 – 30.48cm | 5.5″ – 12″ | 13.97-30.48 cm | 5.5″ – 12″ | 13.97-30.48 cm |
Leg rest range (single piecefixed/adjustable, short front tubes) | 15.75″ -17.75″ | 40.00 – 45.09cm | 15.75″ –17.75″ | 40.00-45.09cm | 15.75″ –17.75″ | 40.00-45.09 cm |
Leg rest range (single piecefixed/adjustable, long front tubes) | 17.75″ -19.75″ | 45.09-50.17cm | 17.75″ –19.75″ | 45.09-50.17 cm | 17.75″ –19.75″ | 45.09-50.17 cm |
Leg rest range (gooseneck, short fronttubes) | 15″ – 23″ | 38.10- 58.42cm | 15″ – 23″ | 38.10-58.42 cm | 15″ – 23″ | 38.10-58.42 cm |
Leg rest range (gooseneck, long front tubes) | 15″ – 25″ | 38.10- 63.50cm | 15″ -25″ | 38.10-63.50 cm | 15″ – 25″ | 38.10-63.50 cm |
Leg rest range (flip-up, short front tubes) | 15.5″ -17.5″ | 39.37 – 44.45cm | 15.5″ –17.5″ | 39.37-44.45 cm | 15.5″ –17.5″ | 39.37-44.45 cm |
Leg rest range (flip-up, long front tubes) | 17.5″ -19.5″ | 44.45 – 49.53cm | 17.5″ –19.5″ | 44.45 –49.53 cm | 17.5″ –19.5″ | 44.45-49.53 cm |
Back height from top of seat (O” dump) | 7.75″ -16″ | 19.69- 40.64cm | 7.75″ -16″ | 19.69-40.64cm | 7.75″ -16″ | 19.69-40.64 cm |
Gap between top of seat and bottom ofback (O” dump) | O” -8.25″ | 0-20.96 cm | O” -8.25″ | 0-20.96cm | O” -8.25″ | 0-20.96cm |
Back angles with angle-adjustable back | 0°, 7°, 14° | 0°, 7°, 14° | 0°, 7°, 14° | 0°, 7°, 140 | 0°, 7°, 14° | 0°, 7°, 14° |
Back angle with fixed back | 7° | 7° | 7° | 7° | 7° | 7° |
Under seat height clearance (short front tubes/axle plates, without commode pan,O” dump) | 17″-18.75″ | 43.18- 47.63cm | 17″-18.75″ | 43.18-47.63 cm | 17″-18.75″ | 43.18-47.63 cm |
Under seat height clearance (long front tubes/axle plates, without commode pan, O” dump) | 19″ – 20.75″ | 48.26-52.71cm | 19″ –20.75″ | 48.26-52.71 cm | 19″ –20.75″ | 48.26-52.71 cm |
Under seat height clearance (short fronttubes, 011 dumo, flush mount) | 10.25″ -14″ | 26.04- 35.56cm | 10.25″ –14″ | 26.04-35.56 cm | 10.25″ –14″ | 26.04-35.56 cm |
Under seat height clearance (long fronttubes, O” dump, flush mount) | 12.25″ -16″ | 31.12 – 40.64cm | 12.25″ –16″ | 31.12-40.64cm | 12.25″ –16″ | 31.12-40.64 cm |
ActiveAid SC Shower Commode Chair Downloads
SC BrochureSC User ManualSC Order Form
ActiveAid SC Shower Commode Chair, by Altimate Medical Buyer’s Guide
The ActiveAid SC Shower Commode Chair, by Altimate Medical is a self-propelled, modular shower and commode wheelchair designed for compact accessibility and user-focused customization. With its narrow frame and adjustable options, the SC Chair provides enhanced maneuverability in small bathrooms and shower environments. Its lightweight construction and robust options allow both independent and assisted users to maintain hygiene with greater comfort and confidence.
Altimate Medical Shower Commode Chair Compact Design
The ActiveAid SC chair features one of the narrowest frame footprints in its class, enabling access through tight bathroom spaces and doorways. The narrow design minimizes obstruction while still providing full seating support. Users often find it easier to navigate small stalls and showers.
Self‑Propelled Mobility
Unlike standard commode chairs, the ActiveAid shower chair includes slim wheels and hand rims, making it possible for users to move independently without caregiver assistance. This makes it a versatile solution for users who want mobility within washroom environments.
ActiveAid Shower and Commode Chair Adaptive Seat Positioning
The ActiveAid SC can easily be adjusted to meet the needs of each user. The seat-to-floor height, seat slope, and rear wheel position are all adjustable using tool-free mechanisms. Adjustments allow customization to match individual trunk control, positioning needs, and bathroom layouts.
ActiveAid SC Modular Configuration
The ActiveAid SC model’s modular design separates frame, seat, and wheels for easy reconfiguration or replacement. Clinicians and users can choose from multiple frame colors, seat styles, and accessories to match personal or facility preferences. The modular system adapts to changing needs over time.
Ergonomic Seating Options
The Altimate Medical shower commode chair offers ergonomic seats in contoured, gel-topped, and specialty opening configurations tailored to different user needs. Options include front, rear, side, or closed seating apertures optimized for hygiene access. Seat selections also support pressure relief and comfort.
Excellent Turning Radius
Thanks to its compact frame and key placement of rear wheels, the SC Chair has an improved turning radius. This makes it easier to navigate inside bathrooms or washroom enclosures. Its geometry enhances mobility in tight environments.
Altimate Medical Shower Chair Lightweight Yet Sturdy Frame
Despite robust features, the ActiveAid shower chair remains lightweight compared to traditional shower commode models. Users can transfer or store the chair with minimal effort. Its sturdy frame maintains strength and stability over time.
Water-Resistant Materials
The ActiveAid SC uses powder-coated stainless steel and waterproof seating materials that tolerate constant exposure to moisture. These components resist mold, corrosion, and staining. The chair is easy to clean and disinfect between uses.
ActiveAid SC Shower Commode Chair, by Altimate Medical Review
The ActiveAid SC Shower Commode Chair, by Altimate Medical garners praise for combining slim design, adjustable comfort, and modular capability in one adaptive system. Users and therapists highlight its compact footprint and self-propulsion features.
No Buyers info available
No warranty available
