ActiveAid 285 Tilt In Space Shower Commode Chair by Altimate Medical

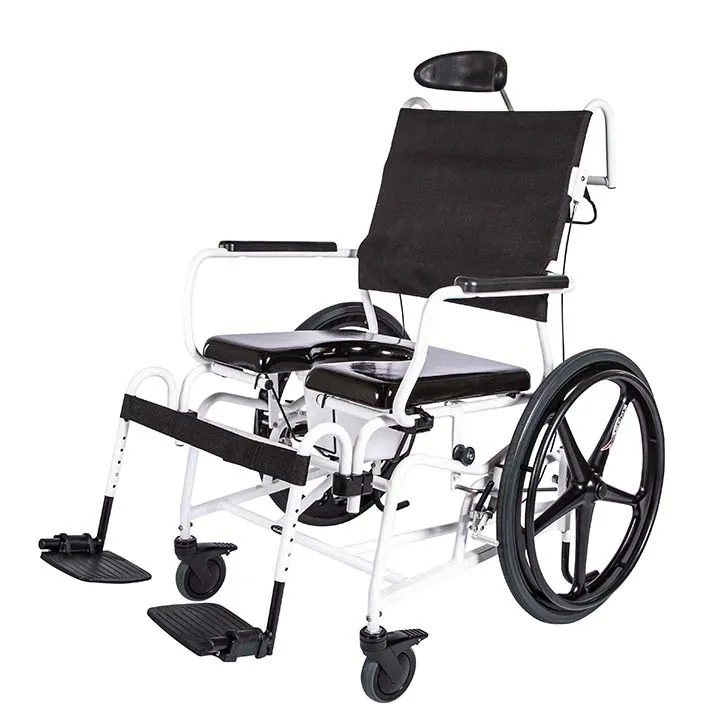

The ActiveAid 285 Tilt In Space Shower Commode Chair has a 24" rear wheels with a corrosion resistant stainless steel frame and tilts up to 30 degrees!
![]() |
The 285, Rehab Shower/Commode Chair-Tilt, is a gravity assist tilt-in-space shower/commode chair. Available in multiple frame widths from 16-22″ and the option of 4 casters or 24″ rear wheels make this is a versatile chair for the home or rehab environment. Users and caregivers find this chair low maintenance and easy to operate with the patented "Gravity Assist Tilt" mechanism. With a weight capacity up to 350lbs, this chair accommodates a wide range of users. Use this chair over the toilet or with the anti-spill bucket. This is a great choice for home or institutional use.
ActiveAid 285 Tilt In Rehab Shower Chair Features
|
![]() |
New & Notable
|
ActiveAid 285 Recline Commode Shower Chair Specifications
Seat Width | 16″ | 18″ | 20″ | 22″ |
Weight Capacity | 350 lbs | 350lbs | 350 lbs | 350 lbs |
Width between Arm Rests Flip-Up with Pad | 18.75″ | 20.75″ | 22.75″ | 24.75″ |
Width between Arm Rests -Arm Troughs | 16.75″ | 18.75″ | 20.75″ | 22.75″ |
Width between Arm Rests -Height Adjustable | 16.25″ | 18.25″ | 20.25″ | 22.25″ |
Seat Depth | 18″ | 18″ | 18″ | 18″ |
Seat Height from Floor to Top of Seat | Front to Back 24″ Wheels – 24.25″ – 22″ 5″ Rear Casters – 24.25″ – 22.75″ |
Front to Back 24″ Wheels – 24.25″ – 22″ 5″ Rear Casters – 24.25″ – 22.75″ |
Front to Back 24″ Wheels – 24.25″ – 22″ 5″ Rear Casters – 24.25″ – 22.75″ |
Front to Back 24″ Wheels – 24.25″ – 22″ 5″ Rear Casters – 24.25″ – 22.75″ |
Usable Seat Depth w/Solid Back | 16″ | 16″ | 16″ | 16″ |
Leg Rest Range – Gooseneck | 16.5″ – 20.5″ | 16.5″ – 20.5″ | 16.5″ – 20.5″ | 16.5″ – 20.5″ |
Leg Rest Range – Gooseneck w/ Padded Footplate | 15.25″ – 19.25″ | 15.25″ – 19.25″ | 15.25″ – 19.25″ | 15.25″ – 19.25″ |
Leg Rest Range – Elevating – Up | 19″ – 26″ | 19″ – 26″ | 19″ – 26″ | 19″ – 26″ |
Leg Rest Range – Elevating – Up w/ Padded Footplate | 17.75″ – 24.75″ | 17.75″ – 24.75″ | 17.75″ – 24.75″ | 17.75″ – 24.75″ |
Leg Rest Range – Elevating – Down | 18.5″ – 25.5″ | 18.5″ – 25.5″ | 18.5″ – 25.5″ | 18.5″ – 25.5″ |
Leg Rest Range – Elevating – Down w/ Padded Footplate | 17.25″ – 24.25″ | 17.25″ – 24.25″ | 17.25″ – 24.25″ | 17.25″ – 24.25″ |
Leg Rest Range – Padded Footplate | Subtract 1.25″ From Above Dimensions | Subtract 1.25″ From Above Dimensions | Subtract 1.25″ From Above Dimensions | Subtract 1.25″ From Above Dimensions |
Arm Height from Top of Seat – Flip-Up with Pad | 8″ | 8″ | 8″ | 8″ |
Arm Height from Top of Seat – Arm Troughs | 8.25″ | 8.25″ | 8.25″ | 8.25″ |
Arm Height from Top of Seat – Height Adjustable | 7.5″ – 15″ | 7.5″ – 15″ | 7.5″ – 15″ | 7.5″ – 15″ |
Back Height from Top of Seat | 22″ | 22″ | 22″ | 22″ |
Gap Between Top of Seat and Bottom of Back | 4″ | 4″ | 4″ | 4″ |
Maximum Back Slack | 4″ | 4″ | 4″ | 4″ |
Seat to Back Angle | 14° | 14° | 14° | 14° |
Tilt Range | 5° – 29° | 5° – 29° | 5° – 29° | 5° – 29° |
Head Support Height Range – Top of Seat to Bottom of Cervical Support | 20.5 – 28.5 | 20.5 – 28.5 | 20.5 – 28.5 | 20.5 – 28.5 |
Under Seat Height Clearance | 19″ | 19″ | 19″ | 19″ |
Under Seat Width Clearance | 16.75″ | 18.75″ | 20.75″ | 22.75″ |
Overall Width with 24″ Wheels | 27″ | 29″ | 31″ | 33″ |
Overall Width with 5″ Rear Casters & Std. Arms | 23.5″ | 25.5″ | 27.5″ | 29.5″ |
Overall Width with 5″ Rear Casters & Height Adj. Arms | 23″ | 25″ | 27″ | 29″ |
Overall Width with 5″ Rear Casters & Arm Troughs | 27″ | 29″ | 31″ | 33″ |
Overall Length – Min with 5″ Rear Casters | 47.25″ | 47.25″ | 47.25″ | 47.25″ |
Overall Length – Min with 24″ Rear Wheels | 47.75″ | 47.75″ | 47.75″ | 47.75″ |
Overall Length – Max Tilted with Headrest & Legrest Ext. | 60″ | 60″ | 60″ | 60″ |
Back of Unit to Start of Commode Opening | 19″ | 19″ | 19″ | 19″ |
Turning Radius – Min with 5″ Rear Casters | 25″ | 25″ | 25″ | 25″ |
Seat Used to Generate Specifications | #60905 22″ x 18″ x 2″ Thick |
ActiveAid 285 Tilting Shower Chair Downloads
ActiveAid 285 BrochureFull Product CatalogActiveAid 285 Owner's ManualFrench Canadian Owners Manual
285 Itemized Order Form285 Package Order Form
ActiveAid 285 Tilt In Space Shower Commode Chair, by Altimate Medical Buyer’s Guide
The ActiveAid 285 Tilt In Space Shower Commode Chair, by Altimate Medical is a therapeutic seating solution designed for smooth positional changes during personal hygiene care. With its tilt-in-space functionality and modular design, it supports users who need pressure relief, postural support, and effortless caregiver access. Its build combines durability and adjustability for secure use in shower or commode settings.
Tilt-In-Space Mechanism for Pressure Management
Users of the ActiveAid 285 Tilt In Space Shower Commode Chair benefit from adjustable seat angles that shift weight distribution safely. Tilting facilitates pressure relief in the pelvic and sacral areas while preserving alignment. This movement reduces the risk of skin breakdown during extended sitting.
ActiveAid 285 Tilt In Space Shower Commode Chair Sturdy Non-Slip Design
This Altimate Medical shower chair’s stainless steel frame is engineered to resist corrosion from water, cleaning agents, and humidity. It supports up to 350 lbs and remains stable during tilting and transfers. All materials are selected to endure moist settings without compromising safety or integrity.
Functional Configuration
As part of its modular design, the ActiveAid 285 tilt in space chair can function as a shower chair, commode chair, or bedside tilting seat. Users and caregivers can reconfigure it quickly without tools. This flexibility makes it highly adaptable for differing hygiene needs.
Altimate Medical Tilt In Space Shower Commode Chair Ergonomically Features
Flip-up armrests and a swivel seat facilitate lateral movement, increasing safety during transfers from wheelchairs or beds. Caregivers and users can avoid awkward positions when moving on or off the ActiveAid chair. These features support safer transitions.
Adjustable Height and Tilt Range
The Altimate Medical shower commode chair has snap-button legs allowing height customization to align with different transfer surfaces such as toilets or shower benches. The tilt angle can be modified to meet individual user needs. Adjustable alignment supports precise, comfortable positioning.
ActiveAid 285 Tilt In Space Chair Design for Safety
The ActiveAid 285 Tilt In Space Shower Commode Chair incorporates seatbelts and safety straps to secure the user while tilting. Non-slip casters lock securely to prevent chair movement during operations. Safety elements promote caregiver and user confidence.
Easy Cleaning and Hygiene Maintenance
Without requiring a tool, the tilt in space shower commode chair can be removed and reassembled easily for cleaning. The seat materials resist moisture and dry quickly after use. This ensures the chair can be kept sanitary with minimal effort.
ActiveAid 285 Tilt In Space Shower Commode Chair, by Altimate Medical Review
The ActiveAid 285 Tilt In Space Shower Commode Chair by Altimate Medical is widely valued for its tilt-in-space support, pressure-management seating, and design flexibility. Users and caregivers frequently commend its stability, comfort, and ease of use. It remains a trusted option for those requiring repositionable hygiene seating.
