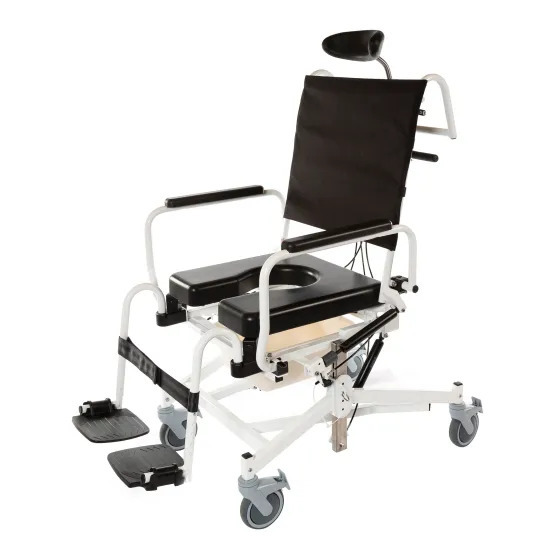

ActiveAid 285TR Tilt In Space Shower Commode Chair by Altimate Medical
The ActiveAid 285TR Tilt In Space Shower Commode Chair has a corrosion resistant stainless steel frame and tilts up to 30 degrees!
 |
The 285TR offers multiple features to provide support, comfort, and pressure relief along with the other benefits of tilt-in-space technology. The chair height adjustment allows for over toilet use or can be used with a commode pan, making this chair a versatile answer for home or institutional use. Users and caregivers find this chair low maintenance and easy to operate with the patented "Gravity Assist Tilt" mechanism. With a weight capacity up to 350lbs, this chair accommodates a wide range of users. Use this chair over the toilet or with the anti-spill bucket. This is a great choice for home or institutional use.
ActiveAid 285TR Tilt In Rehab Shower Chair Features
|
 |
New & Notable
|
ActiveAid 285TR Recline Commode Shower Chair Specifications
| Seat Width | 16″ | 18″ | 18″ | 20″ | 20″ | 22″ | 22″ |
| Weight Capacity | 350lbs. | 350lbs. | 350lbs. | 350lbs. | 350lbs. | 350lbs. | 350lbs. |
| Width between Arm Rests Flip-Up with Pad | 22″ | 22″ | 22″ | 22″ | 22″ | 22″ | 22″ |
| Width between Arm Rests – Arm Troughs | 20″ | 20″ | 20″ | 20″ | 20″ | 20″ | 20″ |
| Width between Arm Rests – Height Adjustable | 21.5″ | 21.5″ | 21.5″ | 21.5″ | 21.5″ | 21.5″ | 21.5″ |
| Seat Depth | 18″ | 18″ | 20″ | 18″ | 20″ | 18″ | 20″ |
| Seat Height From Floor to Top of Seat | 22″ – 25″ | 22″ – 25″ | 22″ – 25″ | 22″ – 25″ | 22″ – 25″ | 22″ – 25″ | 22″ – 25″ |
| Usable Seat Depth w/Solid Back | 16″ | 16″ | 18″ | 16″ | 18″ | 16″ | 18″ |
| Leg Rest Range – Gooseneck | 16″ – 20″ | 16″ – 20″ | 16″ – 20″ | 16″ – 20″ | 16″ – 20″ | 16″ – 20″ | 16″ – 20″ |
| Leg Rest Range – Gooseneck w/ Padded Footplate | 14.75″ – 18.75″ | 14.75″ – 18.75″ | 14.75″ – 18.75″ | 14.75″ – 18.75″ | 14.75″ – 18.75″ | 14.75″ – 18.75″ | 14.75″ – 18.75″ |
| Leg Rest Range – Elevating (Up) | 16.5″ – 23.5″ | 16.5″ – 23.5″ | 16.5″ – 23.5″ | 16.5″ – 23.5″ | 16.5″ – 23.5″ | 16.5″ – 23.5″ | 16.5″ – 23.5″ |
| Leg Rest Range – Elevating (Up) w/ Padded Footplate | 15.25″ – 22.25″ | 15.25″ – 22.25″ | 15.25″ – 22.25″ | 15.25″ – 22.25″ | 15.25″ – 22.25″ | 15.25″ – 22.25″ | 15.25″ – 22.25″ |
| Leg Rest Range – Elevating (Down) | 15.5″ – 22.5″ | 15.5″ – 22.5″ | 15.5″ – 22.5″ | 15.5″ – 22.5″ | 15.5″ – 22.5″ | 15.5″ – 22.5″ | 15.5″ – 22.5″ |
| Leg Rest Range – Elevating (Down) w/ Padded Footplate | 14.25″ – 21.25″ | 14.25″ – 21.25″ | 14.25″ – 21.25″ | 14.25″ – 21.25″ | 14.25″ – 21.25″ | 14.25″ – 21.25″ | 14.25″ – 21.25″ |
| Arm Height from Top of Seat – Flip Up w/Pad | 8″ | 8″ | 8″ | 8″ | 8″ | 8″ | 8″ |
| Arm Height from Top of Seat – Arm Troughs | 8.25″ | 8.25″ | 8.25″ | 8.25″ | 8.25″ | 8.25″ | 8.25″ |
| Arm Height from Top of Seat – Height Adjustable | 4″ – 14″ | 4″ – 14″ | 4″ – 14″ | 4″ – 14″ | 4″ – 14″ | 4″ – 14″ | 4″ – 14″ |
| Back Height from Top of Seat | 22″ | 22″ | 22″ | 22″ | 22″ | 22″ | 22″ |
| Gap Between Top of Seat and Bottom of Back | 4″ | 4″ | 4″ | 4″ | 4″ | 4″ | 4″ |
| Maximum Back Slack | 3″ | 3″ | 3″ | 3″ | 3″ | 3″ | 3″ |
| Seat to Back Angle | 0° – 40° | 0° – 40° | 0° – 40° | 0° – 40° | 0° – 40° | 0° – 40° | 0° – 40° |
| Tilt Range | 0° – 26° | 0° – 26° | 0° – 26° | 0° – 26° | 0° – 26° | 0° – 26° | 0° – 26° |
| Head Support Height Range – Top of Seat to Bottom of Cervical Support | 22.5″ – 30.5″ | 22.5″ – 30.5″ | 22.5″ – 30.5″ | 22.5″ – 30.5″ | 22.5″ – 30.5″ | 22.5″ – 30.5″ | 22.5″ – 30.5″ |
| Under Seat Height Clearance | 17.75″ | 17.75″ | 17.75″ | 17.75″ | 17.75″ | 17.75″ | 17.75″ |
| Under Seat Width Clearance | 14″ | 16″ | 16″ | 18″ | 18″ | 20″ | 20″ |
| Overall Min Width w/Adj. Height Armrests | 24″ | 26″ | 26″ | 28″ | 28″ | 30″ | 30″ |
| Overall Max Width w/Arm Troughs | 29″ | 31″ | 31″ | 33″ | 33″ | 35″ | 35″ |
| Overall Min Length | 42″ | 42″ | 42″ | 42″ | 42″ | 42″ | 42″ |
| Overall Max Length | 66″ | 66″ | 66″ | 66″ | 66″ | 66″ | 66″ |
| Back of Unit to Start of Commode Opening | 15″ | 15″ | 15″ | 15″ | 15″ | 15″ | 15″ |
| Turning Radius | 26.5″ | 26.5″ | 26.5″ | 26.5″ | 26.5″ | 26.5″ | 26.5″ |
| Seat Used to Generate Specifications | #60993 | 18″ x 18″ x 2.5″ Thick |
ActiveAid 285TR Tilting Shower Chair Downloads
ActiveAid 285TR BrochureFull Product CatalogActiveAid 285TR Owner's ManualActiveAid 285TR French Canadian Owners Manual
285TR Itemized Order Form285TR Package Order Form
ActiveAid 285TR Tilt In Space Shower Commode Chair, by Altimate Medical Buyer’s Guide
The ActiveAid 285TR Tilt In Space Shower Commode Chair by Altimate Medical is a tilt-in-space hygiene system designed to provide safe transfers and positioning during bathing and toileting. With its adjustable tilt feature, durable construction, and versatile configuration, it meets the care needs of users with pressure or positioning requirements.

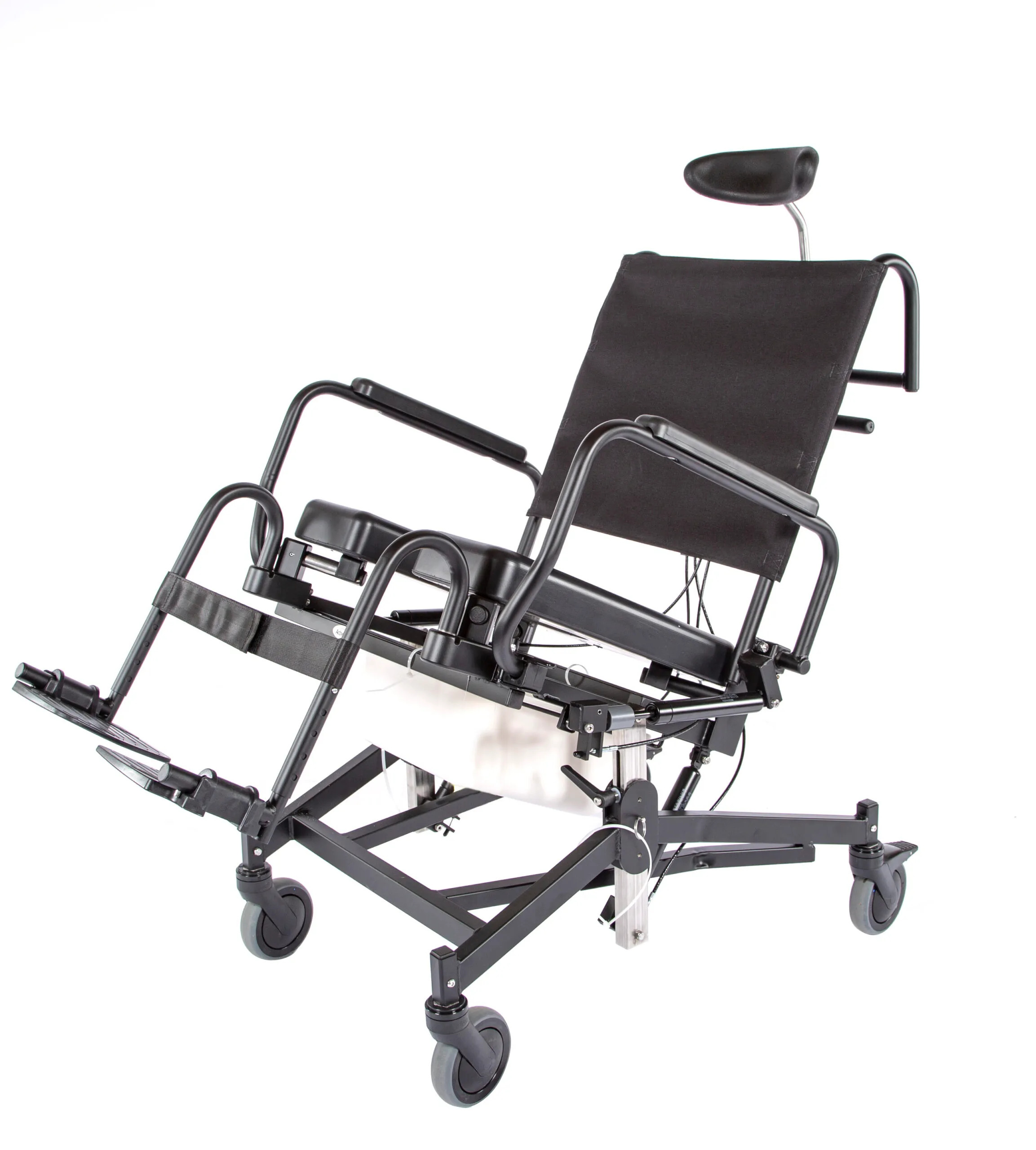

Tilt-in-Space Shower Commode Chair Pressure Relief
The ActiveAid 285TR shower chair allows caregivers to gently adjust the seat angle to distribute pressure away from sacral regions. This tilt functionality helps users manage comfort and skin health during extended sitting periods. It’s especially useful for those prone to pressure injuries or needing frequent repositioning.
Enhanced Stability
Built from stainless steel or powder-coated steel, the ActiveAid 285TR chair offers rock-solid durability in wet environments. It resists corrosion and can support users up to 350 lbs. The wide base and stable frame layout ensure safety during both tilt operation and lateral transfers.
ActiveAid 285TR Tilt In Space Shower Commode Chair Multi‑Purpose Seating
The Altimate Medical shower and commode chair functions seamlessly as a shower chair, raised commode chair, or transfer bench. Its seat design includes a commode opening and optional padded inserts for comfort. Quick-release components enable configuration changes without tools, supporting adaptive therapy needs.
Adjustable Features
The ActiveAid 285TR chair’s height can be easily adjusted using snap-button legs to accommodate various floor heights and installation depths. The tilt-range can be changed to suit individual positioning requirements. Swivel and height-adjustable armrests aid transfers while supporting safe positioning.
Altimate Medical Tilt In Space Shower Chair Superior Support
The ActiveAid commode chair’s seat includes contoured foam or gel cushions with a waterfall front edge to reduce pressure. Combined with tilt adjustments, this helps users remain seated without discomfort. Cushions are removable for washing, enhancing hygiene maintenance.
Easy Access Flip‑Back Armrests
Both armrests on the ActiveAid 285TR pivot upward to facilitate lateral transfers from wheelchairs or tubs. This feature helps caregivers slide users safely onto and off the chair. It also aids independent users in managing their own transfers.
Designed for Wet Environments
All components on the ActiveAid 285TR chair are sealed or made from water-resistant materials, making them easy to rinse or wipe clean. Drainage openings and quick-dry surfaces help maintain hygiene and minimize slip risk. The tilt mechanism is engineered to operate reliably in wet and humid settings.
Safety Features
The 285TR Tilt In Space Shower Commode Chair includes non-slip rubber casters with locking brakes to secure the chair during tilt or transfer. Foot-operated brake levers make locking easy for caregivers. This setup promotes both safety and positional stability.
ActiveAid 285TR Tilt In Space Shower Commode Chair, by Altimate Medical Review
The ActiveAid 285TR Tilt In Space Shower Commode Chair by Altimate Medical is praised for its tilt-in-space safety, reliable structure, and adaptive seating design. Caregivers and users value its versatility and pressure management support. It remains a trusted solution for positioning comfort in hygiene care.
