SmartDrive MX2+ with PushTrackerWelcome to the SmartDrive MX2+ by Max Mobility, the most innovative power assist on the market! The SmartDrive MX2+ is incredibly light and portable, yet strong and robust. Even though the MX2+ is small, it is powerful enough to help you navigate your wheelchair over almost any obstacle and terrain. It also has the strength to easily power you up steep hills and ramps.
The SmartDrive MX2+ is Max Mobility's latest generation of the SmartDrive power assist. If you loved the SmartDrive MX1+, then you will love the MX2+. Many of the features of the MX1+ have been fine tuned to make the MX2+ better than ever. The SmartDrive MX2+ is now a convenient single design with built-in rechargeable battery pack.
What sets the SmartDrive MX2+ miles ahead of its competition is the intuitive controls. Operated with a sleek motion sensing wristband that communicates with the drive motor through Bluetooth technology, the MX2+ knows when you want to go and when you want to stop. You turn on the wristband by pressing the center button, which in turn activates the drive motor. From there, the MX2+ uses your natural motion to kick the drive motor into gear. You simply push to go, and the motion of pushing is sensed by the wristband and communicated to the drive motor. When you want to stop, just tap your hands on the rim of your wheels, and proceed to brake as normal. This will tell the motor to disengage. If you don't want the MX2+ to turn on, simply turn off the wrist control and the motor is deactivated; so you can safely go off curbs, down ramps, or navigate in tight spaces.
One of the best parts about the SmartDrive MX2+ is how it can save your shoulders and joints from overuse. The SmartDrive uses your natural push to go, all the while making each push go farther, so you don't need to work as hard to get to where you want to go. Once you own a SmartDrive, you will never want to leave the house without it... and you won't have to because it is sealed and water resistant. Use it in the rain and drive straight through puddles if you want!
What are you waiting for? Try the SmartDrive MX2+ today!
Quick Installation and RemovalEasy installation and removal gives you the freedom to take the SmartDrive MX2+ anywhere.
Rechargeable BatteryThe MX2+ includes a next generation lithium ion battery that lasts at least a day on a single charge. The battery has no "memory," so you can charge it every night without consequence.

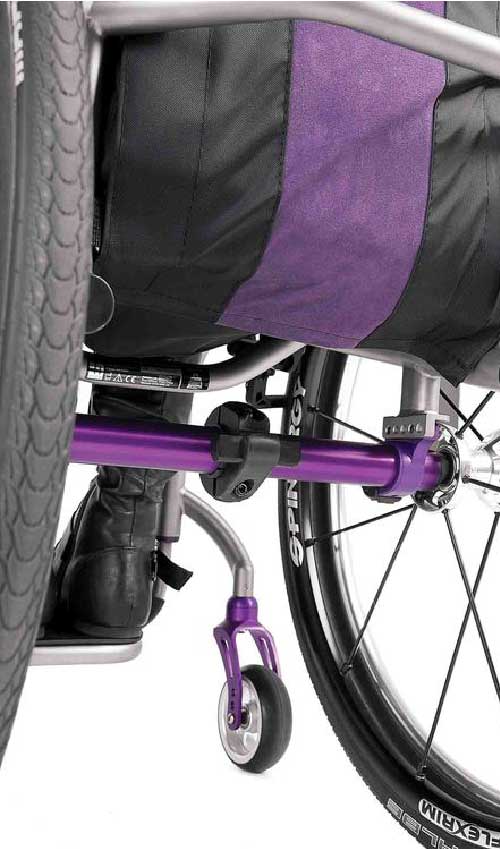

Easy MountingMounts to both ridged and folding wheelchairs.
Bluetooth Enabled iPhone App : Click Here
With the PushTracker Smartphone App, wirelessly sync & send your daily data via Bluetooth® from your PushTracker wristband for an in-depth look.
Within the App you can easily:
SpeedGive it an easy push to go slow or give it a few quick pushes and the SmartDrive will increase speed to a maximum of 5.5 mph. This gives you the freedom to roll slowly next to someone who's walking, or roll faster with someone who's jogging.
Range of MotionThe Segmented wheel in the back allows 360 degrees movement of your wheelchair. The SmartDrive MX2+ also has an anti-roll back feature that allows you to stop on a hill or slope and then easily get going again.
NEW SmartDrive MX2+
PushTracker wristband makes the already award-winning wheelchair power assist even better—it will truly change your life. It can power you up steep hills and through thick carpet. It's intuitive to use and will go for miles on a single charge. Turn on and get out there!
The SmartDrive is surprisingly powerful. You can cruise up the steepest ramps and sidewalks. Even a thick padded hotel carpet is no problem. It even has an anti-rollback feature that allows you to stop on a hill and then easily get going again.
Now with PushTracker the SmartDrive power assist can be individualized, allowing tweaks to the tap sensitivity, top speed and more. Also equipped with different selectable modes, you can easily pick the one that is best for your desired activity level and needs. But no matter what mode you chose, using the SmartDrive is intuitive and easy.
|Range:||12.3 miles (19.8 km)|
|Maximum speed (level surface):||5.5 mph (8.9 km/h) or 4 mph (6 km/h) for Speed Limit|
|Maximum speed (6o incline):||5.3 mph (8.5 km/h)|
|Maximum acceleration:||2.0 ft/s2 (0.6 m/s2)|
|Motor power:||250 W|
|Motor voltage:||36 V|
|Operating temperature:||-25 oC to 50 oC|
|Continuous theoretical driving range:||14.2 miles (22.9 km)|
|Total weight:||13.5 lbs (6.1 kg)|
|Sound level:||60.7 dB(A)|
|Expected lifetime / service life:||5 years|
|Contains Bluetooth LE:||FCC ID QOQBT113 IC ID 5123A-BGTBLE113
Drive Unit Model: MX2+
|Overall length:||15.3 in (389 mm)|
|Overall width:||5.7 in (141 mm)|
|Overall height:||9.5 in (242 mm)|
|Omni-wheel diameter:||7.6 in (193 mm)|
|Omni-wheel width:||2.8 in (71 mm)|
|Weight:||12.5 lbs (5.7 kg)|
|Contained battery type:||Lithium-Ion (Lithium Iron Phosphate)|
|Nominal operating voltage:||36 V|
|Electric charge:||3.4 A-h|
Wristband Model: MX2+
|Contained battery type:||Lithium-Ion (Lithium-Ion Polymer)|
|Nominal operating voltage:||3.7 V|
|Electric charge:||180 mA-h|
|Wireless operating band:||2.4 GHz (2.4000 to 2.4835 GHz)|
|Wireless power transmission:||0 dBm to -23 dBm|
|Wheelchair frame type:||Both Rigid and Folding|
|Drive wheel diameter:||22, 24, 25 or 26 in (501, 540, 559 or 590 mm)|
|Folding frame attachment distance:||8.25 to 21.0 in (210 to 533 mm)|
|User weight:||30 to 331 lbs (14 to 150 kg)|
SmartDrive MX2+ includes:
- Drive Unit PushTracker Wristband Module
- Drive Unit Foam Holder
- Drive Unit Charger**
- Wristband Charger**
- (3) Wrist Bands (3 Sizes, Black)
- Attachment Hardware**
MX1: Push to go, coast and then brake on the handrims to stop. The original SmartDrive operation that is great for indoor use.
MX2: Push to go, coast and then tap brake to stop. The Normal operation the SmartDrive has come to be known for to easily take on any indoor or outdoor environment.
NEW MX2+: Double-tap to start ramping up the speed, tap to coast at your current speed and then double-tap brake to stop. A game-changing operation giving weaker pushers the power to activate the motor at the tap of the wrist.
- NEW PushTracker Bluetooth LE SmartDrive Control
- Changeable Options: Mode of Operation, Top Speed, Tap Sensitivity and Acceleration (if applicable)
- Range (flat / no resistance conditions): 12 miles (19 km)
- Battery: Li-ion (LiFePO4)—36 V & 3.4 A-h
- Motor: 250 W Brushless DC
- Only 12.5 lbs (0.45 kg)
- Rigid and folding chair compatibility
The SmartDrive is lightweight and easy to install. The system weighs only 12.5 lbs (0.45 kg) and simply attaches on the back of the chair. It can be fit on essentially any make and type of wheelchair, including folding, tilt-in space, one-arm drive and standing.
The SmartDrive gives you freedom to do more. It moves with you and it’s so lightweight, you don’t even know it’s there. You can spin in place, be in a wheelie, or hop off curbs. It is compatible with your active lifestyle.
The SmartDrive has been tested and conforms to all applicable requirements of ANSI/RESNA Standards for Wheelchairs - Volume 1 and Volume 2 and EN 12184.
**A wheelchair’s specifications provided by its manufacturer may be slightly affected by the addition of the SmartDrive.**
SmartDrive MX2+ User Manual
SmartDrive MX2+ Buttons Instructions (CURRENT)
SmartDrive MX2+ Axle Clamp Instructions (CURRENT)
SmartDrive MX2+ Folder Adaptor Bar (CURRENT)
SmartDrive MX2+ Folder Inserts Instructions (CURRENT)
SmartDrive MX2+ Spec Sheet (CURRENT)
SmartDrive MX2+ Wristband Instructions (CURRENT)
SmartDrive Airline Passenger - IATA Certificate (CURRENT)
