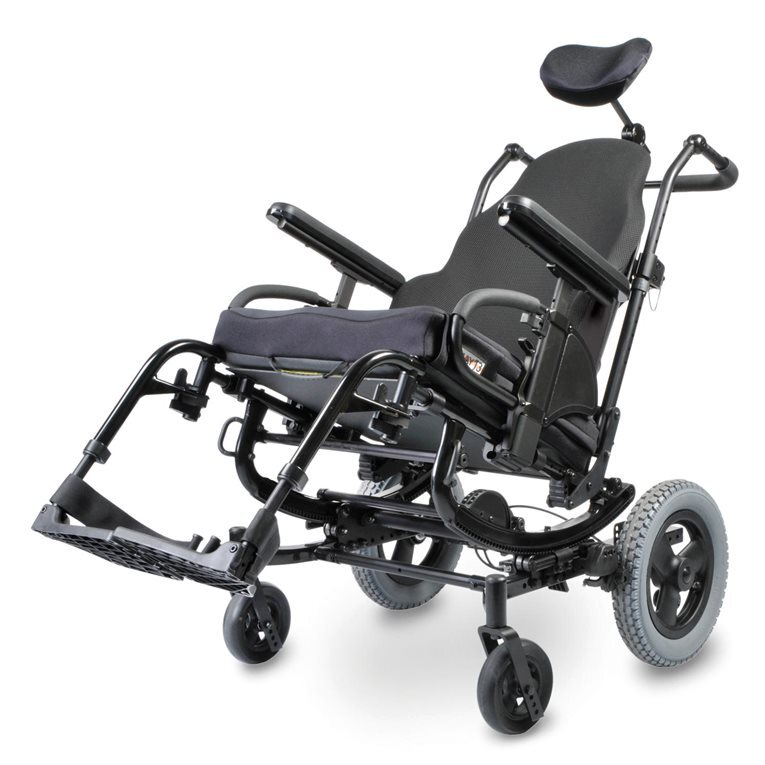

Quickie SR45 Tilt In Space Wheelchair, by Sunrise Medical

The simple solution for rotation-in-space wheelchair technology!

The Quickie SR45 tilt-in-space wheelchair features 45° of Intelligent Rotation in Space Technology and a simplified mix of options to provide proper positioning and comfort at an outstanding value.

Quickie SR45 Manual Tilt Wheelchair Features

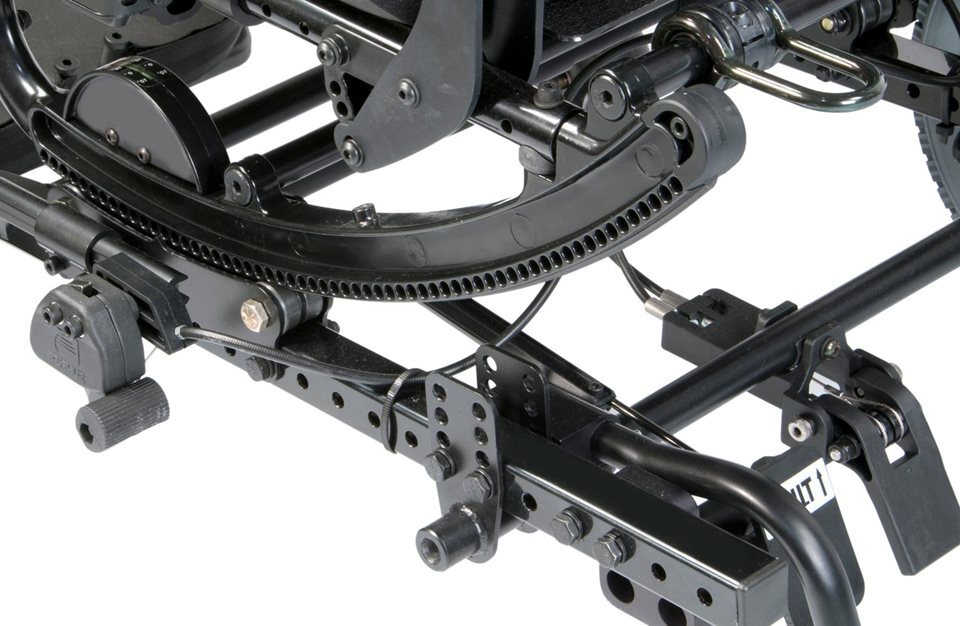

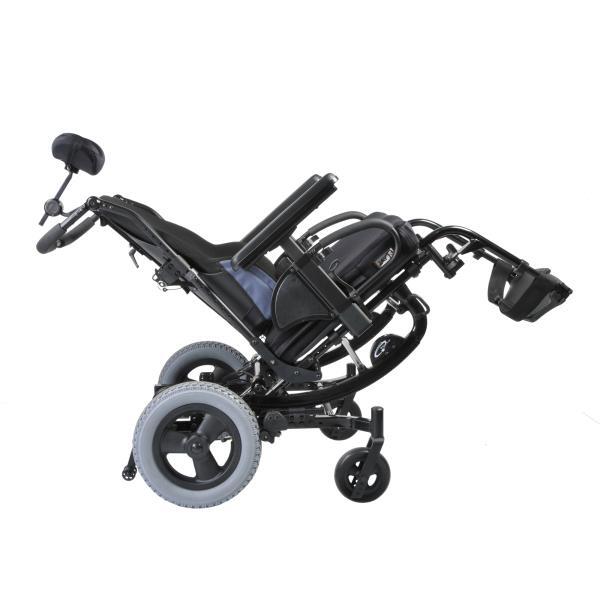

	45° of Intelligent Rotation in Space Technology Intelligent Rotation in Space technology means the seat frame rotates around the user's center of gravity. This results in a smooth tilting motion that is easy for you to control and allows for the shortest possible wheelbase that is easy for you to maneuver. The SR45 features up to 45° of posterior rotation for improved positioning.
Power Tilt The Power Tilt feature puts the rider in charge of their own comfort all day long. With a simple toggle switch conveniently located on the armrest, the rider can effortlessly adjust their body position for maximum comfort, relaxation, and skin protection. Easy to use and designed to enhance their sitting experience, Power Tilt gives more control to the rider. This feature not only improves comfort but also helps with sitting tolerance, allowing the rider to participate more independently in daily activities and connect better with the world and those around them. Power Tilt is available for the IRIS, IRIS Heavy Duty, and the SR45 models. Attendant Control Though the QUICKIE IRIS is effortless to tilt, with the Attendant Control, caregivers can tilt the rider without any manual effort. The control panel, displaying the battery gauge on top, eliminates the guesswork for charging time. Attendant Control is versatile and can be hung anywhere on the chair. Toggle Switch The Toggle Switch provides flexibility by being mountable either vertically or horizontally, catering to the rider's preferences for easy reach. Conveniently placed on the toggle switch, the charging port ensures easy access. The Power Tilt feature is also available as a retrofit kit for added convenience.
Durable Frame The SR45 manual wheelchair is built to withstand heavy use over time. Having undergone rigorous durability testing at its 265 lb. weight capacity, you can be confident that the SR45 will last.

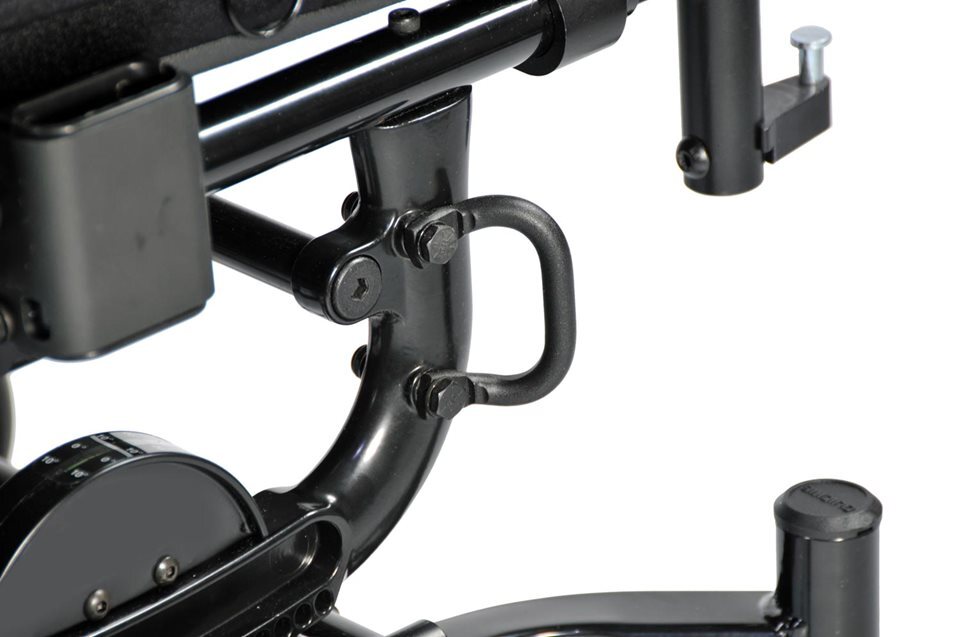

	Quickie's Top Options A Ride Designs Seating System works well on a QUICKIE IRIS to provide intimate support where needed, matching unique body curves while changing position in space. A Ride seating system also helps boost postural control and stabilize the pelvis and trunk, often resulting in increased performance and freedom of movement, while enhancing pressure distribution away from bony prominences.

Quickie SR45 Tilting Wheelchair Specifications

Dimensions	Seat Width	14" to 20"
	Seat Depth	14" to 22"
	Front Seat-to-Floor Height	14" to 20.5"
	Rear Seat-to-Floor Height	14" to 20.5"
	Tilt Range	45°
	Back Height	15" to 21" 18" to 24"
	Back Angle Adjustment	-30° to 5°
	Lower Leg Length Setting	9.9" to 18.7"
	Camber	0°
	Shipping Dimensions	Boxed: 36" L x 28" W x 37" H and 20" L x 10" W 20" H Palletized: 47" L x 40" W x 54" H
Performance/Weights	Frame Type	Standard
	Frame Material	Steel
	Transit	Yes
	User Weight Capacity	265 lbs.
	Product Weight	39 lbs.
	Average Shipping Weight	Boxed: 90 lbs. and 15 lbs. Palletized: 150 lbs.

They are great together.

Pair your Quickie IRIS with these great additions!

Jay J3 Back

More sizes. More styles. More wheelchair backs for the perfect fit.

Jay Fusion Cushion

Wheelchair cushion that combines the J2's skin protection capabilities with the J3's maximum stability

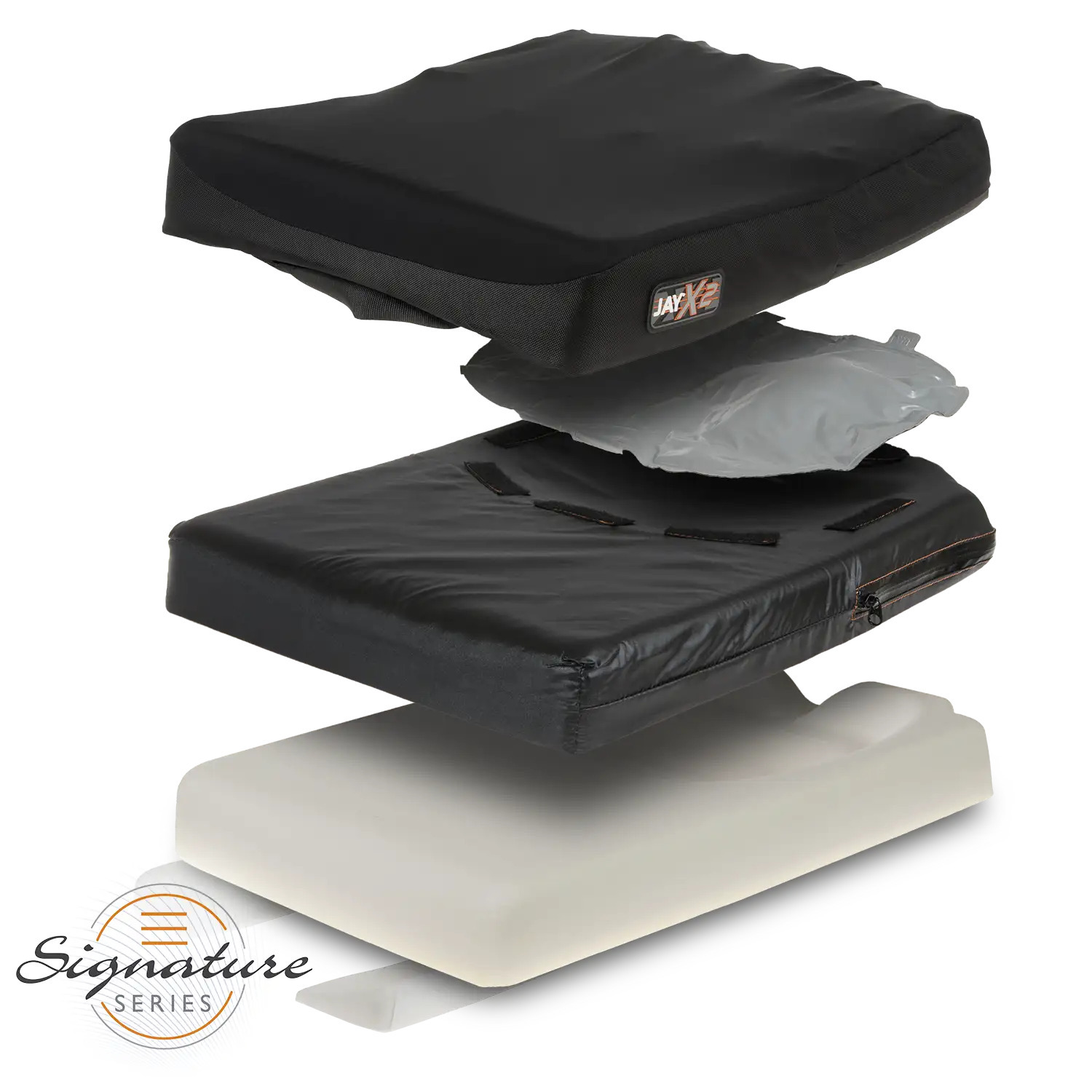

Jay X2 Cushion

Wheelchair cushion with lightweight, reduced profile skin protection for active users

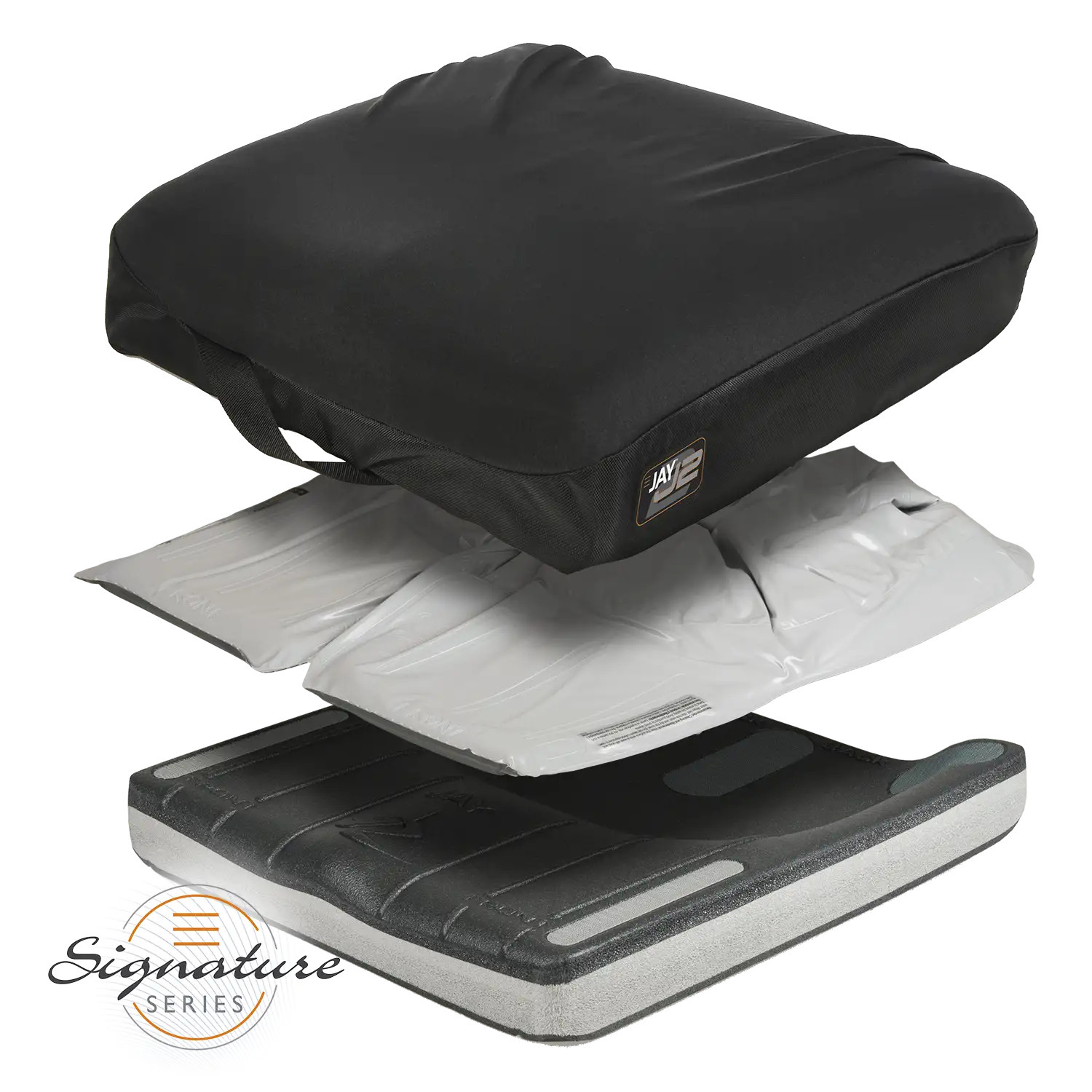

Jay J2 Cushion

JAY Flow fluid® and a contoured base wheelchair cushion for outstanding skin protection and stability.



Frequently Asked Questions



Can the backrest height be adjusted?

+

Yes, by raising and lowering the push handles in the rear side frame or back frame one can adjust the back height.



Where can I find the serial number on my wheelchair?

+

Your serial number is usually found on the frame underneath the seat (or on the cross brace of a folding wheelchair). It will be a white sticker with a barcode and a series of numbers.



I've scratched the frame of my wheelchair. Do you offer touch-up paint?

+

Unfortunately we don't. However, nail varnish is an extremely inexpensive and easy way of fixing any small scratches or blemishes to your wheelchair's frame.



What wheelchair cushions are available?

+

There are a number of different wheelchair cushions available for our products. You can view our complete range of JAY wheelchair cushions online. For the best comfort we advise you to contact your nearest authorized Sunrise Medical dealership.



Can I get my wheelchair in different colors?

+

Yes you can! You can find the list of available colors on the product's order form. If you're looking for something more unique, our Built-4-Me team can help supply a product to your specific needs.

Quickie SR45 Tilt Wheelchair Downloads

 Quickie Tilt Family Catalog  Order Form

 Owner's Manual  Parts Manual

Quickie SR45 Tilt-in-space Wheelchair by Sunrise Medical Buyer’s Guide

The Quickie SR45 Tilt-in-space Wheelchair by Sunrise Medical is a specialized heavy-duty mobility solution designed for individuals requiring advanced pressure management and positioning assistance. Engineered with a focus on durability and clinical efficacy, this wheelchair provides alternative seating angles to enhance comfort and support physiological health. Its robust design ensures long-term structural integrity while accommodating a wide range of custom seating adjustments.

Quickie Intelligent Tilt-in-space Mechanics

The core technology of this mobility system lies in its specialized tilt-in-space mechanical design. Unlike traditional recliners that alter the seat-to-back angle, this system rotates the entire seat frame up to 45 degrees while maintaining a constant hip angle. This specific movement helps redistribute body weight from the pelvis to the back, significantly reducing the risk of pressure sores and improving overall circulation for users who spend extended periods in a sitting position.

Sunrise Medical Engineering and Frame Durability

Built with high-quality materials synonymous with Sunrise Medical engineering, the frame is designed to handle consistent daily use while ensuring maximum stability. The structural layout ensures that the wheelchair maintains a compact footprint even when fully tilted, making it easier to maneuver through standard doorways and residential spaces. The low seat-to-floor height options also facilitate easier transfers and improve access to tables or desks.

SR45 Advanced Pressure Relief and Positioning

Effective postural management is simplified through the precise engineering of the SR45 model. By allowing caregivers to alter the tilt angle easily, the wheelchair assists in managing gravity-assisted positioning, reducing forward sliding, and improving head and upper-body control. This targeted pressure relief is essential for users with limited trunk stability or those dealing with complex neurological and orthopedic conditions.

Customizable Components for Tailored Patient Care

To accommodate the diverse physical requirements of different users, the wheelchair offers highly adaptable components. The seat depth, backrest height, and footrest configurations can be altered to match individual body measurements precisely. This adaptability ensures that the wheelchair can grow with a user or be reconfigured by clinicians to meet changing medical and therapeutic needs over time.

Caregiver-Friendly Operation and Transit Safety

The manual tilt mechanism is designed for smooth, effortless operation by caregivers, utilizing a dual-trigger hand control system that requires minimal physical effort. Additionally, the frame is engineered to meet rigorous safety standards for transportation, making it suitable for secure transit in adapted vehicles. This combination of user comfort and caregiver convenience makes it an excellent choice for both home care and clinical settings.

Quickie SR45 Tilt-in-space Wheelchair by Sunrise Medical Review

The Quickie SR45 Tilt-in-space Wheelchair by Sunrise Medical stands out as a highly dependable and clinically effective mobility device for complex positioning needs. By combining its advanced weight-shifting mechanics with a durable and customizable frame, it provides exceptional pressure management and comfort. The thoughtful design elements prioritize both user health and caregiver ease, making the SR45 a premier solution in the specialized wheelchair category.
