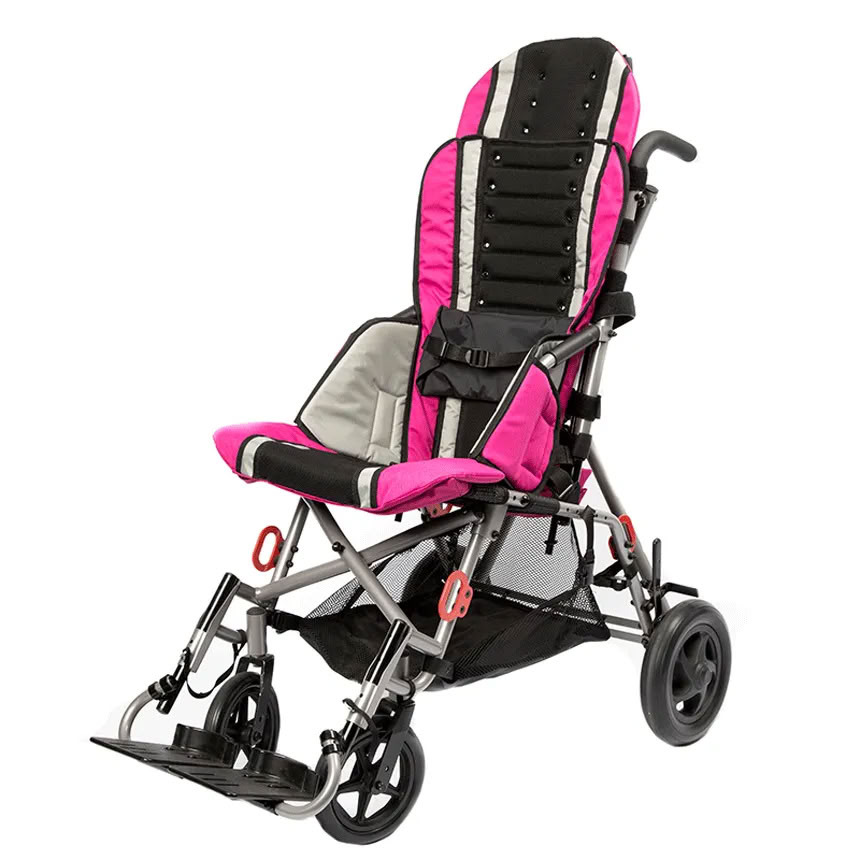

About the Trotter
The Trotter gives parents and caregivers a lightweight, foldable alternative to heavier wheelchair-style mobility bases. Available in three fun colors, the new-generation Trotter features padded seat & back upholstery and grows with your child through an adjustable seat depth. Its Adjustable Tension Positioning™ (ATP™) back support system improves posture, comfort, and positioning.
✓ Canopy & Under Seat Carrier now included as standard
Inspired by Drive · Jet Fighter Blue, Fire Truck Red, Punch Buggy Pink · Crash-tested frame
Drive Medical Trotter Features

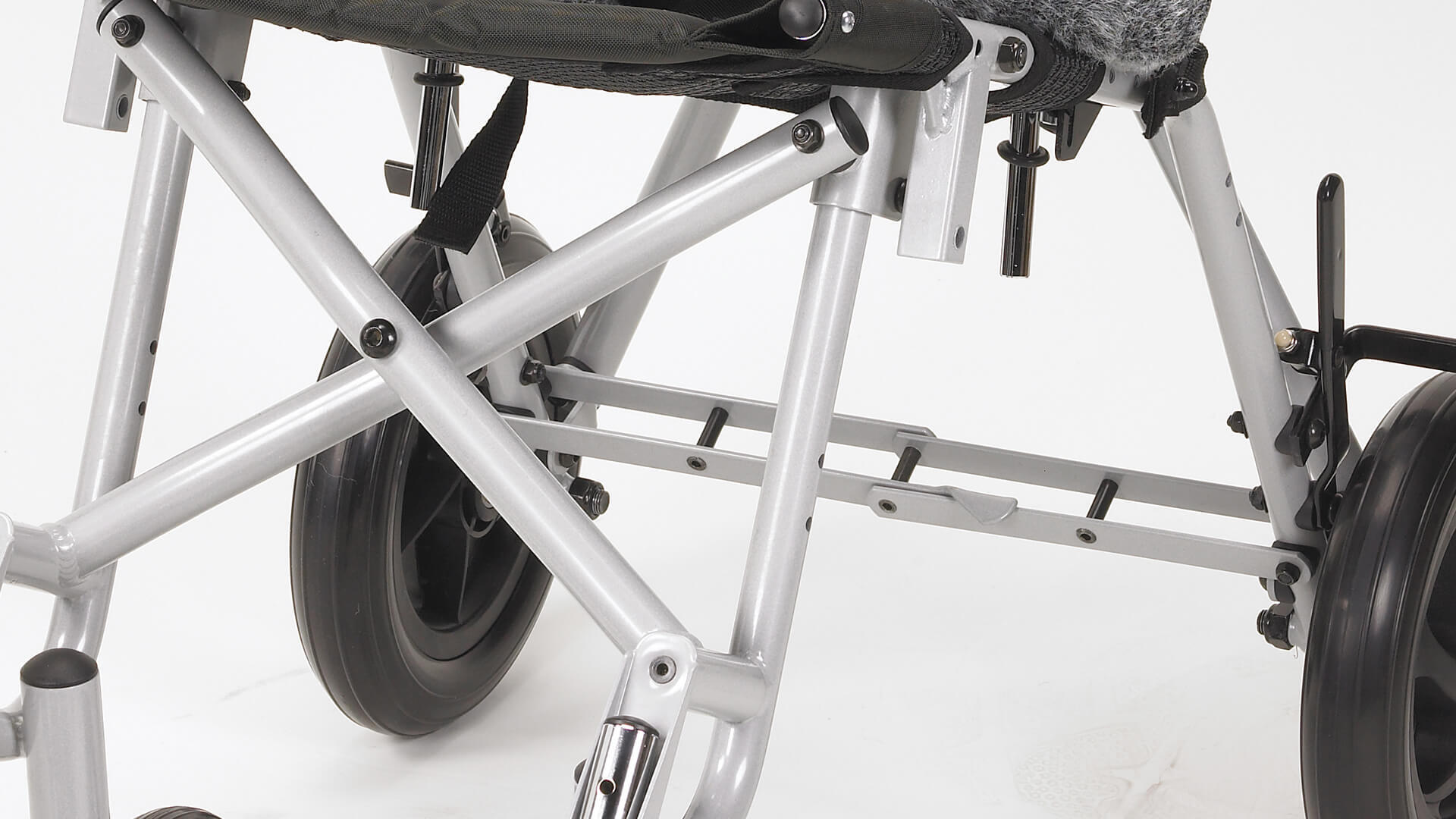

Crash Tested Frame
Provides added safety when used for transport in a vehicle.

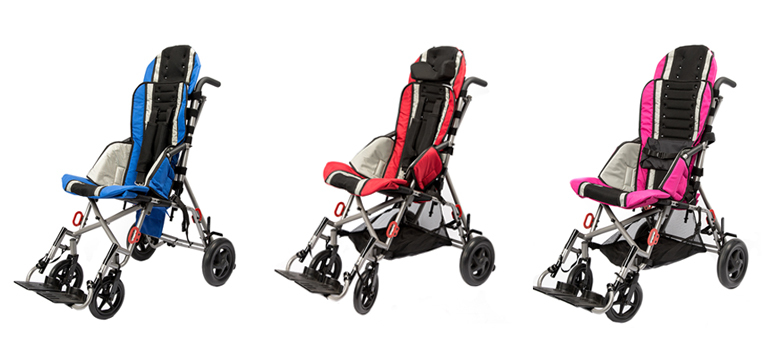

Standard Upholstery
Available in Jet Fighter Blue, Fire Truck Red, and Punch Buggy Pink.

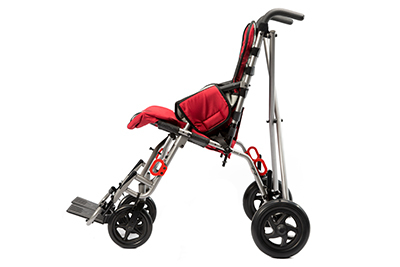

Adjustable Back Angles
Three recline positions: 85°, 90°, and 95°.

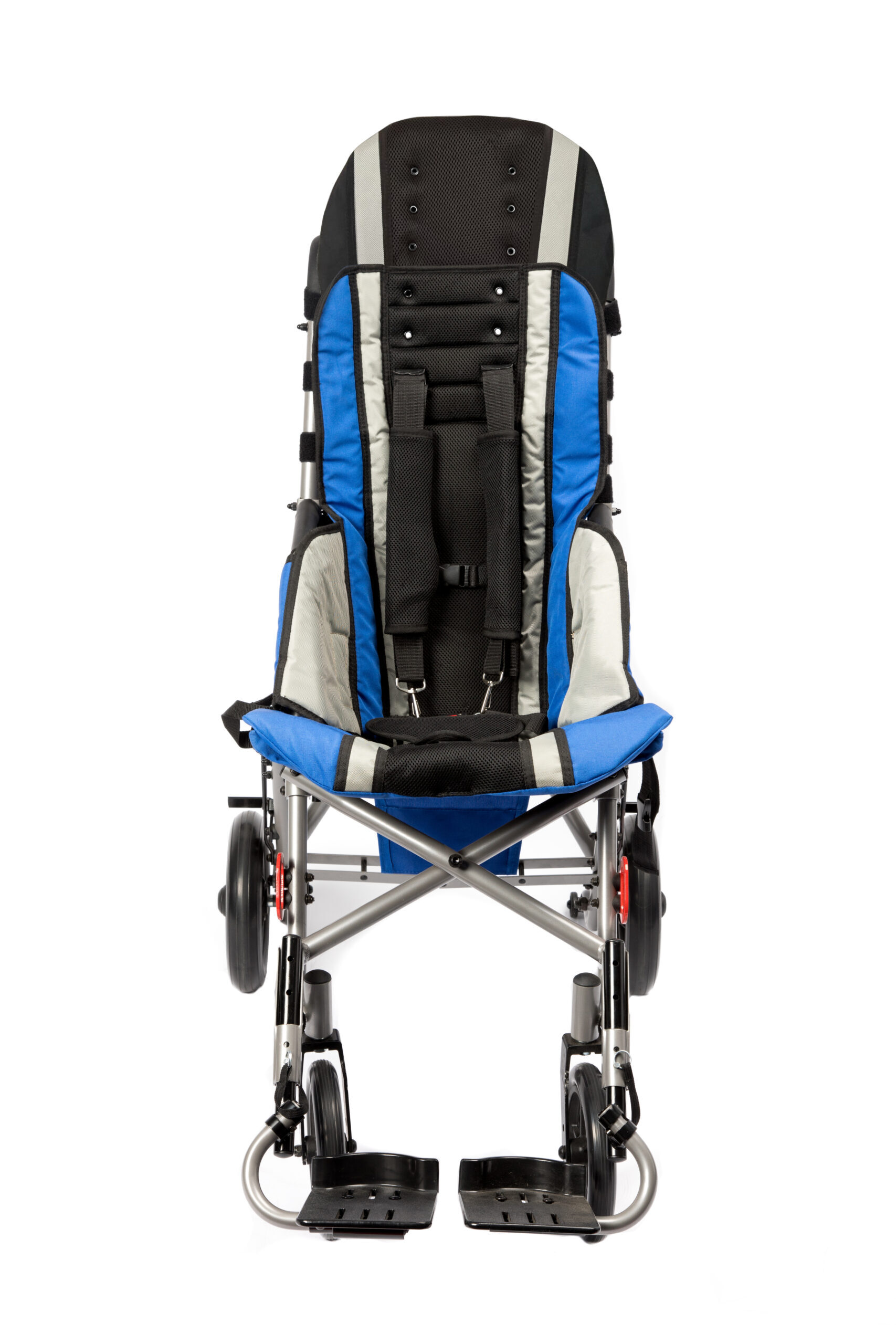

Safety Belt & Harness
The five-point harness adds support for safety and positioning.

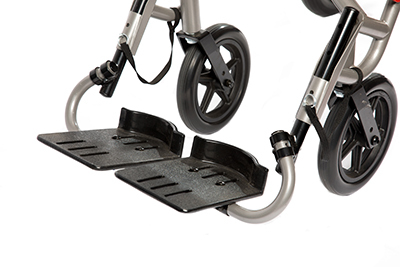

Swing-Away Footrest
Tool-free height adjustment for a custom, comfortable fit.
Pediatric Mobility Chair Specifications
| TR-1200 | TR-1400 | TR-1600 | TR-1800 | |
|---|---|---|---|---|
| Weight Capacity | 75 lb | 100 lb | 170 lb | 250 lb |
| Weight Capacity for Transit | 75 lb | 100 lb | 165 lb | 165 lb |
| Back Height | 24" | 24" | 24" | 24" |
| Seat Depth (+3" w/ rail extension) | 9"–13" | 10"–14" | 11"–15" | 12"–16" |
| Seat-to-Back Angle | 80°–95° | 80°–95° | 80°–95° | 80°–95° |
| Seat Angle | 20° | 20° | 20° | 20° |
| Seat Width | 12" | 14" | 16" | 18" |
| Seat-to-Footplate Height | 4"–20" | 4"–20" | 4"–20" | 4"–20" |
| Seat-to-Floor Height at 90° (rear/front) | 19"/22" | 19"/22" | 19"/22" | 19"/22" |
| Push Handle Height | 41.5" | 41.5" | 41.5" | 41.5" |
| Folded Height | 16" | 16.5" | 17" | 17.5" |
| Overall/Folded Length | 45" | 45" | 45" | 45" |
| Overall Width (outside rear wheels) | 20.5" | 22.5" | 24.5" | 26.5" |
| Product Weight | 33 lb | 34 lb | 35 lb | 36 lb |
| HCPCS | E1236 | E1236 | E1236 | E1236 |
Canopy & Under Seat Carrier included as standard · Warranty: 1-Year Limited.

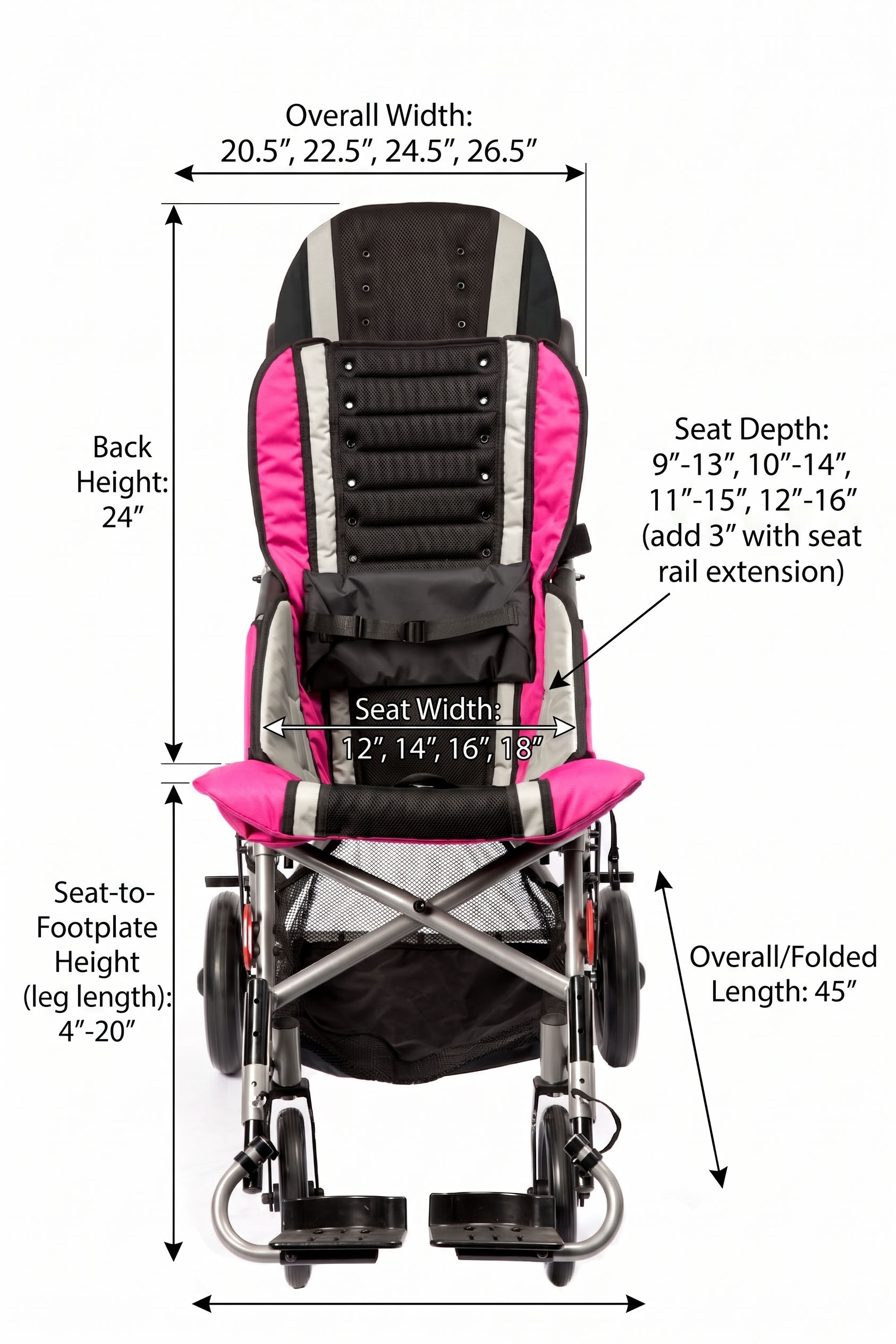

Pediatric Mobility Chair Measurement Guide
Use this diagram with the specifications above to match the right Trotter size (TR-1200 through TR-1800) to your child. Seat width and weight capacity step up with each model, while the frame keeps the same folded footprint.
Seat Width: 12" – 18"
Weight Capacity: up to 250 lb
Seat Depth: 9" – 16" (+3" with rail extension)
Back Height: 24"
Product Weight: 33 – 36 lb
Adaptive Stroller Wheelchair Video
See more features of the Trotter Mobility Chair
Trotter Pediatric Stroller Accessories

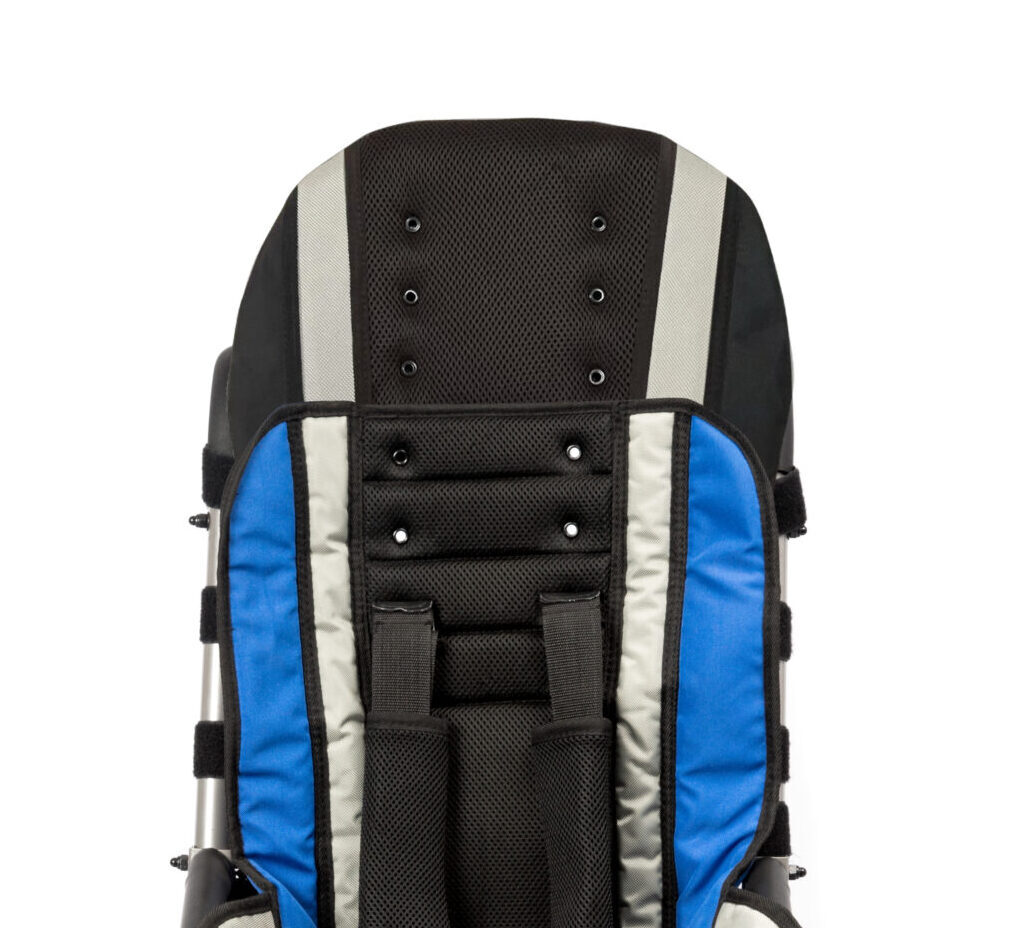

Headrest Extension (4 sizes, 3 colors)
Provides additional back height for added safety during transport.
Item # TR-A1201/1401/1601/1801-2GBK

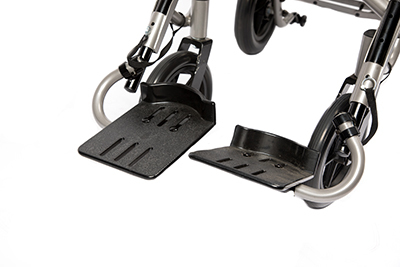

Angle Adjustable Footplates (2 sizes)
Customized foot positioning for improved sitting posture.
Item # TR-A7100S / TR-A7100L

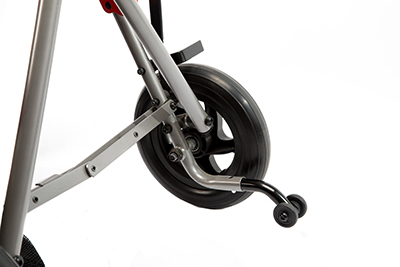

Anti-tippers
For added safety and stability.
Item # TR29S-A7200

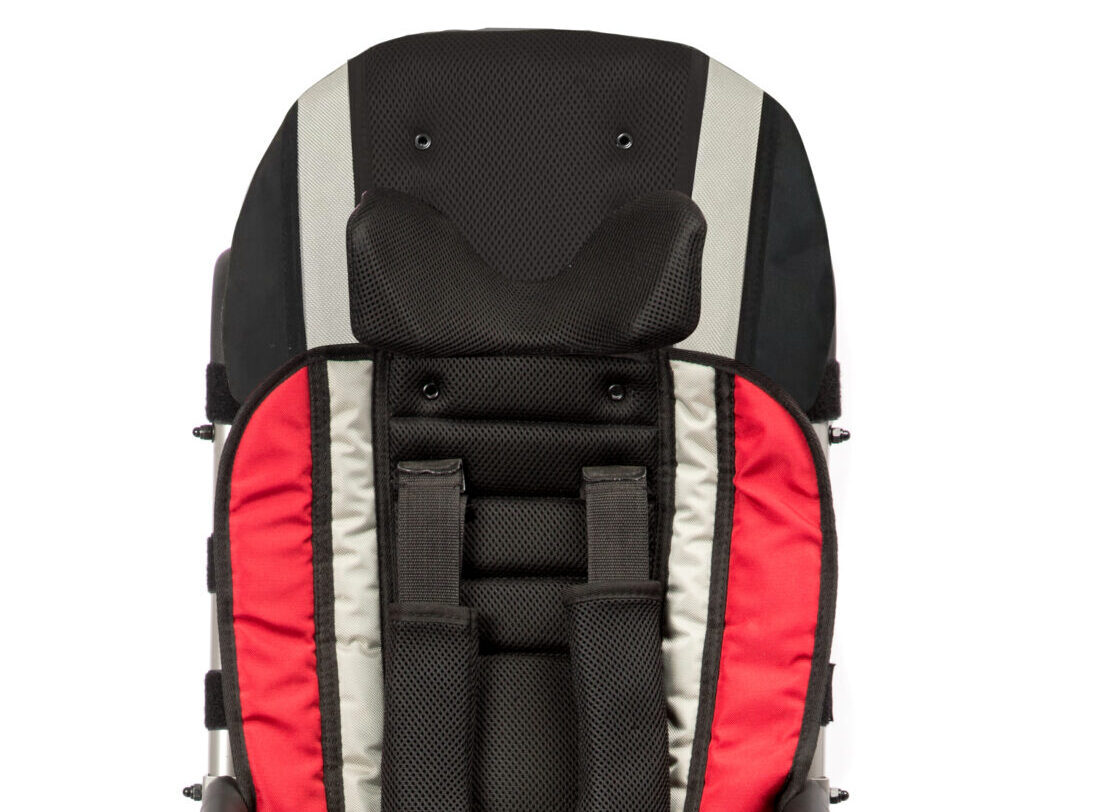

Contoured Headwings
Adjustable headwings for lateral head positioning and support.
Item # TR-A8022

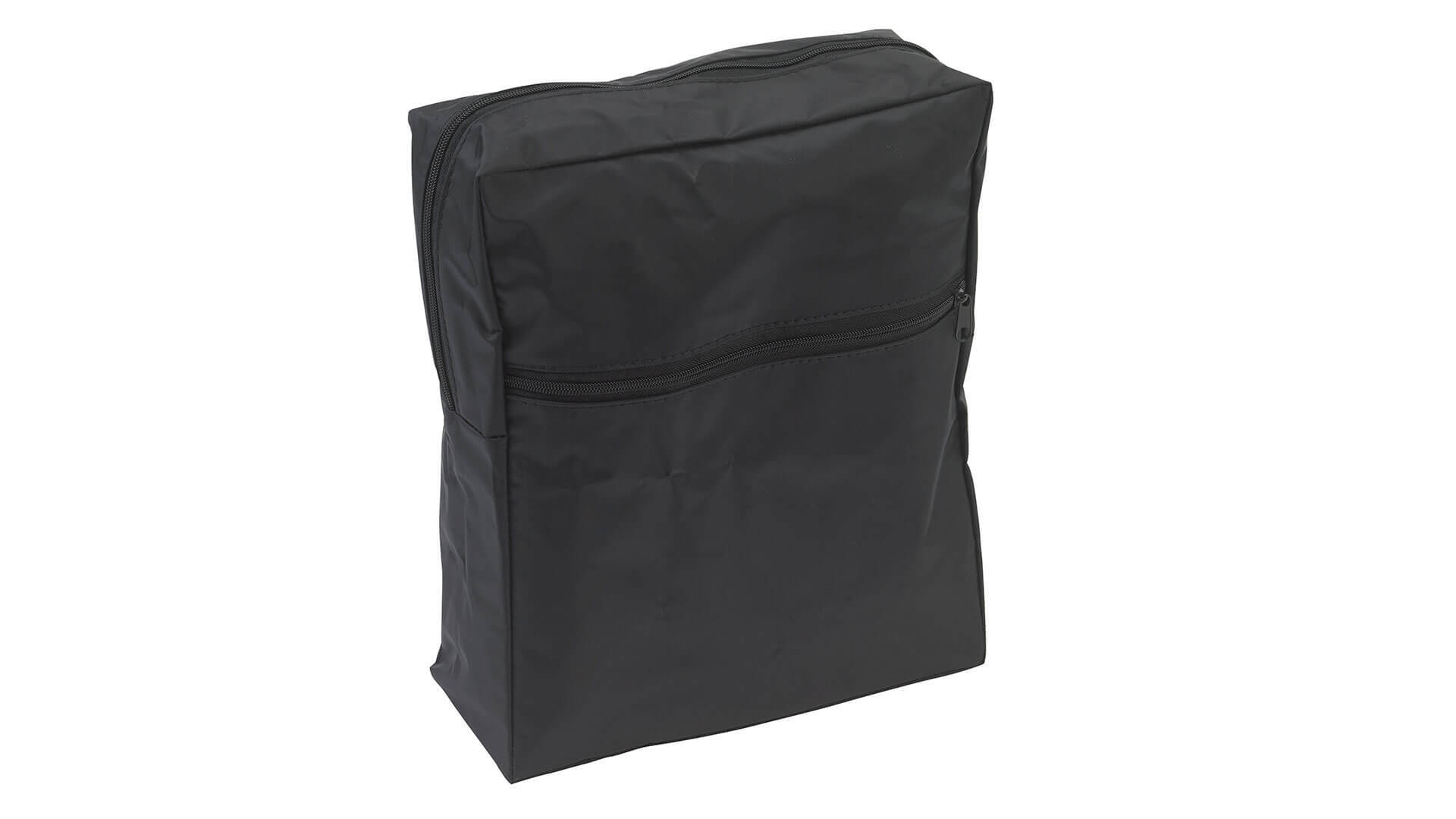

Medical Necessity Storage Bag
Zippered bag, perfect for holding essential items.
Item # TR-8023

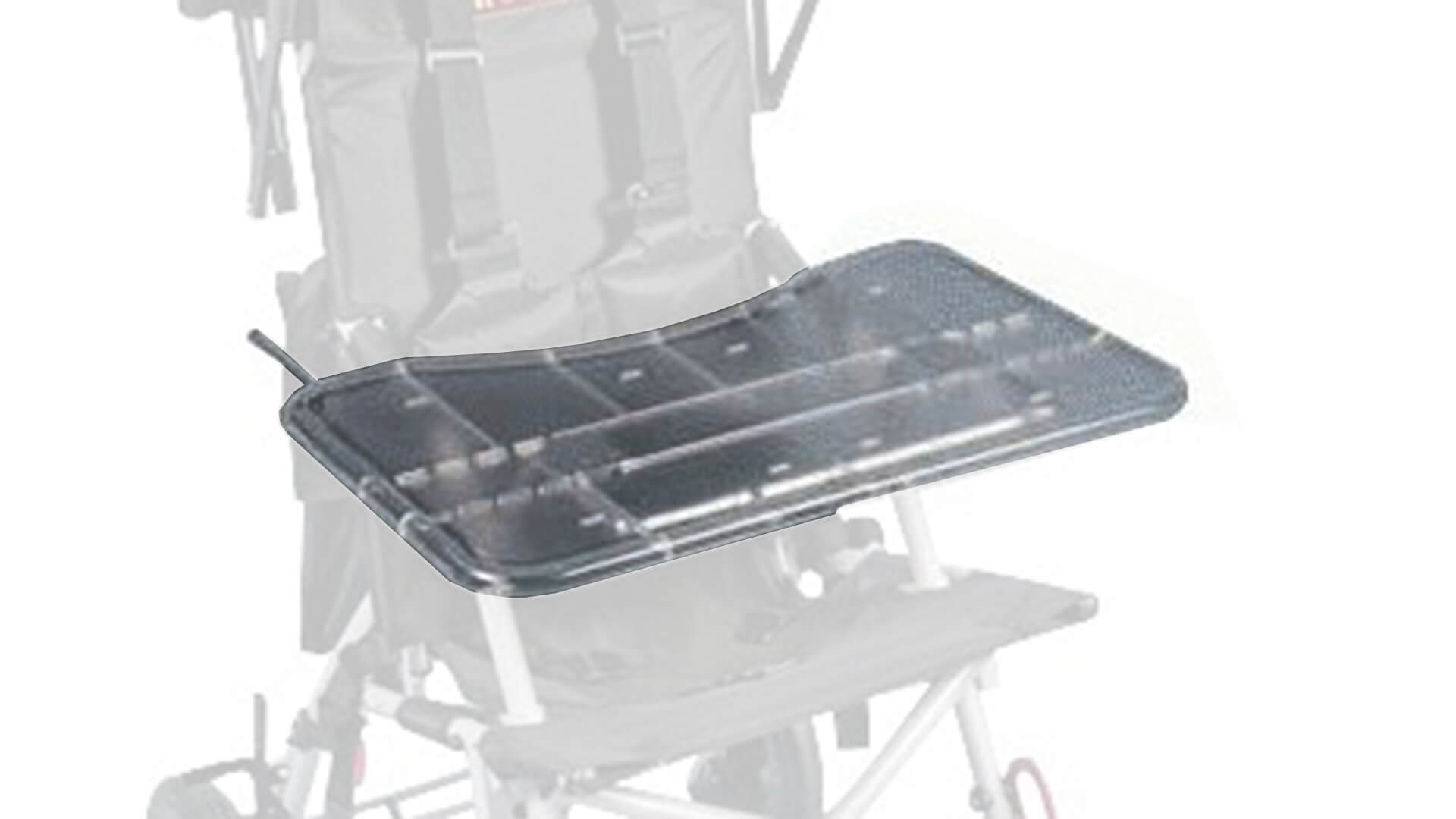

Upper Extremity Support
Easy-to-clean tray, perfect for feeding and interactive play.
Item # TR-8024

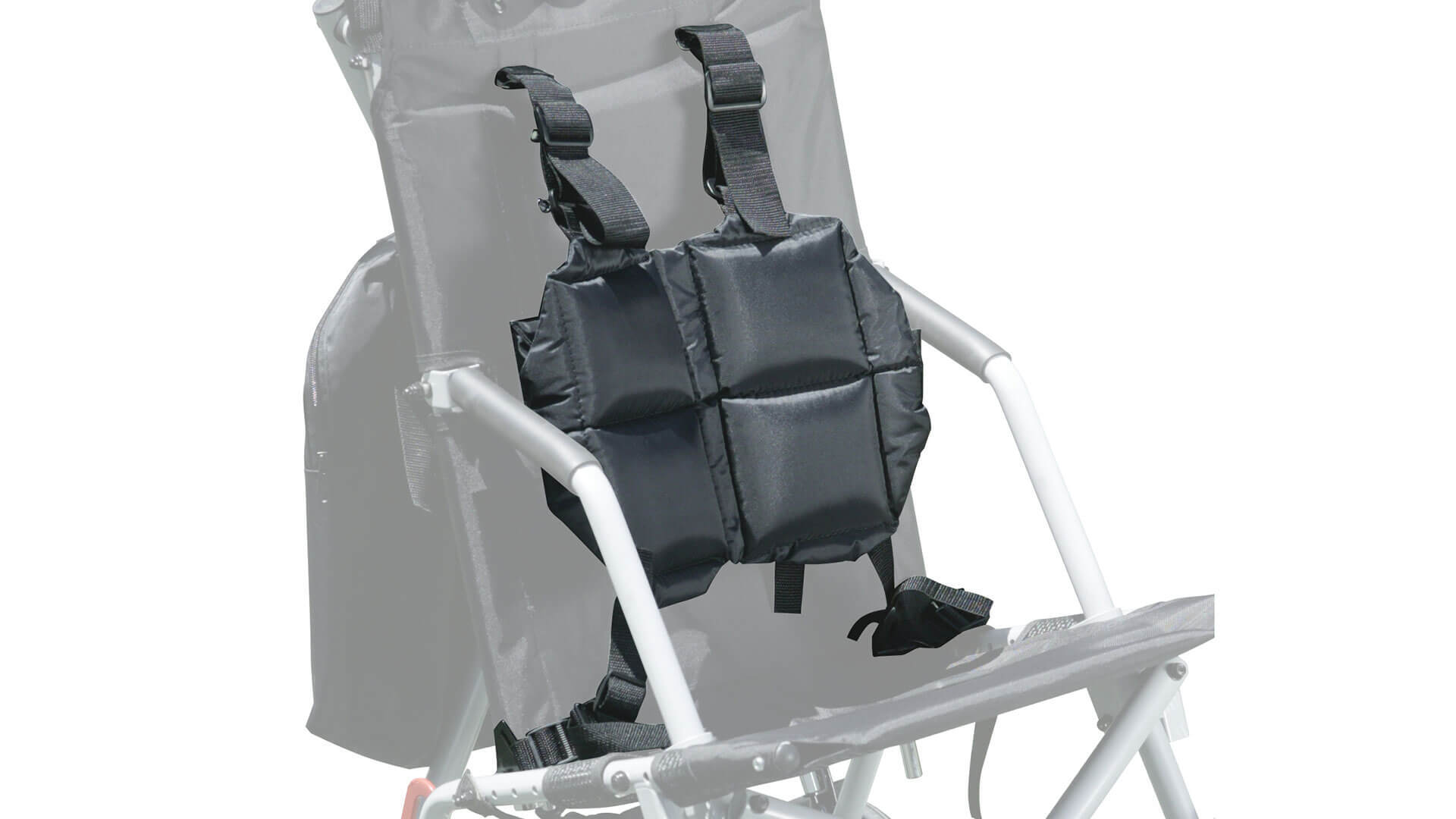

Poziform Full Torso Vest
Adjustable vest helps the user maintain proper posture and alignment.
Item # TR-8025

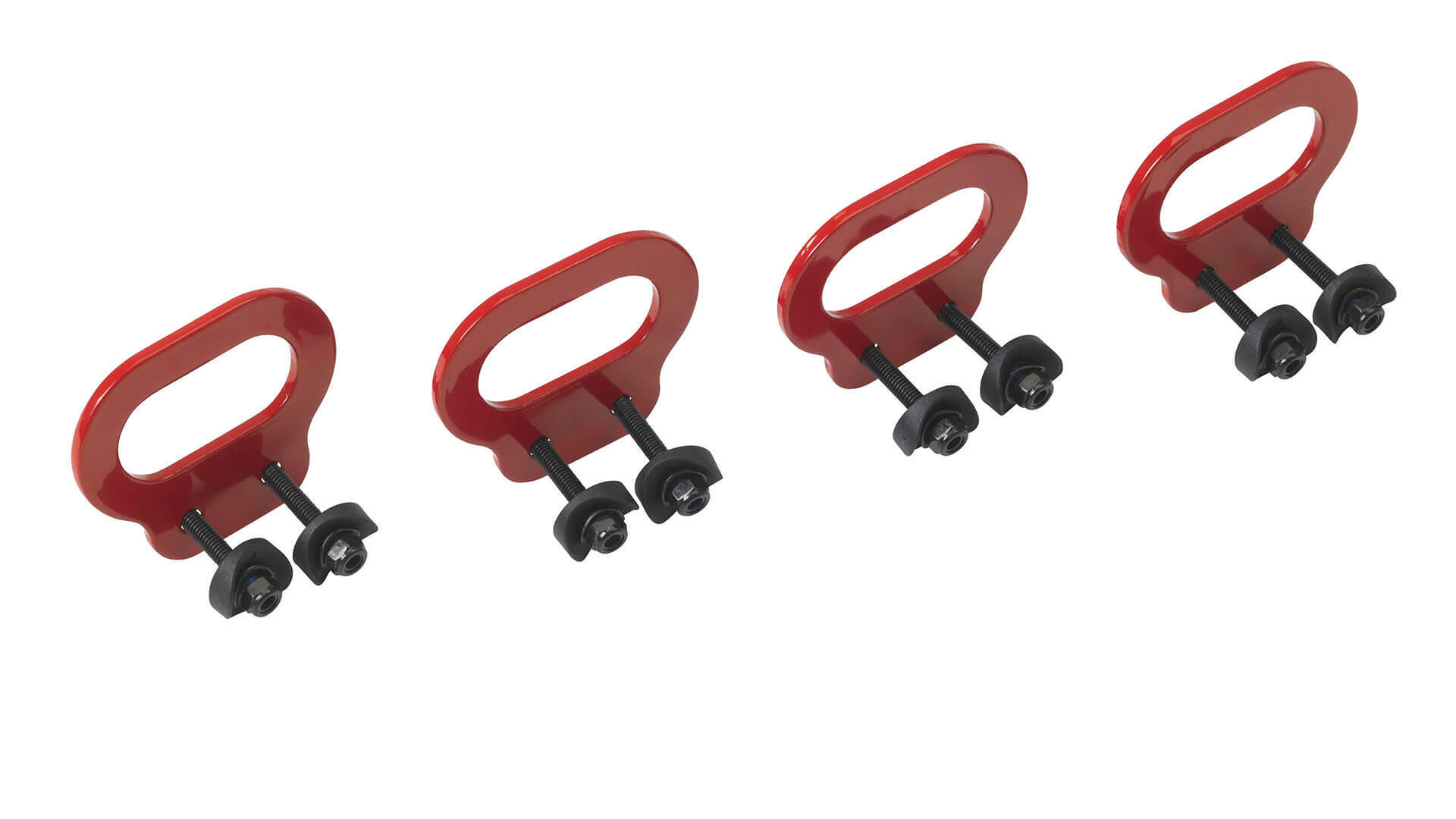

Bus Transit Tie Downs
Tie-down brackets for use during vehicle transport.
Item # TR-8029

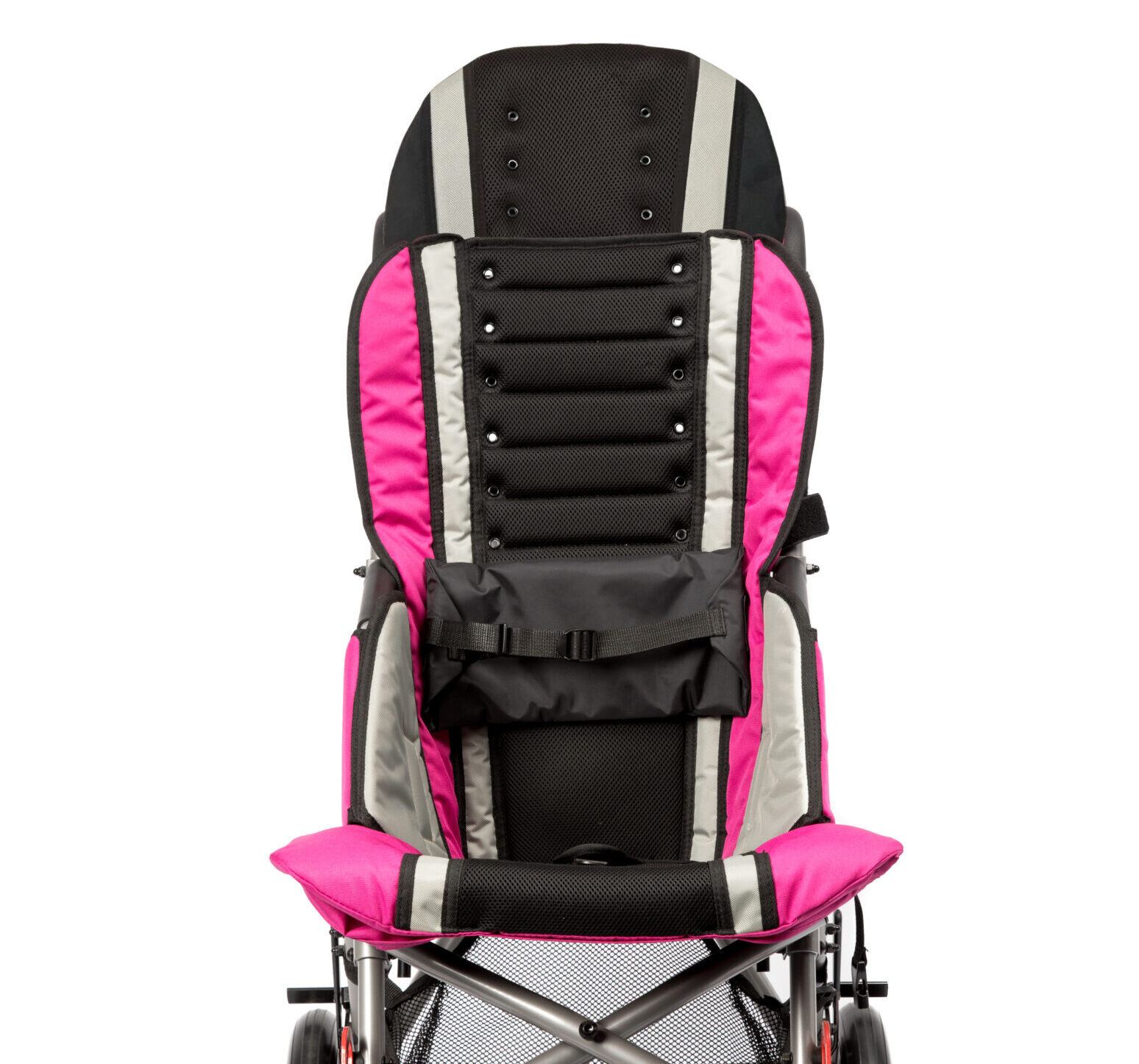

Poziform Lateral Support & Scoli Strap
Provides lateral torso support.
Item # TR-A8027

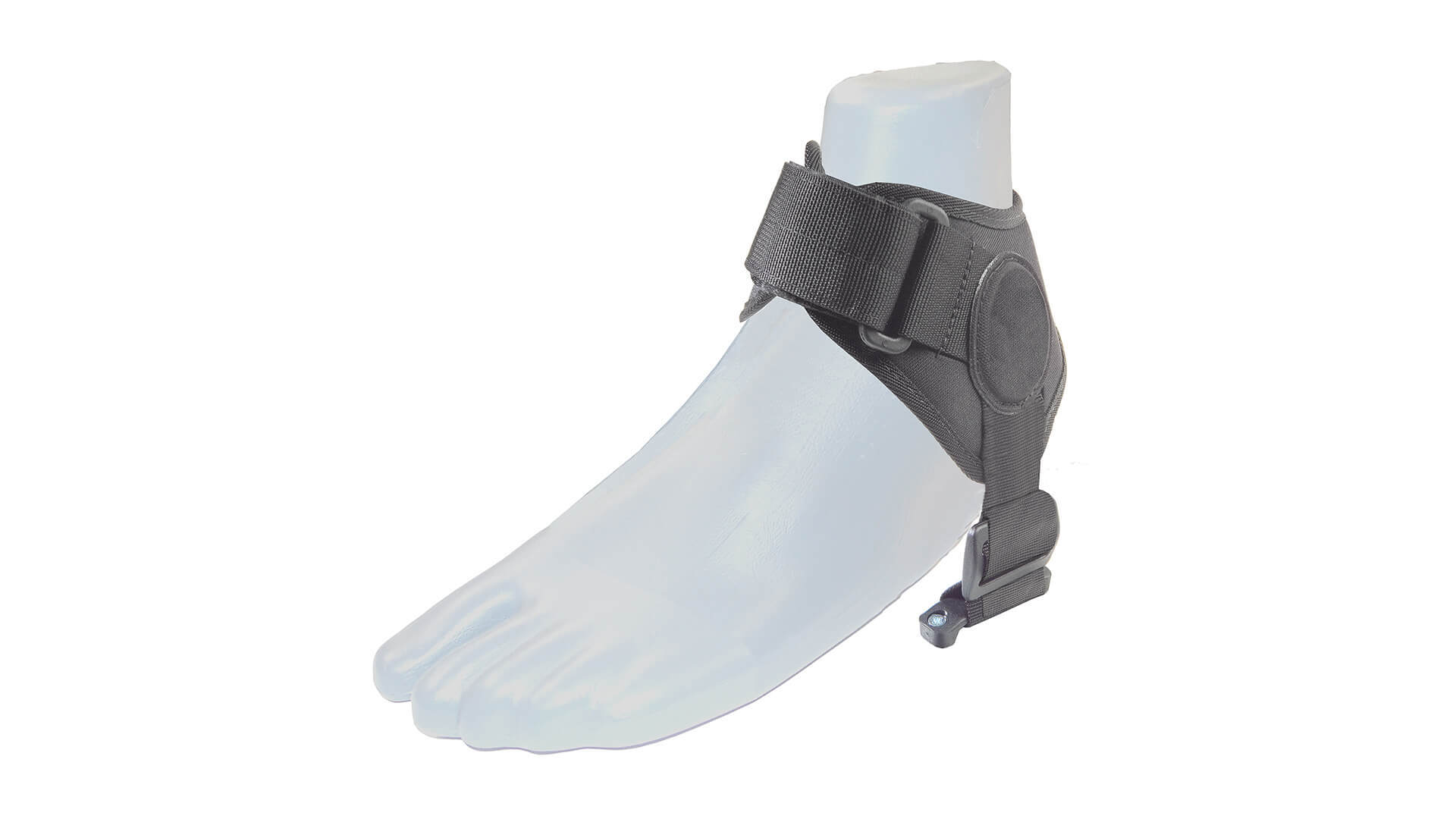

Ankle Positioners (4 sizes)
Nylon Poziform ankle positioners come with all necessary hardware.
Item # PAP-200XS/S/M/L/XL
Calf Panel
Soft padded nylon for lower-leg support.
Item # PCP-280S / M / L

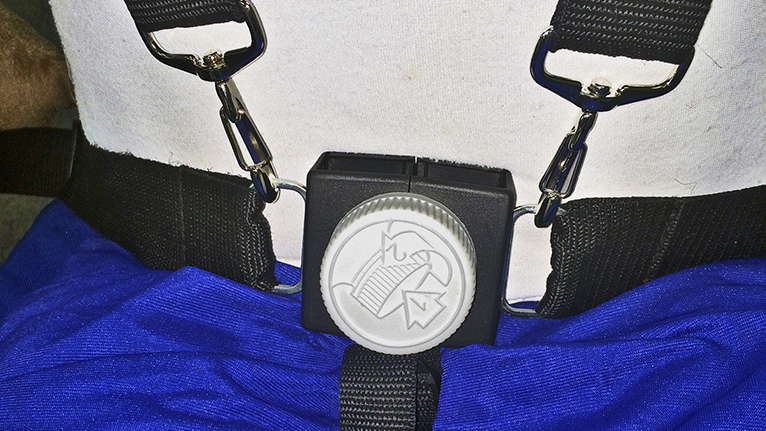

Buckle Guard
Plastic cover that keeps a child from engaging the harness release button.
Item # WCZ-A2095
W19 Crash Tested Stroller Downloads
Folding Pediatric Wheelchair Reviews
4.5 out of 5 · Based on 2 verified reviews
Sturdy and Comfortable for Autistic Child
"Our son is autistic, and we already have one of these — bought another to have one in each car. The harness keeps him safe, and it's comfortable and sturdy. We've traveled the world with them and they've held up nicely."
— David M. · Westerville, OH (caregiver) · Verified Review
Looking forward to many years of use!
"So far we are loving this Trotter! It's very travel friendly, folding down to a reasonably compact size, especially given the high weight limit. Quality materials and very functional."
— Maria W. · Bowerbank, ME (caregiver) · Verified Review
Verified customer reviews.
Trotter Mobility Chair by Drive Medical Buyer’s Guide
The Trotter Mobility Chair by Drive Medical is a lightweight, customizable pediatric mobility push chair designed to provide secure postural support and transport convenience. Engineered with an adjustable tension backrest, multi-point safety harness system, and compact folding frame, this mobility chair offers a comfortable, adaptive seating solution for growing children with special positioning needs.
Adjustable Seat Depth to Accommodate Growth
The Drive Medical Trotter Mobility Chair is built with growth-adaptable seating, allowing caregivers to adjust the seat depth easily as the child grows. This adjustable design extends the usable lifespan of the chair, ensuring proper thigh support and ergonomic seating posture without requiring frequent equipment replacements.
Trotter Mobility Chair Tension-Adjustable Positioning Backrest
Featuring a customizable webbing strap system, the back upholstery can be tightened or loosened to fit individual trunk positioning requirements. This tension-adjustable backrest provides targeted spinal alignment and lateral trunk support for children with varying postural control needs.
Comprehensive 5-Point Safety Harness
To ensure safe containment and stability during travel, the chair comes equipped with a padded five-point positioning harness and a pelvic belt. The breathable cover pads reduce friction and pressure against chest and shoulder areas, keeping the child securely seated during outings.
Trotter Mobility Chair Lightweight and Foldable Design
Designed for easy transport and storage, the chair features a lightweight folding frame that collapses compactly for vehicle trunks or tight closet spaces. Caregivers can easily fold the chair with minimal effort, making it ideal for daily errands, school commutes, and travel.
Angle-Adjustable Footplates and Recline Capabilities
The chair includes independently adjustable footplates and variable seat recline angles to optimize leg positioning and overall seating comfort. Customizing the leg rest height and recline angle helps reduce pelvic tilt and leg fatigue during long periods of use.
Crash-Tested and Heavy-Duty Weight Capacity
Built for rigorous daily use, selected models of the Trotter series are crash-tested for transit safety in authorized vehicles. Available in multiple seat width options (ranging from 12 to 18 inches), the sturdy frame supports user weight capacities up to 250 lbs depending on the chosen size.
Drive Medical Trotter Tool-Free Setup and Adjustments
Caregivers can easily adjust key positioning components—such as seat depth, harness tension, and footrest height—without needing specialized tools. The intuitive adjustment points allow rapid fine-tuning on the go to maintain optimal comfort and alignment.
Versatile Support for Diverse Pediatric Mobility Needs
Whether navigating outdoor paths, school hallways, or family outings, the chair combines the maneuverability of a stroller with the structural support of a specialized positioning wheelchair. Its durable swivel front casters and rear wheel locks ensure smooth, controlled pushing across various surfaces.
Trotter Mobility Chair by Drive Medical Review
The Trotter Mobility Chair by Drive Medical delivers an impressive balance of postural adaptability, transportable convenience, and long-term durability. With its growth-friendly seat depth, tension-adjustable back support, and reliable safety harness system, it is an outstanding choice for families seeking a dependable pediatric transport solution.
No Buyers info available
Warranty Coverage Overview
Your Inspired by Drive brand product is warranted to be free of defects in materials and workmanship for the lifetime of the original consumer purchaser.
This device was built to exacting standards and carefully inspected prior to shipment. This Lifetime Limited Warranty is an expression of our confidence in the materials and workmanship of our products and our assurance to the consumer of years of dependable service.
Warranty Exclusions & Limitations
Wear, Tear & Misuse
This warranty does not cover device failure due to owner misuse or negligence, or normal wear and tear. The warranty does not extend to non-durable components, such as rubber accessories, casters, and grips, which are subject to normal wear and need periodic replacement.
Transit & Weight Limits
This warranty does not cover damage resulting from transit use or from exceeding weight limit for user plus items carried.
If you have a question about your Inspired by Drive device or this warranty, please contact an authorized Inspired by Drive dealer
