StandNWalk Gait Trainer
The ideal stand assist gait trainer solution for mobility needs!
The StandNWalk is committed to offering the most advanced intelligent walking rehabilitation robots for users with walking issues, assisting them in standing and walking again, and restoring a life of freedom and happiness. The optimal application device for the BWSTT reduction in weight walking training therapy technique, which improves and enhances lower limb walking abilities. No need for assistance from others; simply push and hold the lift button to stand up unaided using the robot's thrust.

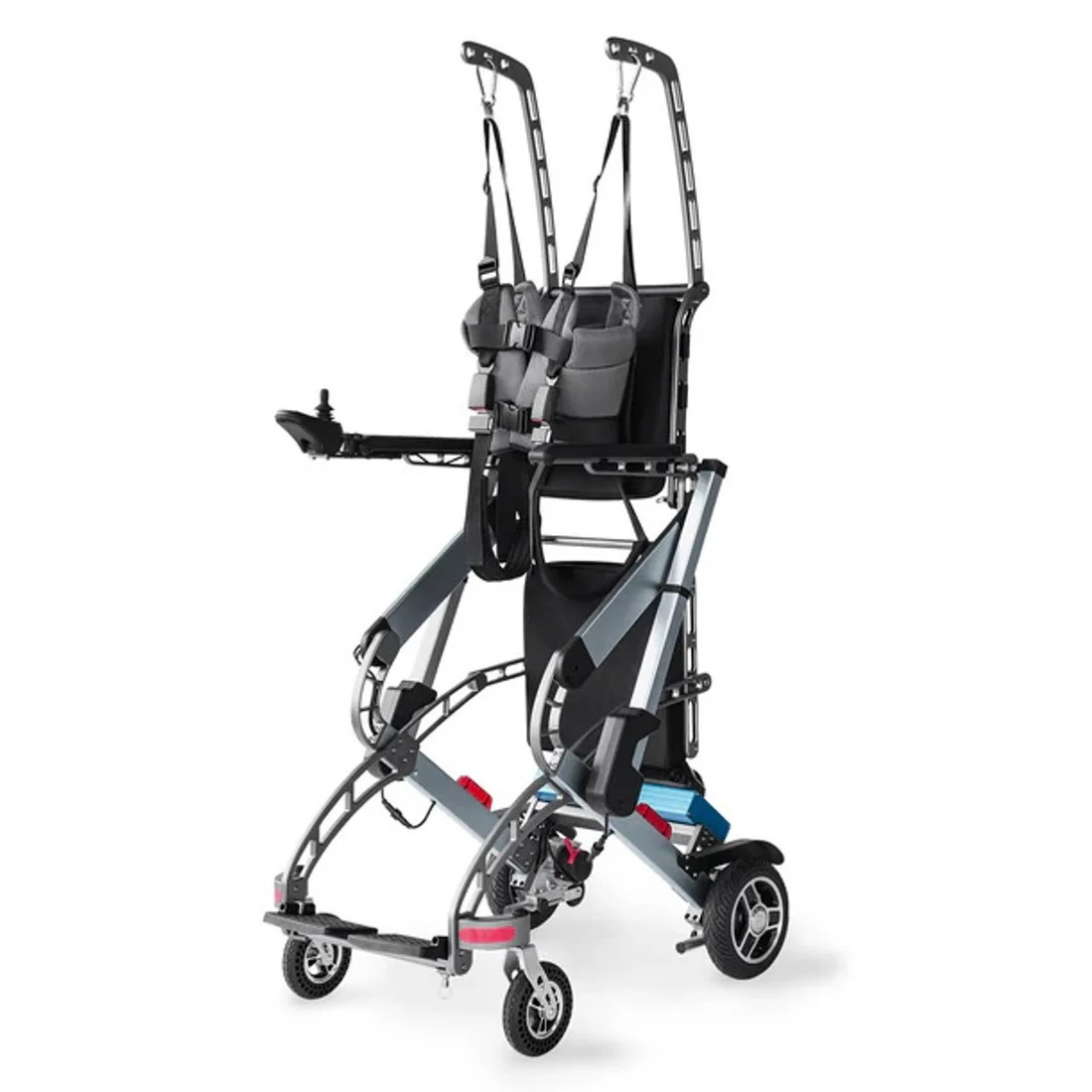

The two aluminum alloy suspension brackets above the head, together with the safety waist belt and leg straps, efficiently reduce the load on the body. The evenly distributed upward suspension straps and arm-level side handles allow for secure walking while maintaining balance in the body's vertical and lateral movements. Switch the robot to wheelchair mode, which has 5 gears of speed, a 20-kilometer range, and the ability to drive freely.
Features of StandNWalk Gait Trainer
 |
Seat & Tie: Lower the robot to a chair position, step in, and sit down before fastening the waist and leg straps. |
|
Hold and lift: Hold down the lift button, and the robot will aid your body in gradually moving from a seated position to a standing position. |
 |
 |
Walk and recover: The robot will give you upward strength, lower the weight on your body, keep you balanced, and help you walk steadily to exercise your leg muscles and nerves till you recover. |
|
Aluminium Alloy Body: Aeronautical aluminium alloy material, one-piece CNC cutting, no welding, strong and stable, non-shaking, non-tipping, maximum load of 120 kilogrammes. |
 |
 |
Lifting System: A lifting drive motor paired with a lifting controller, with a single-side push of 1000 Newtons and a total force of 2000 Newtons for both sides, can lift a weight of 120 kilogrammes steadily. |
|
Driving System: High-quality 10-inch rear wheel brushless motor with driving controller, high power, powerful driving force, capable of climbing a 10-degree slope while seated, and active electromagnetic brakes. |
 |
Specification of StandNWalk Gait Trainer
| Electricity Mileage | More than 20km after a single charge |
| Speed per hour | ≤6 km/h |
| Maximum Speed | ≤6 km/h |
| Battery | Rated Capacity 15.4Ah; Rated Voltage 24V |
| Motor | Rated Voltage 24Ah; Rated Power 250Wx2 |
| Charger | Power 220V, 50Hz;Output Voltage 24V; Output Current 2A |
| Minimum Radius of Gyration | ≤1200 mm |
| Gradeability | ≤8" |
| Braking Performance | Horizontal Road Braking ≤15m; Maximum safe slope braking ≤3.6m (6°) |
| Standing Capacity | 9" |
| Static Stability | ≥9" |
| Dynamic Stability | ≥6" |
| Obstacle Clearance Height | ≥40mm (The obstacle crossing surface is inclined and the obtuse angle is ≥140") |
| Corssing-Ditch Width | 100 mm |
| Temperature | -25°C~50°C |
| Tire Size | Front Wheel 7 Inches, Rear wheel 10 Inches |
| Seat Material | Oxford Cloth |
| Carrying Capacity | ≤100kg |
| Lifting Drive Thrust Force | ≤100kg |
| Weight | Net Weight 47kg; Gross weight 61kg |
StandNWalk Gait Trainer-Additional Information
 |
 |
 |
|
Waist and Leg Strap |
High Capacity Lithium Battery |
Left and Right warning lights |
 |
 |
 |
|
Anti-Rollback Cogwheel |
Front Casters |
Forefoot Block |
Measurement of StandNWalk
What is in the box?
StandNWalk Robot Gait Trainer Downloads:
StandNWalk Gait Trainer Manual
StandNWalk Gait Trainer Brochure
StandNWalk Gait Trainer Buyer's Guide
The StandNWalk Gait Trainer is designed to support individuals who need assistance with mobility, balance, and walking. Whether for rehabilitation or daily use, this trainer provides stability and comfort to help users regain independence and confidence in movement.
StandNWalk Gait Trainer Adjustable Support
The StandNWalk Gait Trainer features adjustable height and width settings to accommodate users of different sizes. The customizable support ensures a comfortable and secure fit, promoting proper posture and stability during use.
Gait Trainer Durable Frame
Built with a strong and sturdy frame, the StandNWalk Gait Trainer offers long-lasting durability. Its high-quality construction provides reliable support, ensuring safety while assisting users in walking exercises or daily mobility.
Easy Maneuverability
Equipped with smooth-rolling wheels, the StandNWalk Gait Trainer allows for effortless movement across various surfaces. The wheels are designed to provide easy navigation while reducing resistance, making walking more natural and fluid.
StandNWalk Gait Trainer Foldable Design
The StandNWalk Gait Trainer is foldable for convenient storage and transport. This feature is especially beneficial for users who need a mobility aid that can be easily taken to therapy sessions or different locations.
Comfortable and Secure Handgrips
Designed with ergonomically shaped handgrips, the StandNWalk Gait Trainer ensures a comfortable and secure hold. These handgrips help users maintain a steady grip while walking, improving control and confidence during mobility exercises.
StandNWalk Gait Trainer Review
The StandNWalk Gait Trainer is a reliable and supportive mobility aid for individuals requiring assistance with walking and balance. Its adjustable support, durable frame, smooth maneuverability, and ergonomic design make it an excellent option for rehabilitation and everyday mobility.
