RELIANT 600 PATIENT LIFT BY INVACARE Features a high lifting range, low-profile base, extra-wide six-point swivel bar, and powered lifting system

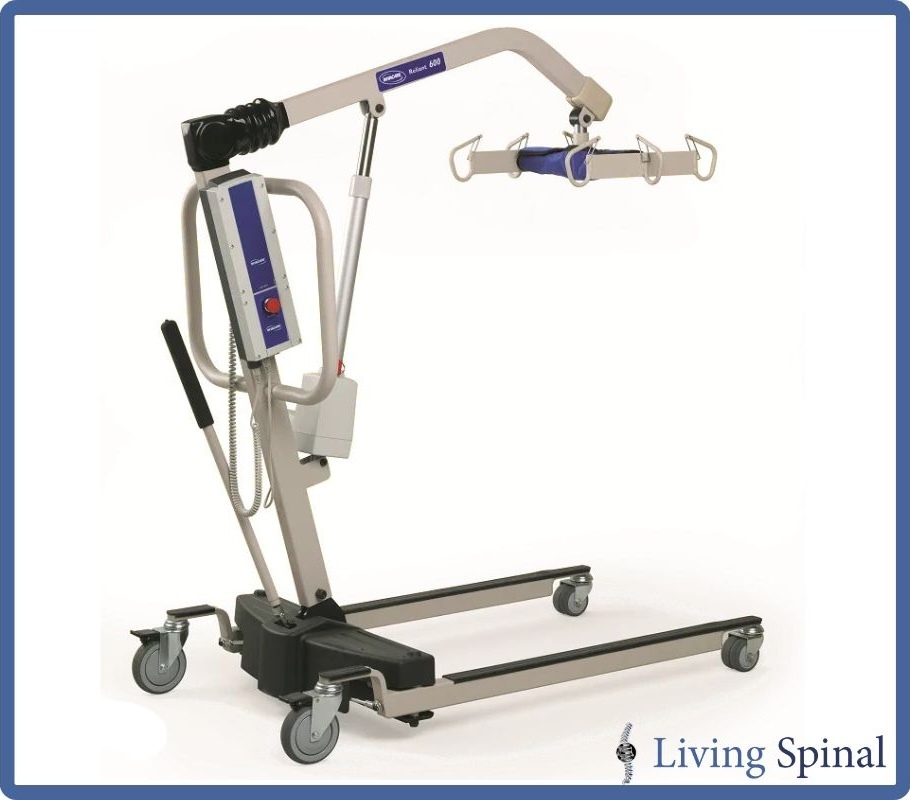

INVACARE RELIANT 600 HEAVY-DUTY POWER PATIENT LIFT

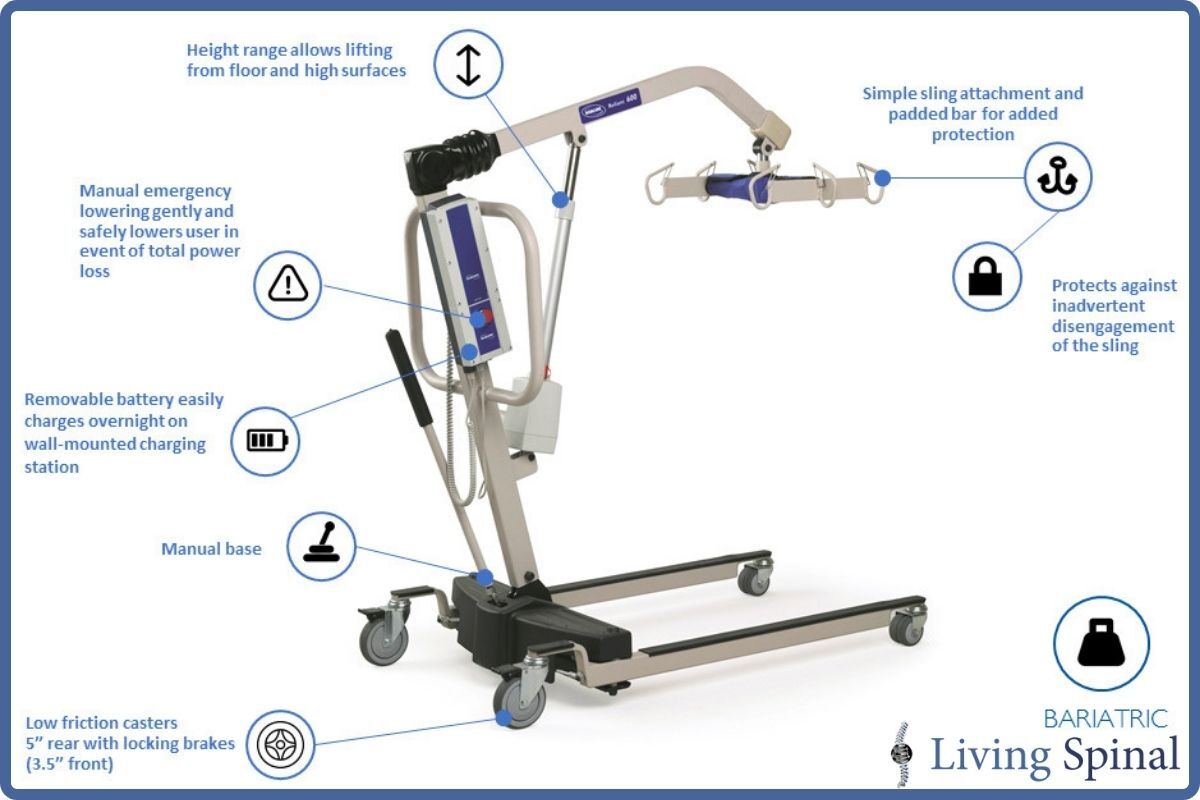

Product Features
Built with a heavy-duty steel frame designed to safely support transfers up to 600 lbs, accommodating a wide range of patient body types.
Features an electrically adjustable base that expands and contracts via hand pendant control, allowing caregivers to easily maneuver around wide chairs and beds.
Outfitted with a 360-degree rotating 6-point swivel bar that accommodates multi-point slings and provides extra clearance to enhance patient comfort during transfers.
Equipped with an accessible emergency stop button and a manual lowering device to ensure patient safety in the event of power loss.
Offers an expansive lifting range that allows patients to be safely transferred from the floor, high mattresses, or deep seating positions.
Features heavy-duty casters with dual rear locks that firmly secure the unit in place during patient loading and unloading procedures.
INVACARE RELIANT 600 BARIATRIC ELECTRIC LIFT
Product Specifications

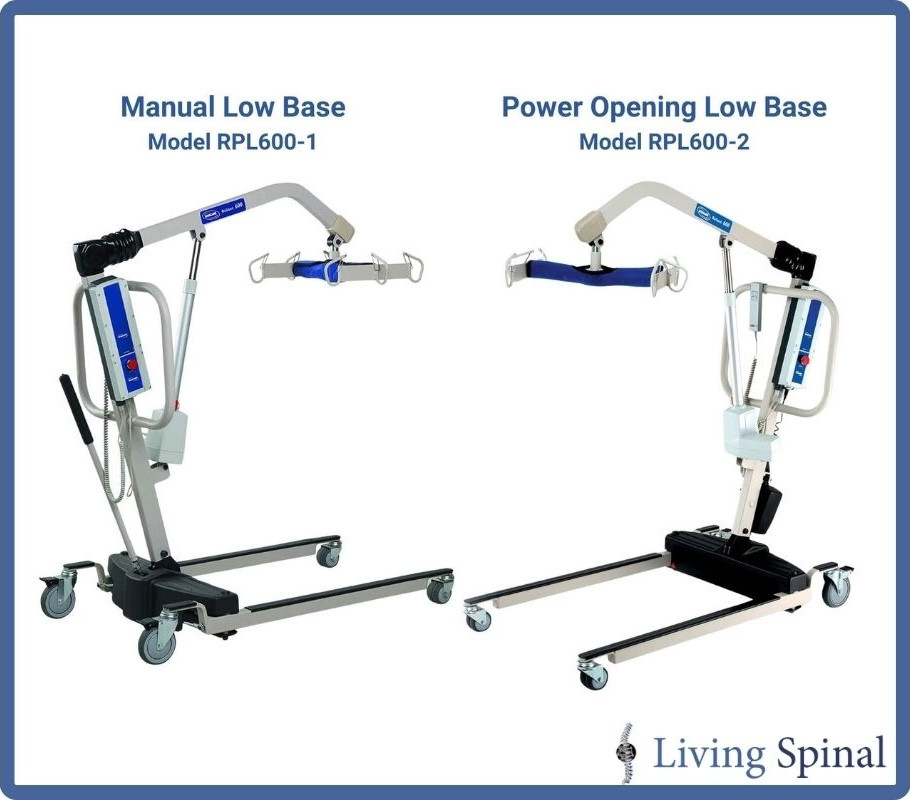

| Specification | Manual Low Base | Power Opening Low Base |
|---|---|---|
| Height at Sling Hook Up | 28" - 68" H | 28" - 68" H |
| Base Dimensions | 4.5"H Clearance 41"W Open 26.5"W Closed 48"L |
4.5"H Clearance 41"W Open 26.5"W Closed 48"L |
| Casters | 3.5" Front 5" Rear |
3.5" Front 5" Rear |
| Product Weight | 112 lbs. | 115 lbs. |
| Weight Capacity | 600 lbs. | 600 lbs. |
| Emergency Controls | Stop and Down | Stop and Down |
| Battery | 2-24V DC Rechargeable | 2-24V DC Rechargeable |
| Charge Time | 6 Hours | 6 Hours |
| Charger Input | 100-240V AC | 100-240V AC |
| Charger Output | 29.5DC | 29.5DC |
RELIANT 600 PATIENT LIFT BY INVACARE DOWNLOADS
RELIANT 600 PATIENT LIFT BROCHURE RELIANT 600 PATIENT LIFT USER MANUAL RELIANT 600 PATIENT LIFT ORDER FORM
RELIANT 600 PATIENT LIFT BY INVACARE VIDEOS
Reliant 600 Patient Lift by Invacare Buyer’s Guide
The Reliant 600 Patient Lift by Invacare is a heavy-duty mechanical transfer device engineered to safely move individuals with limited mobility. Built to handle demanding care environments, this powered lift minimizes physical strain on caregivers while ensuring dignified and secure transfers for patients. Its robust structural design makes it an essential tool for home care, rehabilitation centers, and medical facilities requiring high-capacity lifting assistance.
Reliant 600 High-Capacity Lifting Power
Designed specifically for higher weight requirements, the Reliant 600 features a reinforced steel frame capable of supporting up to 600 pounds. The broad boom design and extra-wide sling bar allow for comfortable positioning without pinching or crowding the patient. This structural stability provides peace of mind during transfers from beds, wheelchairs, or the floor, making it a reliable solution for bariatric patient care.
Invacare Lift Smooth Electric Operation
Powered by a smooth quiet motor, the Invacare lift eliminates manual hand-cranking in favor of precise pushbutton controls. Caregivers can easily operate the lift using an intuitive hand pendant, maintaining full control over the lifting height and speed. The system includes an emergency stop button and a manual lowering mechanism to ensure complete safety and control even during power disruptions.
Patient Transfer Versatility and Safety Features
Safety and comfort are central to every patient transfer performed with this equipment. The extra-wide padded swivel bar rotates 360 degrees, facilitating easy maneuvering and allowing precise alignment with sitting or lying surfaces. The base opens widely via a foot pedal or adjustment lever, enabling the lift to fit around wide armchairs, recliners, and standard beds during positioning.

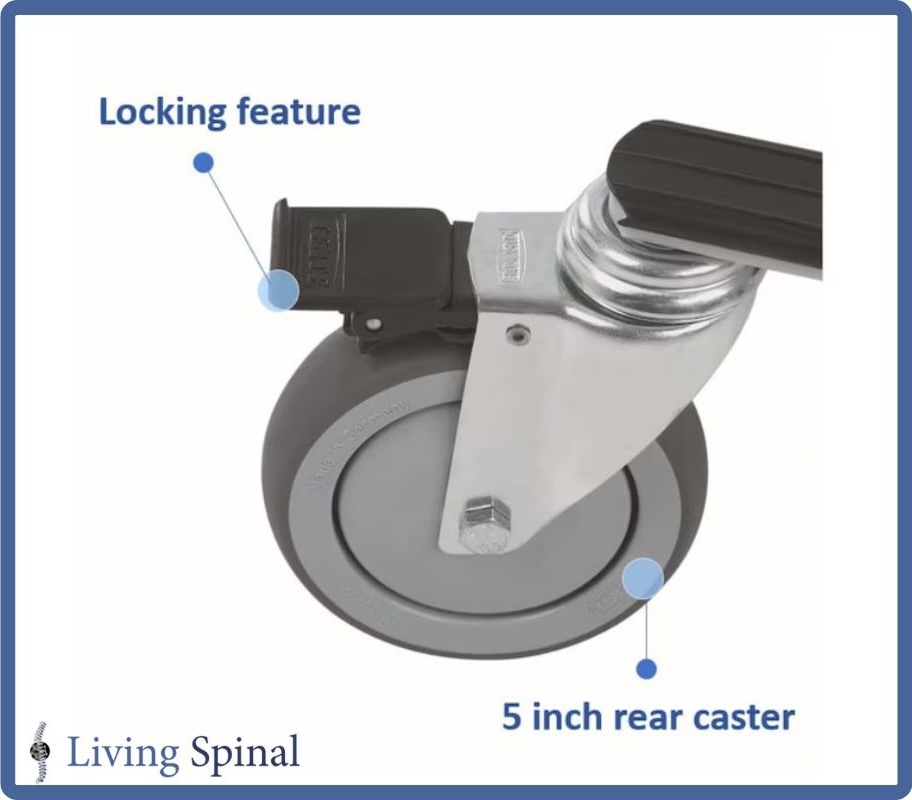

Heavy-Duty Frame and Caster System
To support its high weight capacity, the heavy-duty base is outfitted with dual-ball-bearing casters that allow smooth rolling across various flooring types. Rear locking casters secure the lift firmly in place during transfers to prevent unwanted movement. The durable powder-coated steel finish resists scratches and corrosion, maintaining the unit's structural integrity and clean appearance through repeated daily use.

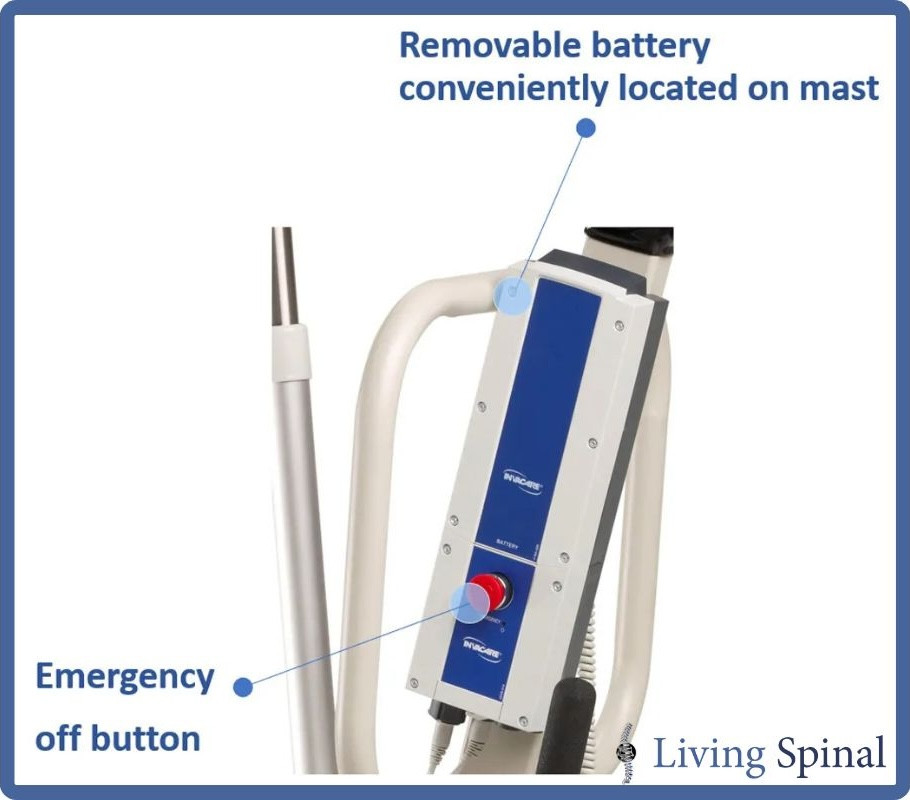

Electric Lift Battery and Maintenance System

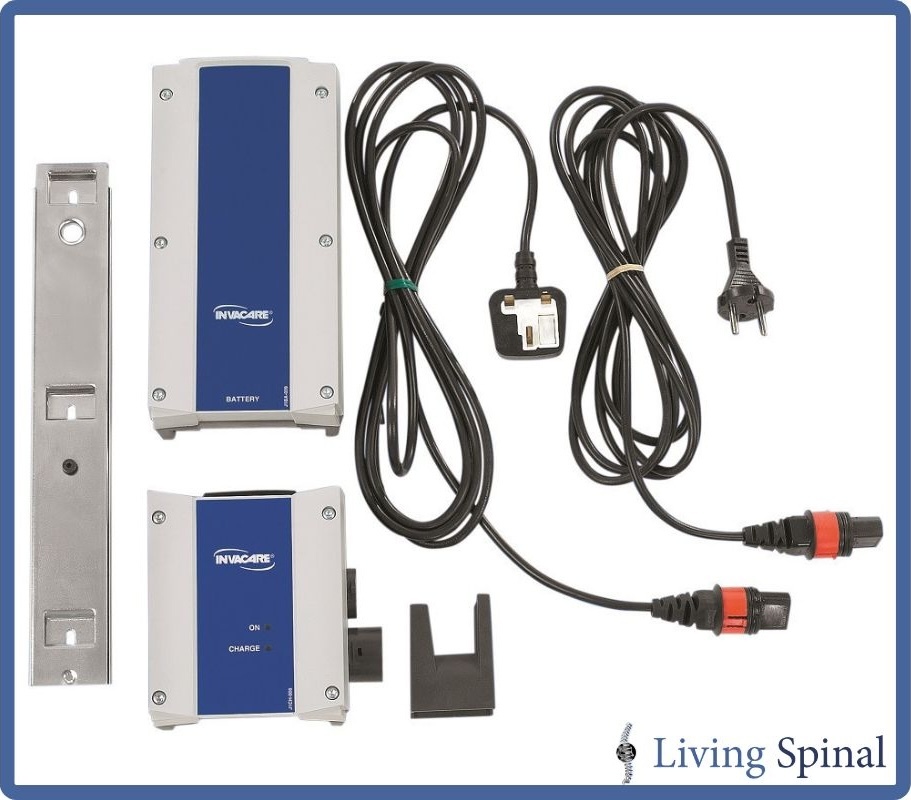

This electric lift system is powered by a high-performance rechargeable 24V DC battery pack that mounts directly to the mast. A removable battery design allows for continuous operation when paired with an off-board wall charger, eliminating downtime. An audible low-battery alarm alerts caregivers when recharging is necessary, ensuring the equipment remains ready for immediate use at all times.
Reliant 600 Patient Lift by Invacare Review
The Reliant 600 Patient Lift by Invacare is a premium bariatric mobility solution built for safety, durability, and operational ease. Combining a high-capacity heavy-duty frame with powered height adjustment and smooth caster mobility, it streamlines transfer routines for both caregivers and users. Its reliable electrical system and versatile base design make it an outstanding choice for safe patient handling across a variety of care settings.
No Buyers info available
1 Years Electronics
