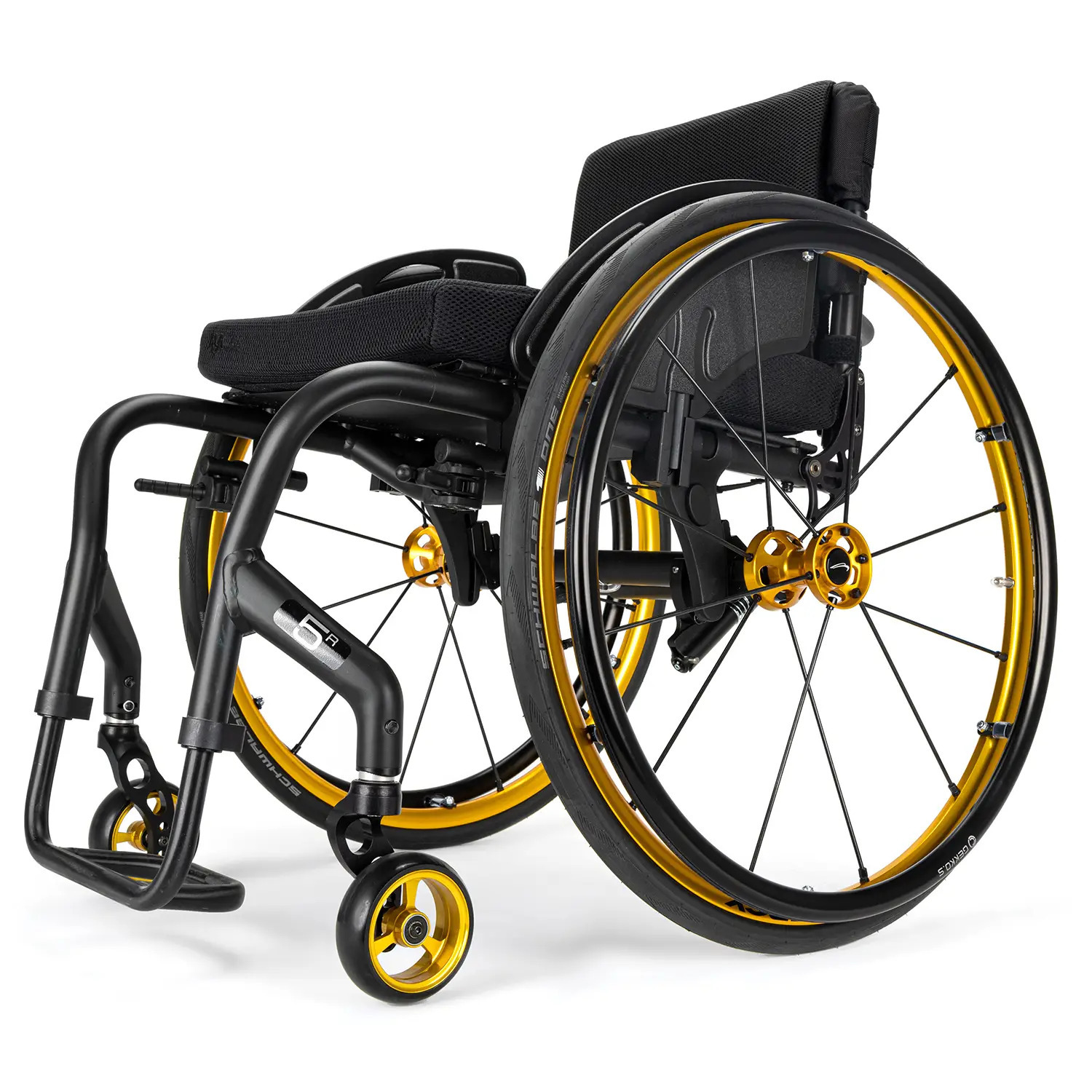

Quickie 5R Rigid Wheelchair by Sunrise Medical
Highly adjustable wheelchair to elevate your mobility!
The Quickie 5R is designed to deliver superior rigid wheelchair performance day after day. As you and your environment evolve, or as you refine your riding capabilities, the 5R’s frame and components adjust to elevate your mobility.

The Quickie 5R by Sunrise Medical brings customization and adjustability to new heights with its open-frame, evolutionary design. The Quickie 5R features a frame construction that allows for improved ride quality while the addition of the swept-back, hydro-formed caster link adds a streamlined look to the chair. Highly adjustable, the Quickie 5R’s axle plate is quick to customize to your specific needs. The Quickie 5R is compatible with many options, including premium options to ensure your mobility needs are met and independence isn’t compromised.
Not sure about sizing? See our Wheelchair Measurement Guide.
Quickie 5R Lightweight Wheelchair Features
|
|

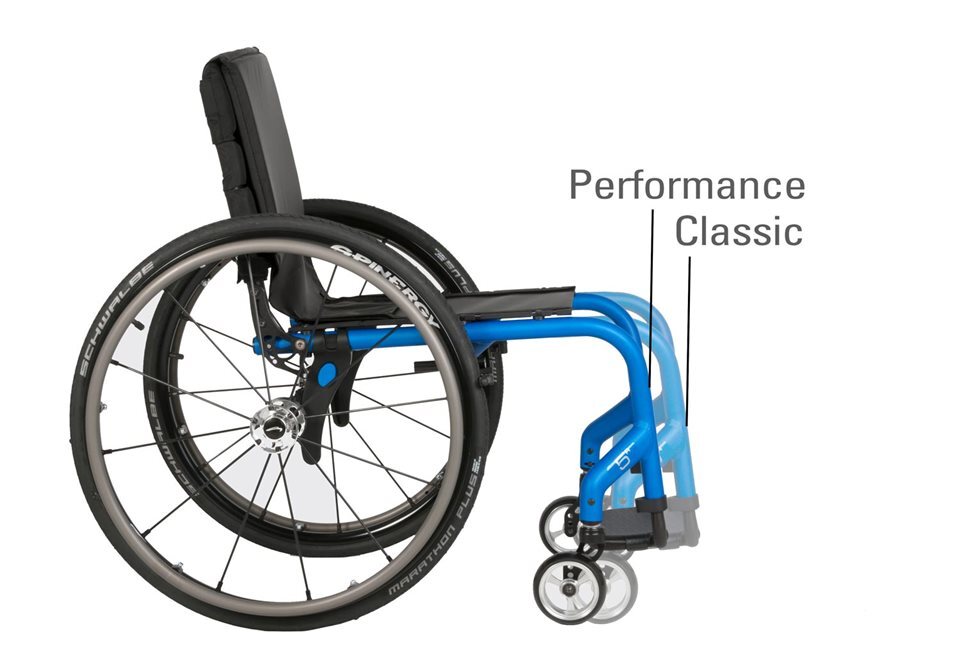

Open Frame Design with Hydro-Formed Caster Link The Quickie 5R’s open frame takes the proven ride quality and geometry that so many have loved about the GT and improves upon it with a swept-back, hydro-formed caster link for added style and a smooth ride. The 5R offers two frame options. The Classic frame features a traditional frame length for maximum stability. The shortened Performance frame length offers maximum responsiveness. |
|
Swept-Back, Highly Adjustable Axle Plate Design The swept-back axle plate design adds to the 5R's style and features a color window for an extra pop of color on your frame. But it isn’t just for looks - it is also incredibly quick to adjust. Available in two lengths - short (4.5" of vertical adjustment) and long (6" of vertical adjustment) - this axle plate ensures you are getting the adjustment range you need without adding unnecessary weight. |
![]() |
![]() |

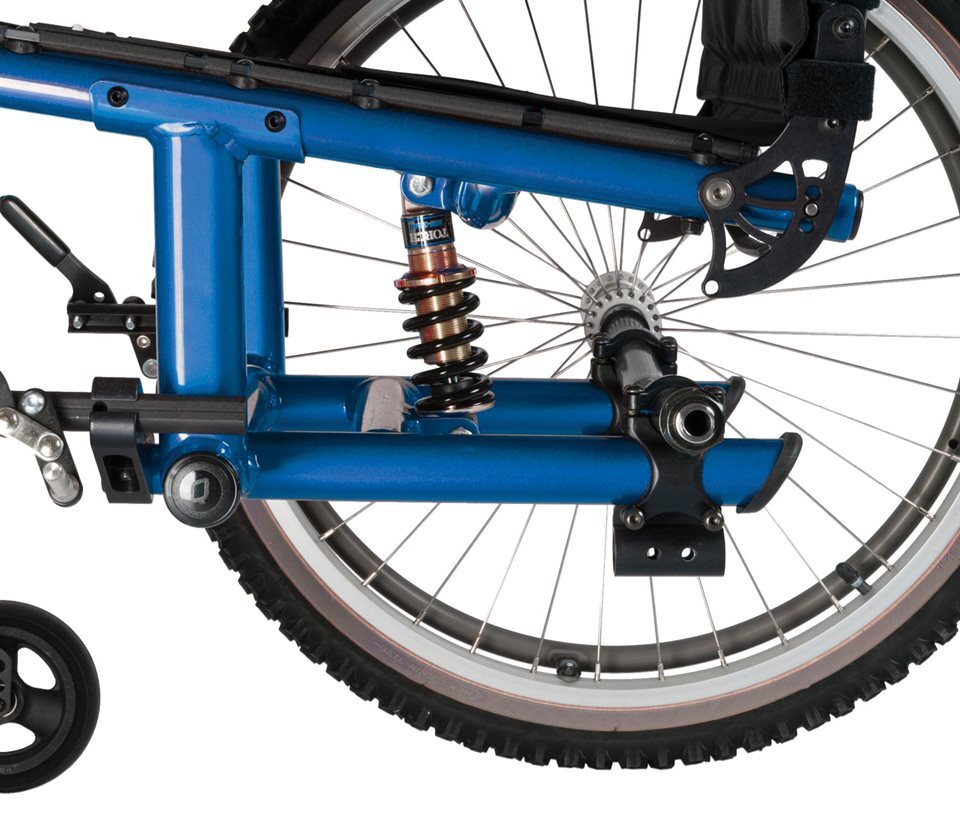

Access to Premium Options The 5R offers premium options that can elevate your product. Go with the XTR Suspension Frame, Mountain wheels, Knobby tires, and Frog Legs suspension forks for rugged chair performance. Add the Quickie Xtender motorized wheels to multiply the force you apply to the handrims by four times.
|
|

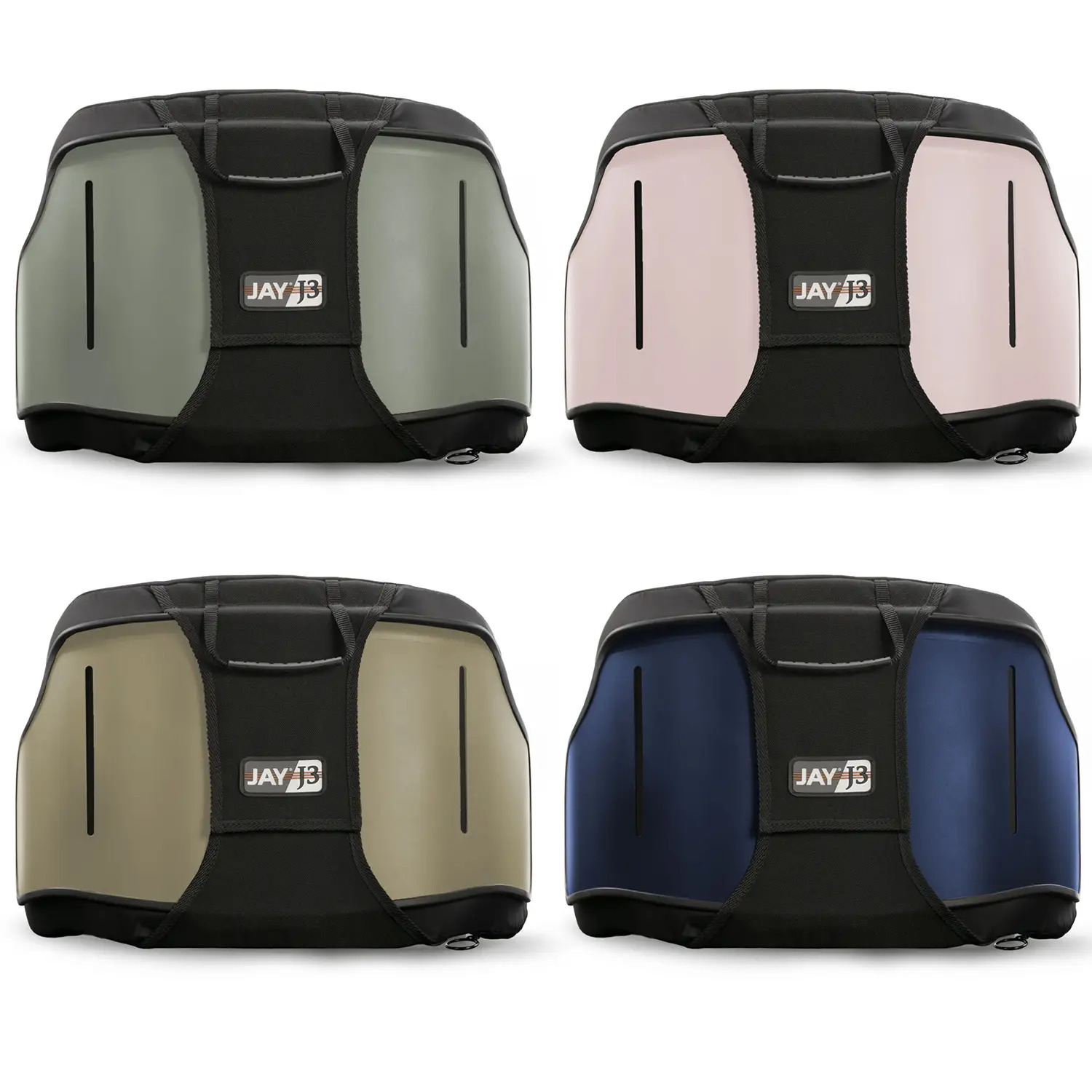

JAY Seating Options Choose from JAY's superior cushions and backs to get the most out of your mobility system. For lightweight skin protection, check out the JAY Lite or JAY X2. For an incredibly versatile backrest, try the JAY J3 back...and don't forget to have the back shell painted to match or complement your chair at no extra charge. |
![]() |
Quickie 5R Rigid Lightweight Wheelchair Specifications
|
Dimensions |
Seat Width |
12" to 20" |
|
Seat Depth |
2" to 20" |
|
|
Front Seat-to-Floor Height |
16" to 21" |
|
|
Rear Seat-to-Floor Height |
13" to 20" |
|
|
Back Height |
10" to 20" |
|
|
Back Angle Adjustment |
Fore (-) 17° to Aft (+) 8° |
|
|
Frame Angle |
75° 80° 85° |
|
|
Camber |
0° Choose between 4° and 8° with XTR Suspension |
|
|
Center of Gravity (COG) Adjustment |
-1.5" to 4" |
|
|
Shipping Dimensions |
31" L x 24" H x 24" W |
|
|
Performance/Weights |
Frame Type |
Classic Performance XTR Suspension Depth Adjustable Back |
|
Frame Material |
Aluminum |
|
|
Transit |
Yes |
|
|
User Weight Capacity |
265 lbs |
|
|
Product Weight |
Standard Configuration: 21.5 lbs. Transport: 12.9 lbs. Transport without Wheel Locks: 11.65 lbs. |
|
|
Average Shipping Weight |
50 lbs |
They are great together.
Pair your 5R with these great additions!

JAY Flow fluid and a contoured base wheelchair cushion for outstanding skin protection and stability.
Wheelchair cushion that combines the J2's skin protection capabilities with the J3's maximum stability
Frequently Asked Questions
No Buyers info available
SUNRISE LIMITED WARRANTY
A. FOR FOR LIFETIME
Frame and cross-brace (if applicable) warranty: 1. Although the anticipated useful service time of this wheelchair is five years, Sunrise guarantees the frame and cross brace against defects in material and workmanship for life or for as long as the original purchaser owns the chair. 2. This warranty does not apply if: a. The chair is subject to abuse. b. The chair is not maintained as recommended in the owner’s manual. c. The chair is transferred to a different person from the original owner.
B. FOR ONE (1) YEAR
We warrant all Sunrise-made parts and components of this device against defects in materials and workmanship for one year from the date of first consumer purchase. Backrest Tension Adjustable (Ballistic and 3DX Vented) Each Backrest Tension Adjustable is carefully inspected and tested to provide peak performance. Every Backrest Tension Adjustable is guaranteed to be free from defects in materials and workmanship for a period of twelve (12) months from the date of purchase provided normal use. Should a defect in materials or workmanship occur within twelve months from the original date of purchase, Sunrise Medical will, at its option, repair or replace it without charge. This warranty does not apply to puncture, tears or burns. Claims and repairs should be processed through the nearest Sunrise Medical authorized dealer. Except for express warranties made herein, all other warranties including implied warranties of merchantability and warranties of fitness for particular purpose are excluded. There are not warranties which extend beyond the description of the face hereof. Remedies for breach of express warranties herein are limited to repair of replacement of the goods. In no event shall damages for breach of any warranty include any consequential damages or exceed the cost of non-conforming goods sold.
C. LIMITATIONS
-
We do not warrant:
- Tires, upholstery, and pads.
- Damage from neglect, accident, misuse, or from improper installation or repair.
- Products modified without Sunrise Medical’s express written consent.
- Damage from exceeding the weight limit.
- This warranty is VOID if the original device serial number tag is removed or altered.
- This warranty applies in the USA and Canada only. Check with your supplier to find out if international warranties apply.
- This warranty is not transferable and only applies to the first consumer purchase of this device through an authorized Sunrise Medical dealer.
D. WHAT WE WILL DO
Our sole liability is to repair or replace covered parts. This is the exclusive remedy for consequential damages.
E. WHAT YOU MUST DO
- Obtain from an authorized supplier while this warranty is in effect, prior approval for return or repair of covered parts.
- Return the wheelchair or part(s), freight pre-paid to the designated Sunrise Medical location.
- Pay the cost of labor to repair, remove or install parts.
F. NOTICE TO CONSUMER
- If allowed by law, this warranty is in place of any other warranty (written or oral, express or implied, including a warranty of merchantability, or fitness for a particular purpose).
- This warranty gives you certain legal rights. You may also have other rights that vary from state to state.
G. ADDITIONAL WARRANTY INFORMATION
For goods provided by Sunrise Medical Pty Ltd in Australia, our goods come with a guarantee by Sunrise that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably forseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The benefits to you given by this warranty are in addition to your other rights and remedies under a law in relation to the goods to which the warranty relates.
