Jazzy Carbon HD Folding Power Wheelchair
by Pride Mobility
The Jazzy Carbon HD is Pride Mobility’s heavy-duty, ultra-lightweight folding power wheelchair designed for users who need durability without sacrificing portability. Weighing just 32.2 lbs without the battery!
What sets the Jazzy Carbon HD apart is its combination of heavy-duty performance and advanced technology in such a compact package. Very few folding powerchairs stay under 33 lbs while still supporting up to 400 lbs, giving this model one of the best strength-to-weight ratios in its category.
It cruises up to 3.7 mph, handles tight spaces with a 36.4" turning radius, and delivers up to 12.4 miles per charge. With the upgraded digital display, USB-C charging port, and puddle light, the HD is designed for everyday convenience.
Jazzy Carbon HD Key Features
Heavy Duty Frame: A carbon-fiber frame that weighs just 32.2 lbs (without battery) yet supports 400 lbs.
Folding Design: Simple folding mechanism allows the chair to fit easily into trunks for transport.
Lithium Power: Includes a 24V 20AH Lithium battery for extended range (12.4 miles). Airline compliant 12AH option available.
Digital Joystick: Programmable joystick with built-in USB-C charger and puddle light for visibility.
Comfort & Support: Features 20" wide seat, front suspension, padded back, and swing-away or optional elevating legrests.
Performance: Top speed of 3.7 mph and a turning radius of 36.4" for indoor and outdoor maneuverability.
Jazzy Carbon HD Specifications
| Specifications | |
|---|---|
| Drive Range | 12.40 miles |
| Weight Capacity | 400 lbs |
| Base Weight | 32.20 lbs (no battery) |
| Overall Dimensions | Width: 26.40" Length: 36.81" |
| Turning Radius | 36.40" |
| Tire Type | Solid (10" Rear, 5" Front) |
| Drive Type | Rear Wheel Drive |
| Legrest Options | Footplate, Elevating |
| Seat Dimensions | Width: 20" - 21" Depth: 20" |
| Battery Info | Type: 24V 20AH Lithium Included: Yes Charger: Off Board |
| Warranty | 5 Year Limited (Frame) |
Jazzy Carbon HD Videos
See the Jazzy Carbon HD Heavy Duty Folding Power Wheelchair in Action
Jazzy Carbon HD Compatibility Guide

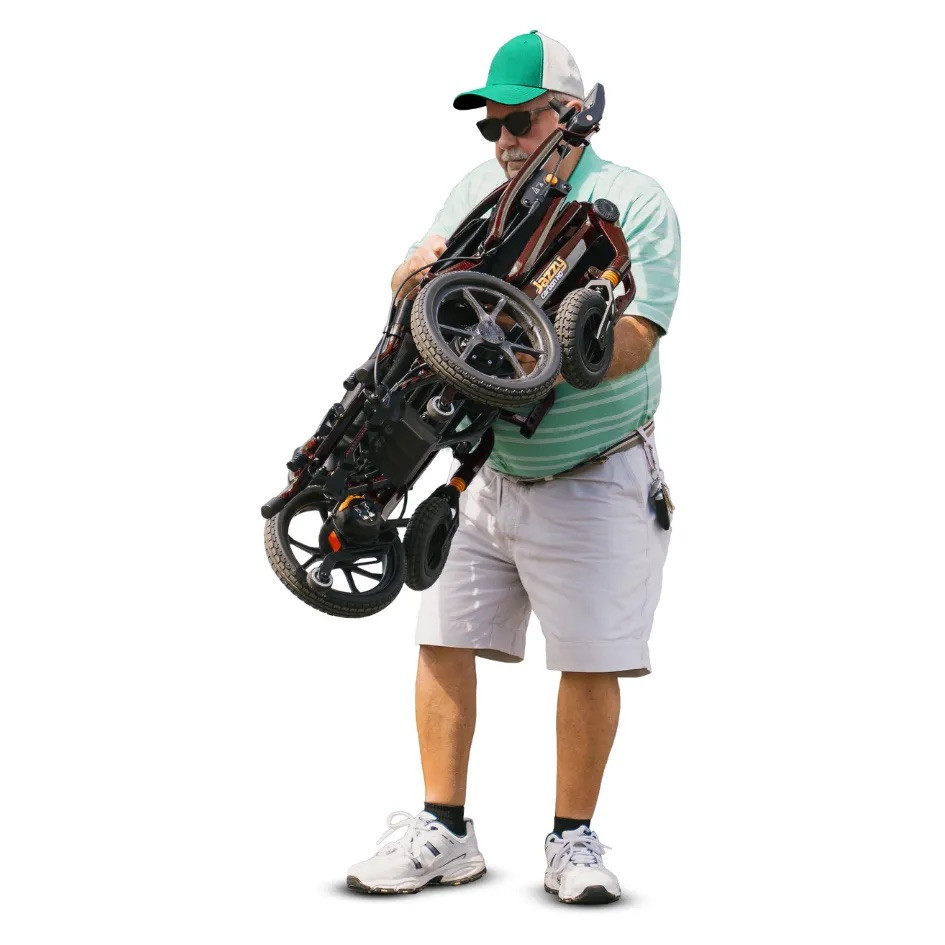

Folded Size: 36.8" L x 26.4" W x Folded Height
Compact design folds in a few easy steps.
Accessories:
Jazzy Carbon HD Accessories & Options
- Headrest w/ Attendant Control Bracket
- Jazzy Travel bag w/ Battery Travel Bag
- Additional 12AH Lithium Battery - Airline Compliant
- Simplicity Cushion 20”x 20”
Jazzy Carbon HD Reviews
"It balances real-world strength with true travel friendliness. The light carbon-fiber design makes it practical for loading into a vehicle."
"Supports 400 lbs which is amazing for such a light chair. The upgraded joystick and USB-C port are nice touches."
"Finally a heavy duty folding chair that doesn't feel like a tank. Very smooth ride and the battery life is excellent."
No Buyers info available
Warranty Information
FIVE-YEAR LIMITED WARRANTY
For five (5) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
- Structural frame components, including: Main Frame
13-MONTH LIMITED WARRANTY
For one (13) months from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
Electronic components, including:
- Charger Assembly
- Controller
- Joystick
- Electrical Harness
Main frame assemblies, including:
- Anti-tip forks
- Caster forks
- Metal seat framing
- Accessories
- Front rigging mounting brackets
Other components, including:
- Brakes (electronic function ONLY)
- Motor/gearbox assembly
- Bearings and bushings
- Plastic components, excluding body
13-MONTH LIMITED WARRANTY: Batteries
The batteries are covered by a separate 13-month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride.
RECONDITIONED UNITS WARRANTY
All reconditioned units are covered by a six-month warranty from Pride effective from the date of purchase.
WARRANTY EXCLUSIONS
- ABS Plastic shrouds and footrests
- Motor brushes, Upholstery and seating
- Brake pads (wear items)
- Fuses
- Tires and tubes (wear items)
- Circumstances beyond the control of Pride
- Labor, service calls, shipping and other charges incurred for repair of the product, unless specifically authorized by Pride Mobility Products Corp.
- Repairs and/or modifications made to any part without specific consent from Pride
Exclusions also include components with damage caused by:
- Contamination
- Abuse, misuse, accident, or negligence
- Battery fluid spillage or leakage
- Commercial use, or use other than normal
- Improper operation, maintenance, or storage
FIVE-YEAR LIMITED WARRANTY
For five (5) years from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
- Structural frame components, including: Main Frame
13-MONTH LIMITED WARRANTY
For one (13) months from the date of purchase, Pride will repair or replace at our option to the original purchaser, free of charge, any of the following parts found upon examination by an authorized representative of Pride to be defective in material and/or workmanship:
Electronic components, including:
- Charger Assembly
- Controller
- Joystick
- Electrical Harness
Main frame assemblies, including:
- Anti-tip forks
- Caster forks
- Metal seat framing
- Accessories
- Front rigging mounting brackets
Other components, including:
- Brakes (electronic function ONLY)
- Motor/gearbox assembly
- Bearings and bushings
- Plastic components, excluding body
13-MONTH LIMITED WARRANTY: Batteries
The batteries are covered by a separate 13-month warranty, provided by the battery manufacturer. The batteries are not warranted by Pride.
RECONDITIONED UNITS WARRANTY
All reconditioned units are covered by a six-month warranty from Pride effective from the date of purchase.
WARRANTY EXCLUSIONS
- ABS Plastic shrouds and footrests
- Motor brushes, Upholstery and seating
- Brake pads (wear items)
- Fuses
- Tires and tubes (wear items)
- Circumstances beyond the control of Pride
- Labor, service calls, shipping and other charges incurred for repair of the product, unless specifically authorized by Pride Mobility Products Corp.
- Repairs and/or modifications made to any part without specific consent from Pride
Exclusions also include components with damage caused by:
- Contamination
- Abuse, misuse, accident, or negligence
- Battery fluid spillage or leakage
- Commercial use, or use other than normal
- Improper operation, maintenance, or storage
