ELESMART A5 by CNE BIKES

The ELESMART A5 electric wheelchair handcycle attachment is designed to transform your manual wheelchair into a powerful electric-powered wheelchair effortlessly!

With a compact and portable design, weighing only 33 lbs, this kit is easy to carry and install. The 12-inch tire diameter, paired with a robust 36V 500W motor, ensures smooth and reliable performance across various terrains, enhancing mobility and freedom.

ELESMART A5 Features

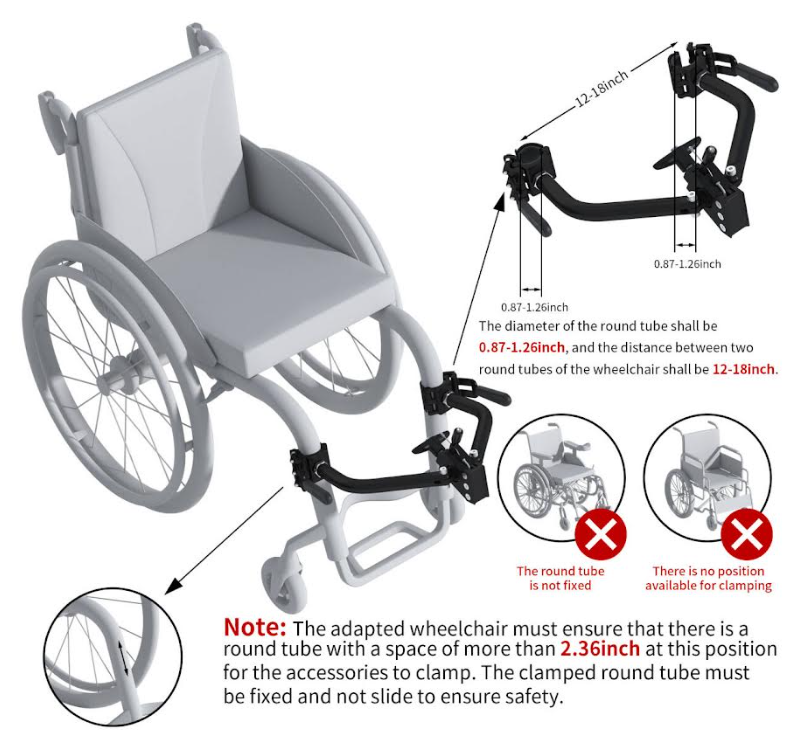

Pre-Assembled And Easy To Install: With 99% of components pre-assembled, the wheelchair handcycle attachment is ready to use right out of the box, requiring minimal effort for setup. It’s compatible with wheelchairs with tube diameters ranging from 0.87 to 1.3 inches, suitable for most wheelchairs. The adjustable mounting system allows for a secure fit without compromising leg room. Clear instructions are provided to guide you through the installation process.

High-Performance Motor and Battery: Featuring a highly efficient 10.4/12.8 Ah rechargeable lithium battery, with a maximum range of up to 31/37 Miles. The gear motor is 20% more energy-efficient than gearless motors and excels in climbing, effortlessly tackling slopes of 8-10 degrees. The kit’s maximum speed is 15.5 mph, with a variation of 3 mph depending on the rider’s weight and terrain, ensuring both speed and safety during use.

Advanced Safety and Control Features: Safety is a priority with the wheelchair accessories kit. It includes a reliable disc brake system that ensures precise and secure stopping power. The built-in shock absorption system guarantees a smooth ride, while the reverse speed of 1.9 mph enhances safety during backward maneuvers. Additionally, the kit features a high-intensity LED front light for extended range and visibility, along with an integrated horn for added convenience and safety during nighttime use.

User-Friendly Design and After-sales Guarantee: The conversion kit has a color display featuring touch controls, allowing users to monitor and adjust settings easily. The cruise control function enables users to maintain a constant speed with minimal effort, enhancing the overall driving experience. We provide a 2-year warranty, perfect after-sales

Electric Handcycle Wheelchair A5 Specifications and Technical Parameters

Model	A5
Intended Use	Provides power to the wheelchair
Patient Population	The elderly and disabled
Indication	Urban smooth road
Shelf Life	five years (excluding wearing parts)
Wheel Diamter	12"
Motor Power	36V/48V 500W
Speed*	25KM/H
Torque	45Nm
Lithium Battery	10.4/12.8/16
Range(KM)	50/60/70
Range(KM)	COLOR TFT+USB
Frame	Suspension
Connection Method	Side



Gear and Speed Parameters: 3 forward gears, maximum speed of 25KM/H, 1 reverse gear, right-hand control for forward motion.
Cruise Control Function: Enabled by default, can be turned off.
Maximum Speed: Affected by actual user conditions, load, road conditions,etc., with a variation of ±5KM.
Range: Measured with a weight of 50kg work on 1 level on a flat road. Range depends on userweight, road conditions, wheelchair tire condition, battery condition, speed, and driving habits.
Charger: Complies with EU regulations, EMC tested, 36V dimensions is 104.3*53*26mm, 300g, Easy to take !



ELESMART A5 Wheelchair Attachment Download

ELESMART A5 User Manual

ELESMART A5 Brochure
