Dragonfly Manual Handcycle by Rio Mobility

 Dragonfly 2.0 - Nexus 8 Manual Handcycle

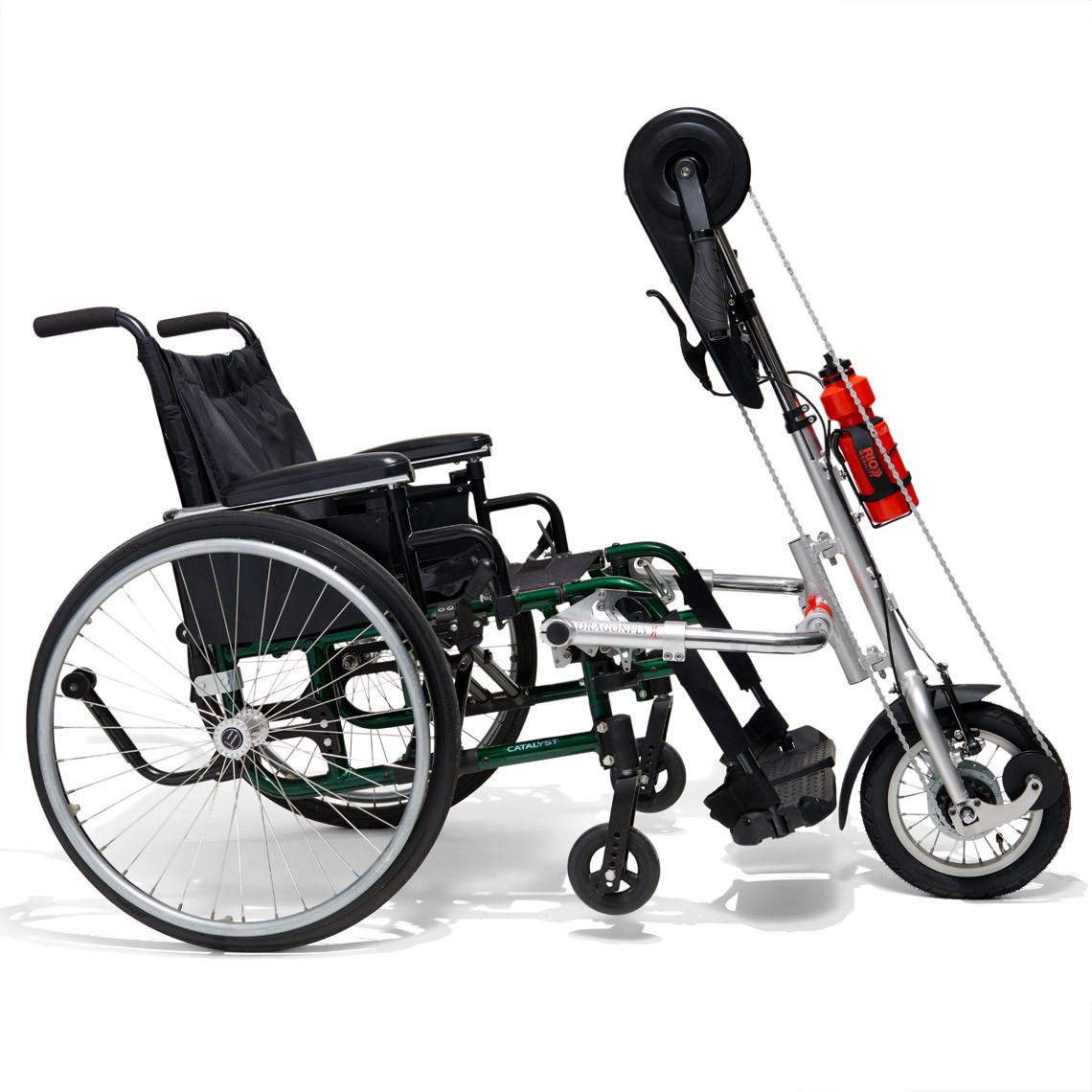

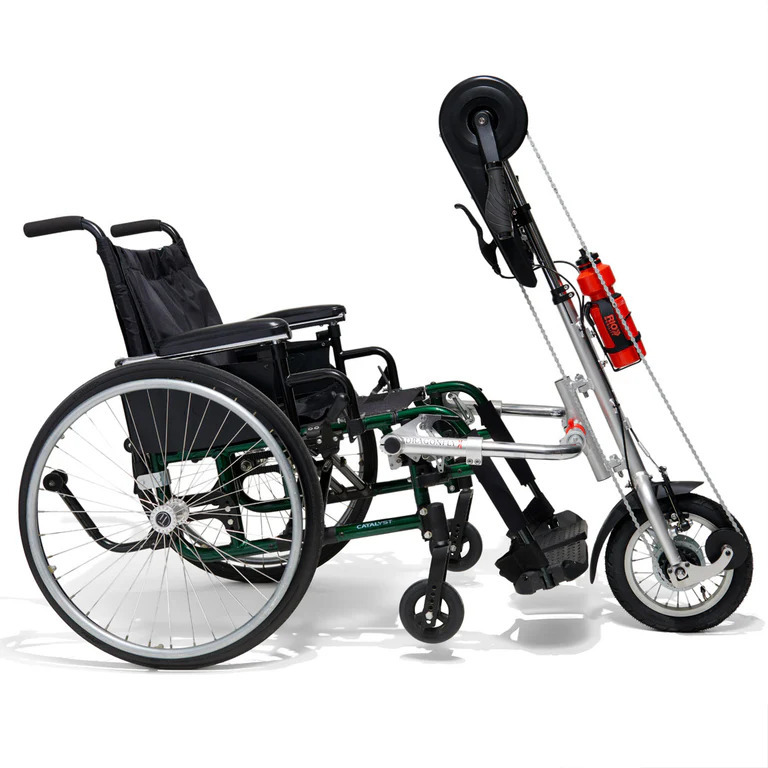

The Dragonfly turns your wheelchair into a handcycle. It’s a bicycle for your hands!

A bicycle for your hands! - The Dragonfly turns your wheelchair into a handcycle in seconds. It attaches to most wheelchairs and the installation process typically takes around 30 minutes to an hour only. After the installation process is completed the device latches on and off your wheelchair in seconds. It features Shimano™ Nexus 8 speed IGH (Internal Gear Hub.) and back-pedal coaster brakes (no cables in the handles.). The frame and handles remove easily for transportation in car, plane, or for storage. It also includes both coaster brakes and an auxiliary parking V-brake.

The Dragonfly Manual Handcycle build physical strength while propelling your own wheelchair to places you’ve never thought possible and the 8 speeds help you tackle all roads.

With back-pedal coaster brakes (no cables in the handles.) Attaches to most wheelchairs.  There is an installation process that typically takes around 30 minutes to an hour, you can DIY by checking out our video here. After the installation process is completed once, the device latches on and off your wheelchair in seconds. 8 speeds help you tackle all roads. Includes both coaster brakes and an auxiliary parking V-brake. Frame and handles remove easily for transportation in car, plane, or for storage. Propel your own wheelchair to places you’ve never thought possible.



	Dragonfly Manual Handcycle Get the exercise you desire, without having to leave your everyday chair. By attaching the Dragonfly to your chair, you can utilize the handcycle to propel you forward, saving your shoulders from wear and tear brought on by constant pushing.
Attaches to your wheelchair in seconds Just wheel up to the Dragonfly, lift it by the handles, and attach to the wheelchair. It lifts the casters and sets the position.
	Fingertip control of brakes and gear shifter Fingertip controls are right where you can reach, and easy to use.
Index shifter mounted on handle for easy gear changes Simple push of the finger taps the gears into place.
	7 speed derailer with disc and V-brake Excellent stopping and shifting...smooth and easy.

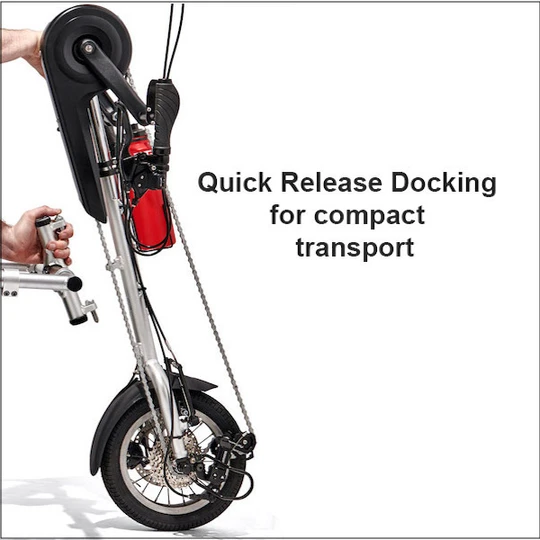

Frame comes apart without tools for transport and storage Very simple to take off your wheelchair, and pop into a trunk or rest against a wall until next time.
	Handles removable without tools Anyone can put this together. Does not require specific mechanical skills. Makes for a convenient smaller package if handles are removed.

Rio Mobility Dragonfly Handcycle Technical Specifications

DRIVE TRAIN: 8 speed derailleur 11-28T cassette 33T chain ring Index shifter  TIRE: 12.5″ X 1.5″ (40-203)  BRAKES: 140mm disc brake and Promax V-brake  Attachment Frame Weight: 140mm disc brake and Promax V-brake  FRAME: Aluminum 6061  DRIVE TRAIN: 7 speed derailleur 11-28T cassette 33T chain ring Index shifter  Attachment Frame Weight: 5.8 lbs / 2.6 kg  Drive Unit Weight:  10.3 lbs / 4.7 kg  Total Weight: 16.1 lbs / 7.3 kg  Shipping Dimensions: 36” x 9” x 13”  Shipping Weight: 22.5 lbs / 10.2 kg

Compatibility Chart for Dragonfly Manual Handcycle

Dragonfly 2.0 Handcycle Installation Video

Dragonfly Manual Handcycle Downloads

User Manual

Testimonials

---



I just wanted you to know how much I am enjoying my dragonfly.  I became a quad 18 years ago when I was 56. Heretofore, I was only able to get aerobic exercise by pushing my chair.  The unit allows me to become a trike without having to transfer.  The push-pull crank is great upper body exercise and I am now able to "bike" with my wife in her recumbent. Rougher terrain is so much easier to traverse which has extended my destination options.  Thanks for making it possible.

ALAN VINCENT



We have received our order, have assembled, and test drove it. My daughter is absolutely in love and the neighbors are in awe. I cannot thank you enough for this awesome creation. If there is a place that I can leave a review and/or comment about this device, I feel that I need to praise you publicly for this because it is so awesome!

BRENDA

Dragonfly Manual Handcycle by Rio Mobility Buyer’s Guide

The Dragonfly Manual Handcycle by Rio Mobility transforms a manual wheelchair into a fully functional hand-powered cycle. Designed for everyday use or recreational mobility, this front-mounted attachment provides users with increased independence and efficient propulsion on a wide range of surfaces.

Dragonfly Manual Handcycle Quick-Connect Design

The Rio Mobility handcycle features a clamp-and-latch mounting system that allows for fast attachment and removal from most rigid or folding wheelchairs. This modular design helps users transition between traditional wheelchair use and handcycling with minimal effort.

Ergonomic Hand Crank System

The Dragonfly Manual Handcycle uses a hand-powered crank system positioned at the front of the device. The dual-arm crank provides consistent rotational motion that is easy to control, allowing users to propel the wheelchair forward using upper-body strength.

Rio Mobility Manual Handcycle Integrated Caliper Brake with Parking Option

Equipped with a caliper hand brake, the Dragonfly Manual Handcycle ensures safe stopping power on flat or inclined surfaces. A parking brake feature adds an extra level of stability, helping users stay securely in place when stationary.

Rio Mobility Dragonfly Handcycle Adjustable Frame and Fit

The manual handcycle by Rio Mobility includes an adjustable-length frame and crank height to suit different user needs. These customizable settings accommodate a variety of wheelchair models and allow the device to be fine-tuned for comfort and accessibility.

Compact and Lightweight Construction

The aluminum frame of the Dragonfly Manual Handcycle offers strength without excessive weight. This lightweight construction contributes to easier handling, reduced fatigue, and improved maneuverability during long-distance handcycling or daily commuting.

8-Speed Internal Gear Hub

An internal gear system offers eight speed settings for adapting to changes in terrain and desired cadence. The gearing mechanism of the Rio Mobility manual handcycle provides smooth shifting and enhanced control on both uphill and downhill paths.

Dragonfly Handcycle by Rio Mobility Durable Front Wheel and Tire

The Dragonfly Manual Handcycle  is equipped with a durable 16-inch front wheel fitted with a high-traction tire. This wheel setup improves performance on a range of surfaces, from pavement to light gravel or grass, while maintaining low rolling resistance.

Compatibility with Wheelchair Models

Designed to fit most standard adult wheelchairs, the Dragonfly Manual Handcycle by Rio Mobility is compatible with both rigid and folding frames. Mounting brackets and adjustments ensure a secure, centered connection for reliable steering and propulsion.

Dragonfly Manual Handcycle by Rio Mobility Review

The Dragonfly Manual Handcycle provides a reliable, manually powered cycling solution for wheelchair users seeking increased speed and outdoor mobility. Its ergonomic design, multiple gearing options, and easy mounting system make it a solid choice for users looking to expand their range of motion and independence.
