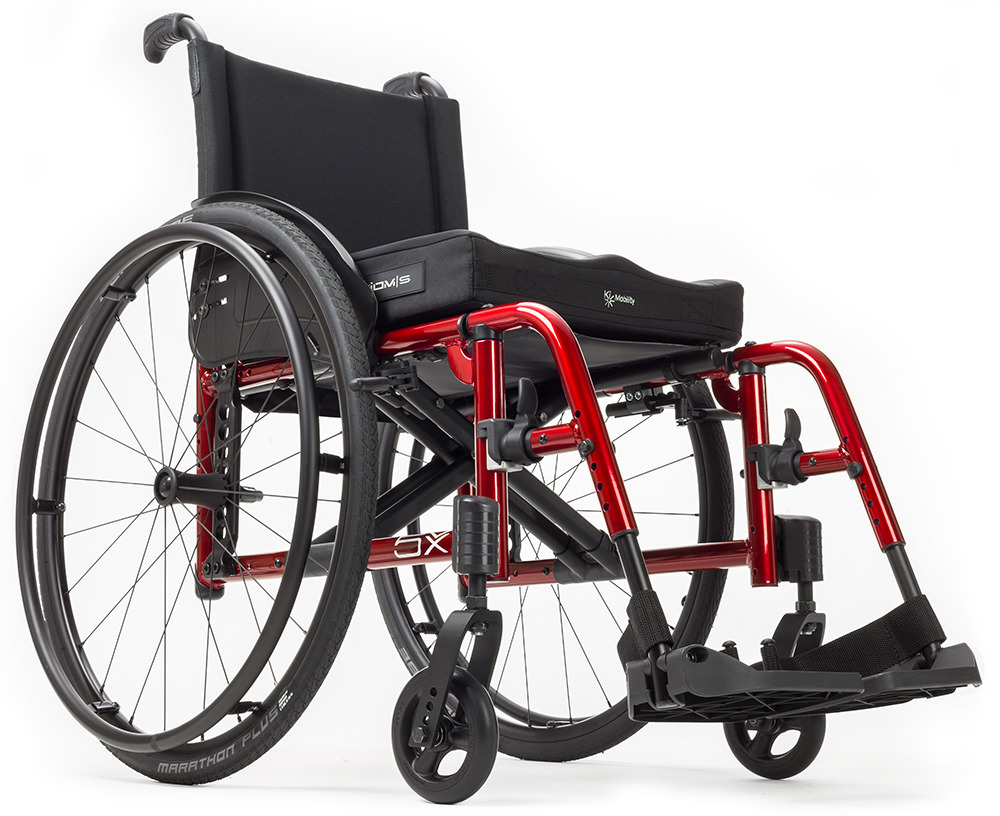

CATALYST 5Vx by Ki Mobility
The Catalyst 5Vx has been redesigned from the logo to the frame, with a modern, minimalist approach. Enhanced designs let you optimize your ride!
 |
IGNITING THE EVOLUTION Endless Style. Expected Quality. Essential Value.
The Catalyst 5Vx is Ki Mobility’s Catalyst 5 with a newly designed axle plate and an adjustable camber tube. The Catalyst 5Vx is made from the ultra-light, high-strength 7000 series aluminum. This alloy dampens vibrations to provide a smoother and more comfortable ride. You also have the option to upgrade the frame or cross brace to titanium. Ki Mobility’s uniquely designed cross brace provides the feel of a rigid frame wheelchair with the convenience of a folding frame. The Catalyst line offers a Dual Interlocking Cross Brace. This design creates a frame that locks together so that it minimizes unwanted movement and maximizes the energy transferred in each of your pushes making your push as efficient as possible. The “Between-The-Rails” Seat Design has the seat frame tubing setting side-by-side rather than stacking them atop one another. Instead of the weight of the user resting on the cross brace, the weight is transferred to the side frames. This prevents having to use heavy cross braces which add weight to other manufacturer’s wheelchairs.
CATALYST 5Vx Ultralightweight Wheelchair Features
 |
UNLEASH THE TRANSFORMATIVE POWER OF COLOR

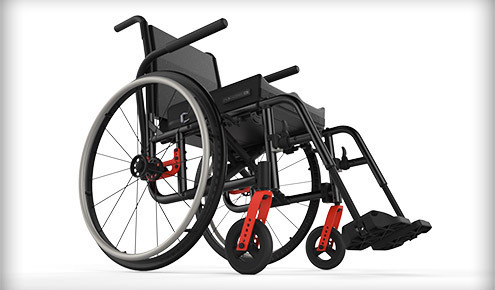

Express your authentic style by crafting a truly distinctive and personalized look using the new Color Accent option. Color Accents provide a subtle highlight of color using an ultra-durable powder coat finish on a select group of parts.* To explore our curated palette of complimentary colors. This upgrade is available at no additional charge.
*The Color Accent option on Catalyst 5Vx includes the following parts: Forks and Axle Plate.
|
|
THE CATALYST DIFFERENCE
Catalyst 5Vx takes advantage of all of the "Catalyst Difference" design features to allow you to fit, adjust and ride with confidence. A defining characteristic of each chair is its axle plate which we will highlight below.
|
 |
 |

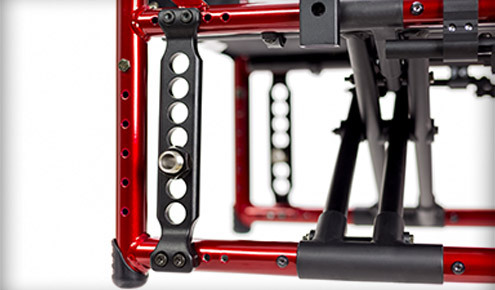

BETTER ADJUSTMENT
Center of gravity adjustment and ride performance go hand in hand. The redesigned axle plate and rear frame give you 2” (5.08 cm) of center of gravity adjustment in 1/2” (1.27 cm) increments and 5” (12.7 cm) of rear seat height adjustment over 7 positions. Find your fit, ease your propulsion and optimize the ride you’ve come to expect with Catalyst.
|
|

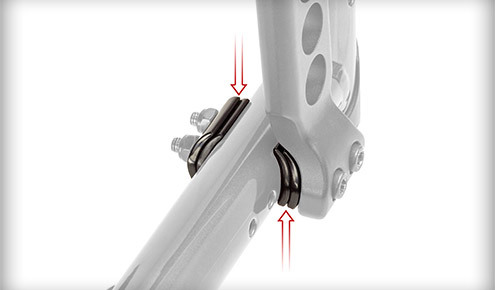

ADJUSTABLE CAMBER
The Adjustable Camber comes at no charge, giving you up to 4° of camber in 1” increments. A simple adjustment and convenient option provides you with the parts up front so you have everything you need when adjusting or fine tuning camber later.
|
 |
 |

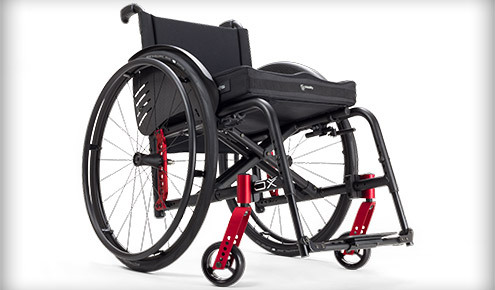

STYLE
Personalizing your Catalyst 5Vx begins with you. Pick your greatest shade then highlight your look with our anodizing package, options and accessories. With thousands of color combinations to choose from, be bold. Be you.
|
| 300 LBS STANDARD WEIGHT CAPACITY
Weighing in at a mere 13.9 lbs transport weight*, Catalyst 5Vx is the lightest and strongest folding wheelchair on the market with a 300 lbs standard weight capacity! A heavy duty option is also available.
|
 |
 |

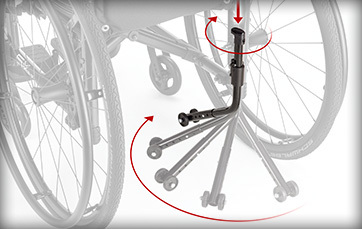

SWING-IN ANTI-TIP
Without sacrificing the compact frame design, the easy to activate Swing-In Anti-Tips swing in under the frame so they are there when you need them and gone when you don't. Available in pairs, Left or Right mounting options.
|

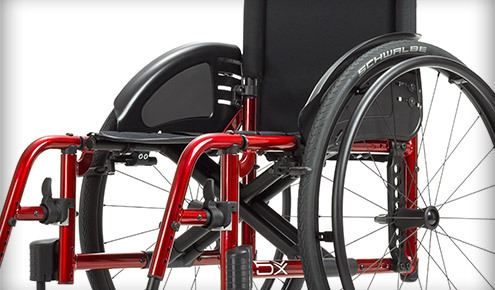

FENDER SIDE GUARDS
Choose between carbon fiber and foam padded aluminum side guards with fender to protect your clothing from the road while adding a sleek look to your chair.
|
 |
 |

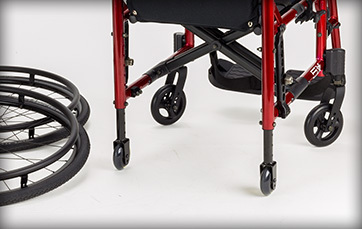

TRANSIT WHEELS
Integrated into the rear frame for a minimalistic look, Transit Wheels allow you to remove the rear wheels for easier access through narrow spaces. The transit wheels are adjustable across a range of rear wheel and rear seat height combinations.
|
|

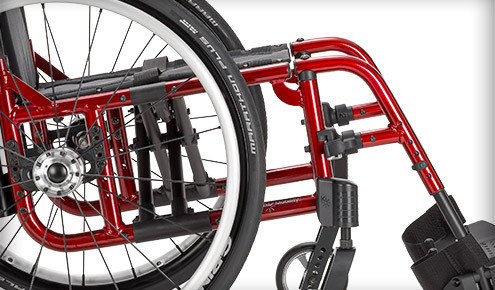

FRONT FRAME STYLES
Catalyst 5Vx offers the option of a swing away front end featuring our patented footrests or 70° or 80° fixed frames. The swing away hangers come in 4 bends (60°, 70°, 80° & 90°) are light and easy to use and so strong we offer a lifetime warranty.
|
 |
 |

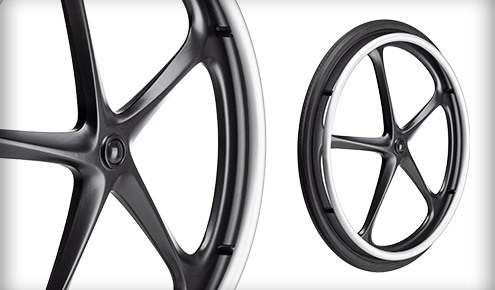

MAG
Exclusive to Ki, the magnesium Maxx Mag wheel creates a sleek, modernized look while providing greater stiffness and lower weight than classic nylon composite mag wheels. Maxx Mag wheels are available in 20”, 22” and 24”.
|
|

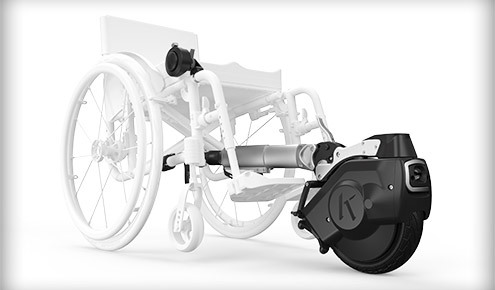

POWER ASSIST COMPATIBLE
Twist by Klaxon redefines what is possible in power assist. Fully compatible with atalyst 5Vx, Twist is designed to integrate effortlessly. Hardware comes preinstalled, and user drive settings are pre-programmed. That means that it is ready to roll, right out of the box. Twist stands apart as the only power assist solution to combine front and rear drive capability in a single, intuitive system. Discover how Twist is transforming mobility by delivering more freedom and flexibility, and fewer compromises.
|
|
CATALYST 5Vx Folding Wheelchair Specification
| Transport Weight * | 13.9 lbs (6.3 kg) |
| Standard Weight | 24 lbs (10.9 kg) |
| Seat Width | 14" - 22" (36 - 56 cm) |
| Seat Depth | 14" - 20" (36 - 51 cm) |
| Front Seat Height | 13.5" - 21" (34 - 53 cm) |
| Rear Seat Height | 11.5" - 21" (29 - 51 cm) |
| Top Frame Tubing Size | 1" (2.54 cm) |
| Bottom Frame Tubing Size | 1 1/8" (2.86 cm) |
| Axle Positions Available | 7 |
| Center of Gravity Adjustment Increments | 0.5" (1.27 cm) |
| Center of Gravity Adjustment Range | 2" (5.08 cm) |
| Camber | 0° - 4° (1° increments) |
| Frame Material | 7000 Series Aluminum |
| Weight Capacity | 300 lbs (136 kg) |
| Weight Capacity HD | 350 lbs (158 kg) |
| HCPCS | K0005 |
* 16”x16” Frame, 5”x1” Poly Casters, Height Adjustable T-Arm Receivers. Footrest and Rear Wheels removed.
CATALYST 5Vx Downloads
Order FormBrochureCompetitive AdvantageTechnical ManualUser Manual
No Buyers info available
Ki Mobility warrants the frame, cross braces, hangers and quick release axles of your Catalyst wheelchair against defects in materials and workmanship for the life of the original purchaser. All other parts and components of this wheelchair are warranted against defects in materials and workmanship for one year from the date of first consumer purchase.
The expected life of the frame is five years.
