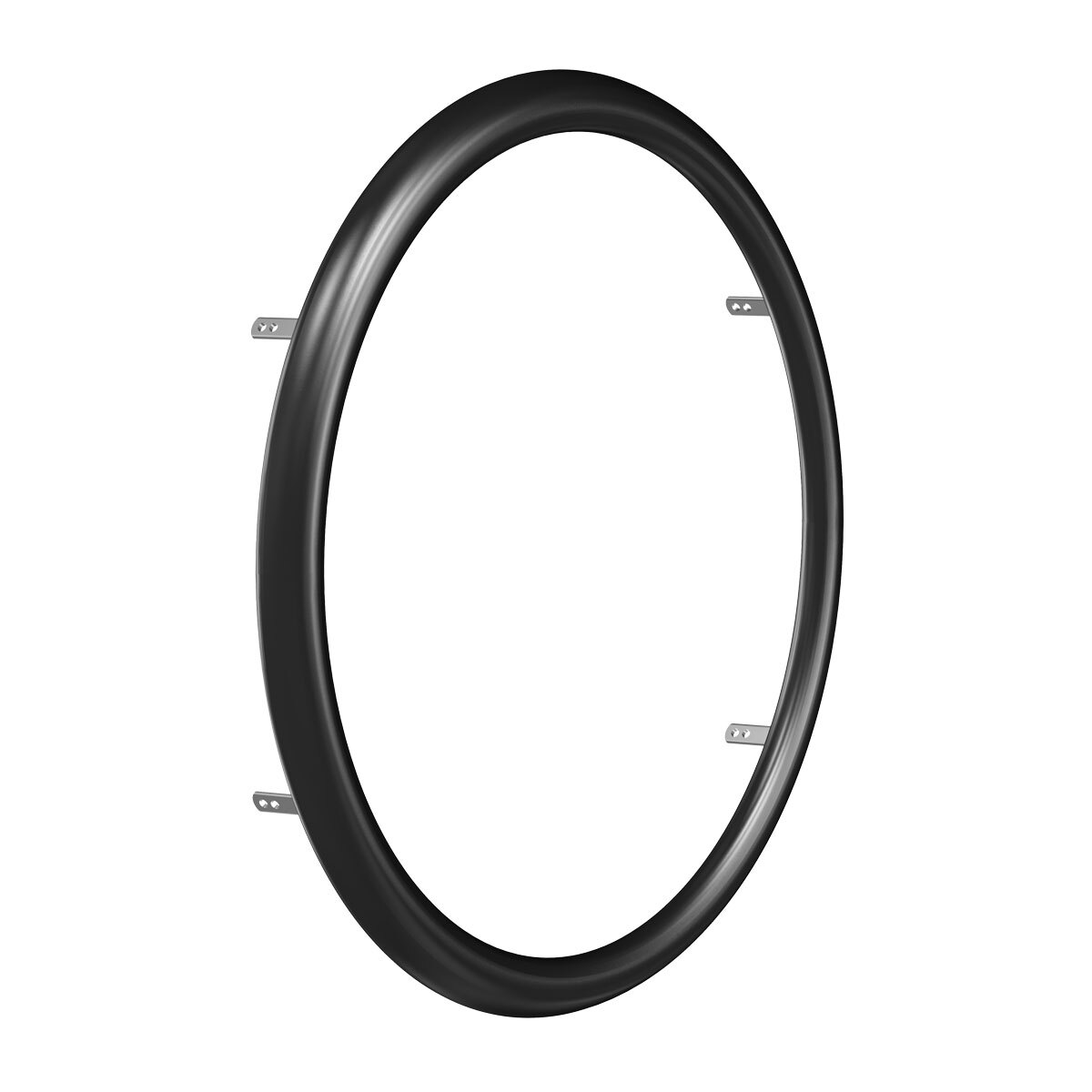

CarboLife Handrims QUADRO (Pair)
The QUADRO will push the limits of your mobility!
For our US customers, this product is a LivingSpinal exclusive!
The Carbolife QUADRO handrims will shift the limits of your mobility!

Designed with the biomechanics of tetraplegics with no triceps function in mind, the profile of the QUADRO provides you with a considerably larger gripping surface than a conventional handrim. Featuring an extremely robust anti-slip coating, it offers you unsurpassed grip for efficient propulsion as well as maximum control during braking and when correcting the direction of travel.
Quadro Handrims Features
- Ergonomic quad-profile handrim design improves grip and propulsion efficiency
- Unique four-sided (“QUADRO”) contour provides multiple contact surfaces for better hand positioning and control
- Helps reduce hand slippage during propulsion and braking
- Manufactured from high-quality lightweight aluminum for strength and durability
- Available with Grip coating options for enhanced traction and comfort
- Supports smoother propulsion with less effort and fatigue
- Compatible with many active wheelchair wheel setups and mounting standards
- Can be paired with lightweight performance wheels for optimized mobility
- Rounded transitions and smooth surfaces improve comfort during continuous contact
- Modern aesthetic with performance-focused engineering
- German-engineered design emphasizing ergonomics and user comfort
Carbolife Handrim Quadro Specifications
| Specification | Details |
| Product Type | Ergonomic wheelchair handrims (pair) |
| Brand | CarboLife |
| Intended Users | Limited hand function / tetraplegia |
| Recommended Hand Function | Without triceps function |
| Available Sizes | 22", 24", 25", 26" |
| Material | Carbon fiber composite |
| Surface Coating | Tetra-Grip / anti-slip coating |
| Mounting Type | 6-Tab Mounting |
| Color | Black |
| Grip Profile | Large ergonomic oval profile |
| Hand Size Suitability | Normal to large hands |
| Quantity | Sold as a pair |
Mounting / Bolt Circle Dimensions
| Mounting Configuration | Diameter |
| 6 Rivnut Mount | 461 mm, 502 mm, 515 mm, 520 mm, 534 mm |
| 6 Tab Mount | 465 mm, 512 mm, 523 mm, 535 mm, 576 mm |
These dimensions correspond to wheelchair wheel mounting systems and vary depending on wheel size and manufacturer compatibility.
How to Measure Your Handrim Dimensions
Your wheels on your wheelchair have either a Tab Mount or a Rivnut system for securing the handrims in place. Use the chart below to determine what your wheels have and what size you need.

Handrim Quadro Videos
Carbolife Quadro Handrim Downloads
Installation, Operating & Care Instructions
CarboLife Handrims QUADRO (Pair) Buyer’s Guide
The CarboLife Handrims QUADRO (Pair) are engineered for wheelchair users who require enhanced grip control and optimized ergonomics during daily use. These high-performance handrims feature a unique square profile and advanced materials designed to improve power transfer and reduce strain on the hands and wrists.
CarboLife Handrims QUADRO Lightweight Carbon Construction
Each handrim in the Quadro wheelchair handrims is constructed from high-strength carbon fiber. This material not only ensures exceptional durability but also provides a lightweight feel that reduces the overall weight of the wheelchair, contributing to greater maneuverability and responsiveness.
Square Profile for Maximum Grip
The defining feature of the CarboLife Handrims QUADRO is their square tubular profile. Unlike round or oval handrims, the QUADRO shape offers flat, angular surfaces that improve grip precision. This design makes it easier to initiate propulsion and braking with less hand slippage.
CarboLife Wheelchair Handrims Designed for Controlled Braking
The QUADRO handrims provide increased surface area on the flat sides, which allows users to brake more effectively without needing excessive force. The squared design also helps dissipate heat more efficiently during extended braking, keeping the rims comfortable to the touch.
Advanced Ergonomic Design
By encouraging a more natural wrist position, the CarboLife Handrims QUADRO help reduce stress on the joints during repetitive motion. The geometry is tailored to support users with varying levels of hand function, including those with limited grip strength or joint sensitivity.
Wheelchair Handrims by CarboLife Compatible with Standard Wheel Sizes
The CarboLife Handrims are available in common handrim diameters, making them compatible with most adult manual wheelchair wheels. They are easy to mount and replace, requiring no specialized tools for installation.
Matte Finish for Surface Control
The matte carbon surface of the QUADRO handrims enhances tactile feedback and provides a controlled feel during propulsion. Unlike polished or metallic handrims, the matte texture improves friction without creating excessive drag.
Ideal for Daily and Active Use
Although the CarboLife wheelchair handrims are optimized for ergonomic performance, they are equally suitable for users who need dependable function during high-frequency daily routines. Their lightweight design supports active users who navigate various environments throughout the day.
CarboLife Handrims QUADRO (Pair) Review
The CarboLife Handrims QUADRO are a standout upgrade for wheelchair users seeking a lightweight, ergonomic, and high-grip solution. With their distinctive square profile and carbon fiber construction, they offer enhanced control and reduced joint strain without compromising durability or compatibility.
